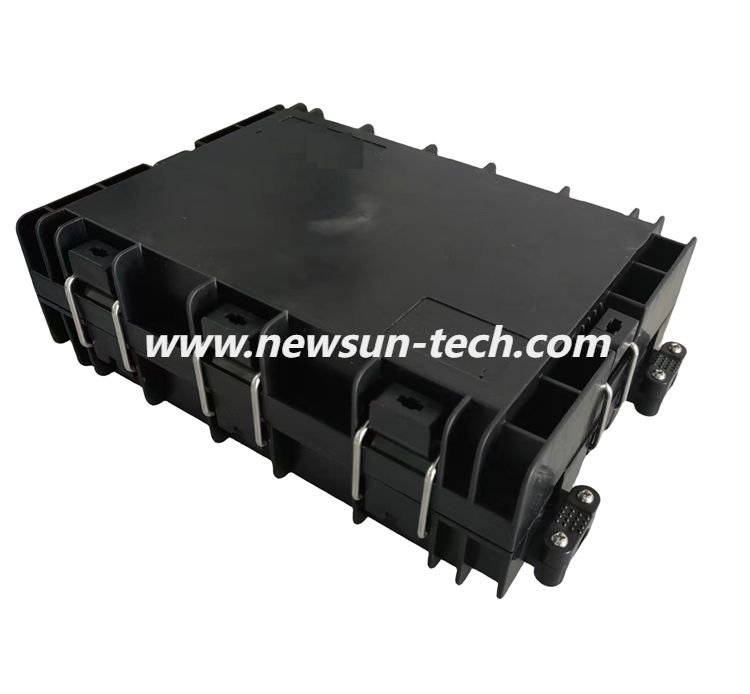

NS-FOSC48 IP65 Outdoor In-line Type Fiber Splice Closure

Product name: Outdoor In-line Type Fiber Splice Closure
Max core:48
Protection level:IP65
Size:281 x 180 x 83mm
sharethis sharing button
  • NS-FOSC48


In-line type Fiber Splice Closure

In-line type Aerial Fiber Splice Closure is used as a cable connection and branching point in optical telecommunication network. It integrates fiber splicing, cable branching, bypass, fiber storage and splitting function in aerial environment. It can be mounted upon the messenger wire. There are different types for various usage, FOSC48 is the smallest type.

Features and Benefits

*The closure body is made from reliable plastic material, it can work for long time in outdoor and aerial environment.

*Reasonable structure design for easy installation and re-entry.

* It provides up to 48F fiber fusion splice.

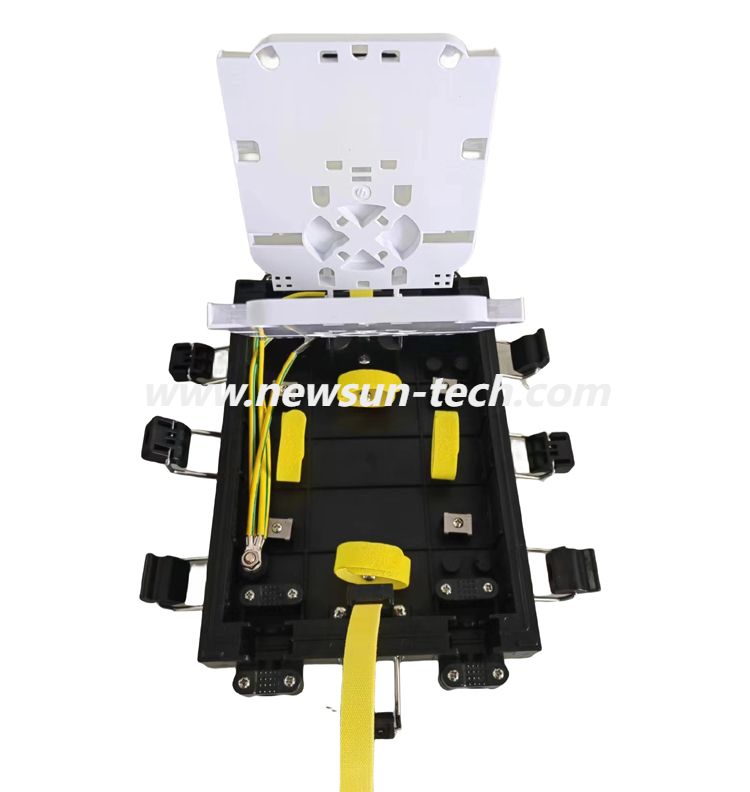

* The splice tray is detachable and modular designed.

* SPL-MS series micro splitter can be installed in splice tray.

* Grounding facilities are configured for lightning resistance because of aerial use.

*Protection level IP65

Splice tray24F
Maximum number of splice tray2 pcs
Single splice tray capacity (unit: core)48F
Splittermicro splitter without connector,installed in splice tray
Cable entrance size4(2 left 2 right)entrances,Dia.6~21mm
Protection levelIP65
Weight (kg)1~2
Operation and storage temperature-10 to 60 ℃
MaterialsReinforce plastic and stainless steel 304
Mounting waymessenger wire in line installation

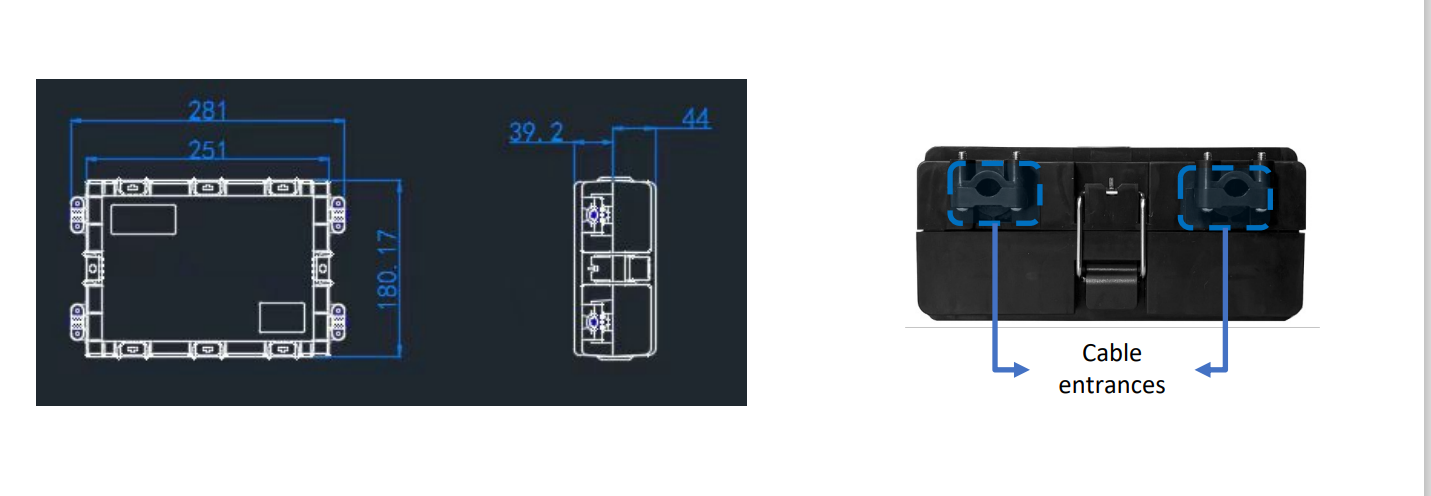

Dimension and cable entrances

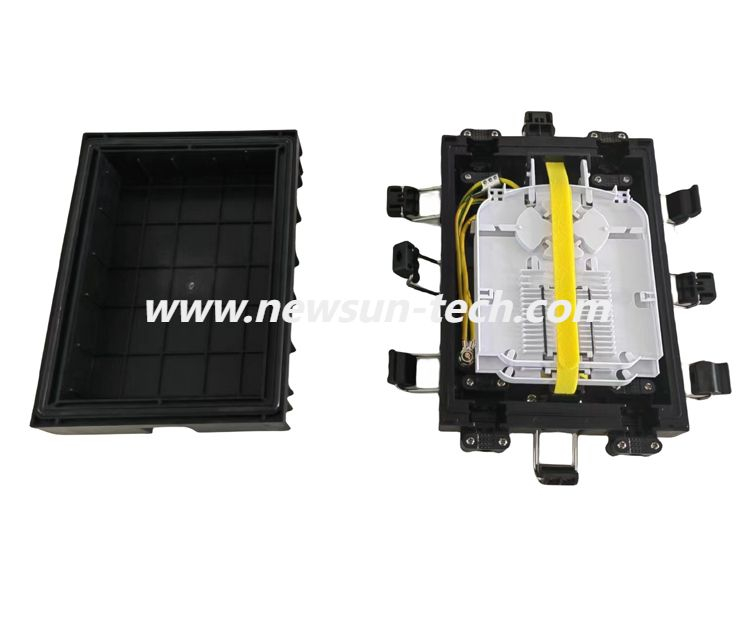

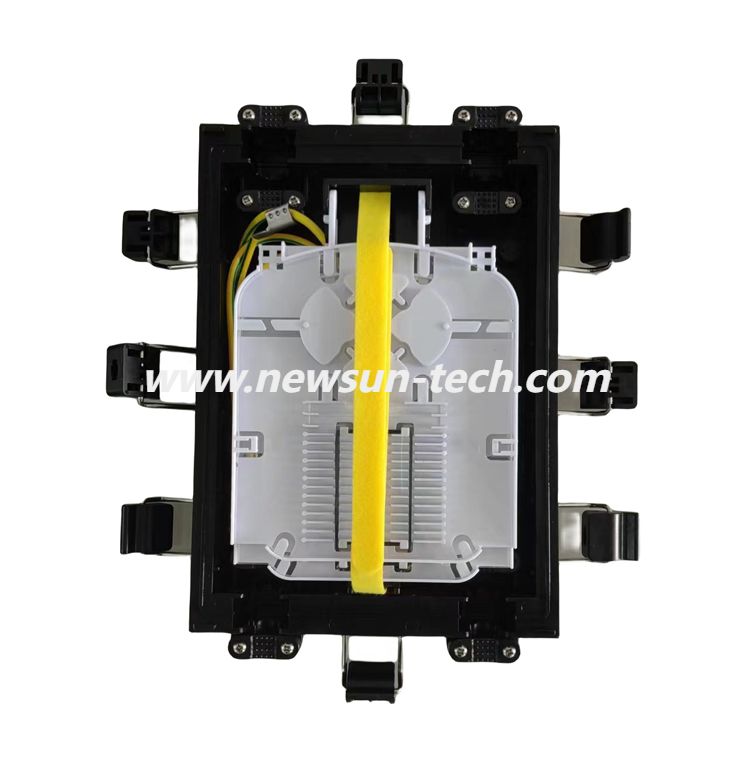

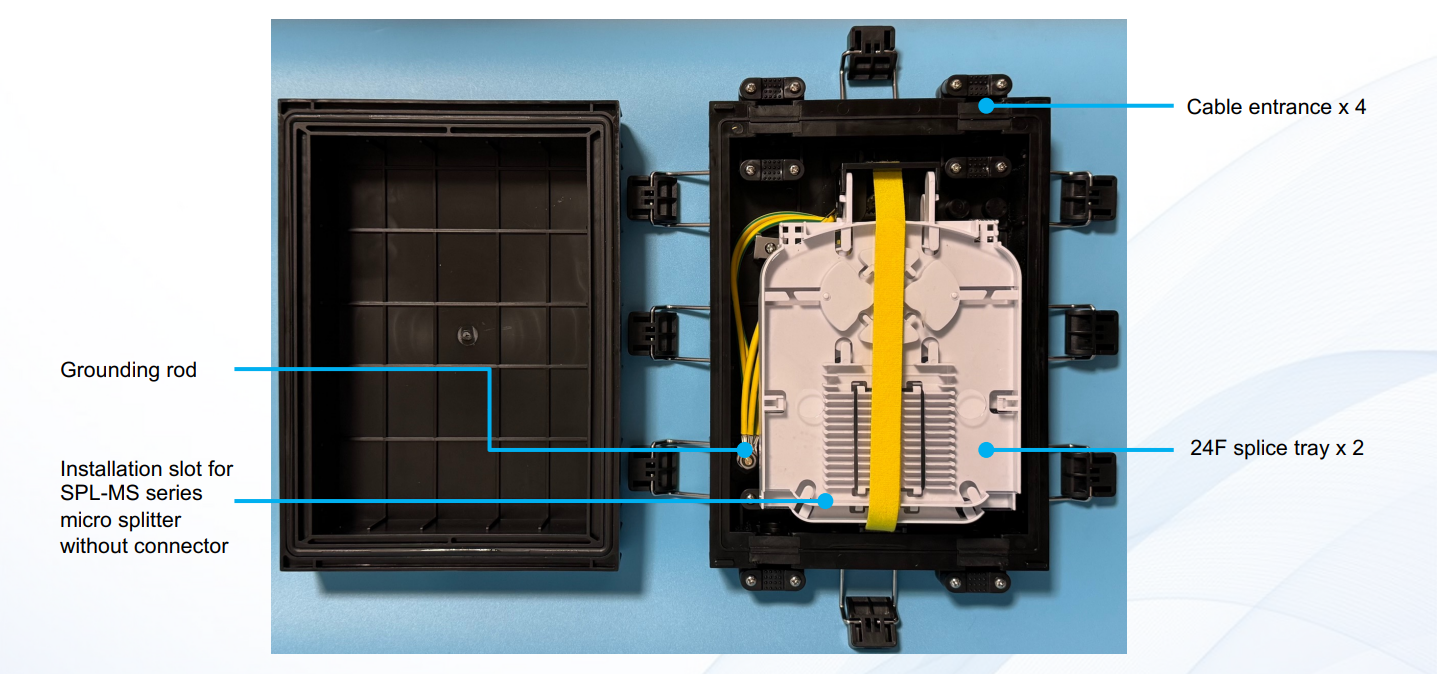

Internal Structure


certificate of conformity

Certificate of Conformity

Quality management system certificationQuality Management System

certification for sale transport

Certification for Sale Transport

ISO 9001

ISO 9001



Patent certificate

                     Patent Certificate

Fiber termination box contains the shell, the internals (supporting frame, set fiber disc, fixing device) and optical fiber joint protective element. Prominent advantages of fiber termination box lie in efficient cable-fixing, welding and its protective role in machinery of the optical fiber.

A insulation is always demanded between cable metal components and cable terminal box shell in a fiber termination box, which provides space for cable terminal and remained fiber storage. In addition, fiber termination box also facilitate the installation of different occasions since it is easy to access, which turns out to be time and cost saving.


Fiber termination box is universally used in telephone, agricultural telephone network system, data and image transmission system, CATV cable television series, indoor cable through force access and branch connection. Fiber termination box is available for the distribution and termination connection for various kinds of fiber optic systems, especially suitable for mini-network terminal distribution, in which the optical cables, patch cores or pigtails are connected. In addition to that, fiber termination box can be applied to joint fiber pigtail, protect fiber optic splices and share out the connectivity to individual customers.
