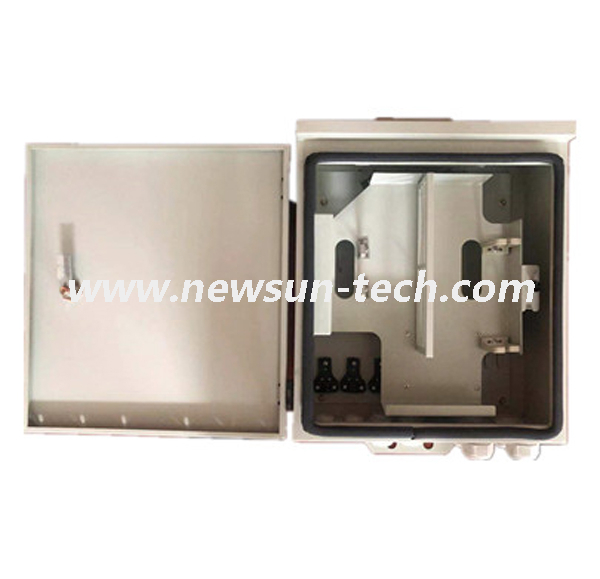

24,48,72 Core Outdoor Waterproof Wall Mounted Fiber Optic Terminal Box

Material: Cold Rolled Steel/SMC
Core No.:24/48/72 fibers
Size:550*370*170mm
Protection level: IP65
Suitable for adapter type:SC/LC/ST/FC
Availability:
Quantity:
  • NSTB-7208
  • NEWSUN

Wall Mounted Termination Box is a compact and cost-efficient unit, designed specifically for indoor FTTx applications that require up to 72 fibers. This terminal box is simple to install and well suited for low-density fiber terminations.


Suitable for SC, LCFC.ST connections . The range of IP 65 rated wall boxes are constructed to comply with different levels of the Ingress Protection Rating Scheme. The boxes in their basic form are supplied unloaded ready for you to install the adapter of your choice. The box can also be pre-loaded complete with your required adapter and simple splice management kit, or pre-loaded with pigtails to meet your project needs.


Material Cold-rolling Steel/SMC/Customized
Max. Capacity of Fiber 72 Fibers
Suitable Adapter SC/FC/ST/LC
Atmosphere Pressure 70KPa~106KPa
IP Rating IP65
Dimensions (HxWxD) 550*370*170mm
No.of splice tray 4
Type Single Door Open
Color Milk White
Weight 8kg
Application Wall /Pole

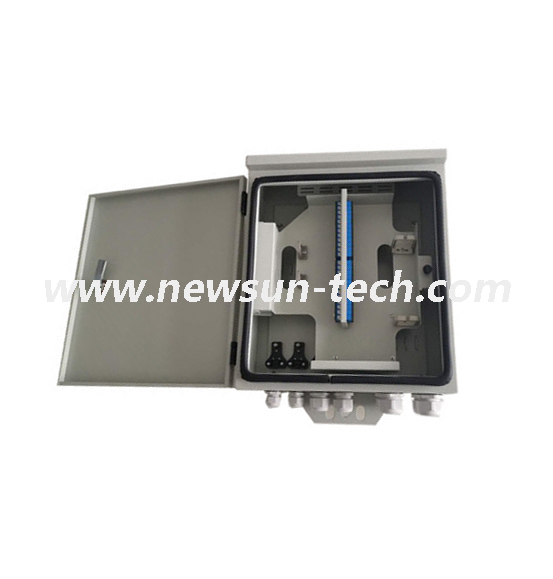

fiber terminal box

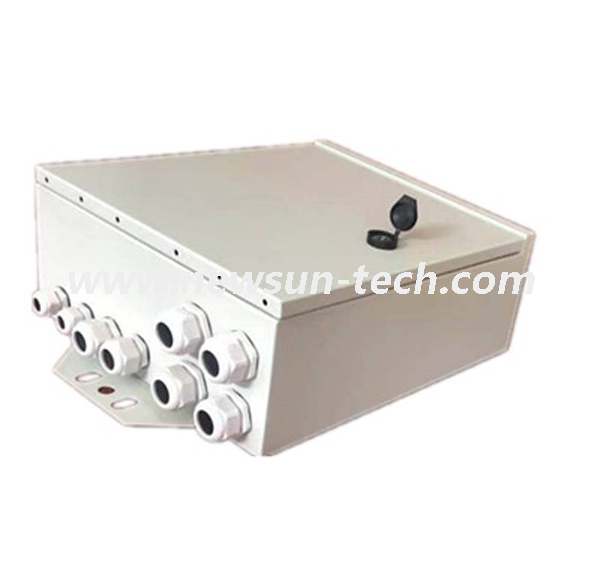

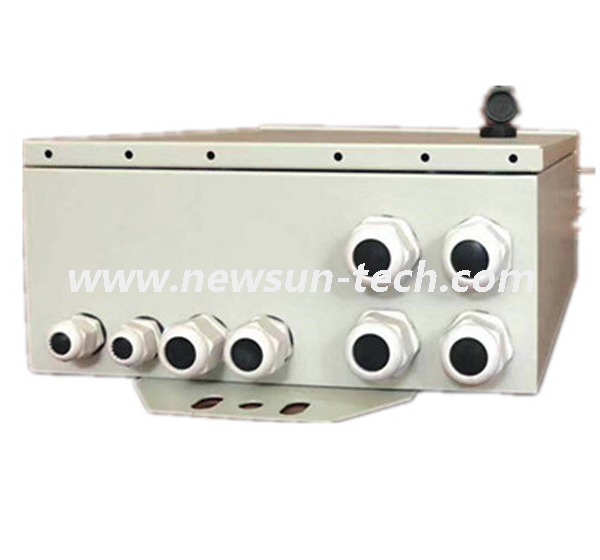

Fiber optic wall box system can be supplied unloaded ready for the installer to load with their choice of adapters, or pre-loaded with adapters ready for installation. With the ability to use a full array of adapter types, this wall box offers a flexible solution to the end user, enabling them to incorporate a multifunctional wall mounted box which allows easy access during installation or rework with no disturbance of existing cable or fibers. In addition to the array of adapters, the box also offers multiple cable entry and exit solutions: up to 4 standard entry points for 6mm~25mm cable and 4 cable glands position for drop cable,patch cord exit.

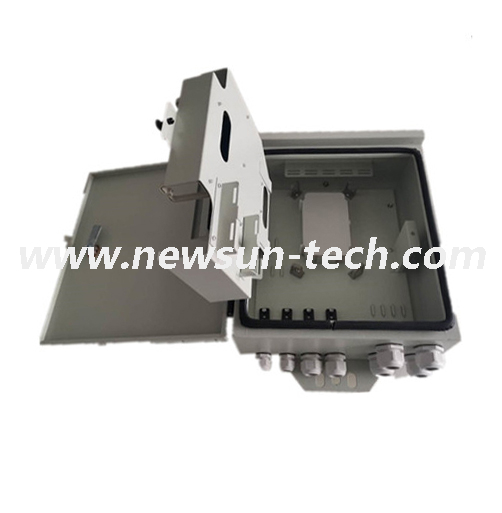

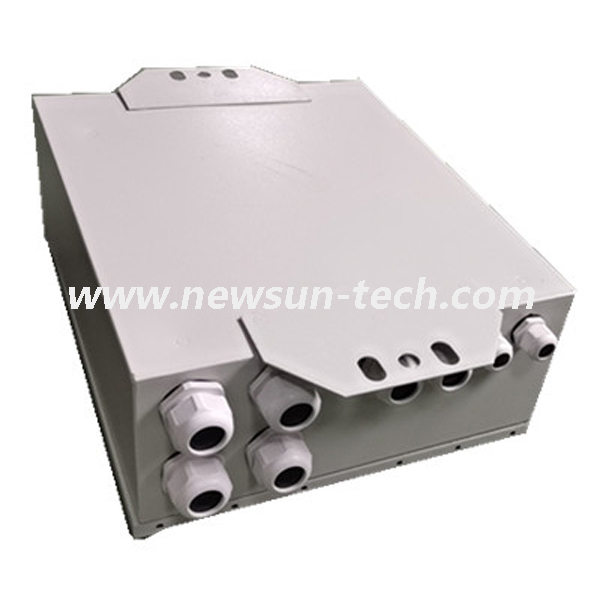

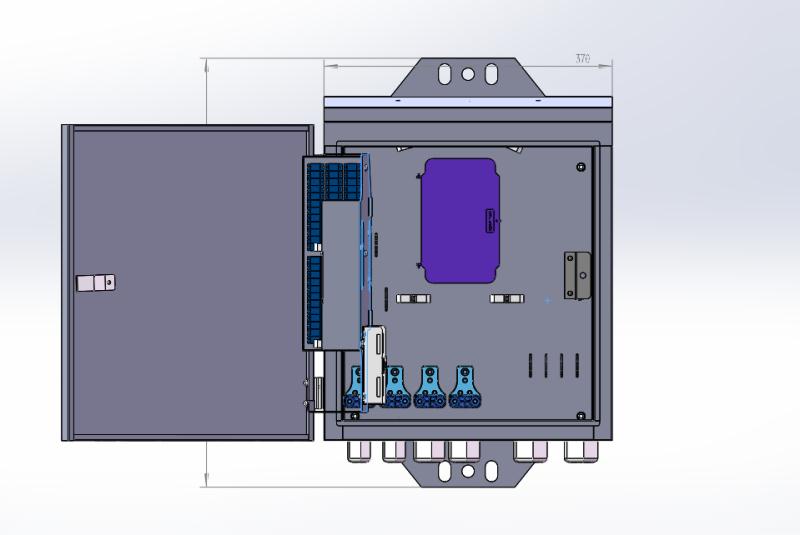

fiber distribution box

Features

• Compliant with ISO9001, RoHS certification

• Suitable for ribbon and bunchy fiber cables

• Fiber splice trays can be installed and changed easily

• Small dimension and exquisite and easy for operation

• Standard cell structure size, wall mounted patch panel

Applications

• Widely used in FTTH access network

• Telecommunication Networks

• CATV Networks

• Data Communications Networks

• Local Area Networks


certificate of conformity

Certificate of Conformity


Quality management system certificationQuality Management System


certification for sale transport

Certification for Sale Transport

ISO 9001

ISO 9001


SGS

SGS


Patent certificate

                     Patent Certificate





SMC Cabinet

  1. High strength glass-fiber polyester (SMC) body ensures excellent performance of mechanical durability, anti-erosion, aging resistance and lightweight.

  2. Double-sided operation (front and rear), with a single swinging door at both side, front-facing operation.

  3. Independent route of patch cord and fiber optic between front and rear.

  4. Capacity up to 576 fiber.

  5. Available in FC / SC / ST / duplex LC adapters.

  6. High strength glass-fiber polyester (SMC) body;

  7. Pole and pad versions available;

  8. Front access with locking feature;

  9. Provides flexible fiber cable management;

  10. Compatible with all types of PLC splitters;

  11. Unique design minimizes fiber routing congestion;

  12. Pre-connectorized fiber pigtails installed for rapid deployment;



We offer:

1. Customized size available upon request.

2. Pole and pad versions available.

3. Front and back access with locking feature.

4. Provides flexible fiber cable management.

5. Pre-connectorized fiber pigtails installed for rapid deployment.

6. Unique design minimizes fiber routing congestion.

7. Fully Customizable.
