NSTB04 Fiber Optic Outlet 8F ODF Indoor Termination Box

Product name: Fiber Terminal Box 4port
Size:100H*80W*28D
Port:4
Connector:SC or LC
Availability:
Quantity:
sharethis sharing button
  • NSTB04

  • NEWSUN TECH

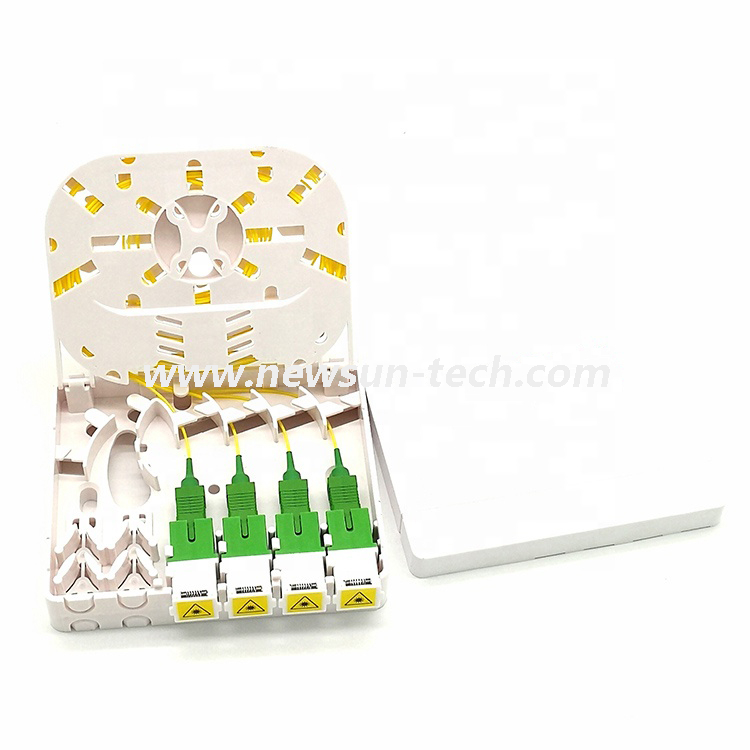

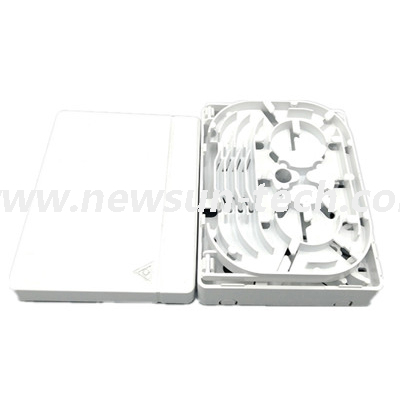

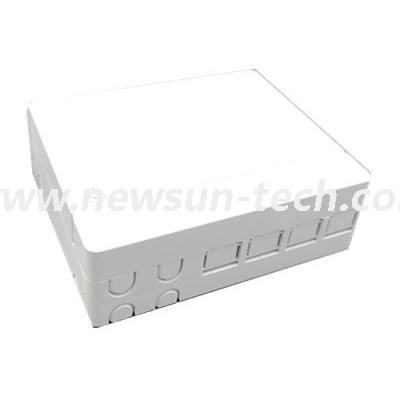

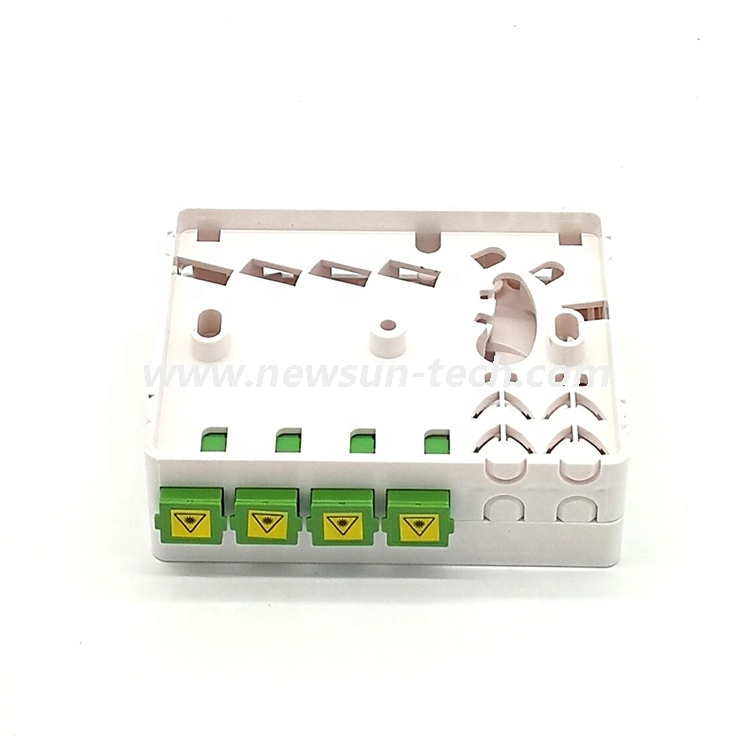

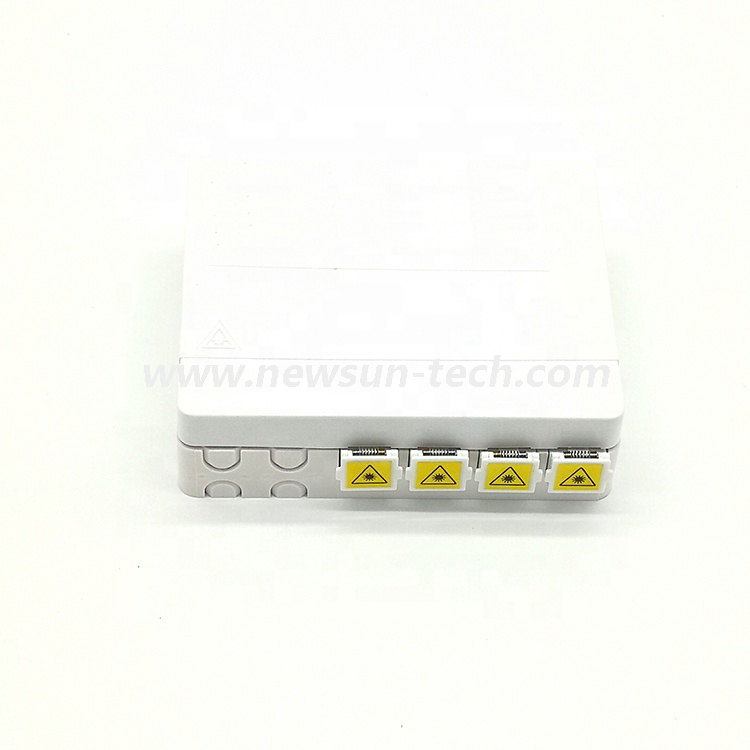

Indoor Wall mount 4ports SC mini fiber optic terminal box


NSTB04 fiber termination box is able to hold up to 4 subscribers. It is used as a termination point for the drop cable to connect with patch cable in FTTH indoor application. The PTO allows a fiber reserve on two independent levels as well as the placement of heat-shrinkable protections or mechanical splices. It integrates fiber termination, storage and cable connection in one solid protection box.


TypeNSTB04
Size(mm) W*D*H100*81*28mm
ColorWhite
Cable Ports4
Max capacity of splice4(single fiber) for SC, 8port for LC
Adapter typeSC/UPC, SC/APC,LC/UPC,LC/APC
MaterialPC+ABS


Indoor Wall mount 4ports fiber optic terminal box


Dust-proof design with IP-45 Protection Level.

Integrated with splice cassette and cable management rods.

Manage fibers in a reasonable fiber radius condition.

Easy to maintain and extend the capacity.

Suitable for the fusion splice or mechanical splice.

Embedded type surface, easy for installation and removal.

Assembly and disassembly in closed position: protection of the interior elements

4 ports cable entrance for patch cable.

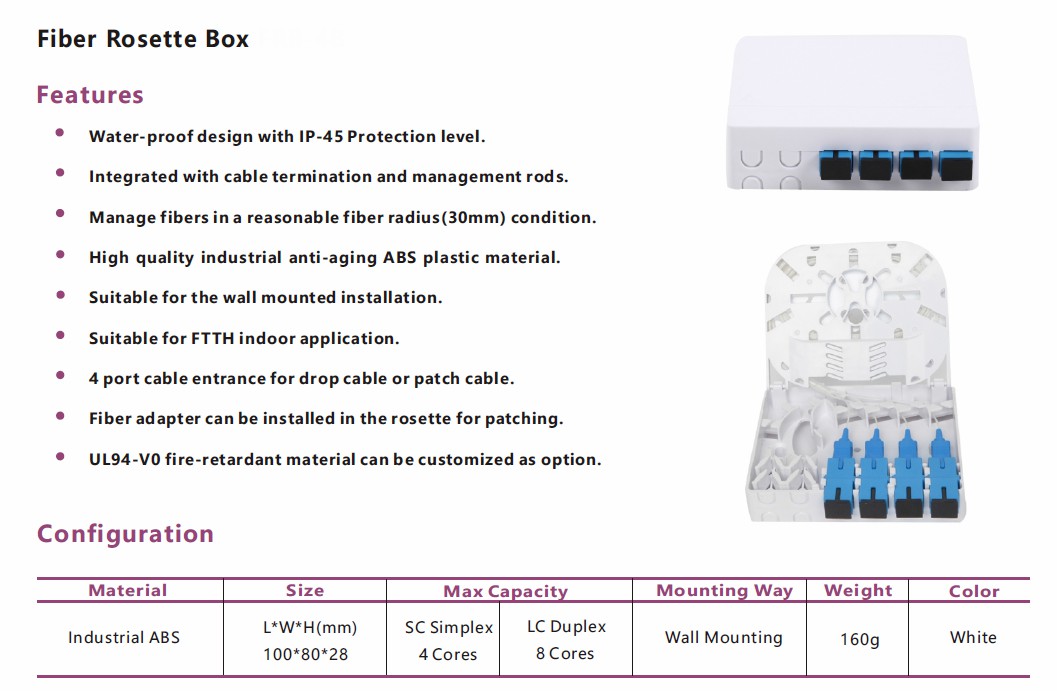

fiber optic terminal box

certificate of conformity

Certificate of Conformity


Quality management system certificationQuality Management System


certification for sale transport

Certification for Sale Transport

ISO 9001

ISO 9001


SGS

SGS


Patent certificate

                     Patent Certificate




Fiber termination box contains the shell, the internals (supporting frame, set fiber disc, fixing device) and optical fiber joint protective element. Prominent advantages of fiber termination box lie in efficient cable-fixing, welding and its protective role in machinery of the optical fiber.


A insulation is always demanded between cable metal components and cable terminal box shell in a fiber termination box, which provides space for cable terminal and remained fiber storage. In addition, fiber termination box also facilitate the installation of different occasions since it is easy to access, which turns out to be time and cost saving.



Application

Fiber termination box is universally used in telephone, agricultural telephone network system, data and image transmission system, CATV cable television series, indoor cable through force access and branch connection. Fiber termination box is available for the distribution and termination connection for various kinds of fiber optic systems, especially suitable for mini-network terminal distribution, in which the optical cables, patch cores or pigtails are connected. In addition to that, fiber termination box can be applied to joint fiber pigtail, protect fiber optic splices and share out the connectivity to individual customers.
