Product Introduction

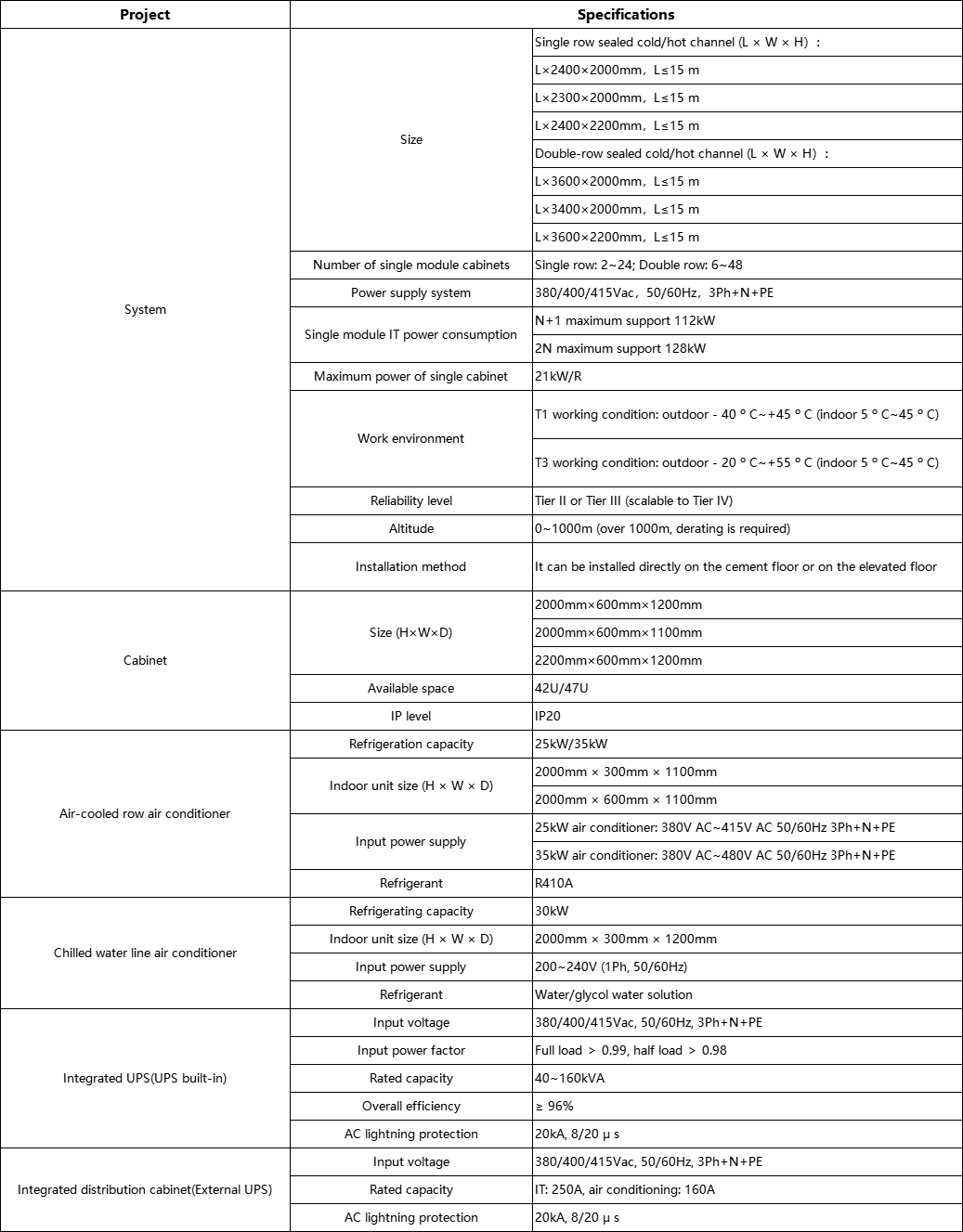

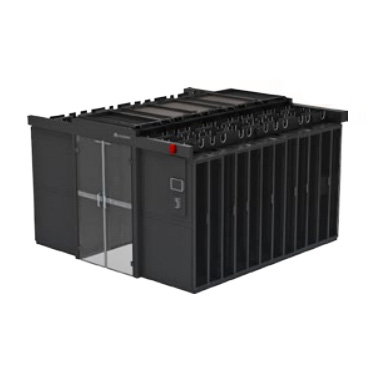

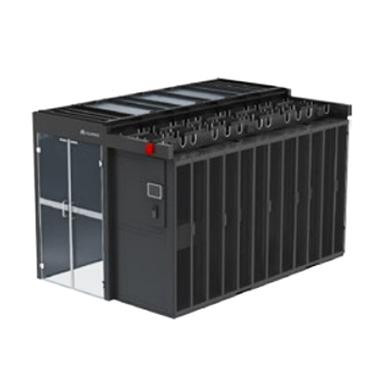

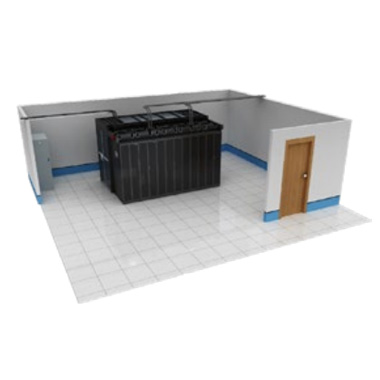

Module2000 intelligent micro module is a new generation of data center infrastructure solution. Module2000 adopts highly integrated design, integrates all subsystems such as cabinet, power supply, refrigeration, wiring and management, and supports flexible deployment of single-row or double-row closed cold/hot channels.The maximum IT power consumption of single cabinet can reach 21kW/cabinet.
Application

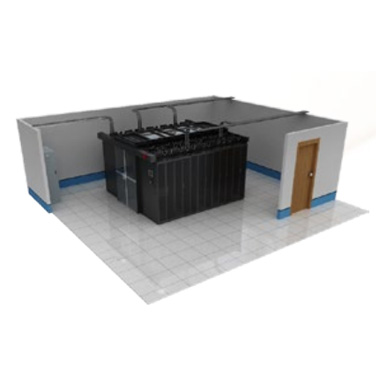

• Single module can be used in small and medium-sized data centers with a total power consumption of less than 128kW and an area of less than 500 square meters, and also in data centers of large enterprise branches
• Multiple modules can also be used to build medium and large data centers. It can meet the needs of government and education.Deployment requirements of large data centers in education, medical care, finance, telecommunications and other industries.
Features&Value
Reliable
• There is no condensation under light load, and the machine room can still be dehumidified at constant temperature under 10% load to ensure the safe operation of the equipment
• Strong environmental adaptability, stable operation under wide voltage, wide temperature and wide load conditions
• Battery temperature detection and early warning, intelligent shutdown and fire prevention, and load outage rate reduced by 50%
Efficient
• Near end cooling, efficient power supply, modular PUE as low as 1.45 (measured in Shenzhen)

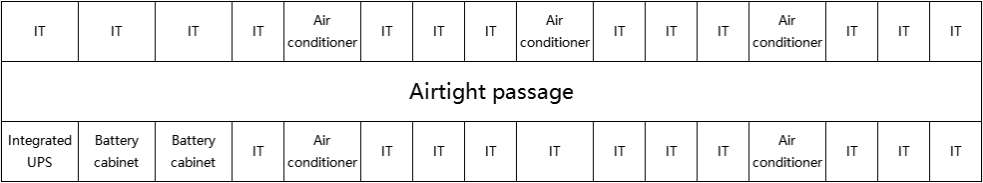

• Seal channel design, isolate hot and cold airflow, and eliminate local hot spots
• Efficient integrated UPS power supply and distribution, leading the industry in energy efficiency
Simple
• Standardized components, modular architecture, matching business and rapid on-demand deployment
• Integrated power supply and distribution, saving space, and deploying 1-2 more equipment cabinets
• Remote and local intelligent management, mobile operation and maintenance, simple and easy
Product Introduction

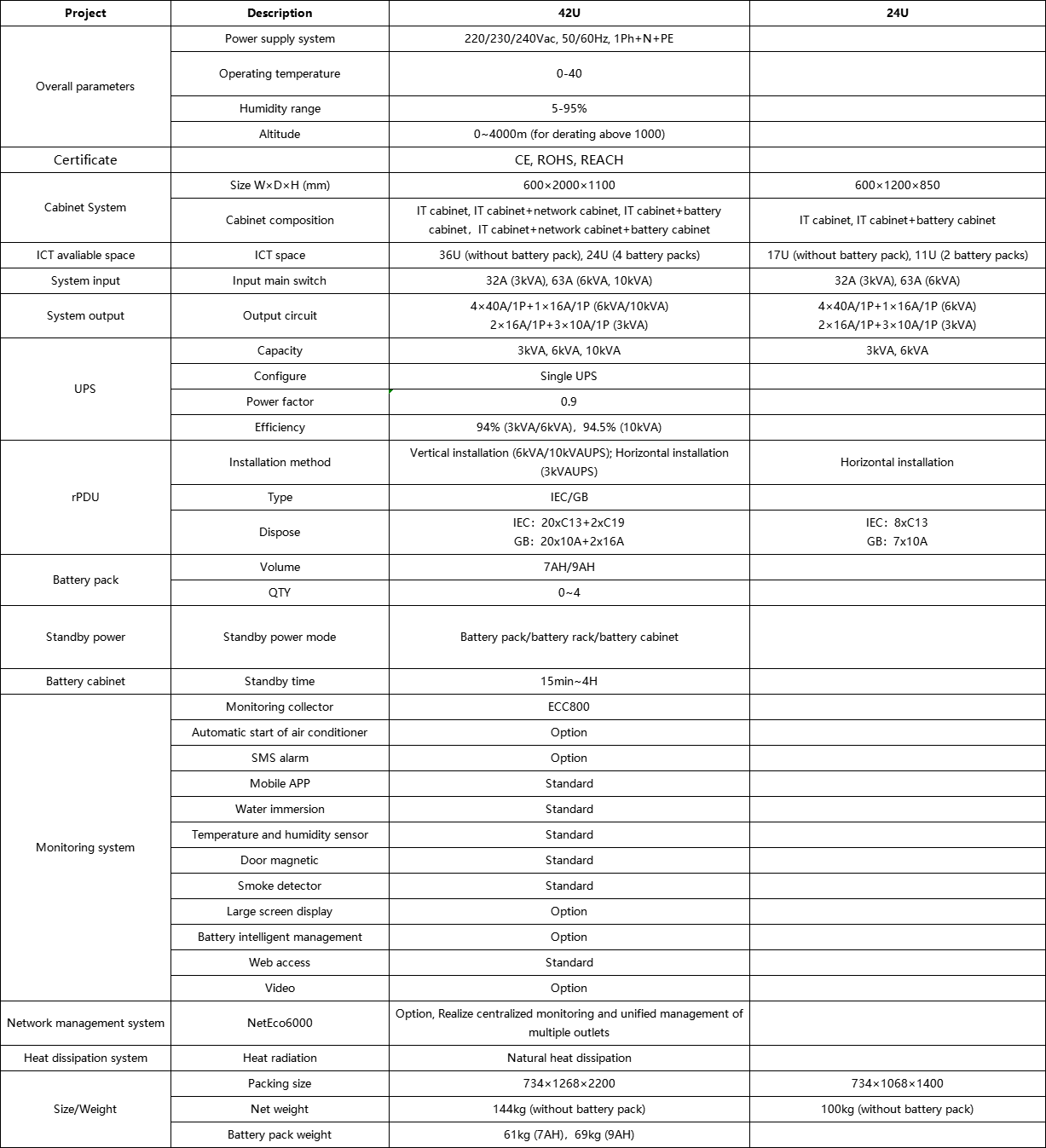

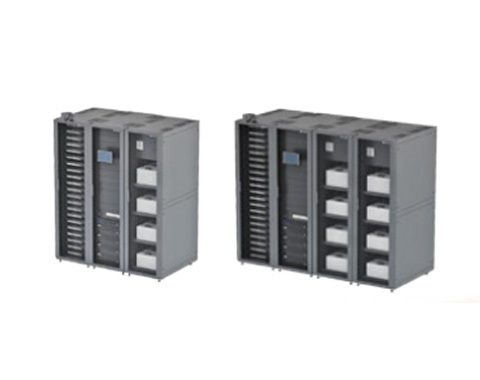

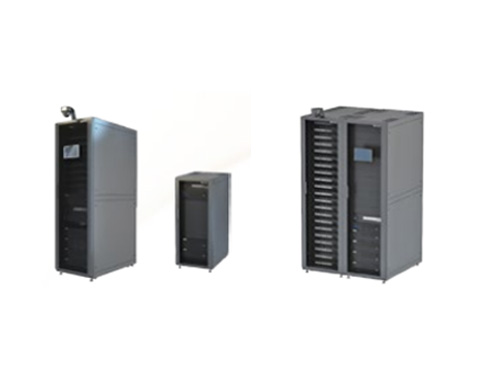

FusionModule580 miniature intelligent micro-module data center solution, integrated with UPS, power distribution, monitoring and battery in one cabinet.All components are prefabricated, pre-assembled and pre-commissioned in the factory, and the on-site installation is simple and feasible, which can realize rapid deployment.With remote web interface monitoring function, it can realize remote operation and maintenance of a single node. At the same time, NetEco network management system can be equipped to realize centralized monitoring and unified management of multiple outlets.
Features&Value
Simple
• Integrated pre-integration, on-site installation only takes 2 hours
• Remote battery discharge, mobile APP, SMS alarm, remote web platform monitoring
• Unified management of multiple outlets and simple operation and maintenance
Efficient
• Cabinet-level machine room, saving at least 50% of the floor space
Reliable
• The civil air conditioner starts automatically when the power is on, and the inorganic room overheats
• Intelligent shutdown of overheated battery to prevent fire
Application
• Financial outlets, education, medical care, public security, small and medium-sized enterprises, commercial retail, etc
• No special machine room is required
