NSC-CBT12 Waterproof Connector Block Terminal Joint Closure Box

Product name: FTTX Field Enclosure
Port:4,6,8,12
Connector type:ODVA/LC , MINI-SC,MINI-LC,MINI-MPO ,RJ45
Availability:
Quantity:
sharethis sharing button
  • NSC-CBT12

  • NEWSUN TECH

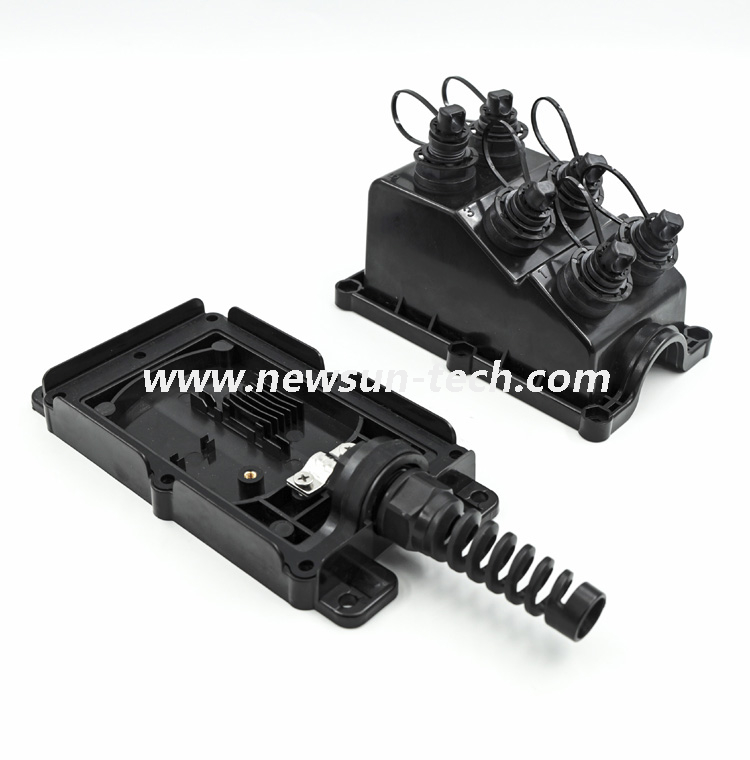

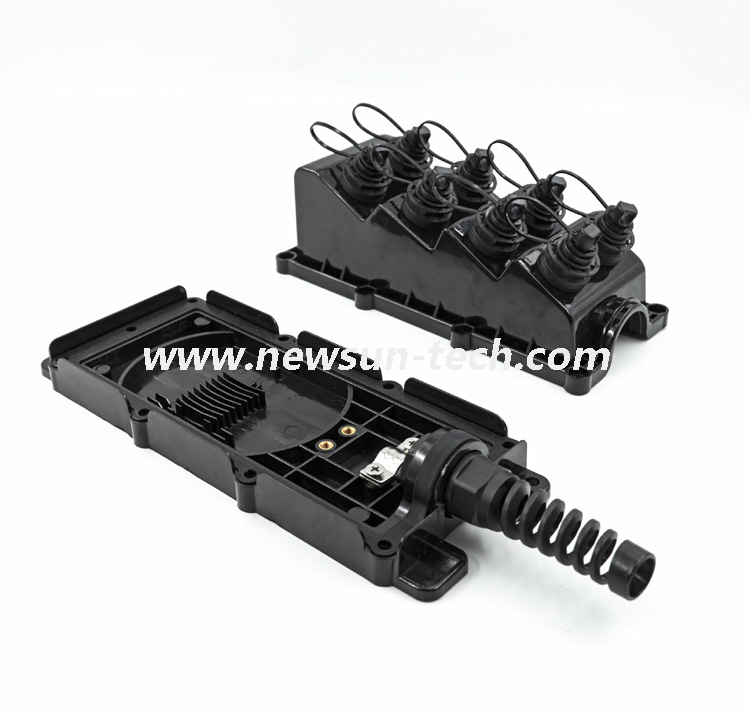

FTTX Field Enclosure


FTTX Enclosure is a new economic fiber distributed solution for outdoor use. Compare traditional products, FTTX Enclosure is easy to operate and has high compatibility. It can be used for wall-mounting, aerial installation or holding pole installation, based on different situation.FTTX Enclosure not only used in FTTH field, but also used in FTTA or other harsh environment.

Waterproof Connector block terminal CBT BOX with mini sc apc adapter port pre-connect FTTA FTTX FTTH distribution box.

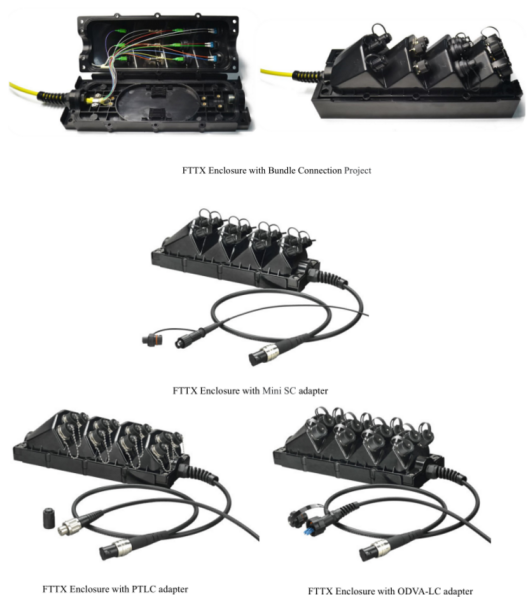

Corning closureribution box.

Features and Benefits:

*High compatibility: can be assembled ODVA, Hconn (OptiTap compatible), Mini SC, ODC, PTLC, PTMPO or power adapter.
*Factory-sealed or field assembly.
*Strong enough: working under 1200N pulling force long term.
*From 2 to 12 ports for single or multi-fiber harsh connectors.
*Available with PLC or splice sleeve for fiber divide .
*IP68 waterproof rating.

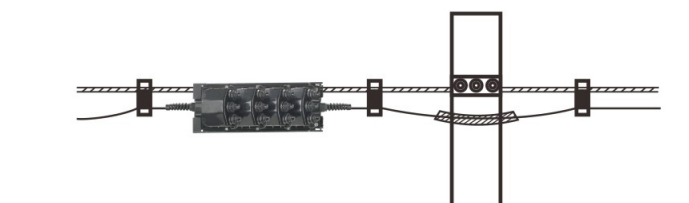

*Wall-mounting, aerial installation or holding pole installation.
* Decreased angle surface and height make sure no connector interfering when operating.
*Meet IEC 61753-1 standard.
*Cost effective: save 40% operating time.


Dimension  L*W*H

365*137*90mm without cover    375*142*120mm with cover

Ingress Protection

IP67

Temperature Range

-40~+80°

Cable Strength Member

Armored or None Armored

Cable Type

Hybrid or None Hybrid

Round Cable OD

5.0mm to 14 mm

Flat Cable Dimension

4.6*8.9mm

Cable Jacket Material

LSZH , TPU or PE

Bending Radius

20D

Cable Crush Resistance

200N/cm long term

Tensile Strength

1200N long term

UV Resistance

ISO 4892-3

Fire Protection Rating

UL 94-V0

Number of PLC

1-2 PCS

Number of Protection Sleeves

1-24PCS

Order Information:

Adapter

Ports

Mode

Cable

Cable Type

PLC

Fusion Sleeve

Terminator

Installation Method

Mini SC (1F)

6

SM-G652D

1

Round Armored

With PLC

With fusion Sleeve

Hardened SC

Wall-mounting

Harened(1F)

8

SM-G657A2

2

Round no-armored

No PLC

No fusion

Sleeve

ODVA

Aerial

ODVA(1F &2F)

12

MM 50/125

4

Flat



AARC

Pole holding

PTLC(2F)


MM 62.5/125

8

Round Hybrid



PTLC


AARC(2F&4F)



Customized




PTMPO


3P power socket







NA



Waterproof fiber splice enclosure

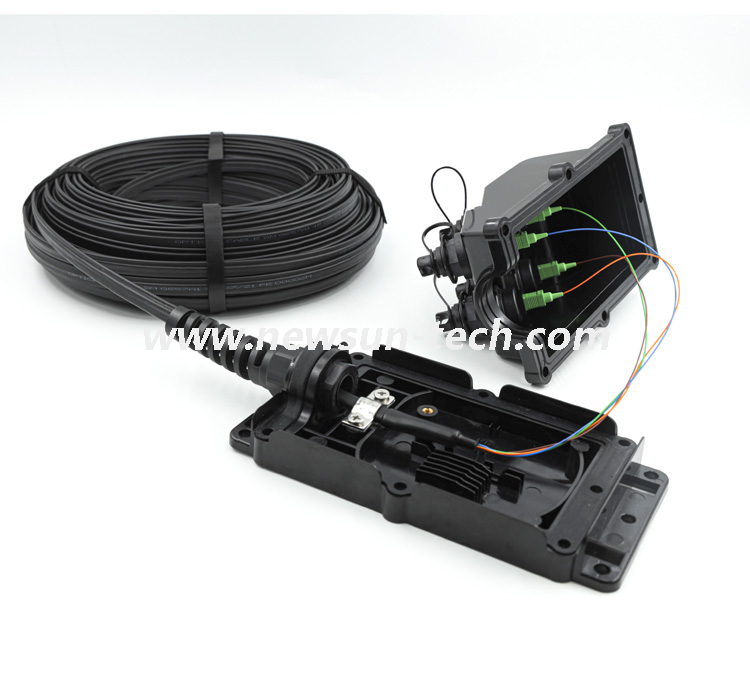

Traditional solution use ONU or FDH (Optical Network Unit/Fiber Distribution Hub), when trunk optical cable arrives to outside of mansions and villas. FTTX Enclosure can replace ONU or FDH because it has fiber distribution function. Inside, it can be fixed 2-4pcs 1*8 or 1*16 PLC, and can be put 24pcs fiber splice protection sleeves. After mating with 1-48F IP67 pre-assembled waterproof connector, FTTX Enclosure can connect each mansion and villa or low voltage silo directly. It can be fixed outside of mansions and villas, or holding pole installation. FTTX Enclosure can reduce signal loss through less connecting node. For in factory pre-assembled FTTX Enclosure, it's no need high skill operator because of no fiber splice operation. Installation efficiency can be increased by 40%.

optical fiber distribution box

*FTTA field

Traditionally, Remote Radio Unit (RRU) and Building Base band Unit (BBU) connected by optical fiber cable, formed star network topology. Each RRU need one duplex outdoor cable link to BBU. Installation will need more time and cost will be high.FTTX Enclosure work as an Aggregation/Demark box, link RRU and BBU together. From BBU to FTTX Enclosure, only need one multi-fiber hybrid cable. Then FTTX Enclosure divide fibers to each RRU through IP67 pre-assembled waterproof cable assemblies. RRU can get power through assembled power connector on FTTX Enclosure.It can avoid needless duplication

*Trunk Cable Connecting

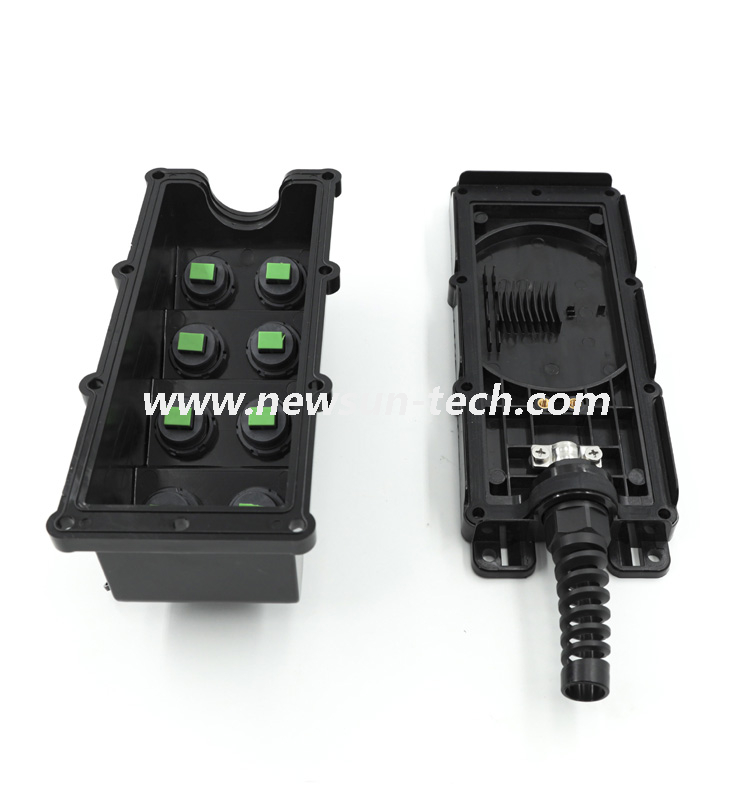

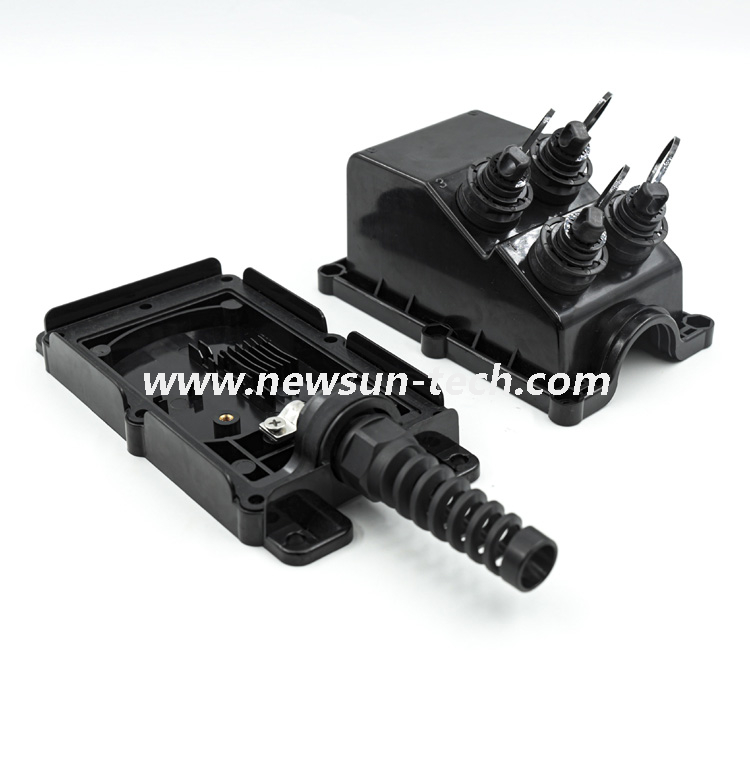

Trunk cable needs to be fusion welded frequently because of each drum cable length limited. So connecting point is weak and need to be protected very well. When trunk cable comes into FTTX Enclosure, it will be sealed and fixed by torsion proof cable gland (plastic or metal type). For 5mm-14mm out diameter cable,FTTX Enclosure has different accessories to fit. Torsion gland can release stress when trunk cable bending and protect fiber avoid breaking. Inside of the FTTX Enclosure, main cable and strength member were fixed by fastener, which make sure the box can stand 1200N pulling force long term. Splice protection sleeve (Max. 24pcs) and PLC (Max.2pcs) can be fixed on the body, which make FTTX Enclosure fiber divided very easy. Anti-skid design on the base case, which makes sure FTTX Enclosure holds wire/pole firmly.

*Prospecting or Military Communication

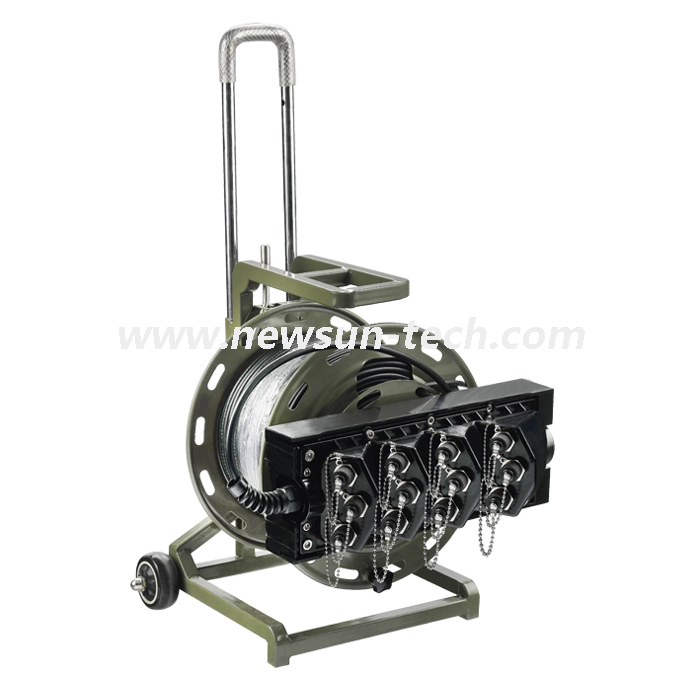

The cable will be replayed frequently, when prospecting or military communication. Normal connector and cable cannot stand frequently and high strength pulling and reuse. Inside of the FTTX Enclosure, armored cable and strength member were fixed by fastener, which make sure the box can stand 1200N pulling force long term. It's very suitable for field use, especially in star network communications. High strength material and arc interface design make sure FTTX Enclosure work abnormally when suffer shocks.


Fiber optic splice enclosures are used to protect stripped fiber optic cable and fiber optic splices from the environment, and they are available for indoor as well as outdoor mounting.

Outdoor fiber optic enclosures are usually weatherproof with watertight seals.

In a typical wall-mounted splice enclosure, fiber optic cable is supported by cable ties, and the cable strenght member is securely fastened to the enclosure’s support. Metallic strenght members must be grounded securely.

The cable jacket(sheath) stops at the splice enclosure’s cable ties. Optical fiber tubes, individual tight buffered fibers, or pigtails are supported by the tube brackets and continue to the splicing trays.

Individual optical fibers should never be exposed outside of a splice tray. Fusion splices or mechanical fiber optic cable splices are contained in the splice trays.



Features:

Large number of cable entry knockouts for incoming and outgoing cables;

Key-lockable main door to prevent accidental opening of splice compartment;

Able to hold up to six MTP loaded cassettes;

Standard accessory kit for cable entry and fibre management included;



Applications:

Ideal for fusion splicing

High fibre density applications

Repairing damaged cables

Suitable for direct termination

Remote cable terminations within building
