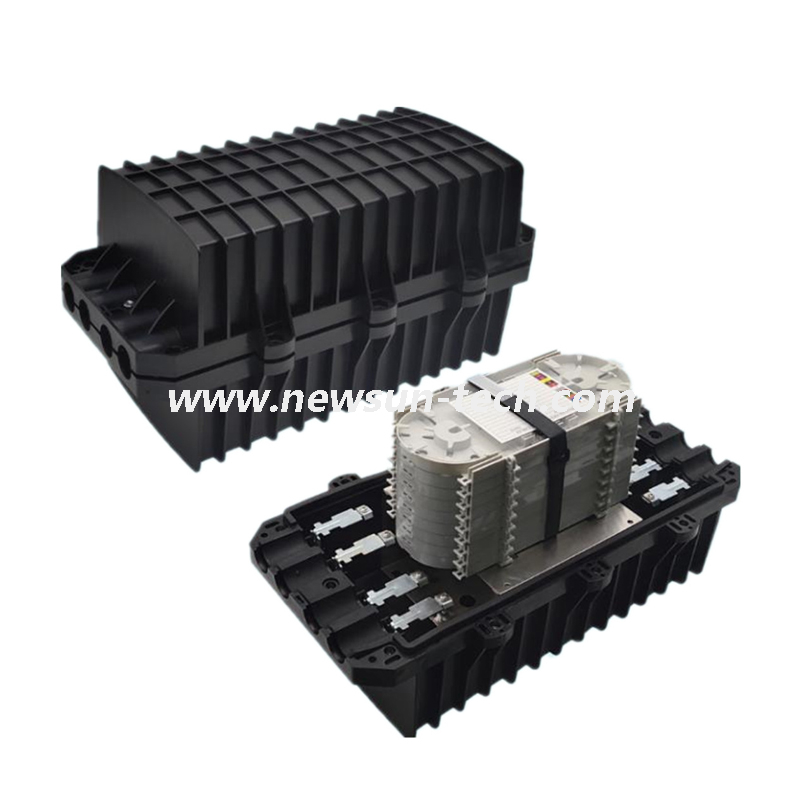

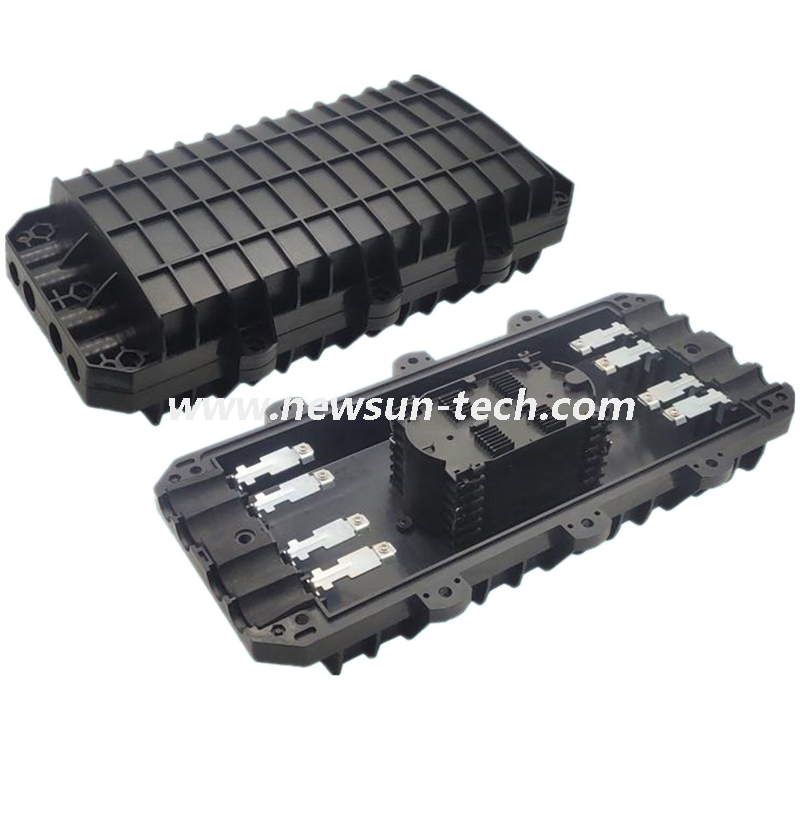

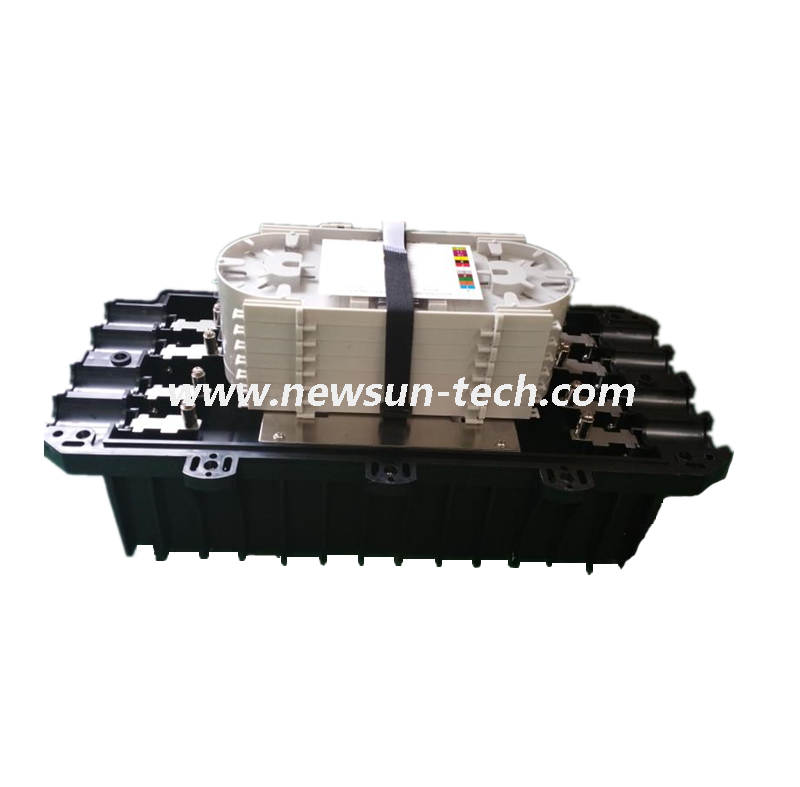

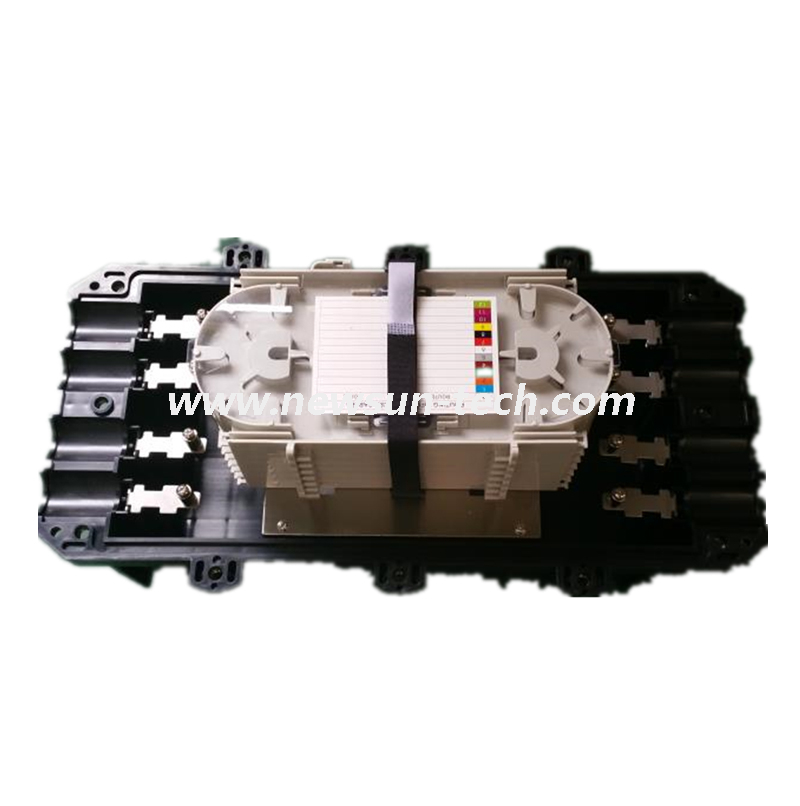

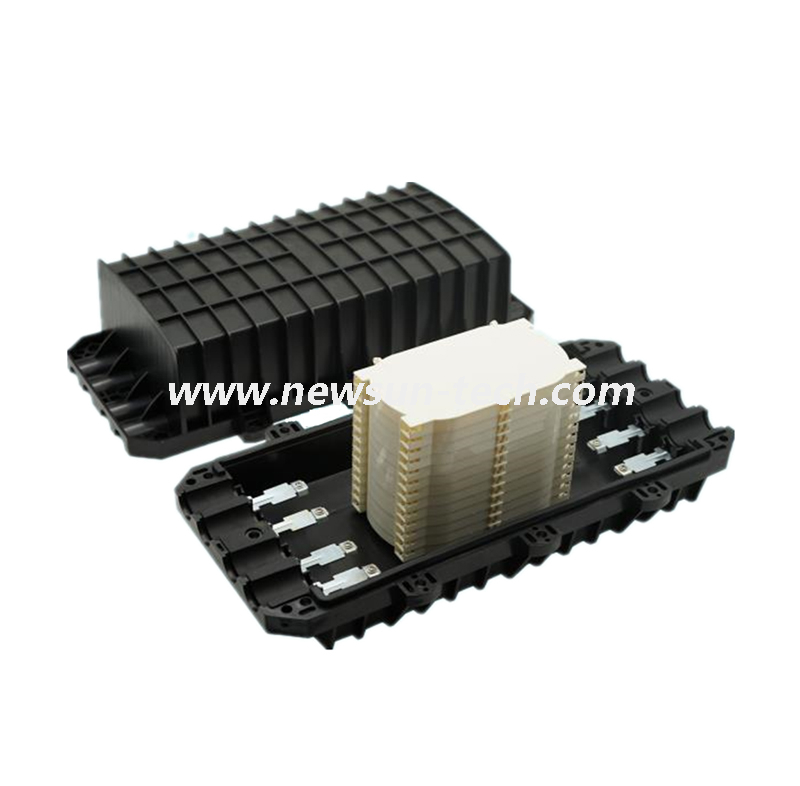

NS-7C(04) Fiber Optic Splice Closure
The product can be applied in the straight line and branch line(one into two, one into three)connections of optical cables within the diameter of 22mm(φ), all types and structures, when laid overhead ,in the pipeline, underground or in the well. Meanwhile, it is also applied to the connection of all-plastic city phone cables.
Structural features:
* All property indexes are in accordance with National YD/T814-1996 Standard.
* The case body is made from imported high-intensity engineering plastics(ABS) and formed the shape with mould plastics under high pressure. It is in the shape of HALF rectangle, with the advantages of less weight, high mechanical intensity, corrosive-resistance, anti-thunderstruck and long service life.
* The body is sealed with silicon rubber, the cable entrance uses silicon block,reliable sealing,easy to open and maintain.
* 4 in 4 out,max capacity 192cores(single fibers)
* Optional cable loop(Φ7,Φ14,Φ20 )enables user to choose different outer diameter according to actual conditions, It enhances the reliability of the cable entrance sealed.
* overlapping fiber-melting tray and separate insulation earth unit make the disposition of the cores, expanding the capacity and cable-earthen flexible, convenient and safe.
* outer metal component and fixing unit are made of stainless steel, so can be repeatedly used in different environments.
Main technical Specifications
* External Size: (length×width×height): 465×230×125mm & 465 × 250× 180mm(144 cores /192 cores)
* Weight:2.8kg & 3.3kg(144 cores /192 cores)
* optical fiber winding radius: ≥40mm
* extra loss of fiber tray:≤0.01dB
* fiber length left in tray:≥1.6m
* fiber capacity(single): 192 cores
* working temperature: - 40℃ ~ + 70℃
* lateral pressure-resistance: ≥2000N / 10cm
* shock-resistance:≥20N.m
NS-7C(04) Fiber Optic Splice Closure
The product can be applied in the straight line and branch line(one into two, one into three)connections of optical cables within the diameter of 22mm(φ), all types and structures, when laid overhead ,in the pipeline, underground or in the well. Meanwhile, it is also applied to the connection of all-plastic city phone cables.
Structural features:
* All property indexes are in accordance with National YD/T814-1996 Standard.
* The case body is made from imported high-intensity engineering plastics(ABS) and formed the shape with mould plastics under high pressure. It is in the shape of HALF rectangle, with the advantages of less weight, high mechanical intensity, corrosive-resistance, anti-thunderstruck and long service life.
* The body is sealed with silicon rubber, the cable entrance uses silicon block,reliable sealing,easy to open and maintain.
* 4 in 4 out,max capacity 192cores(single fibers)
* Optional cable loop(Φ7,Φ14,Φ20 )enables user to choose different outer diameter according to actual conditions, It enhances the reliability of the cable entrance sealed.
* overlapping fiber-melting tray and separate insulation earth unit make the disposition of the cores, expanding the capacity and cable-earthen flexible, convenient and safe.
* outer metal component and fixing unit are made of stainless steel, so can be repeatedly used in different environments.
Main technical Specifications
* External Size: (length×width×height): 465×230×125mm & 465 × 250× 180mm(144 cores /192 cores)
* Weight:2.8kg & 3.3kg(144 cores /192 cores)
* optical fiber winding radius: ≥40mm
* extra loss of fiber tray:≤0.01dB
* fiber length left in tray:≥1.6m
* fiber capacity(single): 192 cores
* working temperature: - 40℃ ~ + 70℃
* lateral pressure-resistance: ≥2000N / 10cm
* shock-resistance:≥20N.m
Operations
* choose the cable loop with proper outer diameter and let it go through the optical cable. Peel the cable , take off the outer and inner housing, as well as loose contract tube, and wash off the filling grease, leaving 1.1~1.6mfiber and 30~50mm steel core.
* fix the cable pressing card and cable, together with cable reinforce steel core. If the diameter of the cable is less than the diameter of cable loop, first bind the cable fixing point with adhesive tape till the diameter is enough, then fix it.
* lead the fiber into the melting and connecting tray, fix heat contract tube and heat melt tube to one of the connecting fiber. After melting and connecting the fiber, move heat contract tube and heat melt tube and fix the stainless (or quartz)reinforce core stick ,make sure the connecting point is in the middle of the housing pipe. Heat the pipe to make the two into one. Put the protected joint into the fiber-laying tray.(one tray can lay 24cores)
* lay the left fiber in the melting and connecting tray evenly, and fix the winding fiber with nylon ties. Use the trays from the bottom up. After all the fiber has been connected, cover the top layer and fix it.
* position it and use the earth wire in accordance with the project plan.
* sealing the cable retainer nearing the inlet of splice closure and the joint of the cable rings with sealing tape. And close the unused inlets with plugs, with exposed concave parts of the plug sealed with tapes. Then put sealing trips into the sealing groove on the sides of the shell and grease the concave part of inlet of the body between the two parts of the shell. Then close the two parts of the shell and tighten it with stainless steel bolts. The bolts should be screwed tightly with balanced force.
according to the laying requirement, position and fix the hanging tool .
choose the cable loop with proper outer diameter and let it go through the optical cable. Peel the cable , take off the outer and inner housing, as well as loose contract tube, and wash off the filling grease, leaving 1.1~1.6mfiber and 30~50mm steel core.
* fix the cable pressing card and cable, together with cable reinforce steel core. If the diameter of the cable is less than the diameter of cable loop, first bind the cable fixing point with adhesive tape till the diameter is enough, then fix it.
* lead the fiber into the melting and connecting tray, fix heat contract tube and heat melt tube to one of the connecting fiber. After melting and connecting the fiber, move heat contract tube and heat melt tube and fix the stainless (or quartz)reinforce core stick ,make sure the connecting point is in the middle of the housing pipe. Heat the pipe to make the two into one. Put the protected joint into the fiber-laying tray.(one tray can lay 24cores)
* lay the left fiber in the melting and connecting tray evenly, and fix the winding fiber with nylon ties. Use the trays from the bottom up. After all the fiber has been connected, cover the top layer and fix it.
* position it and use the earth wire in accordance with the project plan.
* sealing the cable retainer nearing the inlet of splice closure and the joint of the cable rings with sealing tape. And close the unused inlets with plugs, with exposed concave parts of the plug sealed with tapes. Then put sealing trips into the sealing groove on the sides of the shell and grease the concave part of inlet of the body between the two parts of the shell. Then close the two parts of the shell and tighten it with stainless steel bolts. The bolts should be screwed tightly with balanced force.
according to the laying requirement, position and fix the hanging tool .
packing list
ITEM | MAIN PARTS | 96CORES-1 | 48CORES | 96CORES-2 | 144CORES | 192CORES | |
1 | Body | 1pc | 1pc | 1pc | 1pc | 1pc | |
2 | 24cores melted fiber pack | 4pcs | 2pcs | 4pcs | 6 pcs | 8 pcs | |
3 | 12cores melted fiber pack | melting pipe housing etc. | 8pcs | 4pcs | 8pcs | 12 pcs | 16 pcs |
4 | stainless steel accessories | M5×20 bolt and nut | 2 pcs | 2 pcs | 2 pcs | 2 pcs | 2 pcs |
Hitcher | 2 pcs | 2 pcs | 2 pcs | 2 pcs | 2 pcs | ||
M8×25 stainless steel bolt | 12pcs | 12pcs | 12pcs | 12 pcs | 12 pcs | ||
6mm inside hexagon spanner | 1pc | 1pc | 1pc |
1 pc | 1 pc | ||
Hose clamp Φ13~19 | 8pcs | 8pcs | 8pcs | 4 pcs | 4 pcs | ||
Hose clamp Φ16~25 | 4 pcs | 4 pcs | |||||
5 | Plastic packing
| Φ7 cable loop | 16pcs | ||||
Φ14 cable loop | 4pcs | 8pcs | 8pcs | 4 pcs | 2 pcs | ||
Φ17 cable loop | 4 pcs | 2 pcs | |||||
Φ20 cable loop | 4pcs | 4pcs | 4pcs | ||||
Φ22 cable loop | 4 pcs | ||||||
Φ26 cable loop | 4 pcs | 4 pcs | |||||
Φ20xΦ14 cable loop | 4pcs | 8pcs | 8pcs | ||||
Φ20x4-Φ7 cable loop | 4pcs | ||||||
Φ26xΦ14 cable loop | 4 pcs | 2 pcs | |||||
Φ26xΦ17 cable loop | 4 pcs | 2 pcs | |||||
Φ26xΦ22 cable loop | 4pcs | ||||||
6 | adhesive tape | 1coil | 1coil | 1coil | 1coil | 1coil | |
7 | sealed strip unit | 1set | 1set | 1set | 1set | ||
8 | Silicon lubricant | 1bottle | 1bottle | 1bottle | 1bottle | 1bottle | |
9 | Tie | 2pcs | 2pcs | 2pcs | 2pcs | 2pcs | |
10 | Manual | 1pc | 1pc | 2pcs | 2pcs | 2pcs | |
11 | winding pipe | 0.4m | 0.2m | 0.4m | 0.6m | 0.8m |
Operations
* choose the cable loop with proper outer diameter and let it go through the optical cable. Peel the cable , take off the outer and inner housing, as well as loose contract tube, and wash off the filling grease, leaving 1.1~1.6mfiber and 30~50mm steel core.
* fix the cable pressing card and cable, together with cable reinforce steel core. If the diameter of the cable is less than the diameter of cable loop, first bind the cable fixing point with adhesive tape till the diameter is enough, then fix it.
* lead the fiber into the melting and connecting tray, fix heat contract tube and heat melt tube to one of the connecting fiber. After melting and connecting the fiber, move heat contract tube and heat melt tube and fix the stainless (or quartz)reinforce core stick ,make sure the connecting point is in the middle of the housing pipe. Heat the pipe to make the two into one. Put the protected joint into the fiber-laying tray.(one tray can lay 24cores)
* lay the left fiber in the melting and connecting tray evenly, and fix the winding fiber with nylon ties. Use the trays from the bottom up. After all the fiber has been connected, cover the top layer and fix it.
* position it and use the earth wire in accordance with the project plan.
* sealing the cable retainer nearing the inlet of splice closure and the joint of the cable rings with sealing tape. And close the unused inlets with plugs, with exposed concave parts of the plug sealed with tapes. Then put sealing trips into the sealing groove on the sides of the shell and grease the concave part of inlet of the body between the two parts of the shell. Then close the two parts of the shell and tighten it with stainless steel bolts. The bolts should be screwed tightly with balanced force.
according to the laying requirement, position and fix the hanging tool .
choose the cable loop with proper outer diameter and let it go through the optical cable. Peel the cable , take off the outer and inner housing, as well as loose contract tube, and wash off the filling grease, leaving 1.1~1.6mfiber and 30~50mm steel core.
* fix the cable pressing card and cable, together with cable reinforce steel core. If the diameter of the cable is less than the diameter of cable loop, first bind the cable fixing point with adhesive tape till the diameter is enough, then fix it.
* lead the fiber into the melting and connecting tray, fix heat contract tube and heat melt tube to one of the connecting fiber. After melting and connecting the fiber, move heat contract tube and heat melt tube and fix the stainless (or quartz)reinforce core stick ,make sure the connecting point is in the middle of the housing pipe. Heat the pipe to make the two into one. Put the protected joint into the fiber-laying tray.(one tray can lay 24cores)
* lay the left fiber in the melting and connecting tray evenly, and fix the winding fiber with nylon ties. Use the trays from the bottom up. After all the fiber has been connected, cover the top layer and fix it.
* position it and use the earth wire in accordance with the project plan.
* sealing the cable retainer nearing the inlet of splice closure and the joint of the cable rings with sealing tape. And close the unused inlets with plugs, with exposed concave parts of the plug sealed with tapes. Then put sealing trips into the sealing groove on the sides of the shell and grease the concave part of inlet of the body between the two parts of the shell. Then close the two parts of the shell and tighten it with stainless steel bolts. The bolts should be screwed tightly with balanced force.
according to the laying requirement, position and fix the hanging tool .
packing list
ITEM | MAIN PARTS | 96CORES-1 | 48CORES | 96CORES-2 | 144CORES | 192CORES | |
1 | Body | 1pc | 1pc | 1pc | 1pc | 1pc | |
2 | 24cores melted fiber pack | 4pcs | 2pcs | 4pcs | 6 pcs | 8 pcs | |
3 | 12cores melted fiber pack | melting pipe housing etc. | 8pcs | 4pcs | 8pcs | 12 pcs | 16 pcs |
4 | stainless steel accessories | M5×20 bolt and nut | 2 pcs | 2 pcs | 2 pcs | 2 pcs | 2 pcs |
Hitcher | 2 pcs | 2 pcs | 2 pcs | 2 pcs | 2 pcs | ||
M8×25 stainless steel bolt | 12pcs | 12pcs | 12pcs | 12 pcs | 12 pcs | ||
6mm inside hexagon spanner | 1pc | 1pc | 1pc |
1 pc | 1 pc | ||
Hose clamp Φ13~19 | 8pcs | 8pcs | 8pcs | 4 pcs | 4 pcs | ||
Hose clamp Φ16~25 | 4 pcs | 4 pcs | |||||
5 | Plastic packing
| Φ7 cable loop | 16pcs | ||||
Φ14 cable loop | 4pcs | 8pcs | 8pcs | 4 pcs | 2 pcs | ||
Φ17 cable loop | 4 pcs | 2 pcs | |||||
Φ20 cable loop | 4pcs | 4pcs | 4pcs | ||||
Φ22 cable loop | 4 pcs | ||||||
Φ26 cable loop | 4 pcs | 4 pcs | |||||
Φ20xΦ14 cable loop | 4pcs | 8pcs | 8pcs | ||||
Φ20x4-Φ7 cable loop | 4pcs | ||||||
Φ26xΦ14 cable loop | 4 pcs | 2 pcs | |||||
Φ26xΦ17 cable loop | 4 pcs | 2 pcs | |||||
Φ26xΦ22 cable loop | 4pcs | ||||||
6 | adhesive tape | 1coil | 1coil | 1coil | 1coil | 1coil | |
7 | sealed strip unit | 1set | 1set | 1set | 1set | ||
8 | Silicon lubricant | 1bottle | 1bottle | 1bottle | 1bottle | 1bottle | |
9 | Tie | 2pcs | 2pcs | 2pcs | 2pcs | 2pcs | |
10 | Manual | 1pc | 1pc | 2pcs | 2pcs | 2pcs | |
11 | winding pipe | 0.4m | 0.2m | 0.4m | 0.6m | 0.8m |
Fiber optic splice enclosures are used to protect stripped fiber optic cable and fiber optic splices from the environment, and they are available for indoor as well as outdoor mounting.
Outdoor fiber optic enclosures are usually weatherproof with watertight seals.
In a typical wall-mounted splice enclosure, fiber optic cable is supported by cable ties, and the cable strenght member is securely fastened to the enclosure’s support. Metallic strenght members must be grounded securely.
The cable jacket(sheath) stops at the splice enclosure’s cable ties. Optical fiber tubes, individual tight buffered fibers, or pigtails are supported by the tube brackets and continue to the splicing trays.
Individual optical fibers should never be exposed outside of a splice tray. Fusion splices or mechanical fiber optic cable splices are contained in the splice trays.
Features:
Large number of cable entry knockouts for incoming and outgoing cables;
Key-lockable main door to prevent accidental opening of splice compartment;
Able to hold up to six MTP loaded cassettes;
Standard accessory kit for cable entry and fibre management included;
Applications:
Ideal for fusion splicing
High fibre density applications
Repairing damaged cables
Suitable for direct termination
Remote cable terminations within building
Fiber optic splice enclosures are used to protect stripped fiber optic cable and fiber optic splices from the environment, and they are available for indoor as well as outdoor mounting.
Outdoor fiber optic enclosures are usually weatherproof with watertight seals.
In a typical wall-mounted splice enclosure, fiber optic cable is supported by cable ties, and the cable strenght member is securely fastened to the enclosure’s support. Metallic strenght members must be grounded securely.
The cable jacket(sheath) stops at the splice enclosure’s cable ties. Optical fiber tubes, individual tight buffered fibers, or pigtails are supported by the tube brackets and continue to the splicing trays.
Individual optical fibers should never be exposed outside of a splice tray. Fusion splices or mechanical fiber optic cable splices are contained in the splice trays.
Features:
Large number of cable entry knockouts for incoming and outgoing cables;
Key-lockable main door to prevent accidental opening of splice compartment;
Able to hold up to six MTP loaded cassettes;
Standard accessory kit for cable entry and fibre management included;
Applications:
Ideal for fusion splicing
High fibre density applications
Repairing damaged cables
Suitable for direct termination
Remote cable terminations within building
