NS-M7RS 7 Port Dome Outdoor 144/288 Core Fiber Optical Splice Joint Closure Fit With PLC

Cable Ports:7 port(1 in 6 out / 4 in 4 out)
Splice tray.:16 (single core)
Max. Capacity of Fiber:144/288 Fibers
Installation Type:Dome
Availability:
Quantity:
sharethis sharing button
  • NS-M7RS

  • NEWSUN

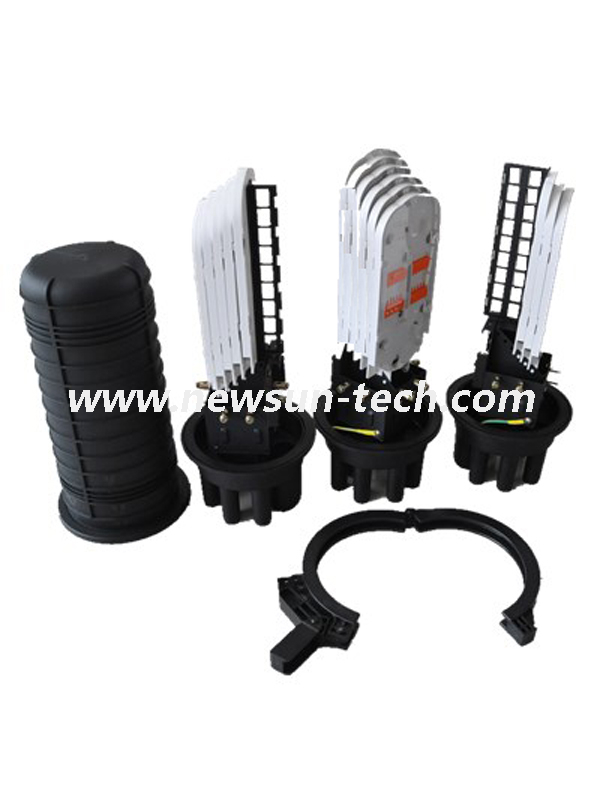

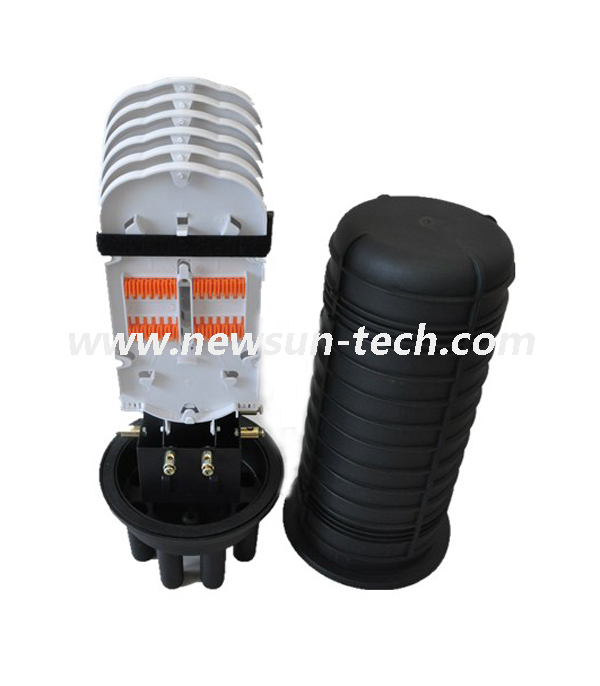

NS-M7RS Fiber Dome Splice Closure

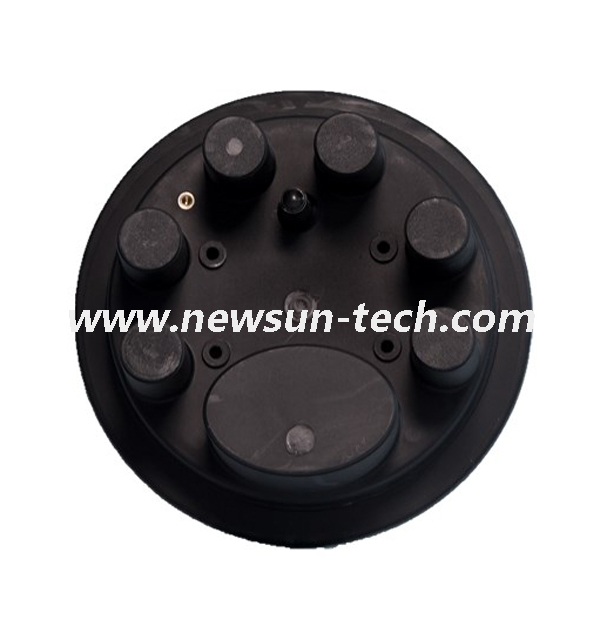

NS-M7RS dome closure is used in aerial,duct,wall-mounting,pole mounting applications, for the straight-through and branching splice of the fiber cable(Ф7-Ф42). It has heat shrinkable sealing structure with 7 entrance ports on the end (6 round ports and 1 oval port).



Oval port diameter

Material:MPP
Protection GradeIP68
Entry Ports7 port(1 in 6 out or 4 in 4 out)
Voltage Strengthunder 15KV direct current,without breakdown or flashover phenomenon
Maximum Cores:144cores,6pcs 24c splice tray
Dimention(H*D)Ф230mmx550mm
Sealing PortHeat shrinking
Splitting1x16/1x32 mini PLC splitters and 18pcs/36pcs SC adaptors
Life Spanmore than 25 years
Weight2.7kg

Features:


*The body adopt modified plastic MPP,which is high strength and corrosion resistance,has longer lifetime and excellent sealing performance.

*It has 7 cable ports in total,6 Φ20mm round cable ports,and 1 oval port which can let in and out 1pc Φ42mm cable or 2pcs Φ20mm cables,as well as for few small size cables at the same time.

*The closure can be reopened,which is maintenance friendly.It can work well in the environment of -40℃~+65℃ and guarantee the good sealing performance.

*Leak proofness:inflate the closure,making internal pressure to 100Kpa,then put the closure into the water over 15min,without any bubbles or pressure drop happened.

*Impact Strength:can bear 16N.m.after 3 impact times,there is no crack on the body.

*Assembled with valve core and grounding device.


Packing Information:

*Dome closure:1set

*Hanging set:1set(optional:pole mounting,wall mounting or aerial)

*Heat shrinkable tube:2~144pcs(according to the real capacity of the closure)

*Hose clamp13~19: 8pcs

*Shrinkable tube65/19-150: 1pc

*Shrinkable tube28/6-150:6pc

*Manual:1pc

*Certificate of Approval:1pc




Dome Fiber Optic Splice Closure


NS-M7RS-B type of dome closure series,used for direct connection during optical fiber transmission process,and provides joint connection protection,with 6 small round cable holes and 1 large cable hole;heat sealing with heat shrinkable casing;can be used for overhead,pole,wall and buried installations.With good sealing performance,the simple installation and wide application range are the best choice for optical fiber connection.

fiber enclosure

Features:

*All functional indicators are in line with the national YD 814.1-2004 standard for distribution box.

*Four-in and four-out cable ports; there are 1 large and 6 small circular holes, which can enter and exit the Φ7~Φ22 optical cables.

*The outer box body is made of high-strength engineering  plastics, It has features of light weight, high mechanical strength, anti aging, strong corrosion resistance, lightning resistance, and long service life.

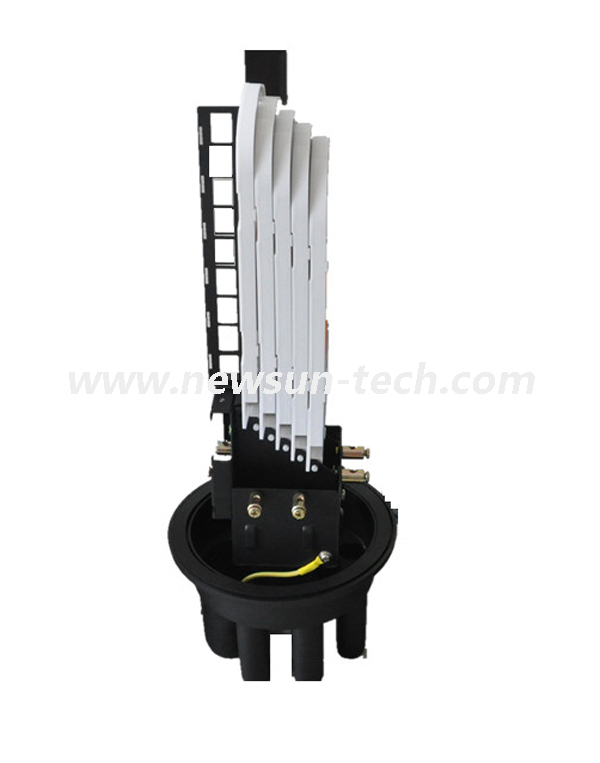

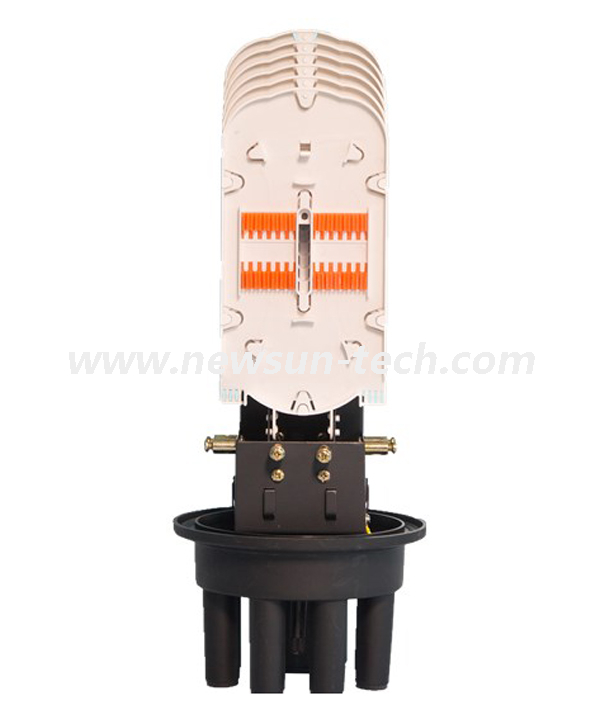

*Stacked structure splice tray and independent insulation grounding device make the optical fiber core configuration, expansion and the cable grounding flexible, convenient and  safe.

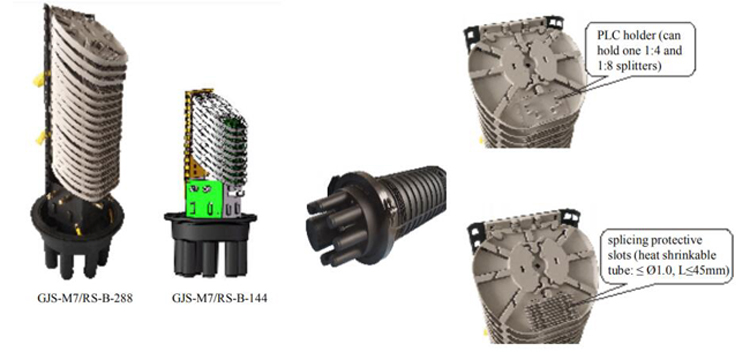

*The splice tray is equipped with splicing slots and a PLC splitter holder, which can be configured at any time    according to the needs of direct or divergent connection.


Technical Index

Fiber radius of curvature: ≥40mm

Optical disk additional loss: ≤ 0.01dB

Temperature Range: -40°C ~ + 70°C

Anti lateral pressure: ≥2000N / 10 cm

Shock resistance: ≥20N.m

Protection level: IP65


certificate of conformity

Certificate of Conformity


Quality management system certificationQuality Management System


certification for sale transport

Certification for Sale Transport

ISO 9001

ISO 9001


SGS

SGS


Patent certificate

                     Patent Certificate





Fiber optic splice enclosures are used to protect stripped fiber optic cable and fiber optic splices from the environment, and they are available for indoor as well as outdoor mounting.

Outdoor fiber optic enclosures are usually weatherproof with watertight seals.

In a typical wall-mounted splice enclosure, fiber optic cable is supported by cable ties, and the cable strenght member is securely fastened to the enclosure’s support. Metallic strenght members must be grounded securely.

The cable jacket(sheath) stops at the splice enclosure’s cable ties. Optical fiber tubes, individual tight buffered fibers, or pigtails are supported by the tube brackets and continue to the splicing trays.

Individual optical fibers should never be exposed outside of a splice tray. Fusion splices or mechanical fiber optic cable splices are contained in the splice trays.



Features:

Large number of cable entry knockouts for incoming and outgoing cables;

Key-lockable main door to prevent accidental opening of splice compartment;

Able to hold up to six MTP loaded cassettes;

Standard accessory kit for cable entry and fibre management included;



Applications:

Ideal for fusion splicing

High fibre density applications

Repairing damaged cables

Suitable for direct termination

Remote cable terminations within building
