NS-D023 Outdoor 7 Port Dome 144 288 Core 6 Hole+1 Oval Fiber Optical Splice Joint Closure

Cable Ports:7 port (6 Hole+1 Oval)
Splice tray.:12 pcs
Max. Capacity of Fiber:144/288 Fibers
Installation Type:Dome
Availability:
Quantity:
sharethis sharing button
  • NS-D023

  • NEWSUN

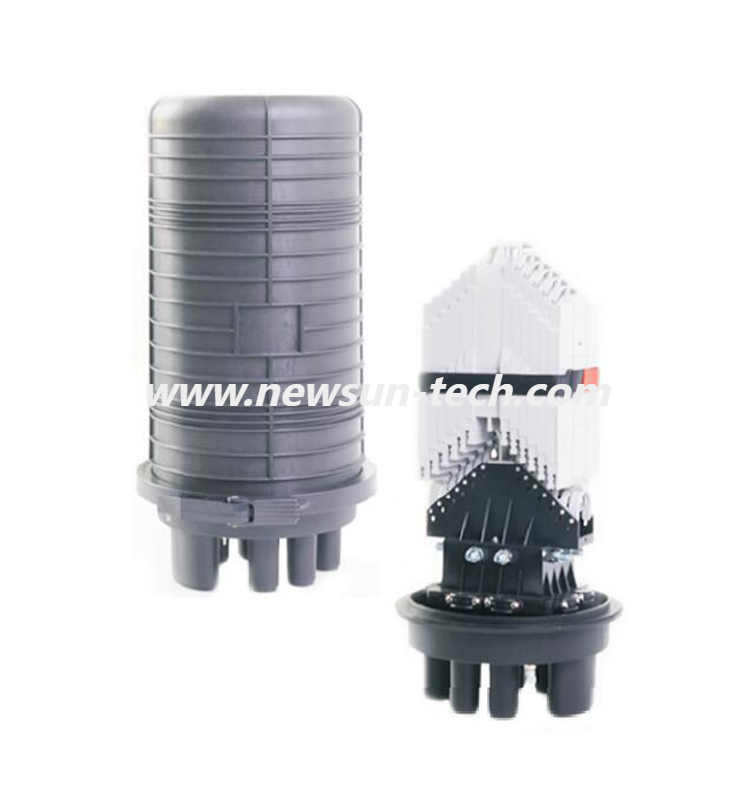

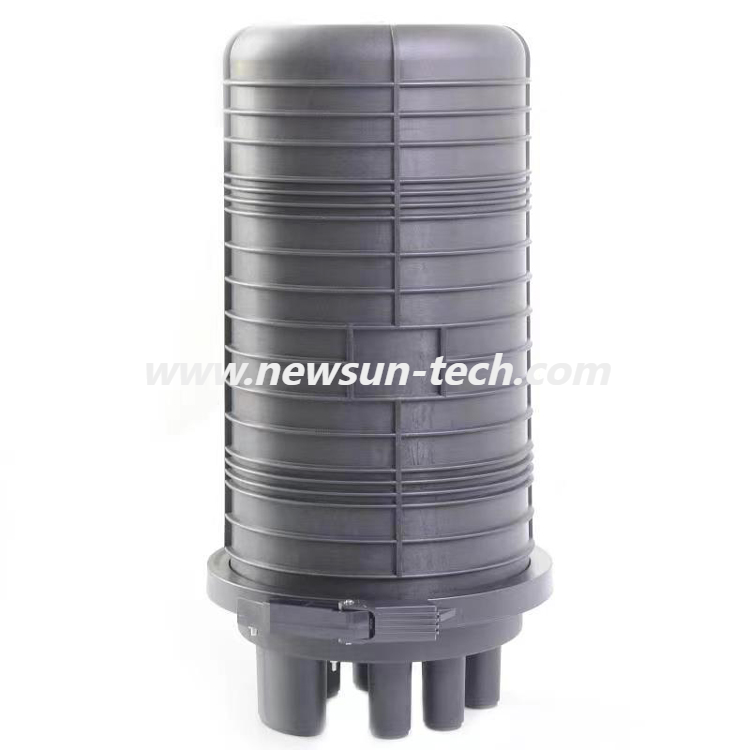

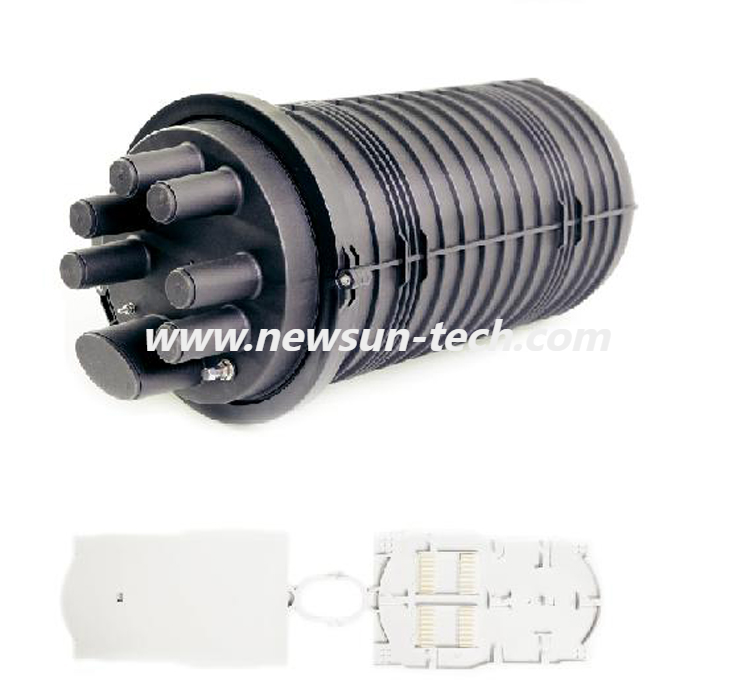

288 Core Outdoor Fiber Dome Splice Closure  6Hole+1 Oval



DOME type fiber optic splice closure is also called as vertical closure, it is suitable for FTTH accessing. The input and output are on the same side. An oval hole and six round holes facilitates the operation. It is suitable for aerial, underground, conduct installation.



Features

Heat shrinkable sealing structure.

High quality industrial plastic body material.

One oval hole and six round holes for cable entrance.

Suitable for cable diameter 5mm-38mm, .

Support aerial,underground,pipeline,man holes,hand holes

Protection level reaches IP68.

360 degrees access, fiber bending > 40mm.

Maximum capacity: 288F single or 864F ribbon.

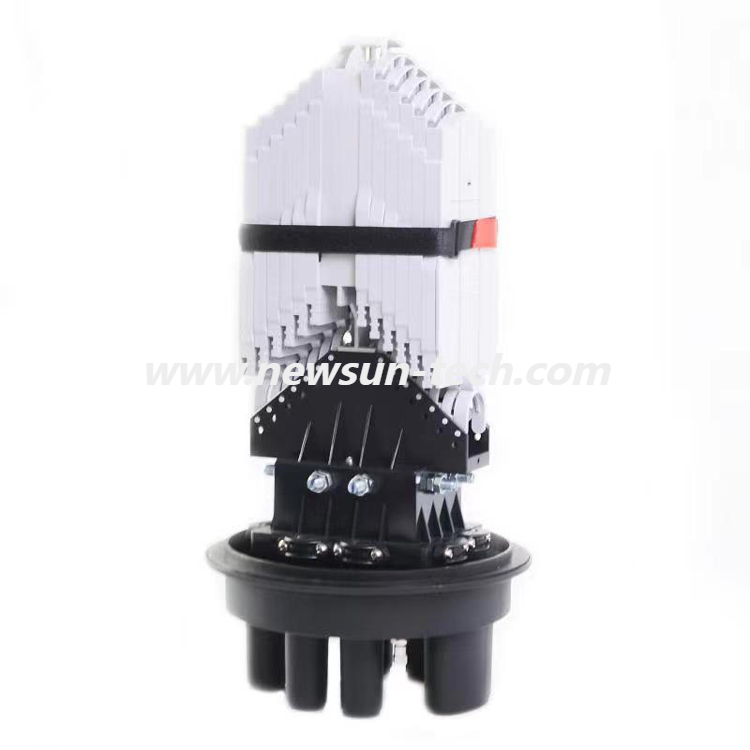

Number of trays: 12 pcs x 24F.



Material:PP.PC
Protection GradeIP68
Entry Ports7 port
Sealing PortHeat shrinking
Maximum Cores:288cores,12pcs 24c splice tray
Dimention(H*D)515mmx310mm
Cable diameter10~40mm
Environmnet temperature—45~+80C
Weight5kg

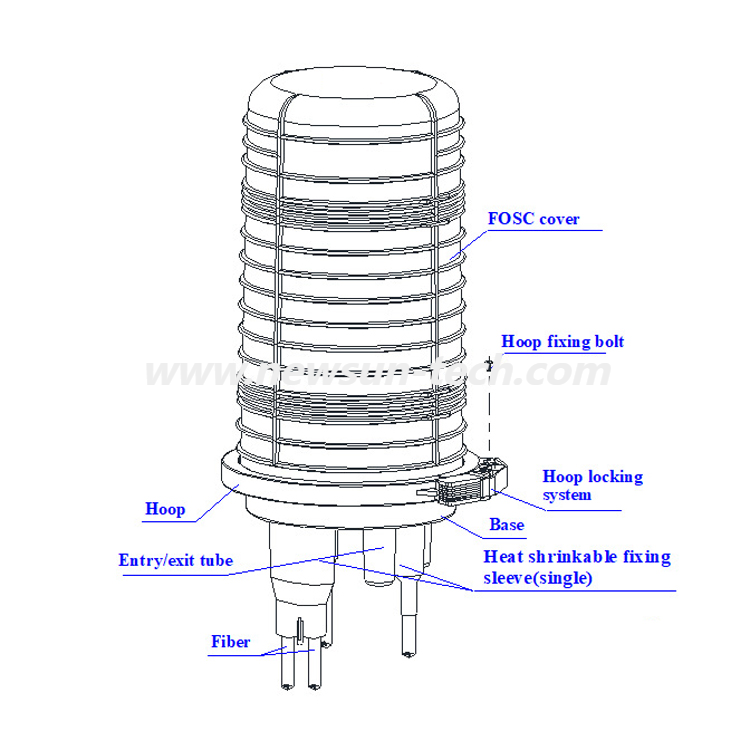

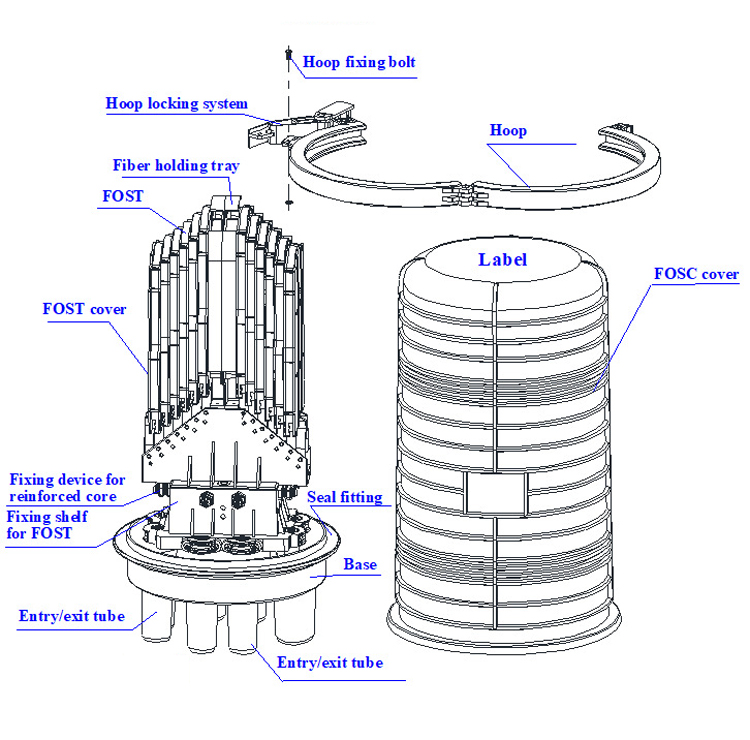

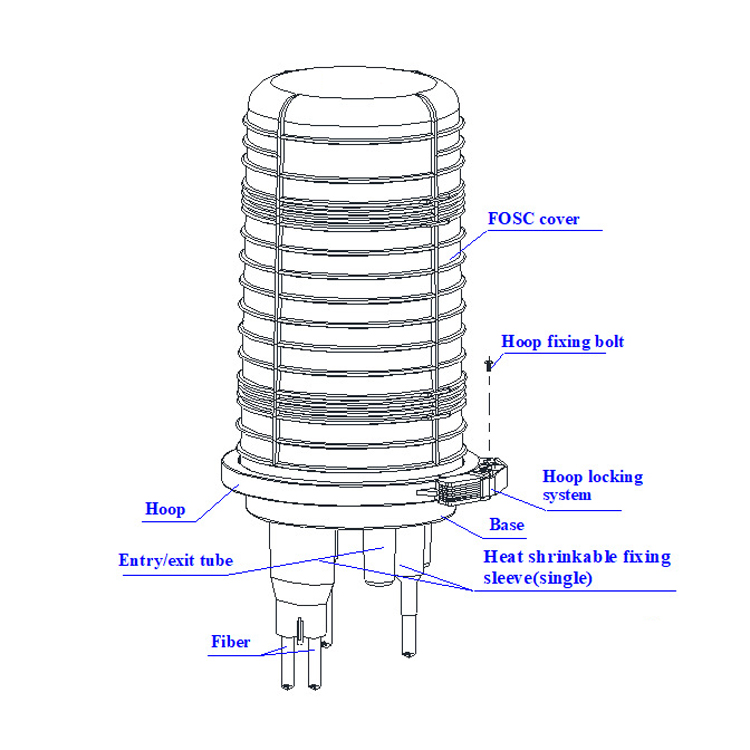

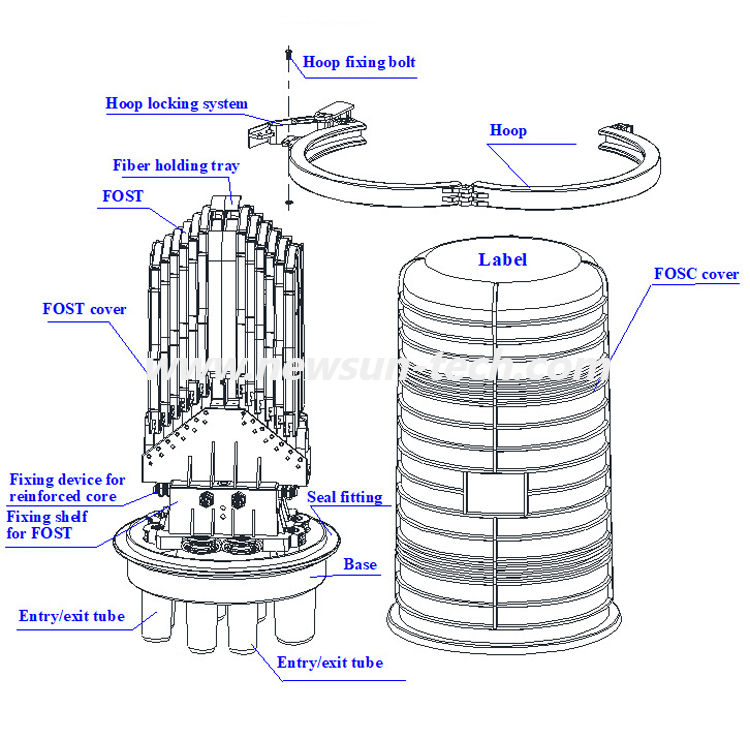

fiber enclosurefiber joint closure

certificate of conformity

Certificate of Conformity


Quality management system certificationQuality Management System


certification for sale transport

Certification for Sale Transport

ISO 9001

ISO 9001


SGS

SGS


Patent certificate

                     Patent Certificate





Fiber optic splice enclosures are used to protect stripped fiber optic cable and fiber optic splices from the environment, and they are available for indoor as well as outdoor mounting.

Outdoor fiber optic enclosures are usually weatherproof with watertight seals.

In a typical wall-mounted splice enclosure, fiber optic cable is supported by cable ties, and the cable strenght member is securely fastened to the enclosure’s support. Metallic strenght members must be grounded securely.

The cable jacket(sheath) stops at the splice enclosure’s cable ties. Optical fiber tubes, individual tight buffered fibers, or pigtails are supported by the tube brackets and continue to the splicing trays.

Individual optical fibers should never be exposed outside of a splice tray. Fusion splices or mechanical fiber optic cable splices are contained in the splice trays.



Features:

Large number of cable entry knockouts for incoming and outgoing cables;

Key-lockable main door to prevent accidental opening of splice compartment;

Able to hold up to six MTP loaded cassettes;

Standard accessory kit for cable entry and fibre management included;



Applications:

Ideal for fusion splicing

High fibre density applications

Repairing damaged cables

Suitable for direct termination

Remote cable terminations within building
