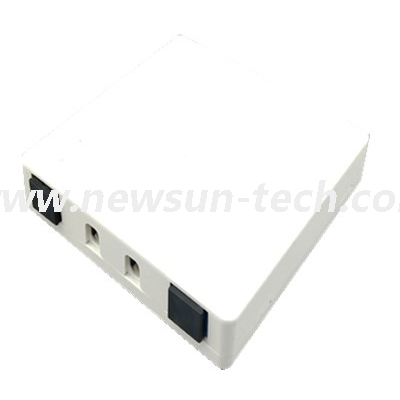

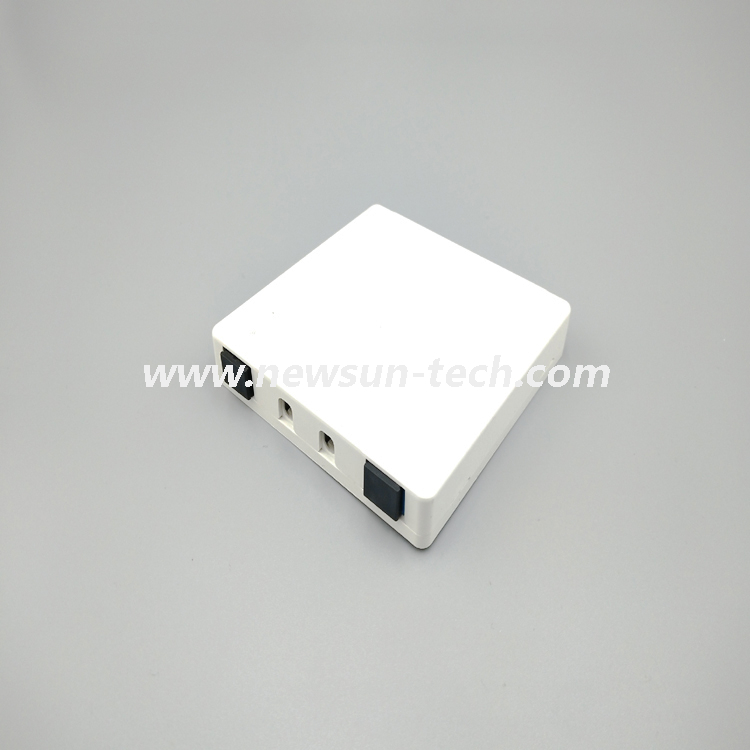

NSTB-M409 Ultra-thin Mini 86 ABS Plastic Fiber Optic Faceplate / Wall Plate

Product name: Mini FTTH Fiber Outlet
Size:86H*86W*15D
Port: 2
Connector:SC or LC
Availability:
Quantity:
  • NSTB-M409
  • NEWSUN TECH

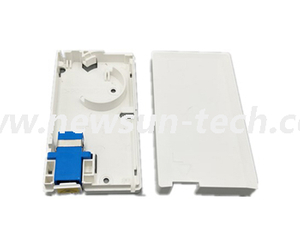

Ultra-thin Mini Fiber Optic Wall Outlet

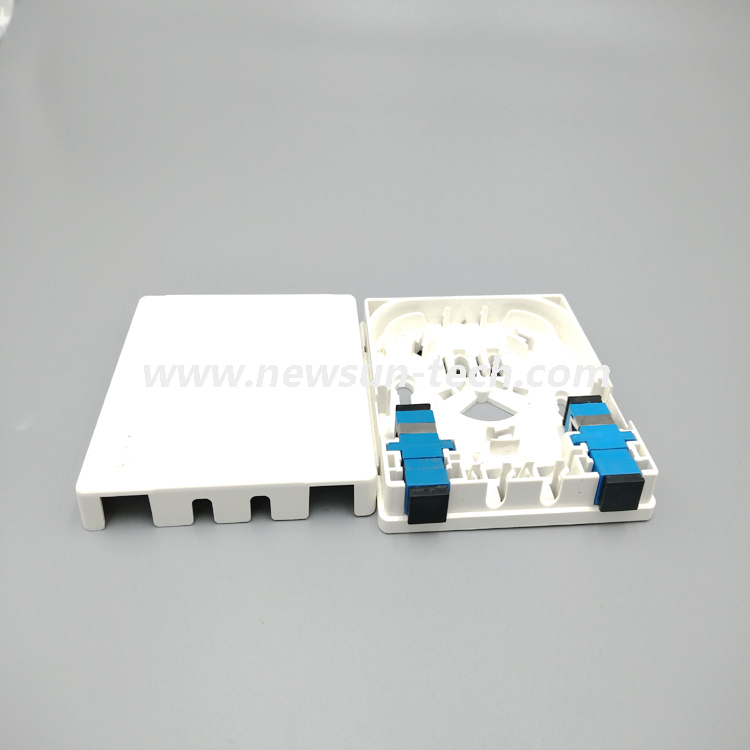

NSTB-M409 wall termination box is designed for FTTH applications, with similar dimensions to existing telephone connections it is well suited to home or office environments. The box can allow up to 4 fibers which maintaining the minimum bend radius. A variety of adapters (LC/SC, & square ST, FC) can be used giving the user a flexible solution.


Product specification
Maximum Single Fiber Count2F,4F
Maximum Number of heat splice2F,4F
Number of cable entre points4
Height86mm
Width86mm
Depth15mm
ColourWhite
MaterialABS

Applicable cable:



NSTB-M409 is used in the home or work area to complete the access and port output of the dual-core optical fiber, which can fully meet the requirements of the bending radius of the fiber and protect the incoming and outgoing optical fiber to provide safe protection for the core. Appropriate radius of curvature, allowing a small number of redundant fiber inventory, to achieve FTTD (fiber to the desktop) system applications.



86 type optical fiber panel, also known as 86 box, is a user terminal product to realize the optical fiber to user solution. It is used for home or work area to complete the access and port output of optical fiber, provide fixed, stripping, connection and protection devices of optical fiber, and allow a small amount of redundant optical fiber inventory. Various parts such as connectors, fiber field connectors, fusion protective sleeves can be installed inside to meet the installation operation mode of various fiber optic cables (especially drop cables). The fiber panel is mainly used to fix and protect the fiber field connector.

certificate of conformity

Certificate of Conformity


Quality management system certificationQuality Management System


certification for sale transport

Certification for Sale Transport

ISO 9001

ISO 9001


SGS

SGS


Patent certificate

                     Patent Certificate




Fiber termination box contains the shell, the internals (supporting frame, set fiber disc, fixing device) and optical fiber joint protective element. Prominent advantages of fiber termination box lie in efficient cable-fixing, welding and its protective role in machinery of the optical fiber.


A insulation is always demanded between cable metal components and cable terminal box shell in a fiber termination box, which provides space for cable terminal and remained fiber storage. In addition, fiber termination box also facilitate the installation of different occasions since it is easy to access, which turns out to be time and cost saving.



Application

Fiber termination box is universally used in telephone, agricultural telephone network system, data and image transmission system, CATV cable television series, indoor cable through force access and branch connection. Fiber termination box is available for the distribution and termination connection for various kinds of fiber optic systems, especially suitable for mini-network terminal distribution, in which the optical cables, patch cores or pigtails are connected. In addition to that, fiber termination box can be applied to joint fiber pigtail, protect fiber optic splices and share out the connectivity to individual customers.
