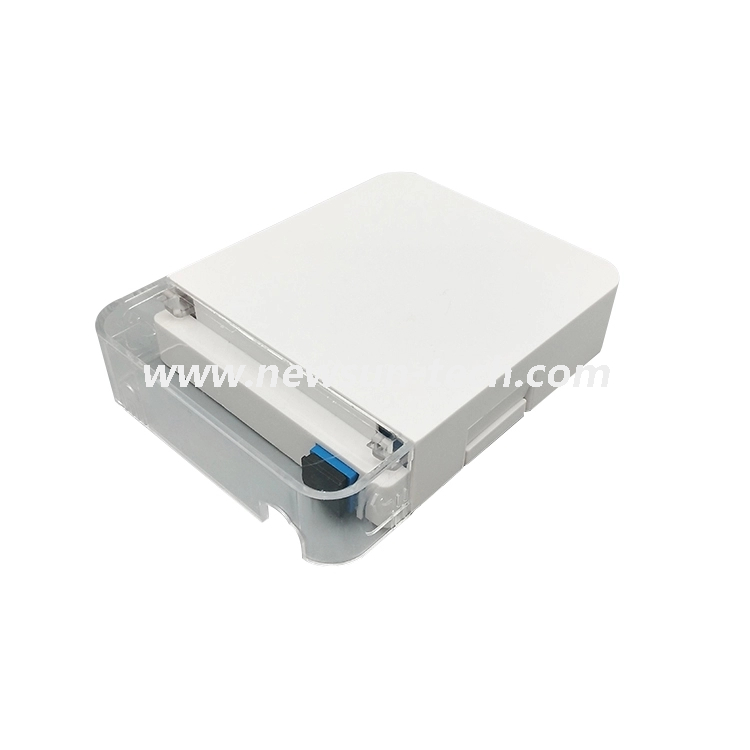

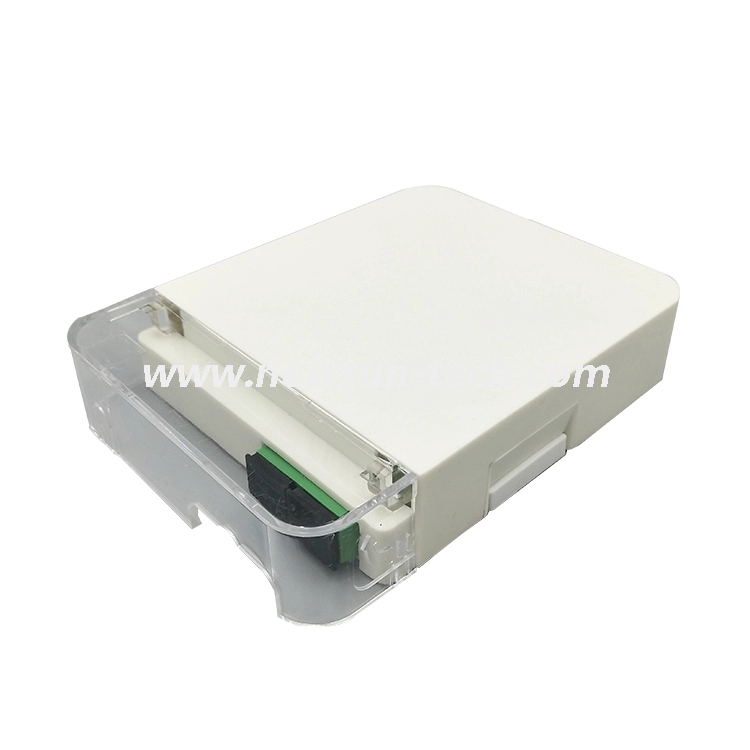

NSTB-401AB Indoor Faceplate Panel FTTH Mini 2 Port 4 Port Fiber Optic Terminal Box

Product name: FTTH Fiber Outlet
Port:1 & 2
Connector:SC Duplex or LC Quad
sharethis sharing button
  • NSTB-401AB


Fiber Optic Wall Outlet

NSTB-401AB is used in the home or work area to complete the access and port output of the dual-core optical fiber, which can fully meet the requirements of the bending radius of the fiber and protect the incoming and outgoing optical fiber to provide safe protection for the core. Appropriate radius of curvature, allowing a small number of redundant fiber inventory, to achieve FTTD (fiber to the desktop) system applications.

Product specification
Maximum Single Fiber Count2F,4F
Maximum Number of heat splice2F,4F
Number of cable entre points4
Flame RetardantYes

The internal customer outlet box is designed for use inside the home. The box is designed with integrated shutters to comply with safety standards.

Multiple cable entry points
Integrated heatshrink splice holder

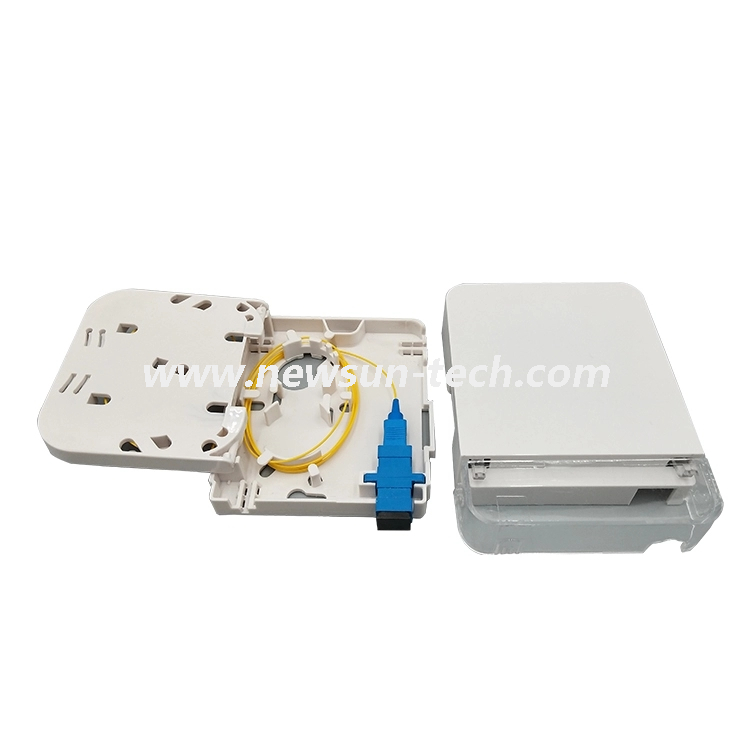

Hinged splice Tray

Holds up   : *1 X SC Simplex or 1 x LC Duplex                                                                                                                *1 x SC Duplex or 1 x LC Quad

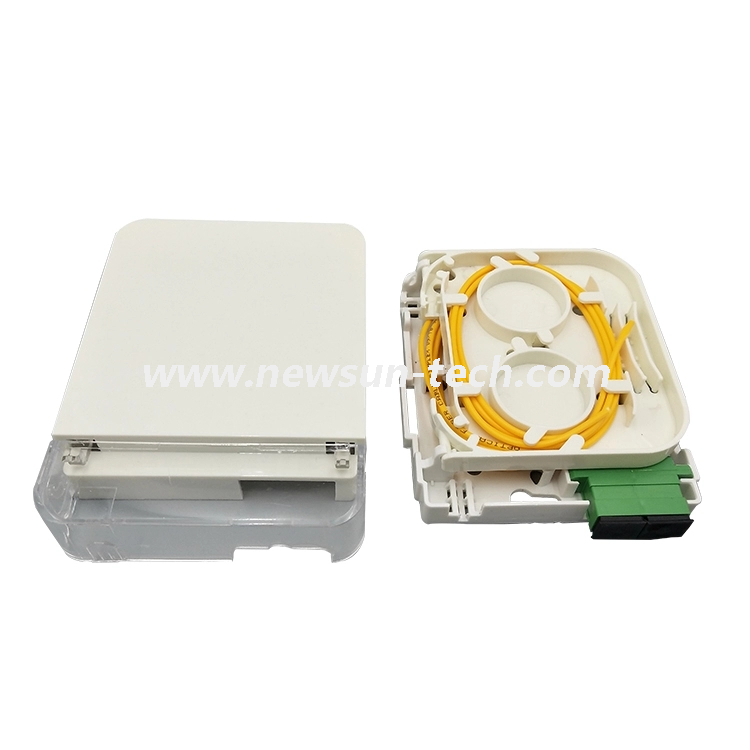

Integrated fiber management

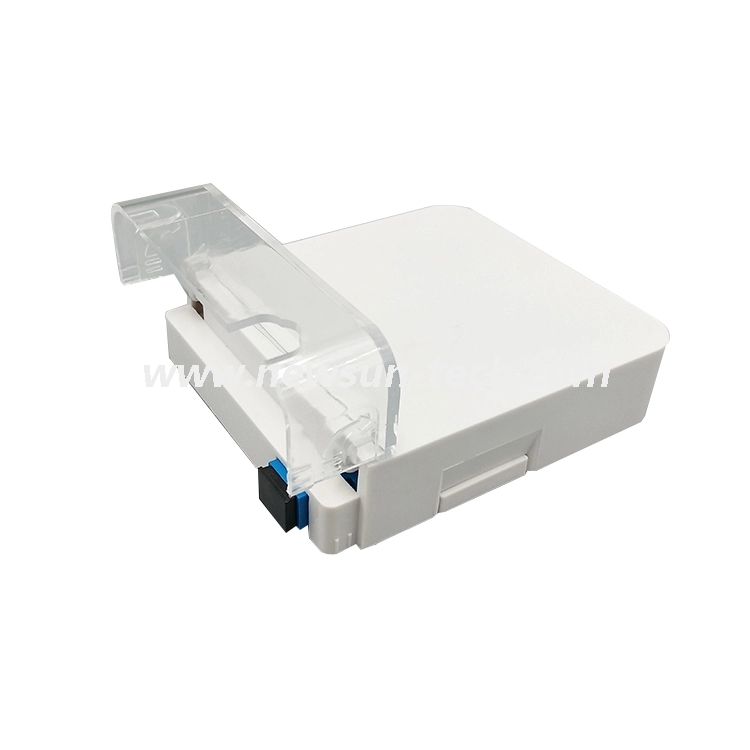

Integrated shutter protects against laser exposure and dust


certificate of conformity

Certificate of Conformity

Quality management system certificationQuality Management System

certification for sale transport

Certification for Sale Transport

ISO 9001

ISO 9001



Patent certificate

                     Patent Certificate

Fiber termination box contains the shell, the internals (supporting frame, set fiber disc, fixing device) and optical fiber joint protective element. Prominent advantages of fiber termination box lie in efficient cable-fixing, welding and its protective role in machinery of the optical fiber.

A insulation is always demanded between cable metal components and cable terminal box shell in a fiber termination box, which provides space for cable terminal and remained fiber storage. In addition, fiber termination box also facilitate the installation of different occasions since it is easy to access, which turns out to be time and cost saving.


Fiber termination box is universally used in telephone, agricultural telephone network system, data and image transmission system, CATV cable television series, indoor cable through force access and branch connection. Fiber termination box is available for the distribution and termination connection for various kinds of fiber optic systems, especially suitable for mini-network terminal distribution, in which the optical cables, patch cores or pigtails are connected. In addition to that, fiber termination box can be applied to joint fiber pigtail, protect fiber optic splices and share out the connectivity to individual customers.
