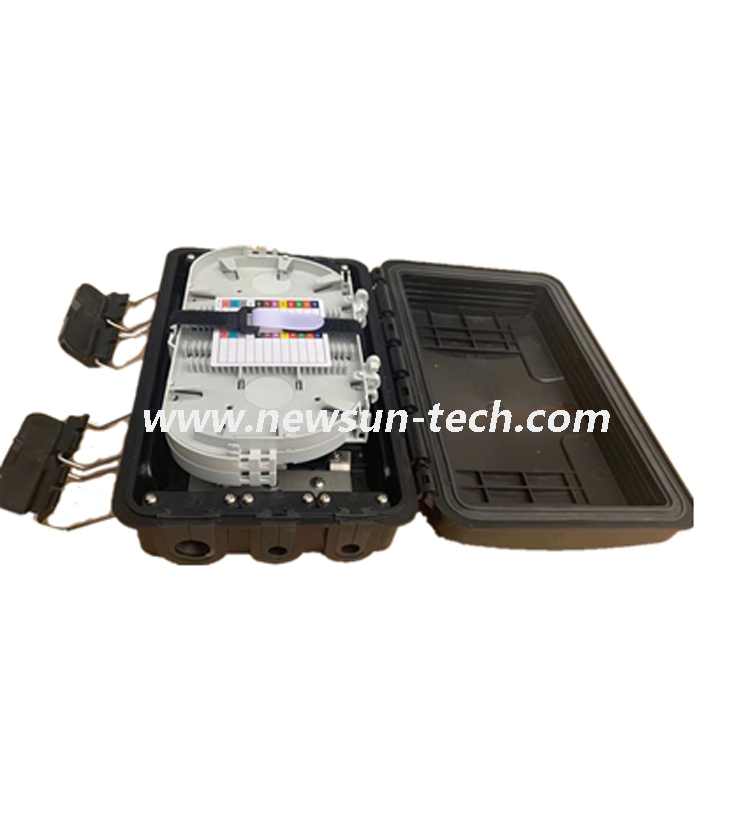

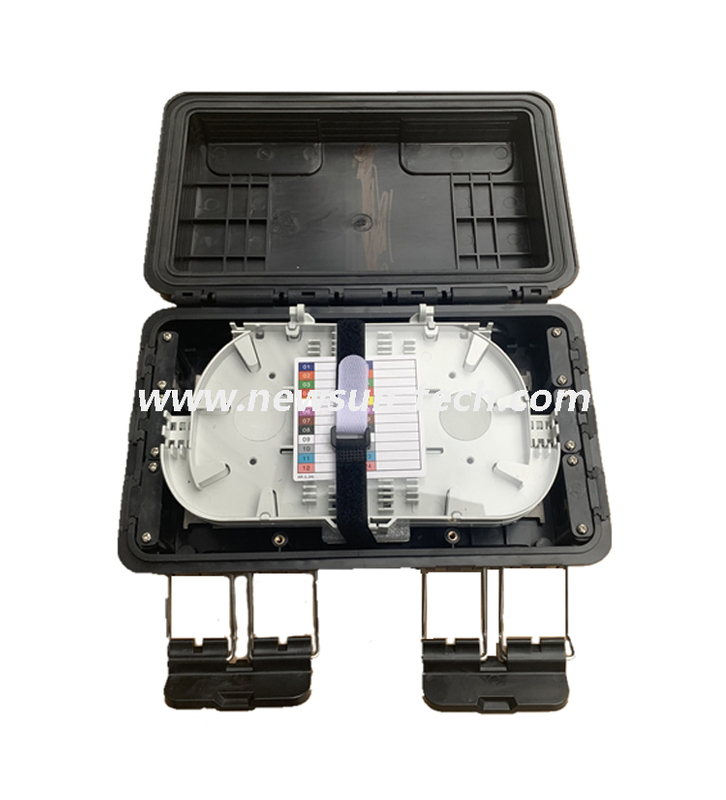

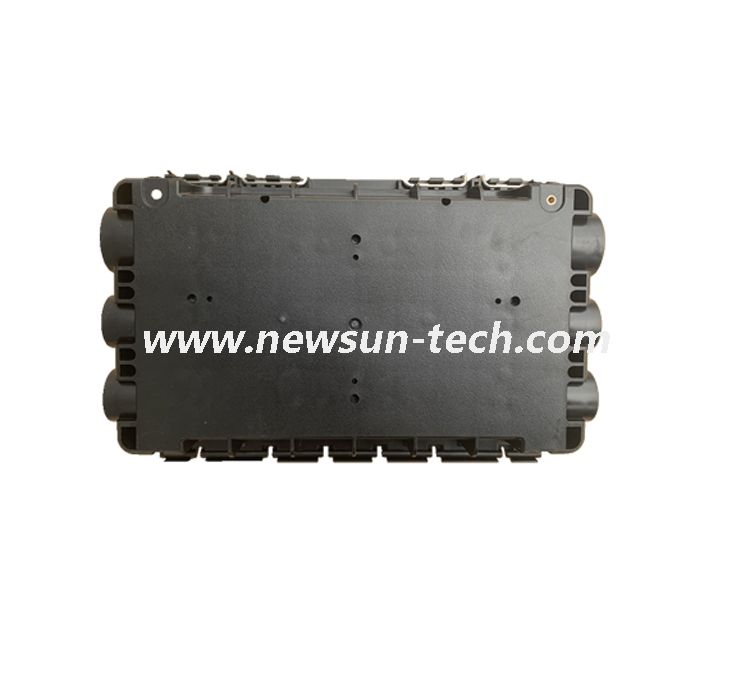

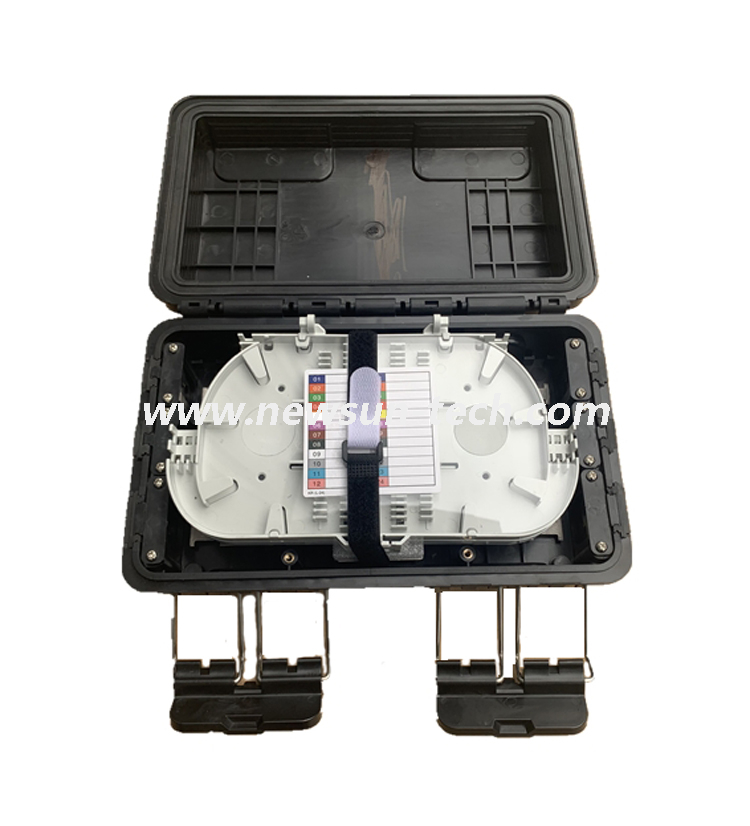

NS-06C 24/72/96 Core Fiber Outdoor Waterproof Splicing Enclosure Optic Splice Closure

Fiber Outdoor Waterproof Splicing Distribution Box

This product integrates optical splitting and cable distribution, can achieve direct or branch cable

connection. It suits for the cable distribution of the optical communication equipment. Through the

adapter installed in the box, the drop cable leads the signal out, that achieves optical cable distribution;

also applies to the protective connection of cables and pigtails; The unique 3-layer structure of the box

can be used for optical fiber splitting or distribution; middle plate can be flipped ≥180oC, which makes

it more convenient to install and maintain. If take out the middle plate, the box can be used as “cable

distribution box”, which provide different options for users.

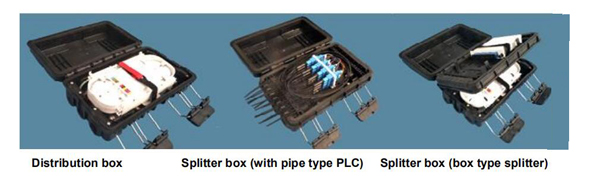

Distribution box Splitter box (with pipe type PLC) Splitter box (box type splitter)

Product features:

a. The product is made of high-quality and impact resistant

plastics, and has a standard use interface;

b. Can install 2 box type (1:8) or 2 pipe type (1:8) PLC

 splitters;

c. Anti-UV, impact resistant and waterproof ;

d. Can be mounted on the wall or pole;

e. Unique and reversible middle plate can be flipped ≥180oC,

that provides more distinctive area for fiber splicing and

splitting, and the line crossing is reduced.

f. Cable can access the box with no need of breaking.

Technical index

*Fiber radius of curvature: ≥40mm

*Optical disk additional loss: ≤ 0.01dB

*Temperature Range: - 40°C ~ + 60°C Anti lateral pressure: ≥2000N / 10 cm

*Shock resistance: ≥20N.m

*Protective grad: IP65

Fiber optic splice enclosures are used to protect stripped fiber optic cable and fiber optic splices from the environment, and they are available for indoor as well as outdoor mounting.

Outdoor fiber optic enclosures are usually weatherproof with watertight seals.

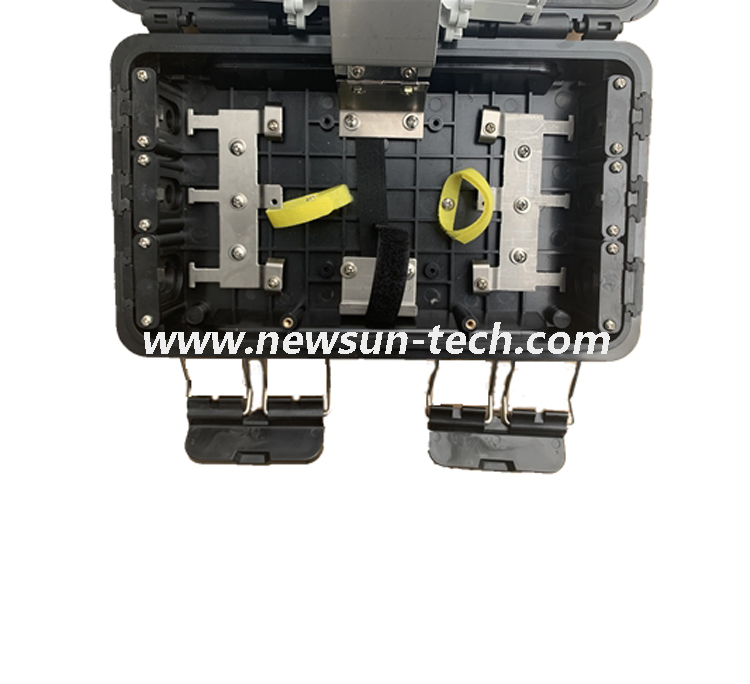

In a typical wall-mounted splice enclosure, fiber optic cable is supported by cable ties, and the cable strenght member is securely fastened to the enclosure’s support. Metallic strenght members must be grounded securely.

The cable jacket(sheath) stops at the splice enclosure’s cable ties. Optical fiber tubes, individual tight buffered fibers, or pigtails are supported by the tube brackets and continue to the splicing trays.

Individual optical fibers should never be exposed outside of a splice tray. Fusion splices or mechanical fiber optic cable splices are contained in the splice trays.

Features:

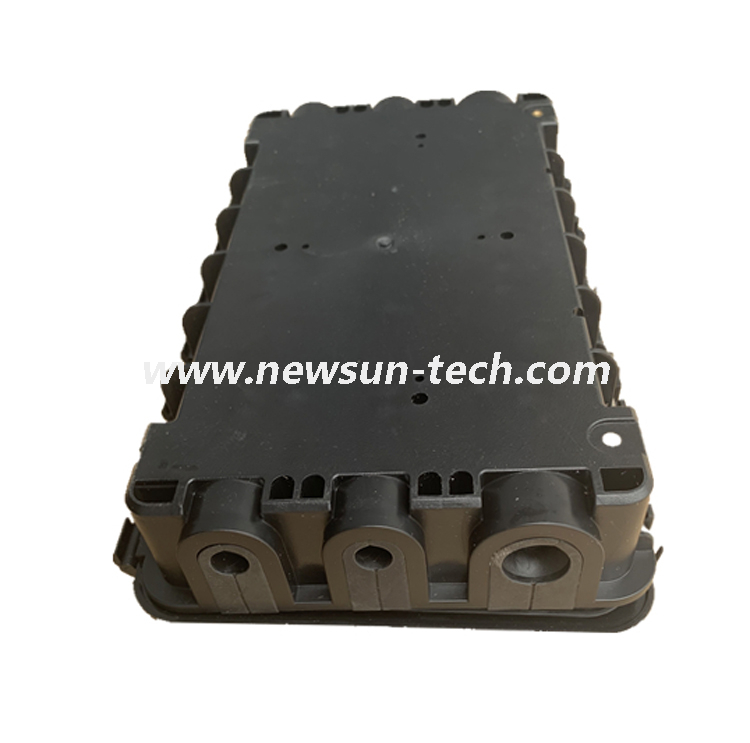

Large number of cable entry knockouts for incoming and outgoing cables;

Key-lockable main door to prevent accidental opening of splice compartment;

Able to hold up to six MTP loaded cassettes;

Standard accessory kit for cable entry and fibre management included;

Applications:

Ideal for fusion splicing

High fibre density applications

Repairing damaged cables

Suitable for direct termination

Remote cable terminations within building
