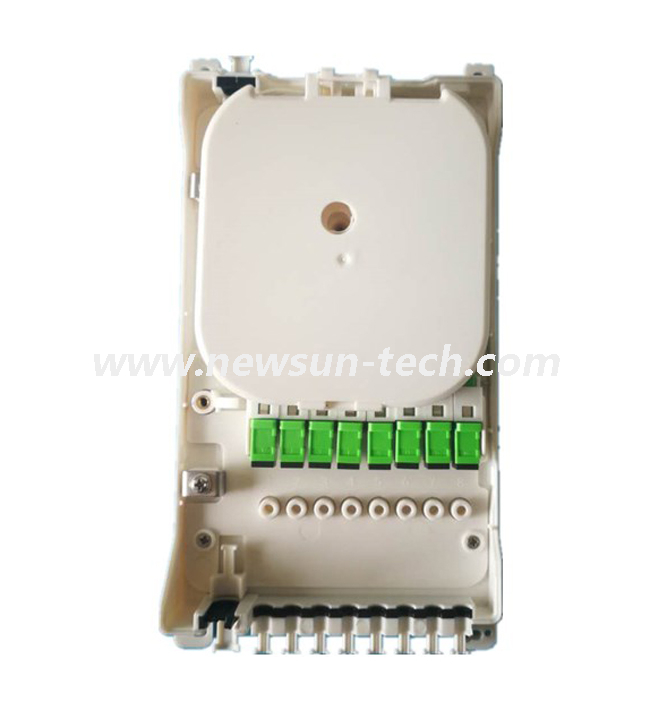

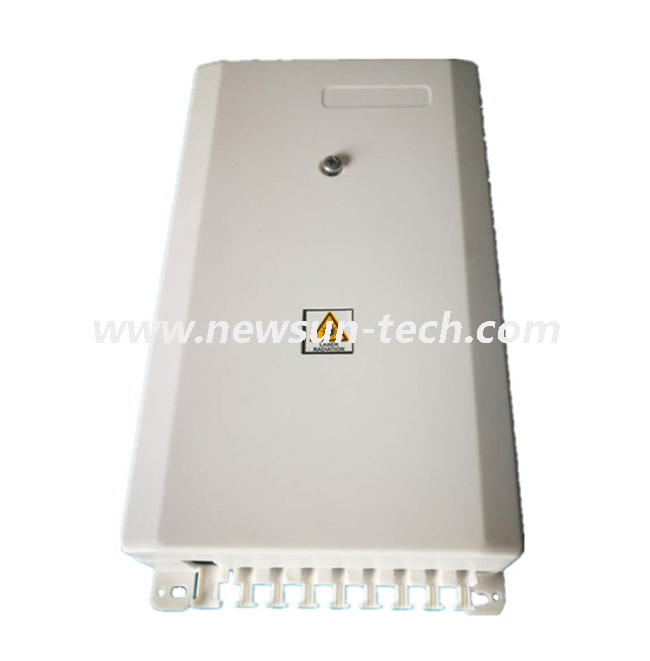

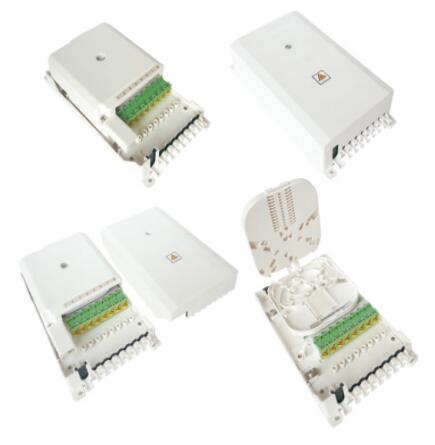

NSTB-F8T 8 Port FTTH Fiber Optic Terminal Box Fit with Splitter

NSTB-F8T fiber access termination box is able to hold up to 8 subscribers. It is used as a termination point for the feeder cable to connect with drop cable in FTTx network system. It integrates fiber splicing, splitting, distribution, storage and cable connection in one solid protection box.

Technical indicators

Water-proof design with IP-66 Protection level.

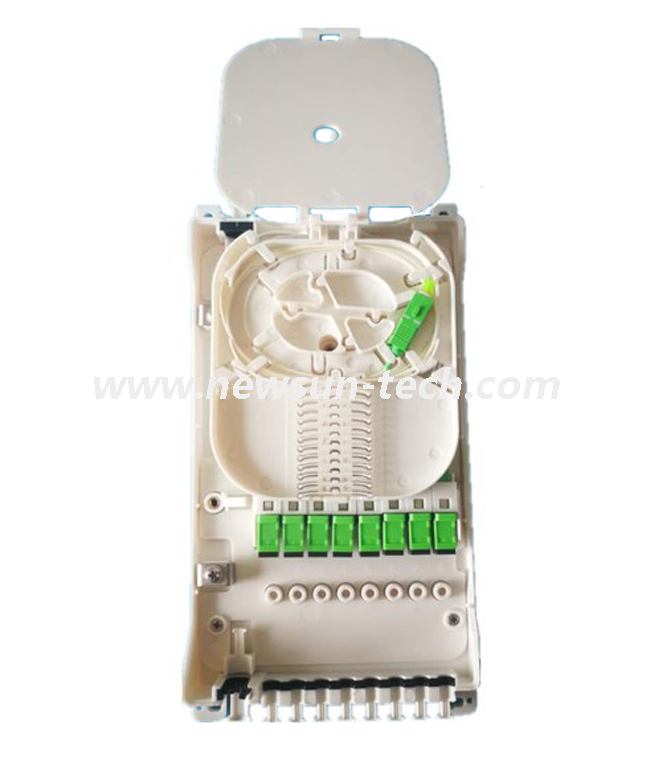

Integrated with splice cassette and cable management rods.

Manage fibers in a reasonable fiber radius condition.

Easy to maintain and extend the capacity.

Fiber bend radius control more than 40mm.

Suitable for the fusion splice or mechanical splice. 1*8 Splitter can be installed as an option.

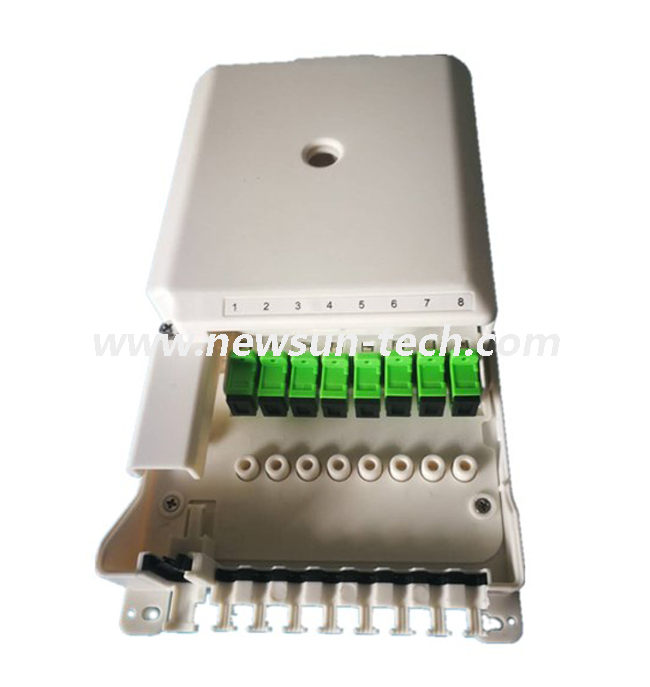

Efficient cable management. 8 ports cable entrance for drop cable.

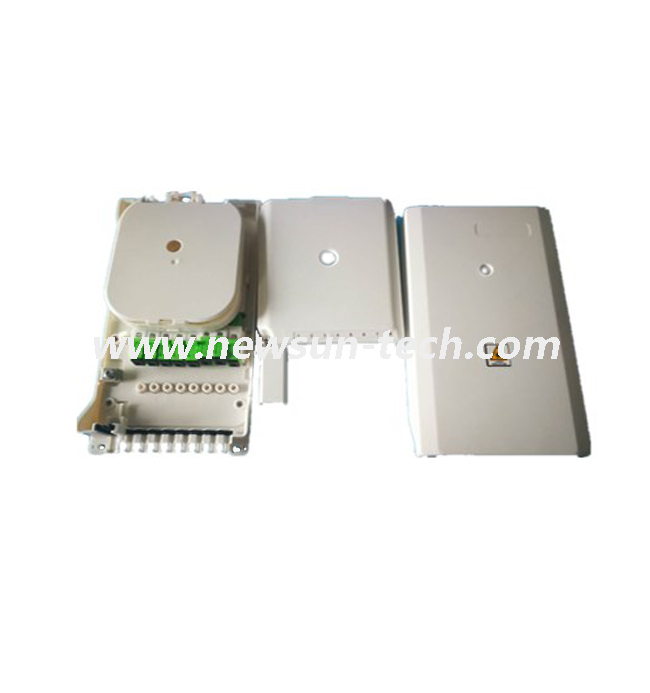

Fiber termination box contains the shell, the internals (supporting frame, set fiber disc, fixing device) and optical fiber joint protective element. Prominent advantages of fiber termination box lie in efficient cable-fixing, welding and its protective role in machinery of the optical fiber.

A insulation is always demanded between cable metal components and cable terminal box shell in a fiber termination box, which provides space for cable terminal and remained fiber storage. In addition, fiber termination box also facilitate the installation of different occasions since it is easy to access, which turns out to be time and cost saving.

Application

Fiber termination box is universally used in telephone, agricultural telephone network system, data and image transmission system, CATV cable television series, indoor cable through force access and branch connection. Fiber termination box is available for the distribution and termination connection for various kinds of fiber optic systems, especially suitable for mini-network terminal distribution, in which the optical cables, patch cores or pigtails are connected. In addition to that, fiber termination box can be applied to joint fiber pigtail, protect fiber optic splices and share out the connectivity to individual customers.
