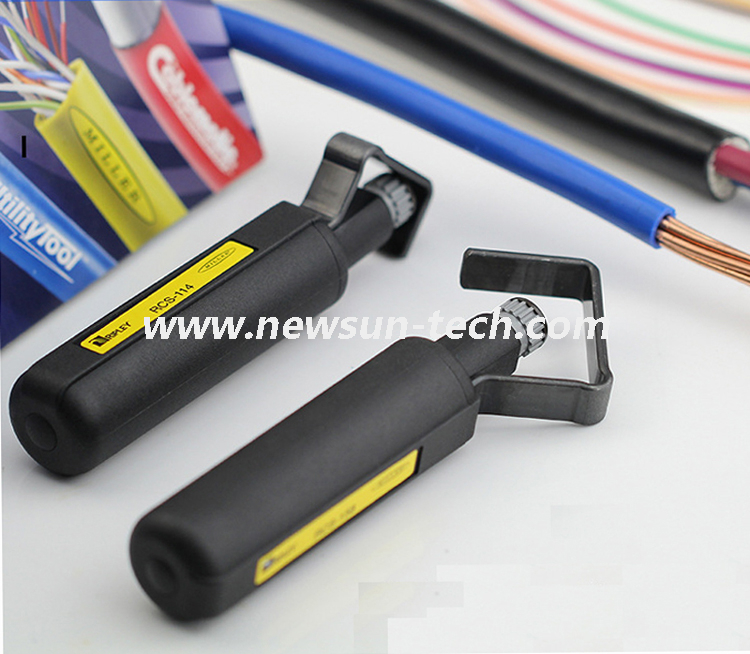

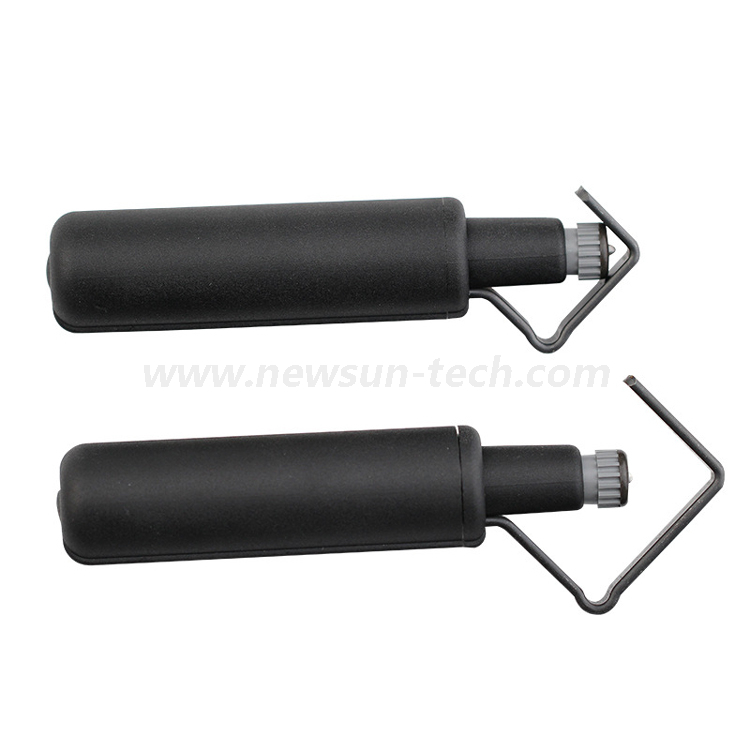

Miller Fiber Optic Sheath Jacket Slitting Machine Round Cable Slitter

Product name: Cable Jacket Stripper
Part NO.: RCS114 / RCS158
Application: 4.5~29mm/19~40mm
sharethis sharing button
  • RCS114 / RCS158

  • Newsun tech

Fiber Optic Cable Stripping Tool

• Two tools designed for fast, safe, and precise jacket removal of PE, PVC, rubber, and other jackets

• Fiber Optic cables - excellent tool for precise jacket stripping of fiber optic multi-fiber cables

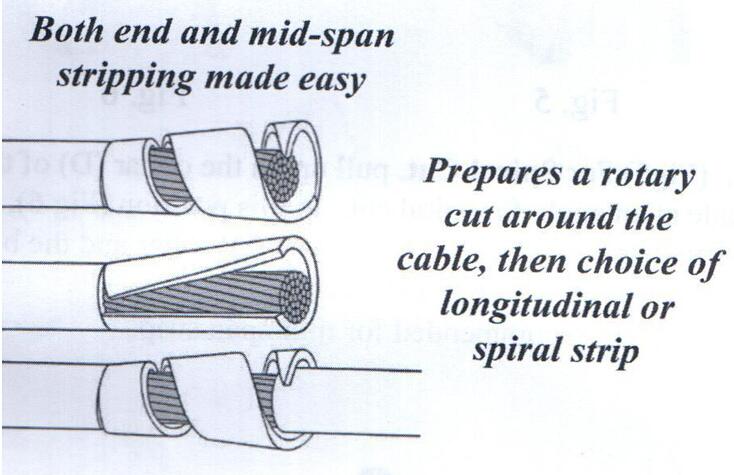

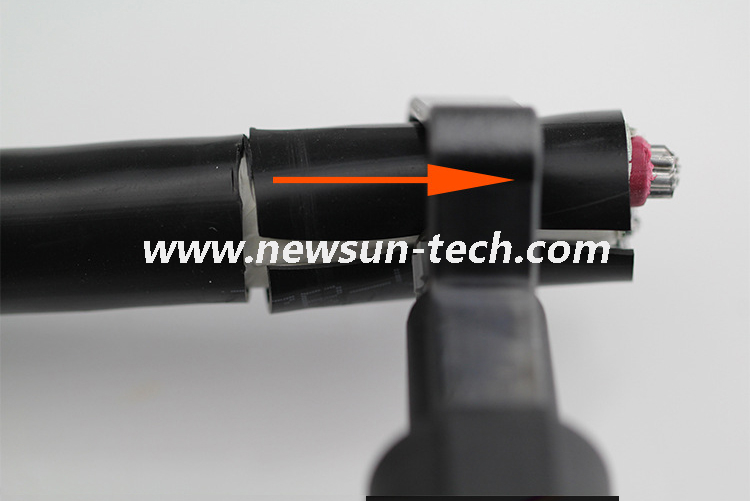

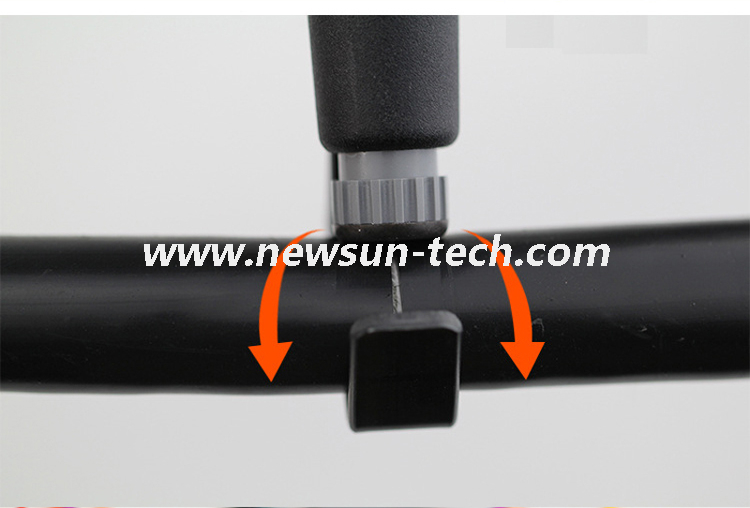

• Rotary cut to a longitudinal cut along the cable length for end stripping

• Spiral cut for end stripping and mid-span stripping

• Spiral cutting features provides easier removal of harder jackets

• Spring-loaded cable brace firmly secures cable to the blade for controlled cutting action

• Comfort and ergonomic design for ease of use and storage

• Long life blade design

• Blade depth can be regulated by simply turning the blade housing

• Blade housing is PTFE coated, for smooth, low effort stripping

cable stripper

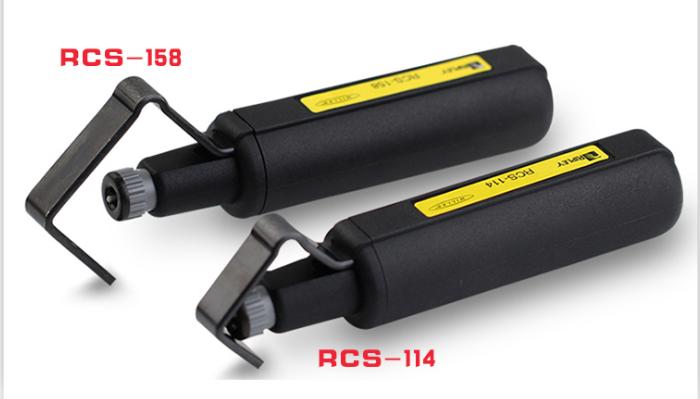

• RCS-114 for smaller diameter cables:

0.178 to 1.14 in. (4.5 - 29 mm)

• RCS-158 for larger diameter cables:

0.75 to 1.58 in. (19 - 40 mm)

• Replacement blade (RCS-114 and RCS-158): CB231 (Part No: 37150)

• Length: RCS-114 - 5.43 in. (138 mm) RCS-158 - 6.02 in. (153 mm)

• Weight: RCS-114 - 3.5 oz (100 g)

RCS-158 - 3.84 oz (110 g)

Miller cable stripper

certificate of conformity

Certificate of Conformity

Quality management system certificationQuality Management System

certification for sale transport

Certification for Sale Transport

ISO 9001

ISO 9001



Patent certificate

                     Patent Certificate

Professional grade tool ideal for slitting the corrugated copper, steel or aluminum armor layer on Fiber feeder, central tube and stranded loose tube fiber optic and cables. Versatile design allows jacket or shield slitting on non-fiber cables and slitting outer polyethylene jacket and armor in one operation.

Performs longitudinal slitting and circumferential (ringing) for end stripping;

Blade rotates 90 degrees allowing easy mid-span preparation (ringing and slitting);

ACS is adjustable from 0.315 in. (8 mm) to 1.125 in. (28.6 mm) cable O.D.

ACS 2 is adjustable from 0.157 in. (4 mm) to .393 in. (10 mm) for smaller cable O.D.

Adjustable blade depth to 5.5 mm to accommodate different cable jackets.

Cable guide wheel provides cable stability easy tool movement along the cable.

Rugged anodized aluminum and steel construction.

Cable guide wheel for smaller cable sizes can be ordered separately.
