NS-HHM04 400X Handheld Fiber Optic Inspection Microscope with 2.5mm & 1.25mm Adapters for LC/SC/ST/FC Connectors

Product name:400X Handheld Fiber Optic Inspection Microscope
Part NO: NS-HHM04
Detection Range:LC/SC/ST/FC/LSH
Fiber Type:SMF/MMF fiber with 2.5mm/1.25mm ferrule
sharethis sharing button
  • NS-HHM04

  • Newsun tech

Fiber Optic Hand-held Inspection Microscope

NSHHM04 fiber optic microscope utilizes a white light LED for coaxial illumination.Light is introduced into the optical path (axis) so that it comes out the tip of the objective lens and strikes the ferrule perpendicular to the end face.This method of illumination produces a high level of resolution providing excellent detail of scratches and contamination.

Housing Material Aluminum with Silver(gray) painting
Power Source 3 x AAA batteries (not included)
Light Source White LED
light source Controls Momentary on/off switch
Safety Filter Built-in IR filter
Fiber Type SMF/MMF fiber with 2.5mm/1.25mm ferrule
Detection Range LC/SC/ST/FC/LSH
Optical Magnification 400 times
Life of Lamp 100,000 hours life
Wheel Control Fine Focus control wheel
Adapter Interface Use interchangeable adapters

fiber microscope

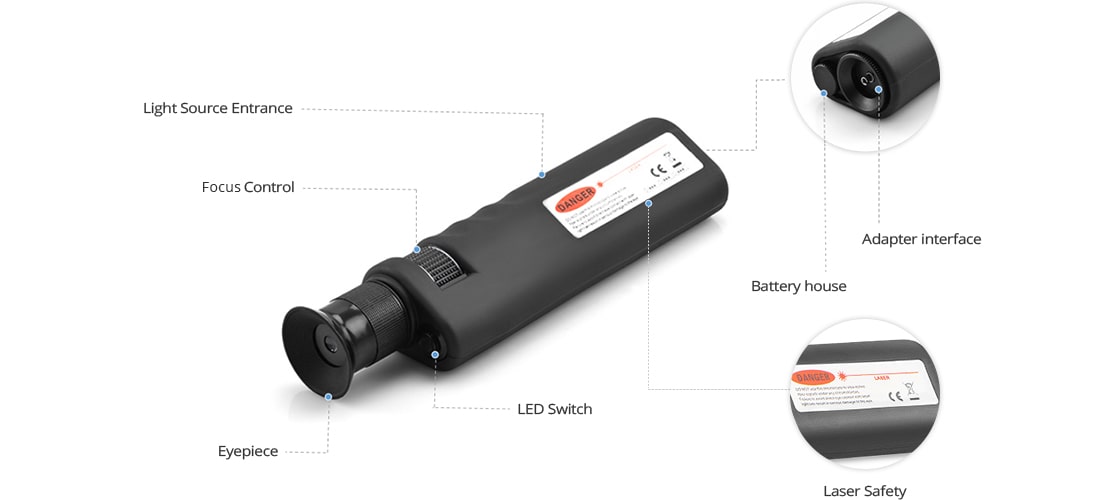

Function Indicates of 400X Handheld Fiber Optic Inspection Microscope

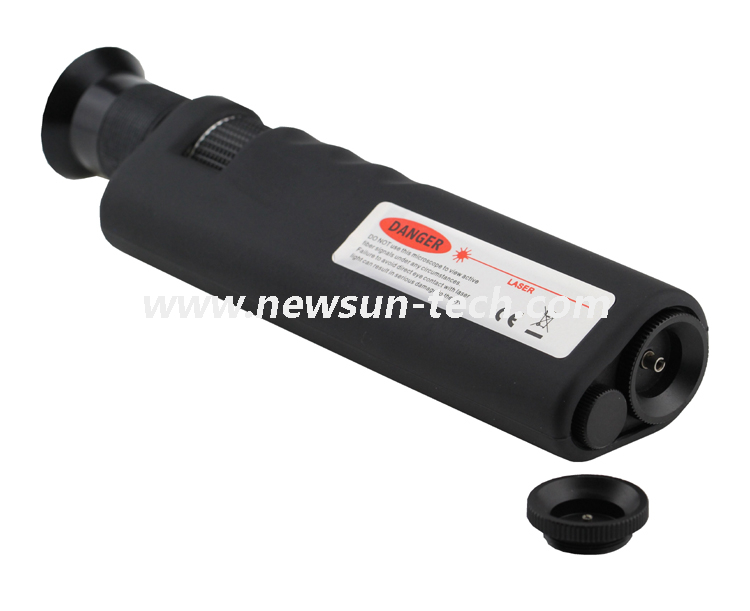

Do not use any our Fiber Inspection Microscopes to view active fiber signals under any circumstances.

Approved with CE and Passes the European Standards which ensures high standard of quality .

fiber optic microscope

Good Optical Performance of Handheld Fiber Optic Inspection Microscope

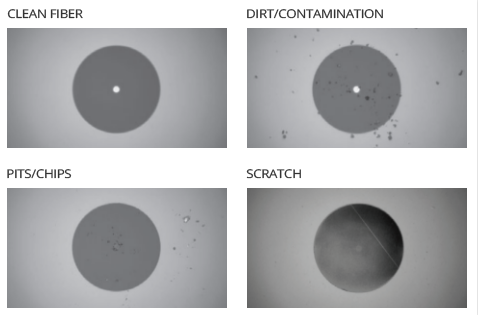

Produce excellent details of scratches and contamination with its good optical performance and integrated laser safety filters.Approved by strict quality and safety standards ensures a long and trouble free life.

400x fiber microscope

It is a fact that fiber end-face contamination is a major cause of network outages and downtime. Newsun Tech fiber inspection products enable network technicians and other personnel to safely inspect fiber endfaces for contamination and verify the effectiveness of fiber cleaning procedures.

Newsun Tech offers the best solutions for manufacturing fiber optic cable assemblies. Almost as critical to the equipment used to manufacture fiber optic assemblies are the tools used to test and inspect. At Newsun Tech, we have focus on both the Production and the Field Test and inspection. Newsun Tech works with our customers to make sure their manufacturing procedures produce the highest quality jumpers at the most effective cost.

Newsun Tech focuses on several areas to ensure industry-leading solutions and best practices including: Visual fault locator, fiber optical power meter, Fiber Optic Connector handle test tools Kit, 250X/400X Handheld Fiber Optic Inspection Microscope, and etc..

Production Test and Inspection is generally used in lab type settings where the systems remain stationary. They are built to handle large volumes and typically test to a higher degree of accuracy. This equipment is not only used to provide test reports for customers, but it also allows for the collection of large segments of data that can be reviewed for improvements in the production processes.

Field Test and Inspection pieces of test equipment are designed to be highly portable with internal power supplies and smaller footprints. They are well suited for troubleshooting, mapping and certifying fiber optic networks during and after installation in the field.

We provide the highest quality equipment backed with industry-leading technical support and exceptional customer service. With cutting edge equipment, automation, and process controls.
