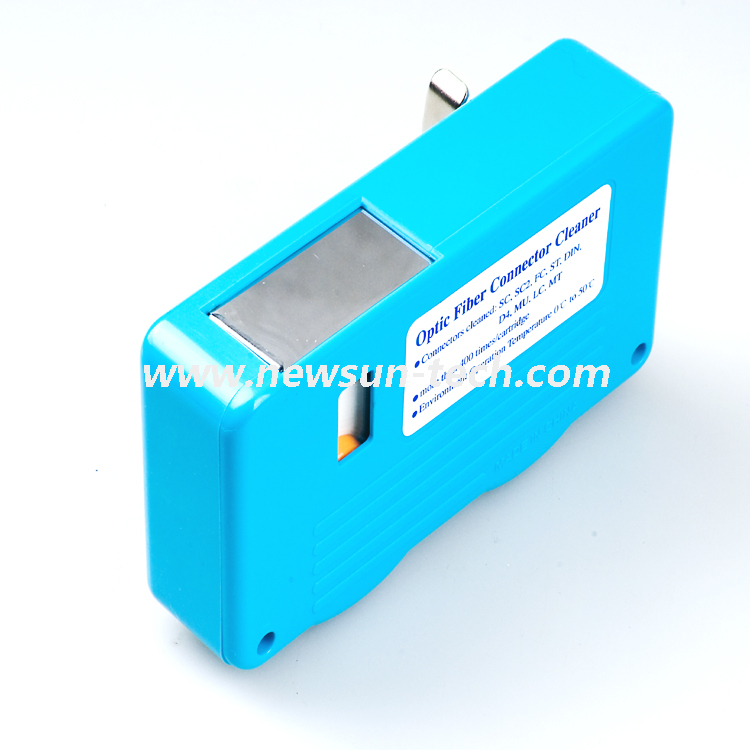

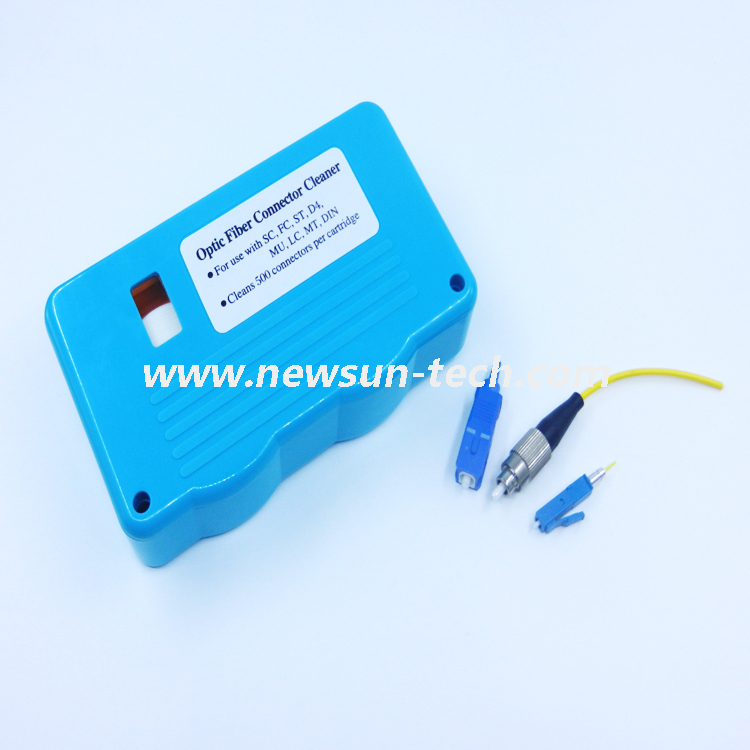

NS2-001 Fiber Optic Double-port And Single-port LC/SC/FC/ST/MU/D4/DIN Connector Of Cassette Cleaner

Product name:Fiber Cleaner
Cleaning times:More than 500 times
color:Blue
Connector Type:SC FC ST MU LC MPO
Availability:
Quantity:
sharethis sharing button
  • NS2-001B

  • Newsun tech

We supply Double port and Single port for different clean request.

fibre optic cleaner


Product name Fiber Optic Cleaner
Part NO: NS2-001
Clean Ferrule type Double port      Single port
Ferrule  φ2.5mm   φ1.25mm
Product  dimension 130*75 *40mm
Weight 200g
Suitable SC, SC2, FC,ST, DIN, D4 MU, LC, MT, MPO, MT-RJ without pins
Cleaning Temperature -20 ~50dB(Return Loss)
Material Plastic
Color Blue
Packing 1 pcs/Box
Clean time Cleans per reel over 500 times
Part No. of replacement reel NS2-006

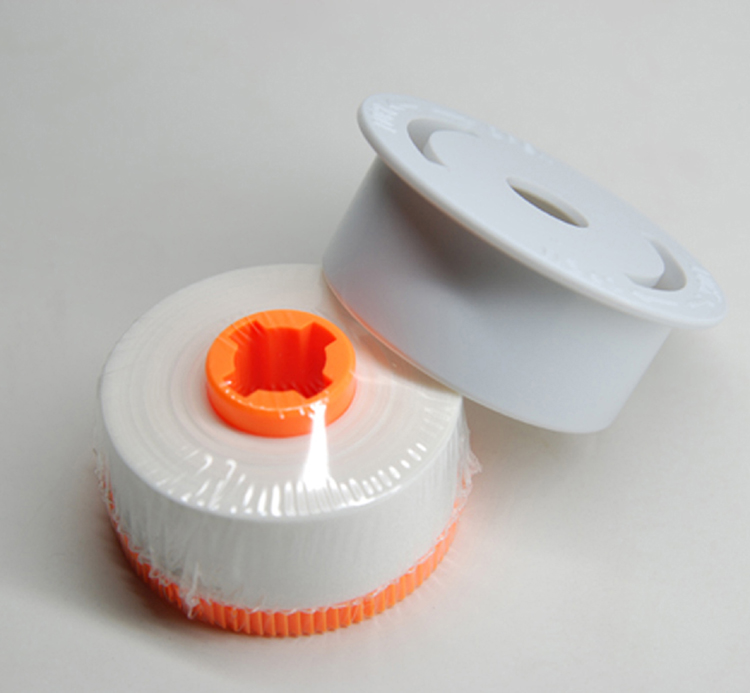

cleaner replacement reel

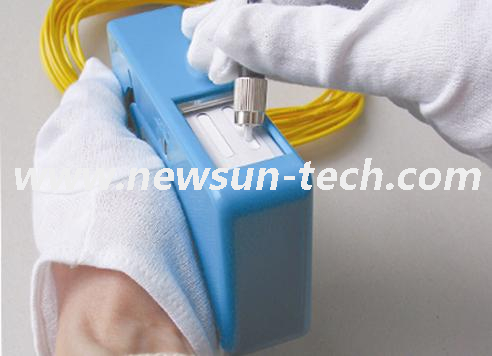

  • Cleans the exposed ferrule end-faces of fiber optic connectors

  • More than 400 cleans per tape

  • Replaceable tape reels reduce the cost per clean

  • Dense weave white micro-fiber cleaning fabric eliminates electrostatic charge

  • One and two slot models for cleaning all popular single and multi-fiber connector types including MU and LC duplex, male and female MPO/MTP

  • Trusted brand field-proven by technicians through years of service

  • Cleans MT-RJ connectors with pins

  • Suitable for cleaning tasks in factories and field applications.

  • Environmentally friendly.

  • Achieve high quality cleaning without alcohol or other solvents.

  • The cleaning tape is replaceable thus reducing the long term costs.

  • This is an ideal tool for use when the connector face is available to you for cleaning.

  • Specifically designed to clean ST, SC, FC, SMA D-4, DIN, and Diamond connector faces.



Optical Fiber Connector Cleaner


Fiber optic connector cleaners utilize a specially formulated dry cloth for thorough and efficient cleaning of fiber optic end-faces.


They eliminate the need for hazardous cleaning fluids that can leave a residue.


The cloth is extremely effective in removing grease, dust and other contaminants.


These products offer substantial labor savings over conventional, high volume applications and have been adopted by manufacturers and carriers worldwide.


It is essential accessory to maintain and guarantee good quality of fiber optic connection.It is the best non-alcohol cleaning method for various fiber optic terminations which is simply and swiftly used.Box tape replacement is offered to make sure how cleaning cost.Suitable for connector such as SC,FC,MU,LC,ST,D4,DIN,E2000 etc.




Fiber optic connector cleaners utilize a specially formulated dry cloth for thorough and efficient cleaning of fiber optic end-faces.


They eliminate the need for hazardous cleaning fluids that can leave a residue.


The cloth is extremely effective in removing grease, dust and other contaminants.


These products offer substantial labor savings over conventional, high volume applications and have been adopted by manufacturers and carriers worldwide.
