NS-KT100
Newsun tech

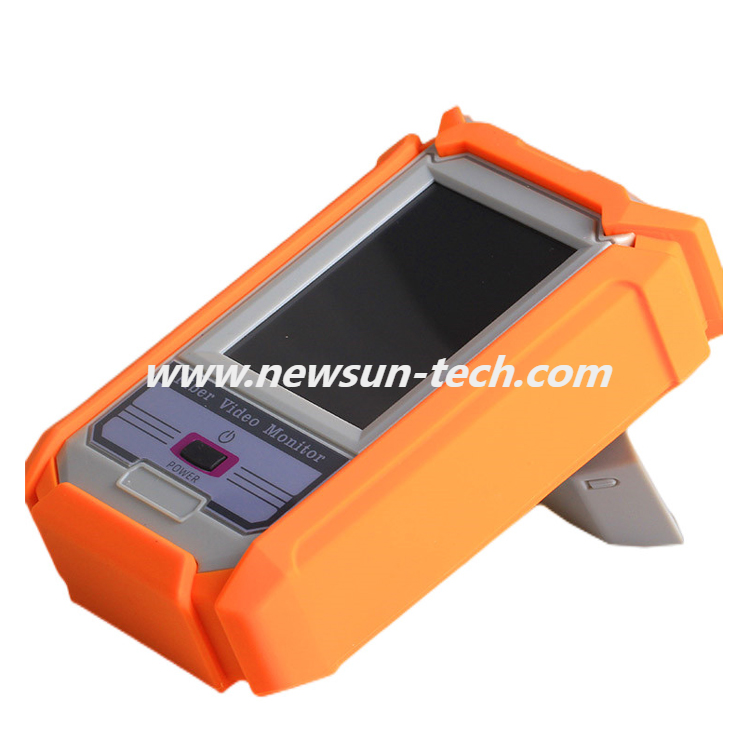

Portable Fiber Optic Inspection Microscope
NS-KT100 is a portable, video microscope used to inspect all kinds of fiber optic terminations, especially for the female ones. It eliminates the need to access the backside of patch panels or disassemble hardware devices prior to inspection.
Magnification | 400x (8’’ Monitor) 250x (3.5’’ Monitor) |
Resolution Ratio | 10. um |
Display Screen | 3.5’’ TFT-LCD, 960x240 pixels |
Video Output | NTSC / PAL |
Power Supply | 12.6V Li Battery |
Weight | Whole package (1.5 or so) |
Dimensions | Package(30*25*10) |
Work/Storage | -20℃~+50℃ -30℃~+60℃ |
Portable Fiber Optic Inspection Microscope
NS-KT100 is a portable, video microscope used to inspect all kinds of fiber optic terminations, especially for the female ones. It eliminates the need to access the backside of patch panels or disassemble hardware devices prior to inspection.
Magnification | 400x (8’’ Monitor) 250x (3.5’’ Monitor) |
Resolution Ratio | 10. um |
Display Screen | 3.5’’ TFT-LCD, 960x240 pixels |
Video Output | NTSC / PAL |
Power Supply | 12.6V Li Battery |
Weight | Whole package (1.5 or so) |
Dimensions | Package(30*25*10) |
Work/Storage | -20℃~+50℃ -30℃~+60℃ |

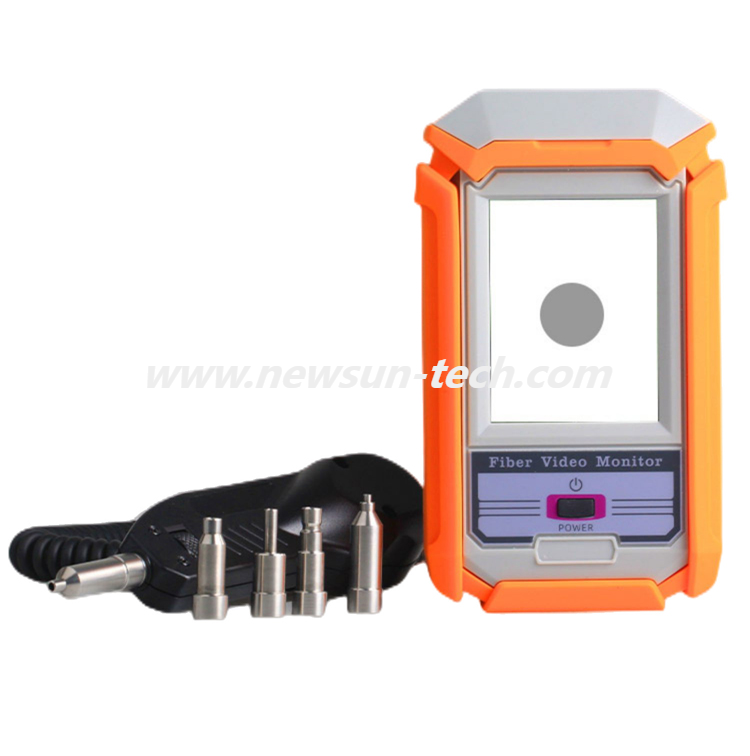

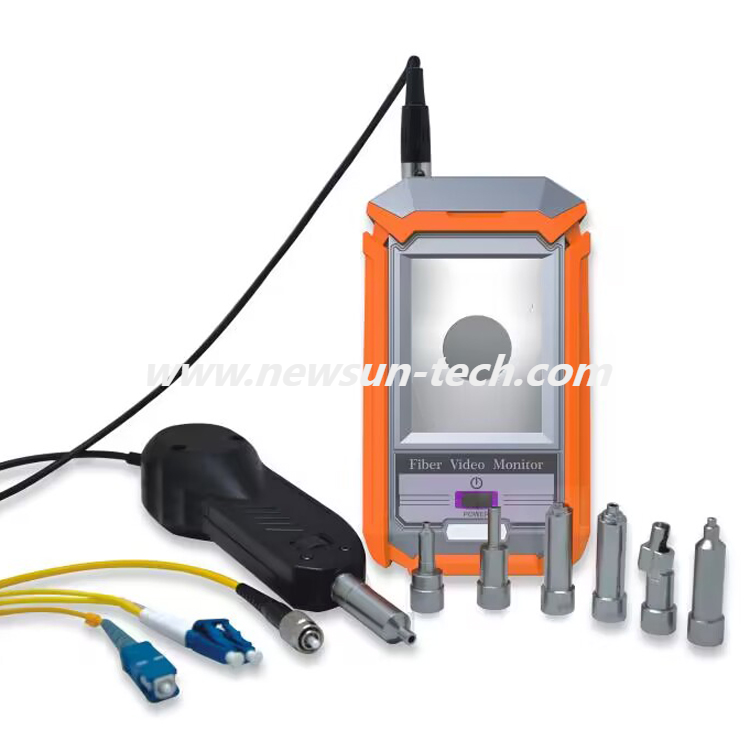

Handheld Fiber Optic Inspection Probe Microscope with FT-Display Screen LCD
High performance fiber end face inspection probe. A stand-alone video inspection scope, with a high-resolution LCD display that shows fiber endface anomalies in great detail.
Convenient using both for male and female adapters;
Widely used in DWDM, SDH, SONET etc.
Magnification: 250* via 3.5’’ 220,000 pixels TFT LCD;
Available for USB 2.0 interface on PC and data saving.

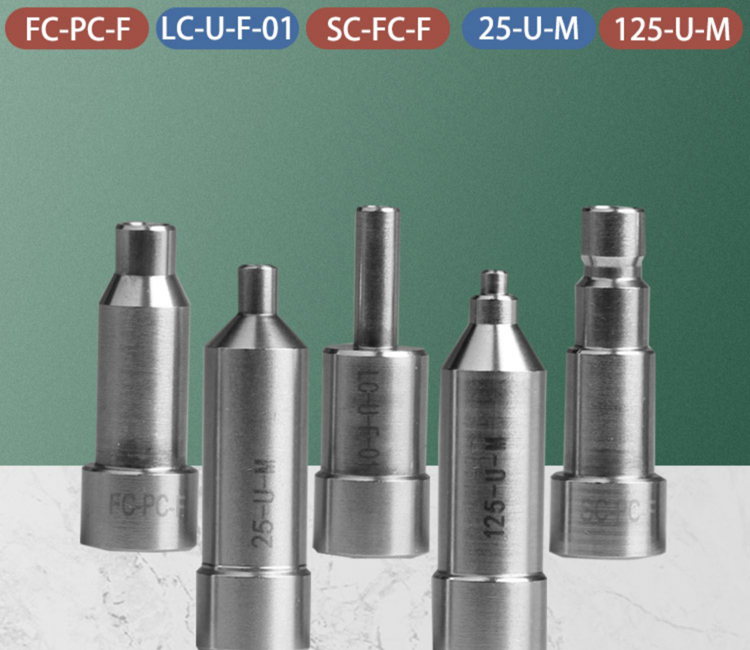

Tips Type | Function Description |
25-U-M | FC/SC/ST/E2000 Patch cord UPC connector |
125-U-M | LC/MU Patch cord UPC termination |
25-A-M | FC/SC/ST/E2000 Patch cord APC connector |
125-A-M | LC/MU Patch cord APC termination |
25-U-F | FC/SC/ST/E2000 UPC bulkhead |
125-U-F | LC UPC bulkhead |
25-A-F | SC APC bulkhead |
125-A-F | LC APC bulkhead |
Handheld Fiber Optic Inspection Probe Microscope with FT-Display Screen LCD
High performance fiber end face inspection probe. A stand-alone video inspection scope, with a high-resolution LCD display that shows fiber endface anomalies in great detail.
Convenient using both for male and female adapters;
Widely used in DWDM, SDH, SONET etc.
Magnification: 250* via 3.5’’ 220,000 pixels TFT LCD;
Available for USB 2.0 interface on PC and data saving.
Tips Type | Function Description |
25-U-M | FC/SC/ST/E2000 Patch cord UPC connector |
125-U-M | LC/MU Patch cord UPC termination |
25-A-M | FC/SC/ST/E2000 Patch cord APC connector |
125-A-M | LC/MU Patch cord APC termination |
25-U-F | FC/SC/ST/E2000 UPC bulkhead |
125-U-F | LC UPC bulkhead |
25-A-F | SC APC bulkhead |
125-A-F | LC APC bulkhead |

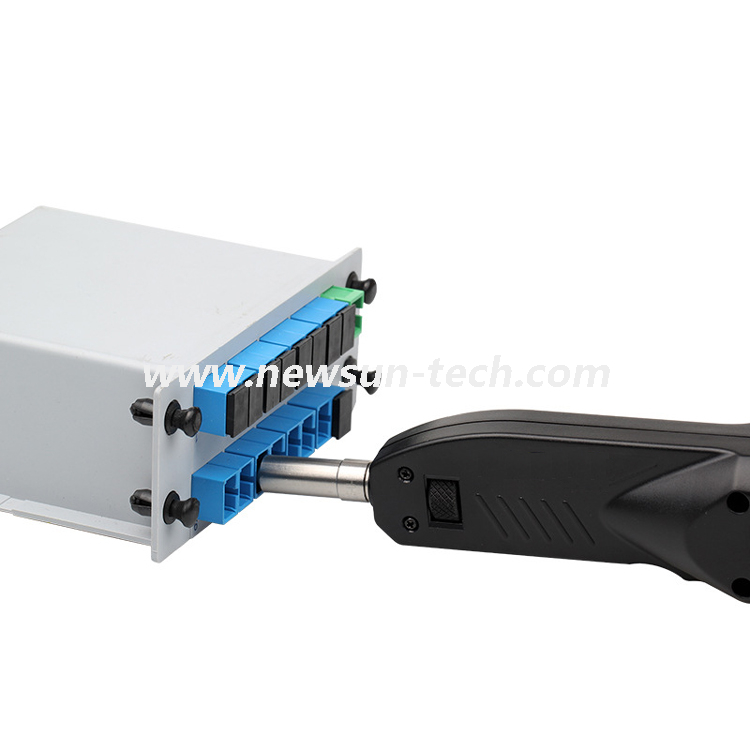

Readily carried with compact size and light weight.
Widely used in DWDM, SDH, SONET Devices and Optical Switch, ODF box, etc.
Readily carried with compact size and light weight.
Widely used in DWDM, SDH, SONET Devices and Optical Switch, ODF box, etc.
It is a fact that fiber end-face contamination is a major cause of network outages and downtime. Newsun Tech fiber inspection products enable network technicians and other personnel to safely inspect fiber endfaces for contamination and verify the effectiveness of fiber cleaning procedures.
Newsun Tech offers the best solutions for manufacturing fiber optic cable assemblies. Almost as critical to the equipment used to manufacture fiber optic assemblies are the tools used to test and inspect. At Newsun Tech, we have focus on both the Production and the Field Test and inspection. Newsun Tech works with our customers to make sure their manufacturing procedures produce the highest quality jumpers at the most effective cost.
Newsun Tech focuses on several areas to ensure industry-leading solutions and best practices including: Visual fault locator, fiber optical power meter, Fiber Optic Connector handle test tools Kit, 250X/400X Handheld Fiber Optic Inspection Microscope, and etc..
Production Test and Inspection is generally used in lab type settings where the systems remain stationary. They are built to handle large volumes and typically test to a higher degree of accuracy. This equipment is not only used to provide test reports for customers, but it also allows for the collection of large segments of data that can be reviewed for improvements in the production processes.
Field Test and Inspection pieces of test equipment are designed to be highly portable with internal power supplies and smaller footprints. They are well suited for troubleshooting, mapping and certifying fiber optic networks during and after installation in the field.
We provide the highest quality equipment backed with industry-leading technical support and exceptional customer service. With cutting edge equipment, automation, and process controls.
