FC-6S Optical Fiber Optic Cutting Knife Cutter Cleaver Tool for Single Core Drop Cable Pigtail

Product name:FC-6S Fiber Optic Cable Cleaver
Part NO.: FC-6S
Cladding Diameter:125μm
Fiber Count Coating Diameter :Single fiber (0.25 & 0.9mm)
sharethis sharing button
  • FC-6S

  • Newsun tech

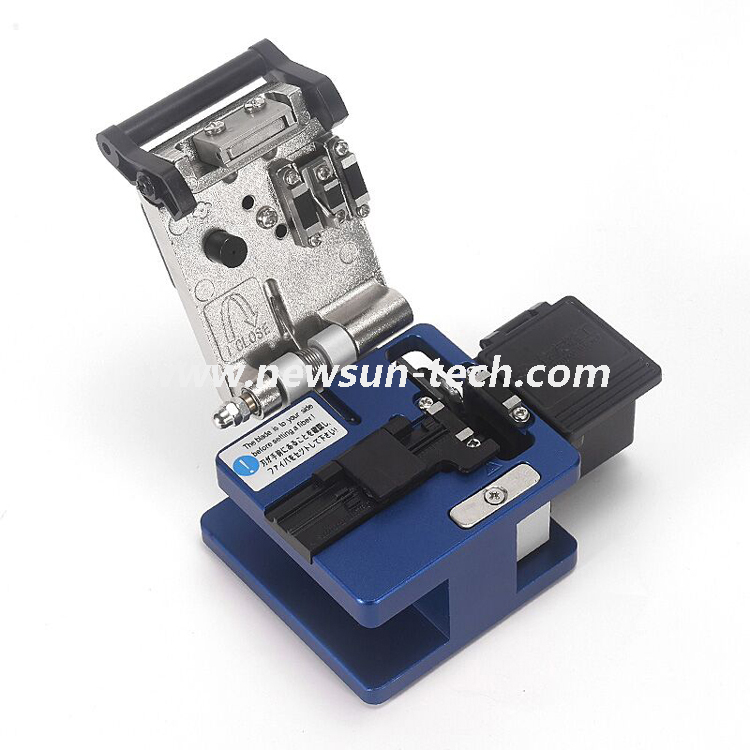

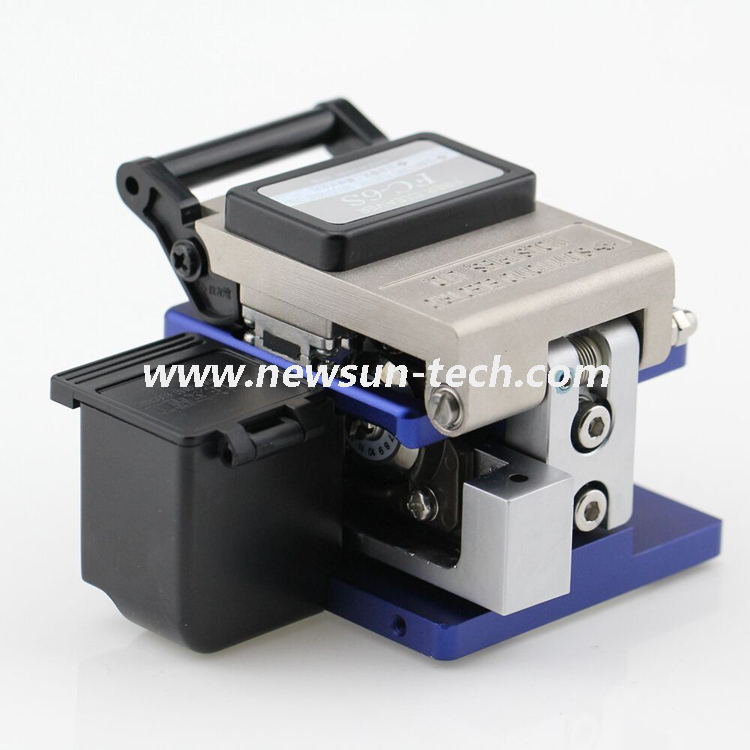

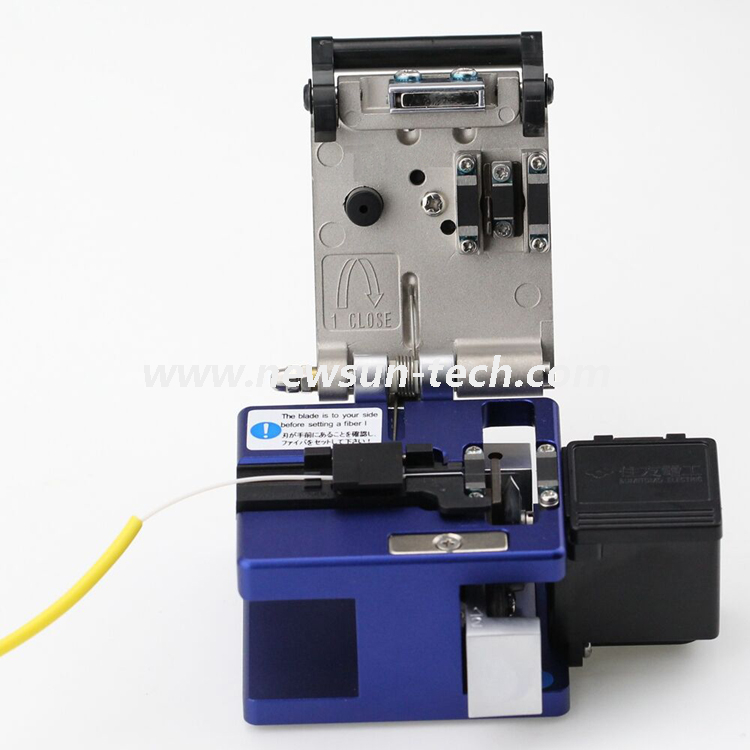

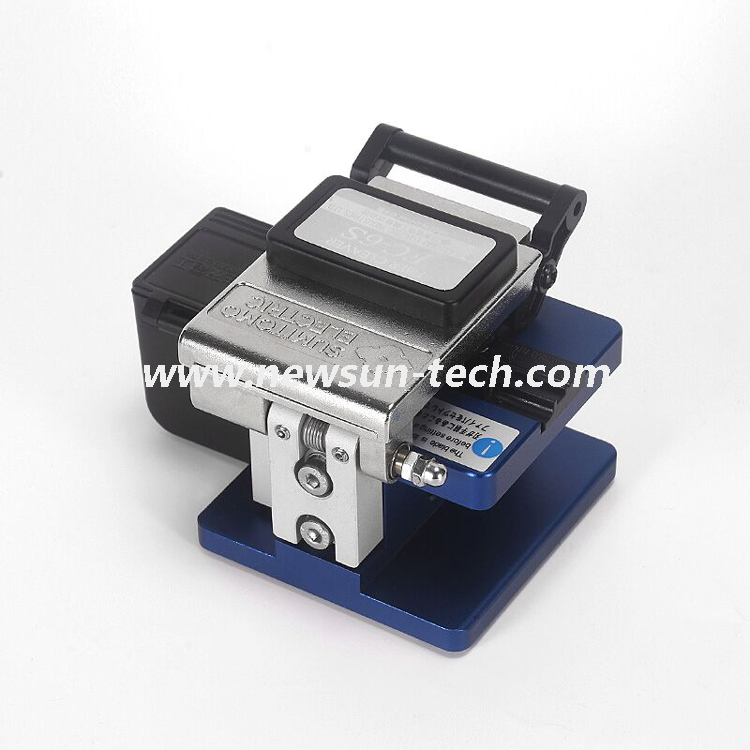

High Quality Precision Optical Fiber Cleaver FC-6S

The Fibre tool FC-6S high precision cleaver is designed for field use alongside the Sumitomo splicing units. By using a rotating blade for multiple scoring positions enables a blade life of 48,000 cleaves with a cleave angle better than 0.5 degrees. The unit is constructed to be robust and field serviceable and has options such as tripod mount to enable secure platform mounting. The FC-6S is the latest cleaver . Integral to the unit is a cleave length scale which helps facilitate exact lengths during cleaving

Dimensions: 76*63*63 mm(WxDxH)

Weight: 430g without scrap collector; 475g with scrap collector

Coating diameter: 0.25mm-0.9mm (Single)

Cladding diameter: 0.125mm

Cleave Length: 9mm-16mm(Single fiber-0.25mm coating)

10mm-16mm(Single fiber-0.9mm coating)

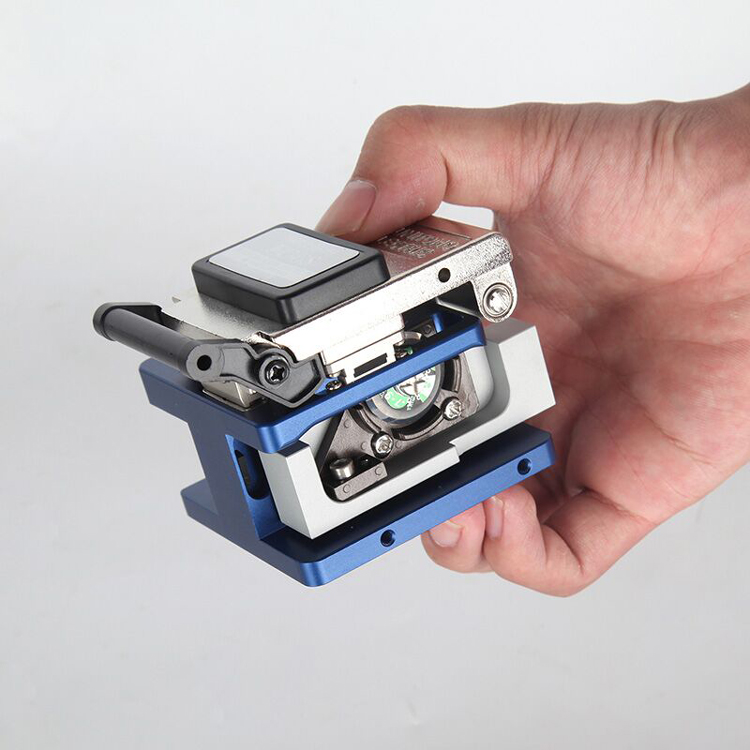

fiber cutting tool

Used for Single Fiber Cleaving with Fiber Scrap Collection

Utilizes an Automatic Anvil Drop for Fewer Required Steps and Better Cleave Consistency

Prevents Double Scoring of the Fibers

Has Superior Blade Height and Rotational Adjustment

Precision Blade features 24 blade positions with 2,000 cleavers per position

Can Be Operated With Minimal Steps

Typical Cleave Angle: 0.5°

Provides approximately 36,000 cleaves

Compact body& light weight

High Precision Cleaves

Diameter: 250um Coated or 900um Buffer fiber

Singlemode or Multimode Use

12 Position Rotatable and Replicable Blade

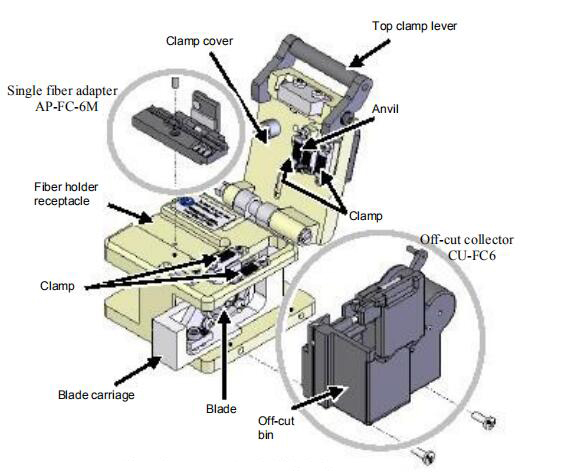

fiber cleaverfiber cable cutter

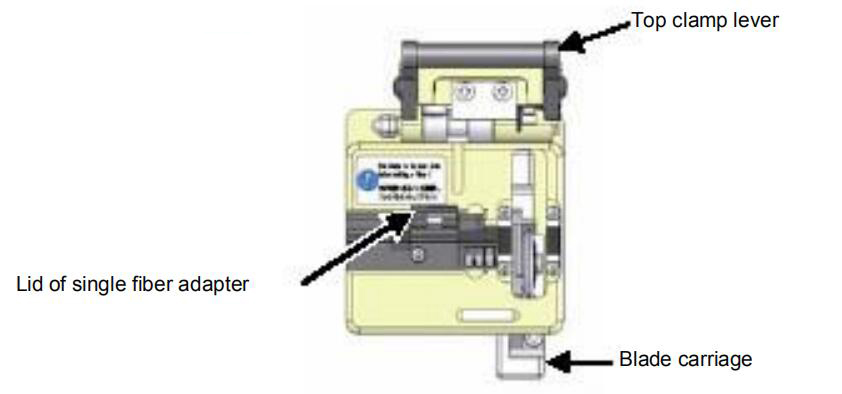

1: Open the top clamp lever and the lid of the single fiber adapter. The blade carriage should be in the forward position.fiber cutting machine

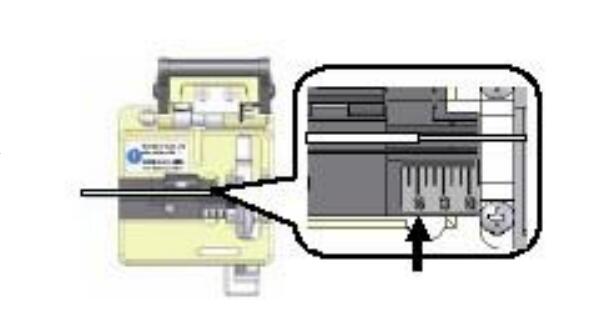

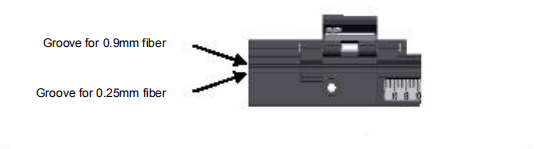

2: Lower the fiber straight into the correct V-groove with the end of the fiber coating (e.g. if the cleave length is 16mm) at the 16mm mark on the ruler.

3: Close the lid of the single fiber adapter.

optical fiber cleaver

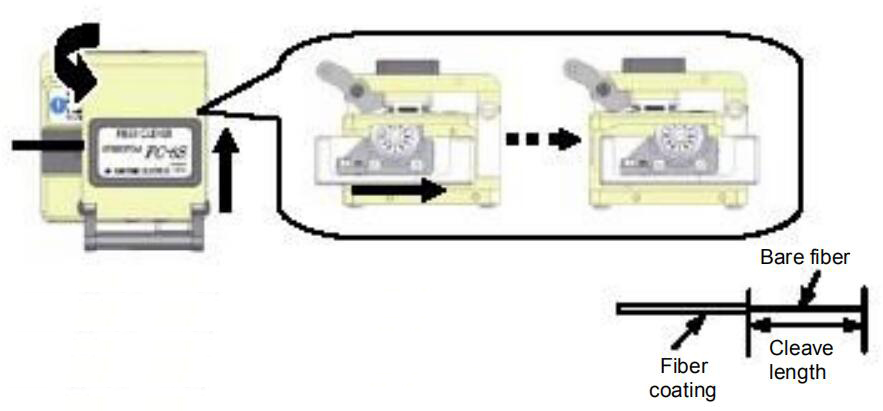

4: Lower the top clamp lever. Slide the blade carriage to the rear of the cleaver. The fiber will be cleaved.

fiber cleaver

5: Open the top clamp lever. Then open the lid of the single fiber adapter and lift the newly cleaved fiber. Lift the off-cut and dispose it properly. (The FC-6S-C automatically collects an off-cut in the off-cut collector.)

Professional grade tool ideal for slitting the corrugated copper, steel or aluminum armor layer on Fiber feeder, central tube and stranded loose tube fiber optic and cables. Versatile design allows jacket or shield slitting on non-fiber cables and slitting outer polyethylene jacket and armor in one operation.

Performs longitudinal slitting and circumferential (ringing) for end stripping;

Blade rotates 90 degrees allowing easy mid-span preparation (ringing and slitting);

ACS is adjustable from 0.315 in. (8 mm) to 1.125 in. (28.6 mm) cable O.D.

ACS 2 is adjustable from 0.157 in. (4 mm) to .393 in. (10 mm) for smaller cable O.D.

Adjustable blade depth to 5.5 mm to accommodate different cable jackets.

Cable guide wheel provides cable stability easy tool movement along the cable.

Rugged anodized aluminum and steel construction.

Cable guide wheel for smaller cable sizes can be ordered separately.
