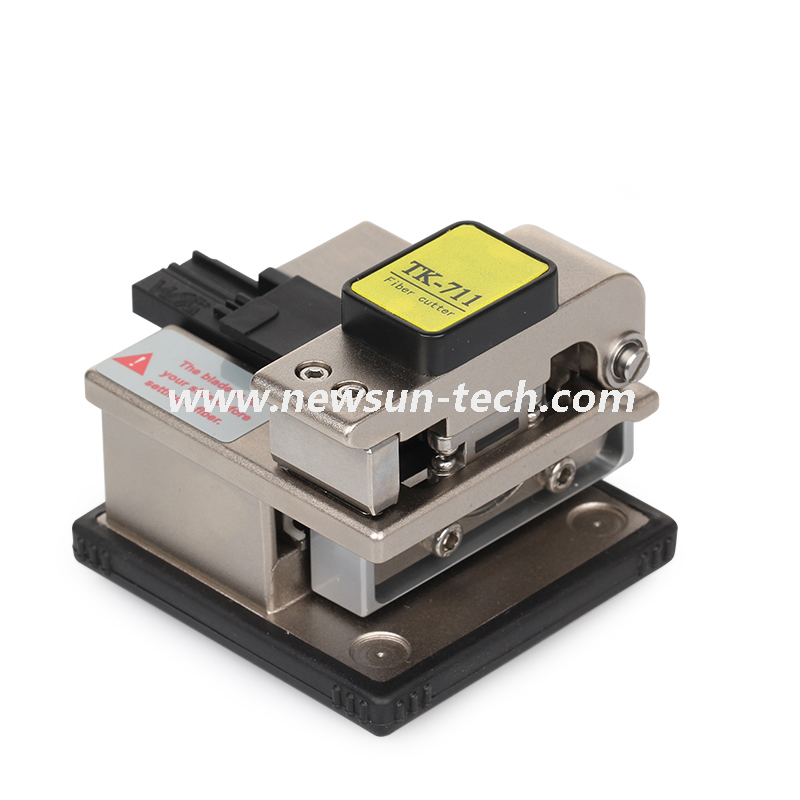

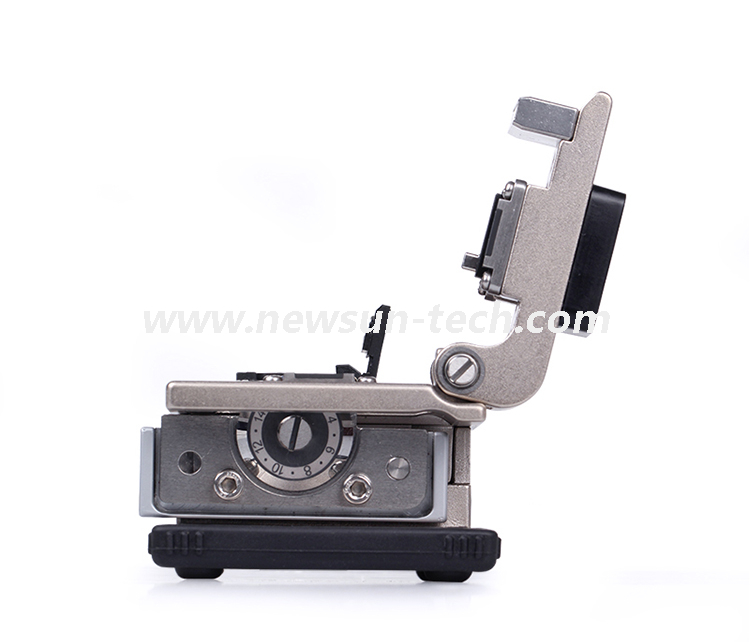

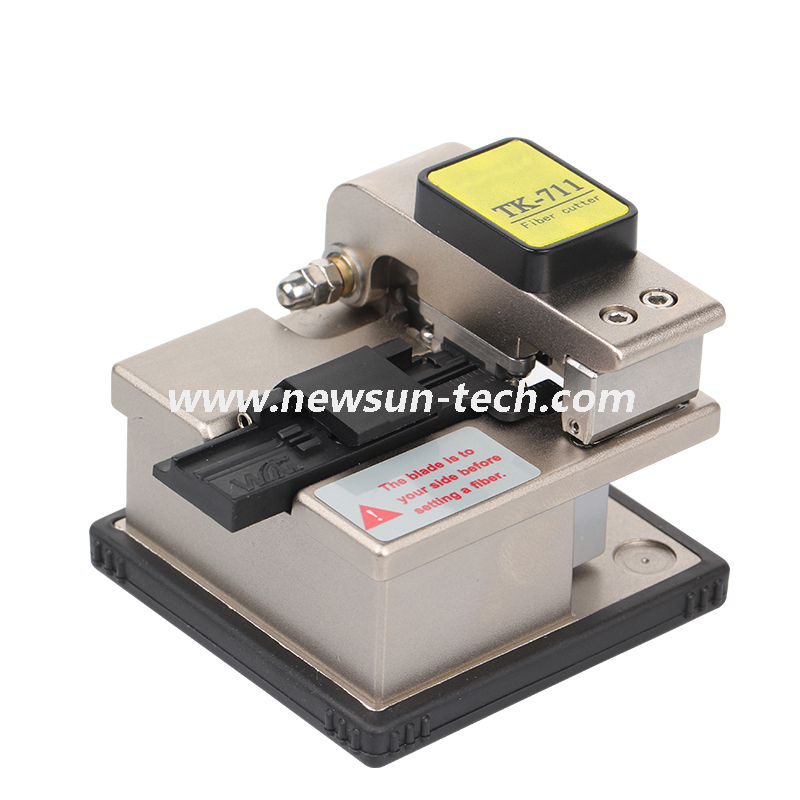

NSTK-711 High Precision Fiber Optic Cable Cutter Tool Cleaver

Product name:High precision fiber cleaver
Part NO.: NSTK-711
Coating Diameter:250μm to 900μm
Blade Lifetime:Up to 48000 Cleaves
Availability:
Quantity:
  • NSTK-711
  • Newsun tech

Fiber optic cleaver is used to cut the fiberglass for fusion splicing, also ideal for preparing fiber for pre-polished connectors to make a good end face, and it is very important in the fiber splicing process, usually it works together with the fusion splicer to meet the end needs.

Part Number NSTK-711
Coating Diameter 250μm to 900μm
Color Silvery
Angle Capability 90±1.2 Degrees
Weight 0.5kg
Cladding Diameter 125μm
Material Steel
Blade Lifetime Up to 48000 Cleaves
Application standard 125/250um & 125/900um fibers

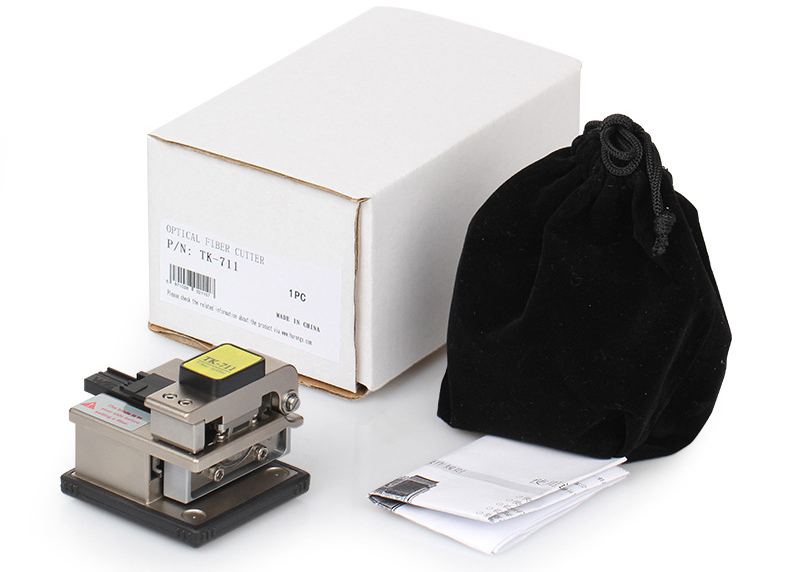

Fiber optic Cleaver

High Precion Fiber Optic Cleaver

Designed for excellent portability, the NSTK-711 Fiber Optic Cleaver is well-shaped and in sound quality.

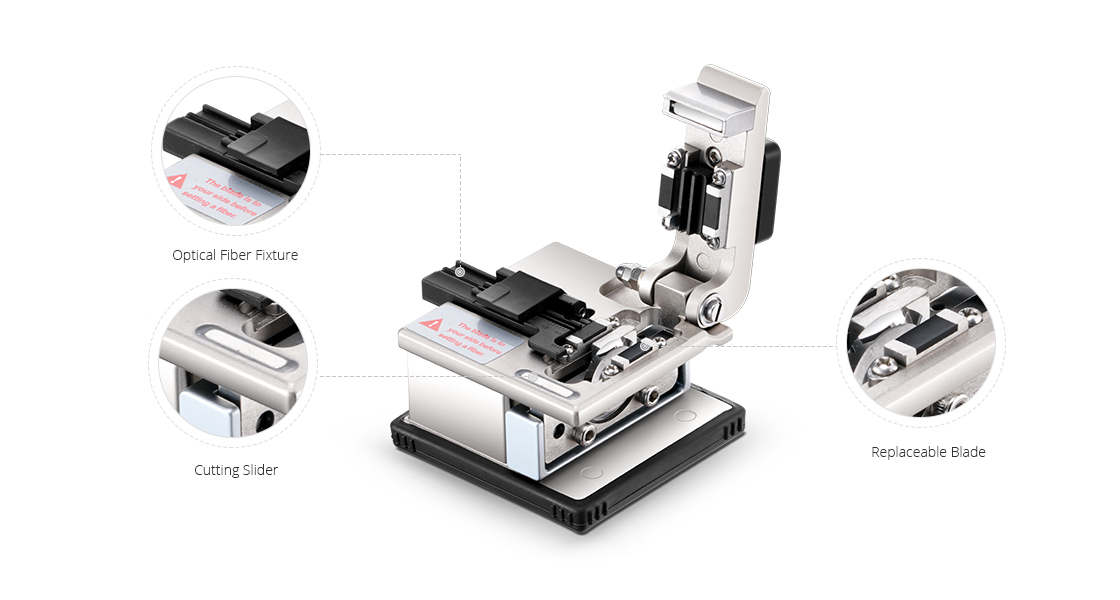

This high precision fiber optic cleaver is professinal designed in structures, its 16-position blade provides approximately 48,000 cleaves with angle of about 90 degrees.fiber cleaver

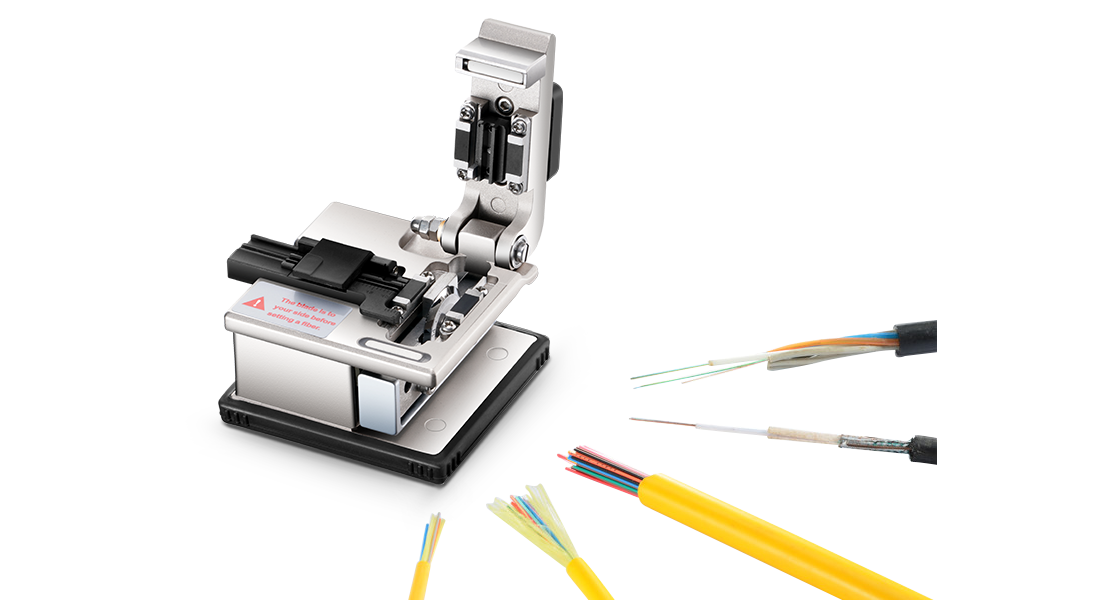

NSTK-711 high precision fiber optic cleaver is ideal for fusion splicing standard 125/250um & 125/900um fibers and preparing fiber for various pre-polished connectors.optical fiber cleaver


Operation Procedure

It utilizes an automatic anvil drop for fewer required steps and better cleave consistency. Here we list main 6 steps for Fiber Cleaving.

fiber cleaver

Professional grade tool ideal for slitting the corrugated copper, steel or aluminum armor layer on Fiber feeder, central tube and stranded loose tube fiber optic and cables. Versatile design allows jacket or shield slitting on non-fiber cables and slitting outer polyethylene jacket and armor in one operation.


Performs longitudinal slitting and circumferential (ringing) for end stripping;

Blade rotates 90 degrees allowing easy mid-span preparation (ringing and slitting);

ACS is adjustable from 0.315 in. (8 mm) to 1.125 in. (28.6 mm) cable O.D.

ACS 2 is adjustable from 0.157 in. (4 mm) to .393 in. (10 mm) for smaller cable O.D.

Adjustable blade depth to 5.5 mm to accommodate different cable jackets.

Cable guide wheel provides cable stability easy tool movement along the cable.

Rugged anodized aluminum and steel construction.

Cable guide wheel for smaller cable sizes can be ordered separately.
