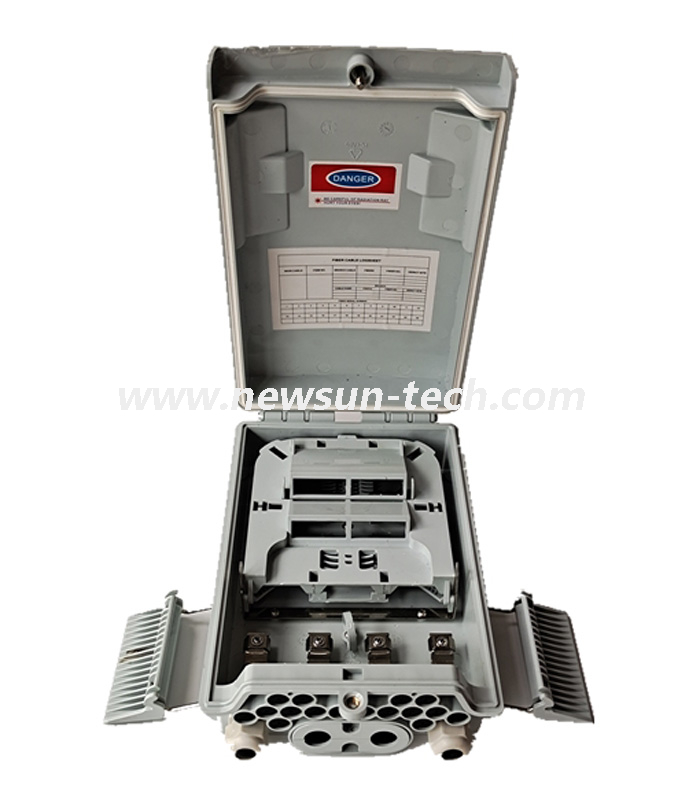

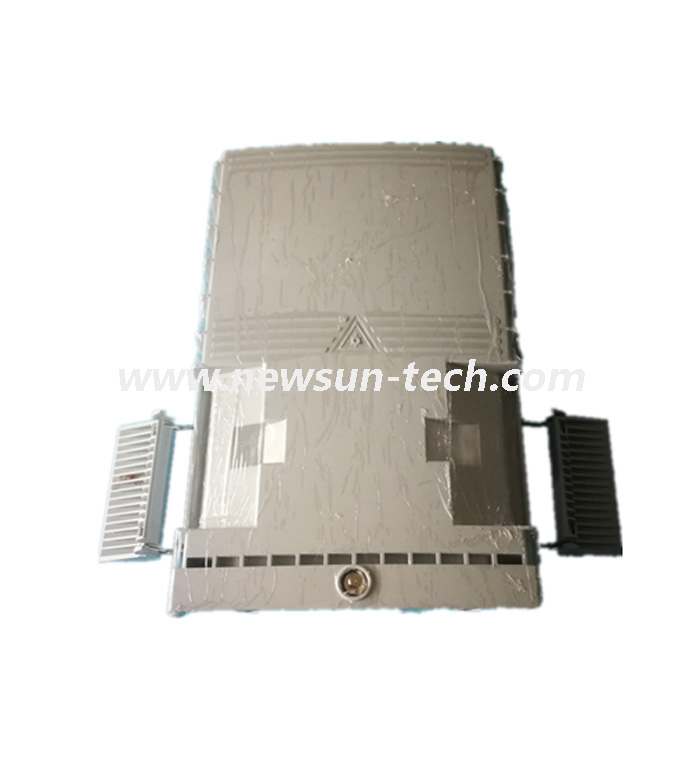

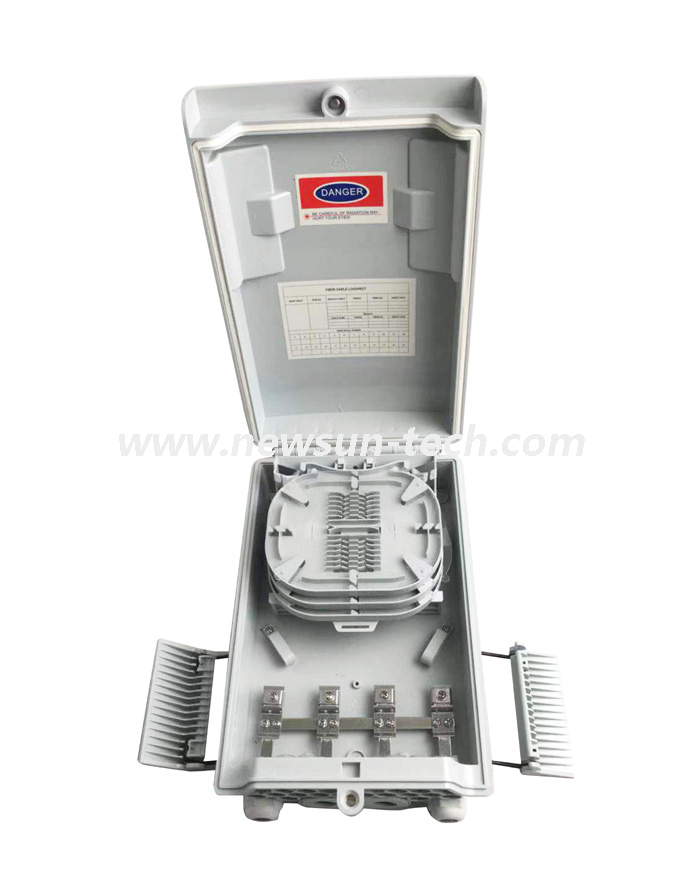

NSTB-FP16A Outdoor 16 Port Waterproof FTTH Fiber Optic Distribution Box

Product name:optical fiber distribution bo
Size( mm ):274*175*82 mm
cable entry:Inlet port: 4 ports Outlet port: 12 ports
sharethis sharing button
  • NSTB-FP16A


Fiber optic termination box

NSTB-FP16A Fiber Optic Splitter Distribution Box is used as a termination point for the feeder cable to connect with drop cable in FTTx communication network system. The fiber splicing, splitting, distribution can be done in this box, and meanwhile it provides solid protection and

management for the FTTx network building.

Product No.NSTB-FP16A
Dimension(LxWxH)274*175*82 mm

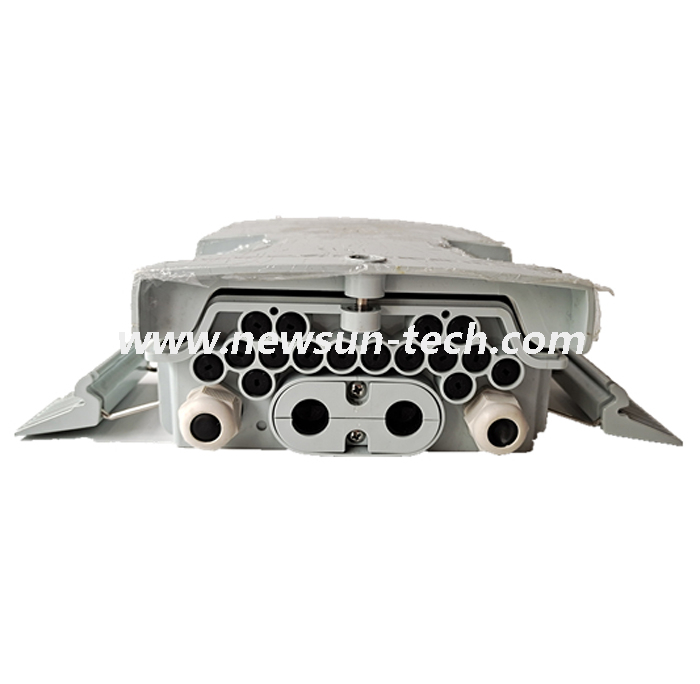

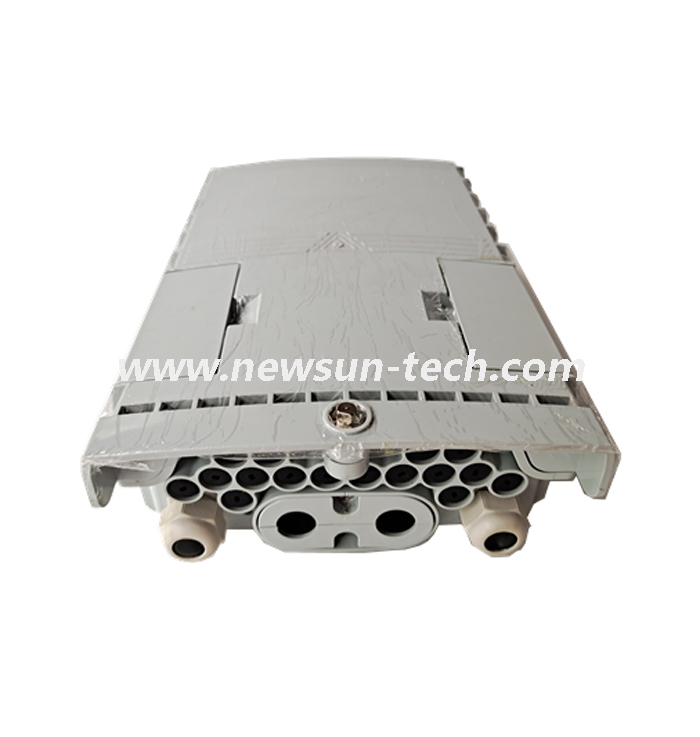

Cable entriesInlet port: 4 ports,Outlet port: 12 ports
Splicing Tray12/24 fiber per tray
Max. capacity72 cores
PLC splitter1*4,1*8,1*12 Mini Steel Tube/ bare type PLC splitter
No. of AdapterMax. 12pcs SC SX,12pcs LC DX Adapter
IP ratingIP65
Cable EntrySupport un-cutting

Waterproof FTTH Fiber Optic Terminal Box

*Total enclosed structure.

*Clamping for feeder cable and drop cable, fiber splicing, fixation, storage, distribution...etc all in one.

*Cable,pigtails,patch cords are running through own path without disturbing each other, cassette type SC/LC/PLC adaptor installation, easy maintenance.

*Distribution panel can be flipped up, feeder cable can be placed by expression port, easy for maintenance and installation.

*Cabinet can be installed by the way of wall-mounted or poled-mounted, suitable for both indoor and outdoor uses


* Widely used in FTTH access network.

* Telecommunication Networks

*CATV Networks

* Data communications Networks

Technical indicators

*Environmental requirement

Working temperature:-40℃~+85℃

Relative humidity:≤85%(+30℃)

Atmospheric pressure:70KPa~106Kpa

*Main technical datasheet

Insertion loss:≤0.2dB

UPC return loss:≥50dB

APC return loss:≥60dB

Life of insertion and extraction:>1000 times

*Thunder-proof technical datasheet

The grounding device is isolated with the cabinet, isolation resistance is less than 2MΩ/500V(DC);IR≥2MΩ/500V

The withstand voltage between grounding device and cabinet is no less than 3000V(DC)/min, no puncture,no flashover;U≥3000V

certificate of conformity

Certificate of Conformity

Quality management system certificationQuality Management System

certification for sale transport

Certification for Sale Transport

ISO 9001

ISO 9001



Patent certificate

                     Patent Certificate

Fiber termination box contains the shell, the internals (supporting frame, set fiber disc, fixing device) and optical fiber joint protective element. Prominent advantages of fiber termination box lie in efficient cable-fixing, welding and its protective role in machinery of the optical fiber.

A insulation is always demanded between cable metal components and cable terminal box shell in a fiber termination box, which provides space for cable terminal and remained fiber storage. In addition, fiber termination box also facilitate the installation of different occasions since it is easy to access, which turns out to be time and cost saving.


Fiber termination box is universally used in telephone, agricultural telephone network system, data and image transmission system, CATV cable television series, indoor cable through force access and branch connection. Fiber termination box is available for the distribution and termination connection for various kinds of fiber optic systems, especially suitable for mini-network terminal distribution, in which the optical cables, patch cores or pigtails are connected. In addition to that, fiber termination box can be applied to joint fiber pigtail, protect fiber optic splices and share out the connectivity to individual customers.
