LC UPC APC 0.9/2.0/3.0mm/drop Cable Pre-polished Ferrule Field Assembly Fast Connector/Quick Connector

Product name:Fast Connector /Quick Connector
Connector type:LC
Applicable for: 0.9/2.0/3.0mm,drop cable
sharethis sharing button

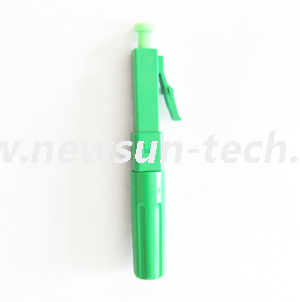

  • LC fast connector


LC UPC APC 0.9/2.0/3.0mm/drop Cable Pre-polished Ferrule Field Assembly Fast Connector/Quick Connector

Pre-polished Ferrule Fast Connector, Can Be Terminated onto 900µm Coated Fibre as Well as 2mm and 3mm Jacketed Cord

The LC/UPC fast connector are factory pre-polished, field-installable connectors that completely eliminate the need for hand polishing in the field. Proven mechanical splice technology ensuring precision fiber alignment, a factory pre-cleaved fiber stub and a proprietary index-matching gel combine to offer an immediate low loss termination to either single-mode or multimode optical fibers.

The Field Assembly Connector series are already a popular solution for optical wiring inside buildings and floors for LAN & CCTV applications and with the expansion of FTTH, is already proving itself to be the connector of choice by incumbents, municipalities, utilities & alternative carriers. Our Field Assembly Optical Connector series are now available in SC, LC, or FC variants, catering for 250um to 900um, and 2.0mm, 3.0mm diameter single mode and multimode fiber types, including Multi-mode 62.5/125um and Multi-mode 50/125um. The single-mode versions are available with SPC or APC ferrules.

Connector TypeLCPolishingUPC/APC
FerruleCeramicFiber Mode9/125μm Singlemode
Cable Diameters0.9/2.0/3.0mm Round cable 2.0mm*3.0mm Drop Cable 2.0mm*1.6mm Drop CableDimension40mm
Insertion LossAVG≤0.3dB,MAX≤0.5dBReturn LossAVG≥55dB,MIN≥50dB
Tension Strength≥30N/2minOperating Temperature:-40°C~+85°C  F5
Repeated assembly ≥ 10 timesService Life ≥ 10 years
Mechanical properties △ IL ≤ 0.20db, △ RL ≤ 5dB environmental properties △ IL ≤ 0.20db, △ RL ≤ 5dB

Key Features & Applications

• No epoxy and polishing required

• Quick and easy fiber termination

• Precision mechanical alignment insures low insertion loss

• Superior optical performance

• Streamlined component design, convenient operation

• Pre-installed, on-site assembly without end face grinding and consideration

• Uses proven, molded v-groove technologies

• Allow optical continuity to be verified by use of visual fault locator (VFL)

• Fiber optic communication system and telecommunication networks

• Fiber optic data transmission


• Optical access

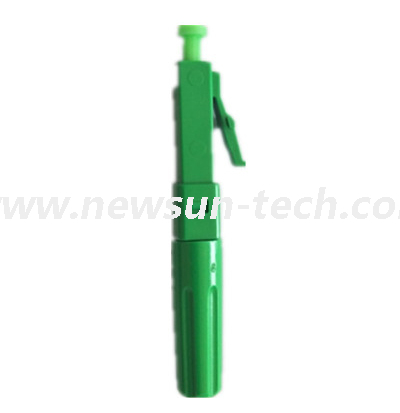

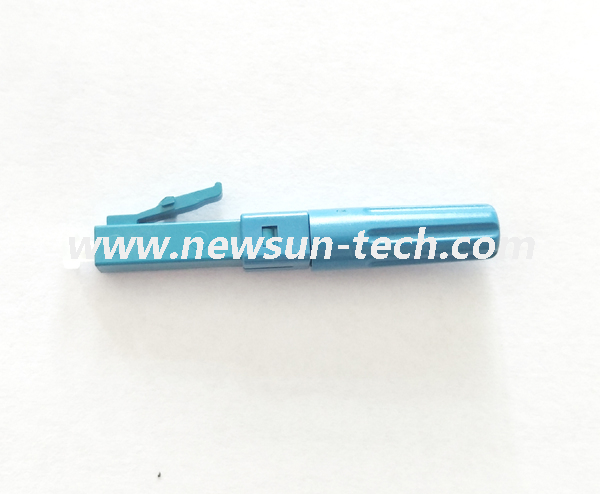

LC fast connectorLC fast connector

• Useful for testing the dynamic range

• Reduce the optical power within a fiber optic link

• Useful in very short fiber links

• Low Back Reflection

• Available in Singlemode & Multimode

Fiber optic attenuator is a passive device used to reduce the power level of an optical signal because too much light can overload a fiber optic receiver and degrade the bit error ratio (BER). To achieve the best BER, the light power must be reduced by using fiber optic attenuator. Generally, the optical attenuators are used in single-mode long-haul applications to prevent optical overload at the receiver.

Optical attenuator reduces signal power by absorbing the light, like sunglasses absorb the extra light energy. Or by scattering the light like an air gap. Fiber optic attenuators are commonly used in two scenarios:

  • Attenuators are permanently installed in a fiber optic links to properly match signal levels at transmitter and receiver.

  • In fiber optic power level testing. Attenuators are used to temporarily add a calibrated amount of signal loss in order to test the power level margins in a fiber optic system.

Fiber optic attenuator is an essential passive component in the optical communication system. With the advancement of DWDM technology, as well as the potential to flexibly upgrade the reconfigurable optical add-drop multiplexer (ROADM), the demand for optical attenuator is sure to soar, especially for optical variable attenuator. The innovation in fiber optic industry never ceases, and fiber optic attenuator will evolve to have lower cost, faster response time and enhanced integration of hybrid with other optical communication devices.
