NSTB-80H Key Lock FTTH 8 Core Wall Mounted Distribution Box

Product name: Fiber Terminal Box
Core:8 Port
Size( mm ):240*200*50mm
Installation method::wall mounted or pole mounted
Availability:
Quantity:
  • NSTB-80H
  • NEWSUN TECH

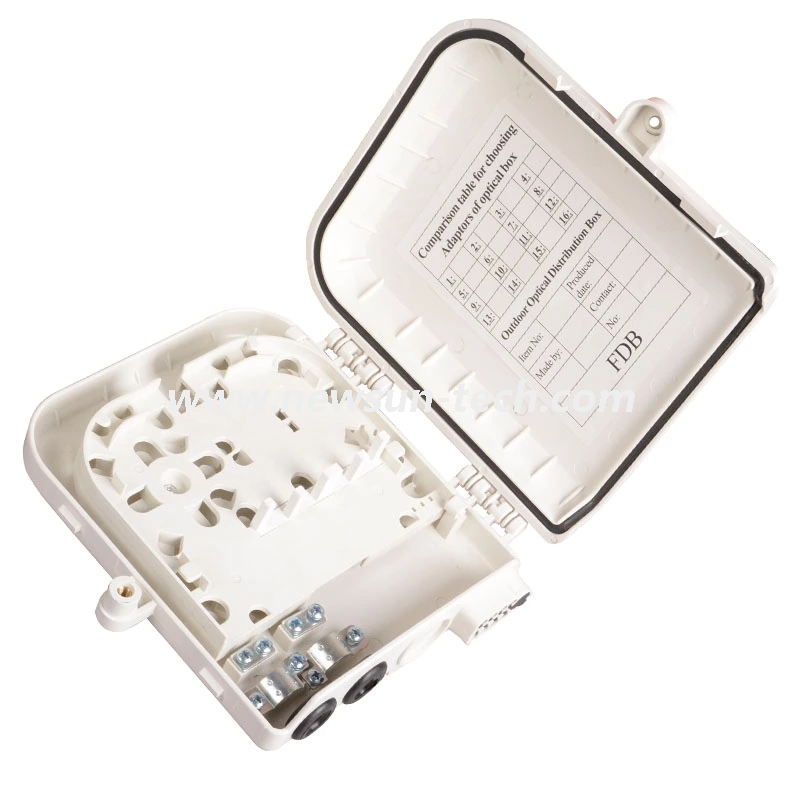

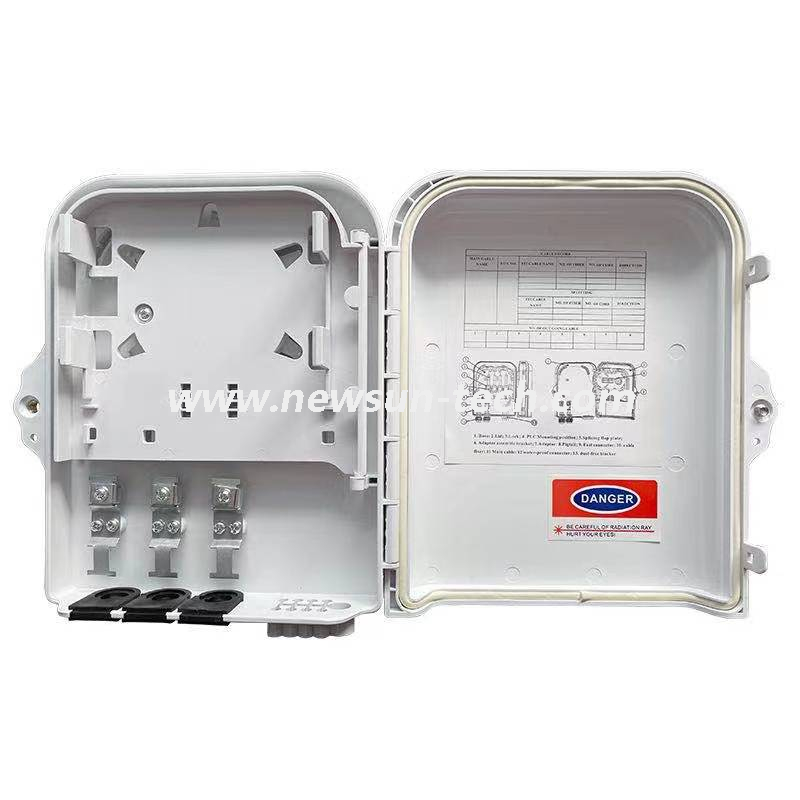

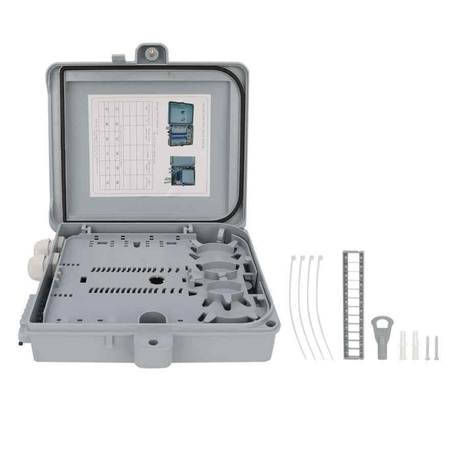

NSTB-80H Fiber Optic Terminal Box


NSTB-80H is used as a termination point for the drop cable to connect with drop cable in FTTx communication network system.

The fiber splicing, splitting, distribution can be done in this box, and meanwhile it provides solid protection and management for the FTTx network building.The equipment is used as a termination point for the feeder cable to connect with drop cable in FTTx communication network system.

The fiber splicing, splitting, distribution can be done in this box, and meanwhile it provides solid protection and management for the FTTx network building.  It integrates fiber termination, storage and cable connection in one solid protection box.


Items Specification
Adapter Capacity (Fiber Count) 4 or 8pcs SC Simplex adaptor
Dimensions (W*H*D,mm) 240*200*50
PLC type 1:4 or 1:8
other Accessories Wall mounting kits,Screws,Cable tie,Heat shrink protective sleeves,Key
Installation (Wall-mounted/Pole-mounting) Wall-mounted/Pole-mounting

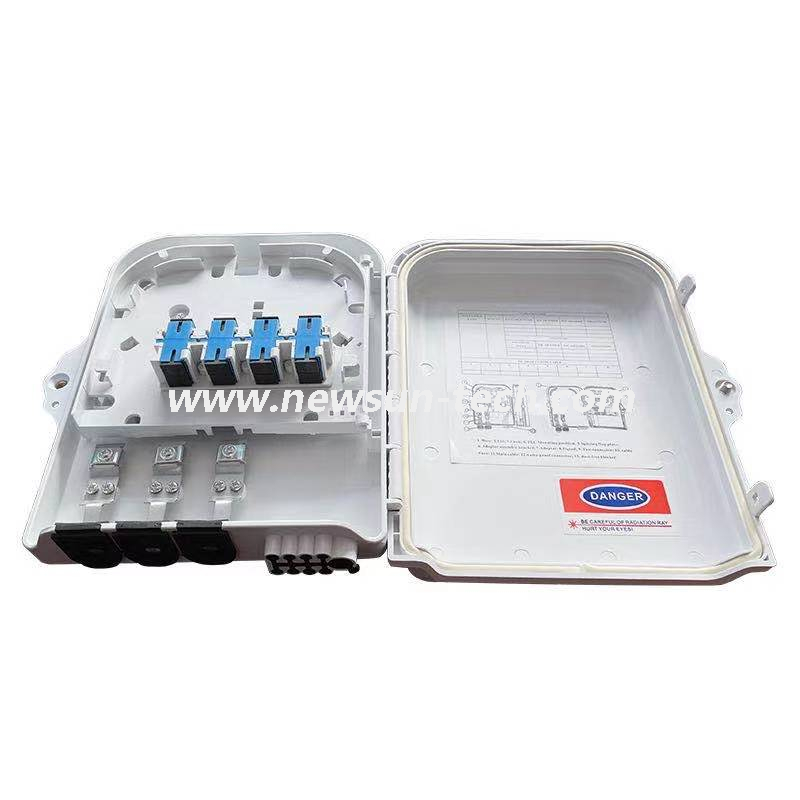

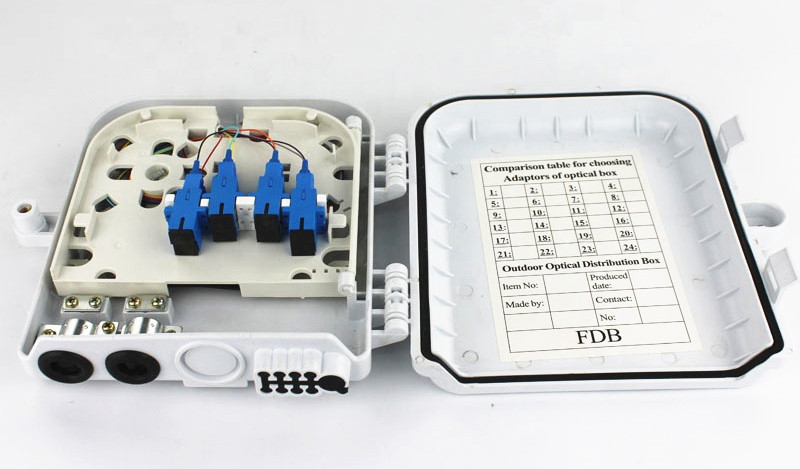

8 port fiber termination box

Fiber Opic Distribution Boxes are used for the distribution and terminal connection for various kinds of optical fiber system,Some are used for indoor cabling and others are designed to install on outdoor pole or wall mount use.They are of light and compact design, Mainly used in fiber optic drop cable,pigtails or splitters cablings in residential buildings area. Most of them are applied to wall mounted type. The capacity is optional. such as small single fiber distribution box, 2 ports, 4 ports, 6 ports, 8 ports, 12 ports, 16 ports, 24 ports or even high density fiber distribution requirements.


Protection grade: IP65

 Industry Standard User Interface,be made of high impact plastic material(can use 10 years).

Anti-UV, Ultra violet resistant and rainfall resistant.

Wall and pole mountable.

Efficient cable management

Varies of adaptors are available


Application

widely used in FTTH access network.

Telecommunication Networks

CATV Networks

Data communications Networks

Local Area Networks


certificate of conformity

Certificate of Conformity


Quality management system certificationQuality Management System


certification for sale transport

Certification for Sale Transport

ISO 9001

ISO 9001


SGS

SGS


Patent certificate

                     Patent Certificate




Fiber termination box contains the shell, the internals (supporting frame, set fiber disc, fixing device) and optical fiber joint protective element. Prominent advantages of fiber termination box lie in efficient cable-fixing, welding and its protective role in machinery of the optical fiber.


A insulation is always demanded between cable metal components and cable terminal box shell in a fiber termination box, which provides space for cable terminal and remained fiber storage. In addition, fiber termination box also facilitate the installation of different occasions since it is easy to access, which turns out to be time and cost saving.



Application

Fiber termination box is universally used in telephone, agricultural telephone network system, data and image transmission system, CATV cable television series, indoor cable through force access and branch connection. Fiber termination box is available for the distribution and termination connection for various kinds of fiber optic systems, especially suitable for mini-network terminal distribution, in which the optical cables, patch cores or pigtails are connected. In addition to that, fiber termination box can be applied to joint fiber pigtail, protect fiber optic splices and share out the connectivity to individual customers.
