NSTB-803C
NEWSUN TECH

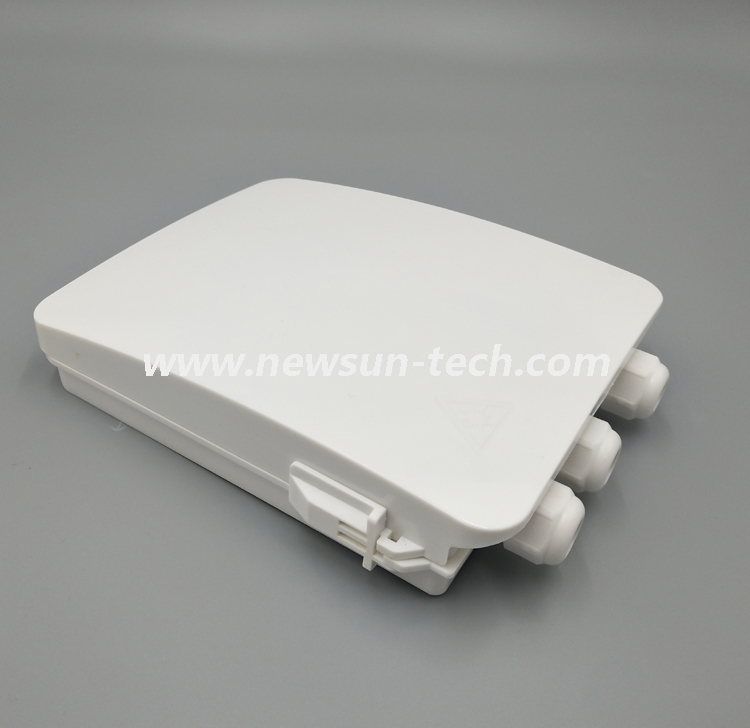

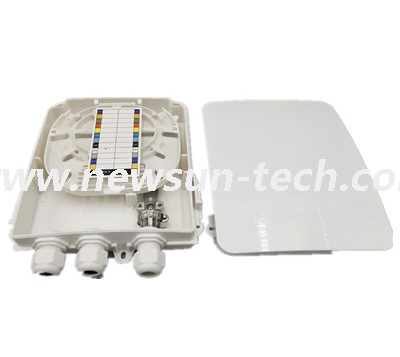

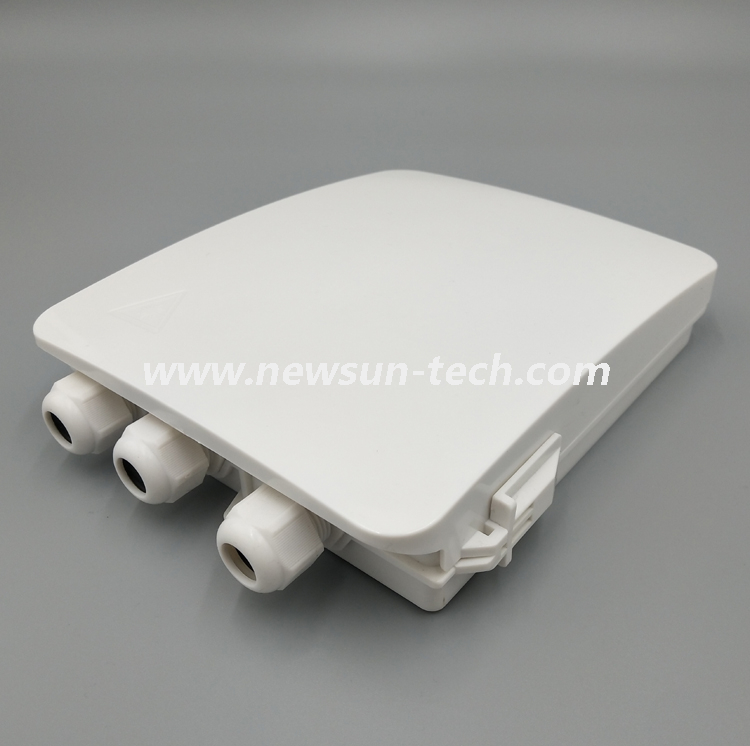

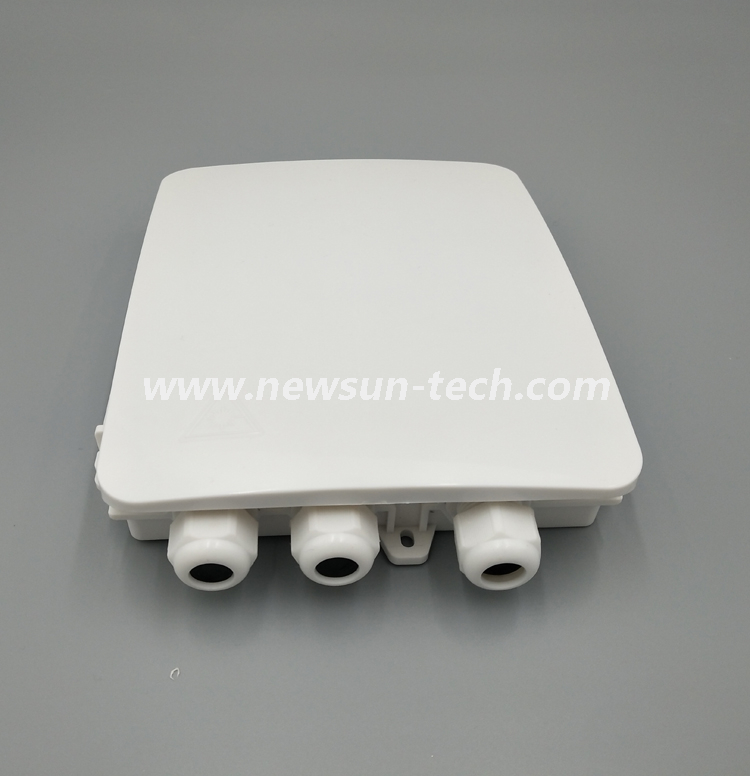

NSTB-803C Fiber Optic FTTH 8 Core fiber optic terminal box
NSTB-803C is used as a termination point for the drop cable to connect with drop cable in FTTx communication network system.
The fiber splicing, splitting, distribution can be done in this box, and meanwhile it provides solid protection and management for the FTTx network building. It integrates fiber termination, storage and cable connection in one solid protection box.
Type | NSTB-803C |
Size(mm) W*D*H | 210*160*47mm |
Color | White |
Cable Ports | 3 |
Max capacity of splice | 8 fibers |
Adapter type | SC/UPC, SC/APC,LC/UPC,LC/APC |
Material | PC+ABS |
NSTB-803C Fiber Optic FTTH 8 Core fiber optic terminal box
NSTB-803C is used as a termination point for the drop cable to connect with drop cable in FTTx communication network system.
The fiber splicing, splitting, distribution can be done in this box, and meanwhile it provides solid protection and management for the FTTx network building. It integrates fiber termination, storage and cable connection in one solid protection box.
Type | NSTB-803C |
Size(mm) W*D*H | 210*160*47mm |
Color | White |
Cable Ports | 3 |
Max capacity of splice | 8 fibers |
Adapter type | SC/UPC, SC/APC,LC/UPC,LC/APC |
Material | PC+ABS |
Features
Protection grade: IP65.
Industry Standard User Interface,be made of high impact plastic material(can use 10 years).
Anti-UV, Ultra violet resistant and rainfall resistant.
Wall and pole mountable.
Efficient cable management
Varies of adaptors are available
Application
widely used in FTTH access network.
Telecommunication Networks
CATV Networks
Data communications Networks
Local Area Networks
Features
Protection grade: IP65.
Industry Standard User Interface,be made of high impact plastic material(can use 10 years).
Anti-UV, Ultra violet resistant and rainfall resistant.
Wall and pole mountable.
Efficient cable management
Varies of adaptors are available
Application
widely used in FTTH access network.
Telecommunication Networks
CATV Networks
Data communications Networks
Local Area Networks
Certificate of Conformity | Quality Management System | Certification for Sale Transport |
ISO 9001 | SGS | Patent Certificate |
Certificate of Conformity | Quality Management System | Certification for Sale Transport |
ISO 9001 | SGS | Patent Certificate |

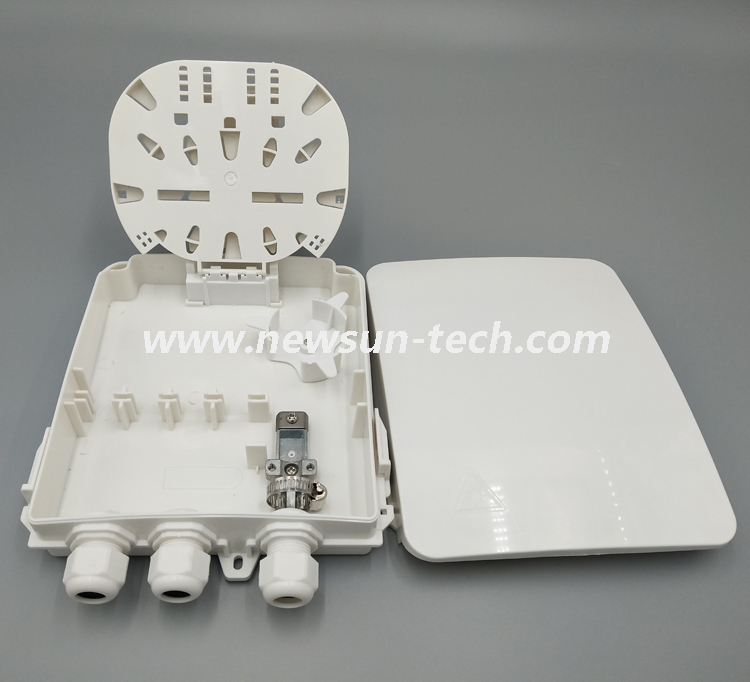

Fiber termination box contains the shell, the internals (supporting frame, set fiber disc, fixing device) and optical fiber joint protective element. Prominent advantages of fiber termination box lie in efficient cable-fixing, welding and its protective role in machinery of the optical fiber.
A insulation is always demanded between cable metal components and cable terminal box shell in a fiber termination box, which provides space for cable terminal and remained fiber storage. In addition, fiber termination box also facilitate the installation of different occasions since it is easy to access, which turns out to be time and cost saving.
Fiber termination box is universally used in telephone, agricultural telephone network system, data and image transmission system, CATV cable television series, indoor cable through force access and branch connection. Fiber termination box is available for the distribution and termination connection for various kinds of fiber optic systems, especially suitable for mini-network terminal distribution, in which the optical cables, patch cores or pigtails are connected. In addition to that, fiber termination box can be applied to joint fiber pigtail, protect fiber optic splices and share out the connectivity to individual customers.
Fiber termination box contains the shell, the internals (supporting frame, set fiber disc, fixing device) and optical fiber joint protective element. Prominent advantages of fiber termination box lie in efficient cable-fixing, welding and its protective role in machinery of the optical fiber.
A insulation is always demanded between cable metal components and cable terminal box shell in a fiber termination box, which provides space for cable terminal and remained fiber storage. In addition, fiber termination box also facilitate the installation of different occasions since it is easy to access, which turns out to be time and cost saving.
Fiber termination box is universally used in telephone, agricultural telephone network system, data and image transmission system, CATV cable television series, indoor cable through force access and branch connection. Fiber termination box is available for the distribution and termination connection for various kinds of fiber optic systems, especially suitable for mini-network terminal distribution, in which the optical cables, patch cores or pigtails are connected. In addition to that, fiber termination box can be applied to joint fiber pigtail, protect fiber optic splices and share out the connectivity to individual customers.
