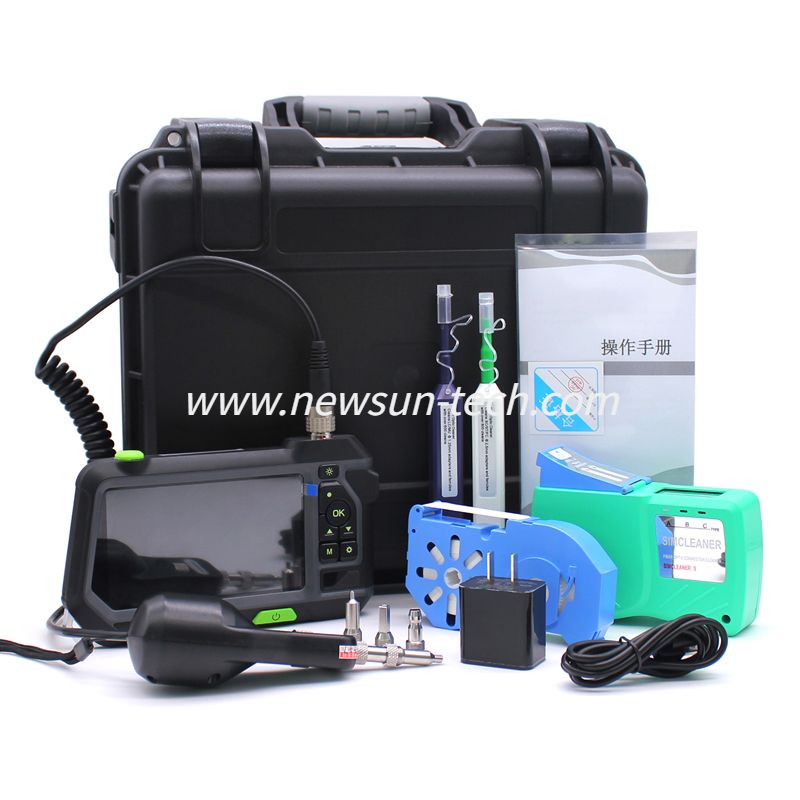

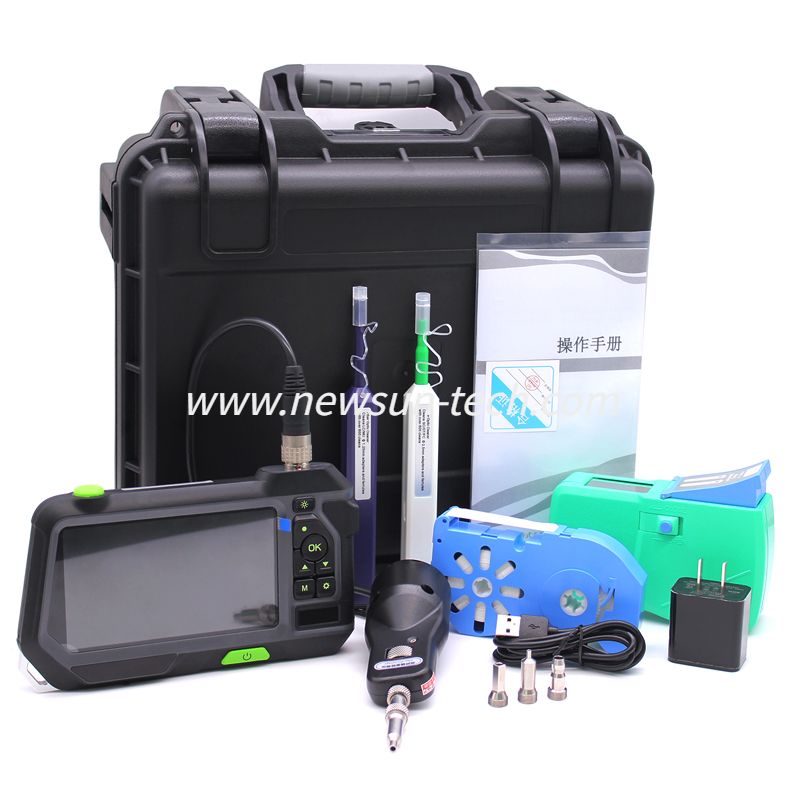

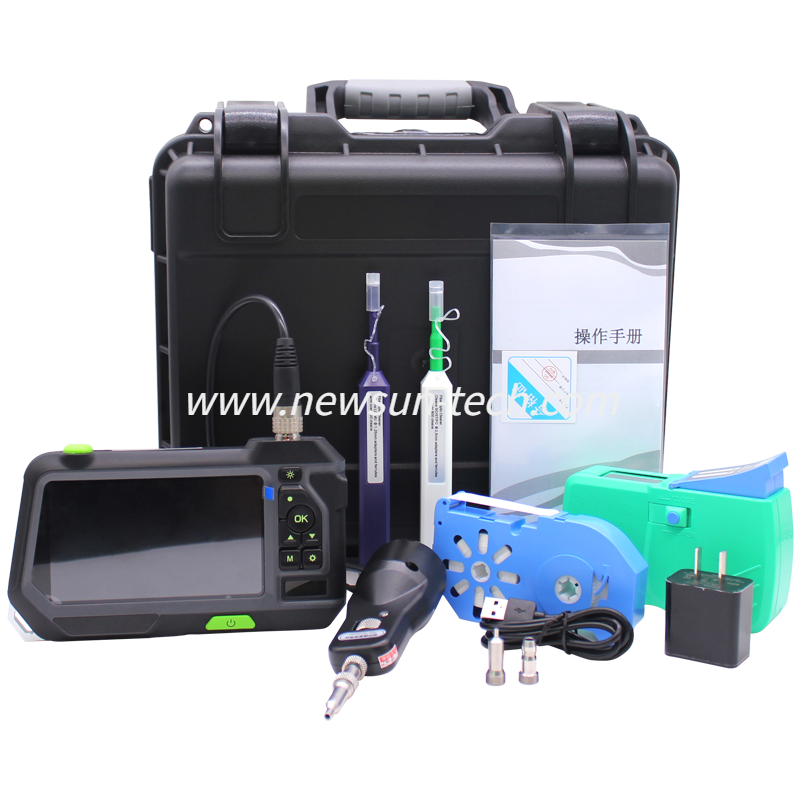

NS-TS5
Newsun tech
SAFETY SUMMARYPersonnel concerned with the operation of this instrument must thoroughly understand and follow the safety guidelines below. The manufacturer assumes no liability for the operator’s failure to observe these guidelines. Warning – Laser Radiation HazardOperators must always remember that laser radiation at or above 1mW has the potential to cause serious damage to the human eye. Never look into the open end of an optical fiber where high level of laser radiation may be present. Warning - Explosive AtmospheresTo avoid explosion, do not operate this instrument in the presence of flammable gases or fumes. CautionOperators should not operate this instrument with any of its covers removed, nor should they allow anyone else to do so. Do not attempt to carry out any unauthorized service to this instrument. Always return the instrument to an authorized service centre for repair to ensure that safety features are maintained.
Overview
Reliability and performance of a fiber optic link largely depends on the quality of interconnects. Contaminated connectors can cause the mating surfaces to separate leading to high insertion loss and back-reflection. Furthermore, some dirt particles can even scratch or dig into the glass causing permanent damage to the end-face of the connector. Therefore, inspection of fiber optic connectors should be performed whenever a connection is to be made. The TS5 is a handheld microscope specifically designed for fiber optic connector end face inspection.

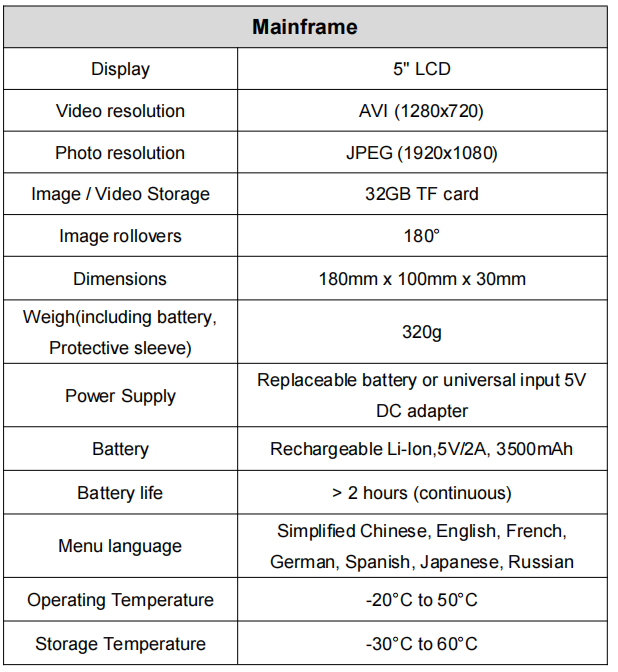

Features
FC/SC/ST/E2000/LC/MU/MPO compatible
5-inch TFT display
Up to 200X/400X overall magnification
TF card storage up to 32G
Snapshot, video recording and playback
180° image rollovers
Flashlight function

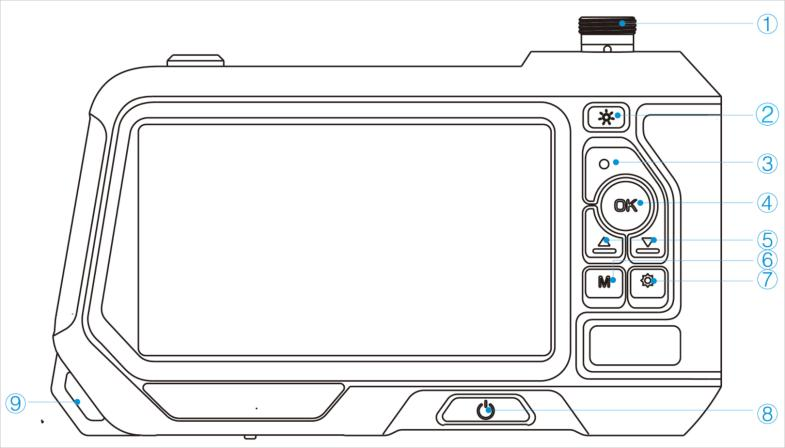

1. Main Unit
Handle and probe interface
Handle internal light control (factory-locked)
Shooting key: take photos / start video / end video
Confirm key: confirm the selection / freeze frame screen
Select key up and down
Mode switch button: switch between the three functional modesof photo, video and playback
Set the key: Enter / exit the setting interface
Power button: long press power-on / shutdown

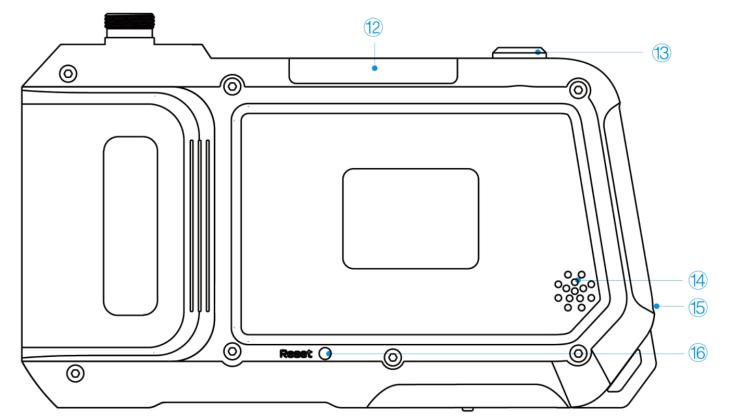

metal hanging ring4

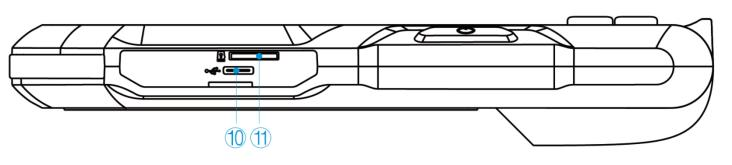

The Type-C charging interface
TF card slot
Auxiliary lighting
Auxiliary lighting lamp switch
Loudspeaker
Mic pick-up hole
Reset button

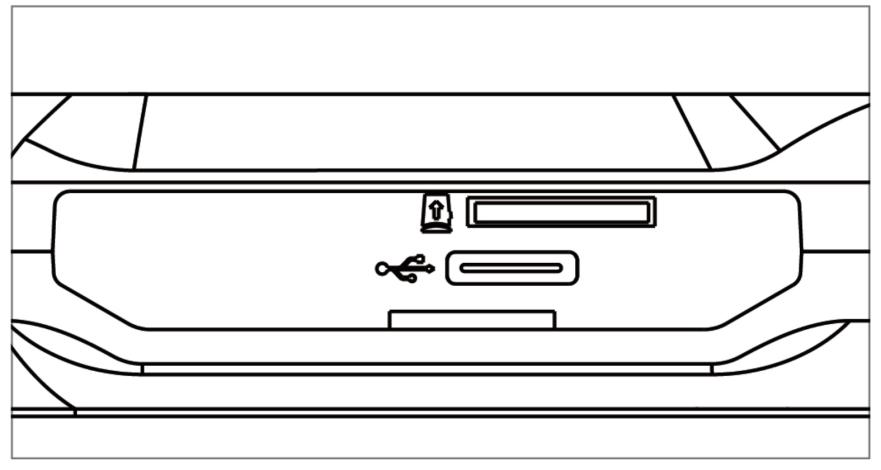

The device is equipped with a TF memory card, which has been installed in the body card slot before delivery. It can be pressed in the card slot to pop up the storage card. Use the card reader to view or copy photos or videos taken by the inspection host.

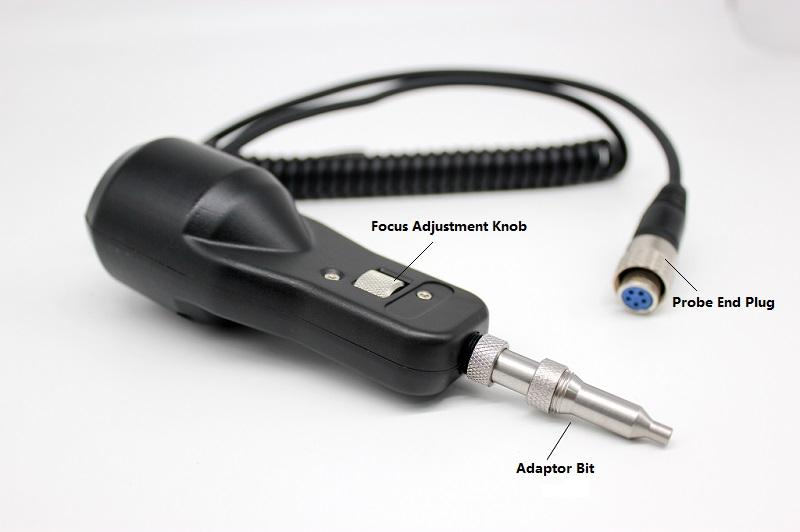

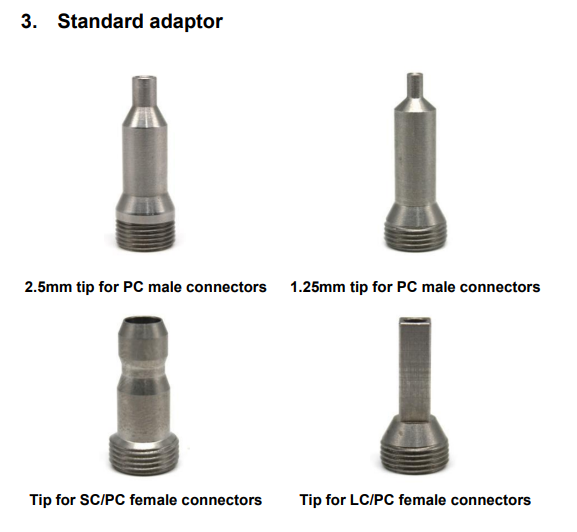

Probe
