NSKT-350
Newsun tech

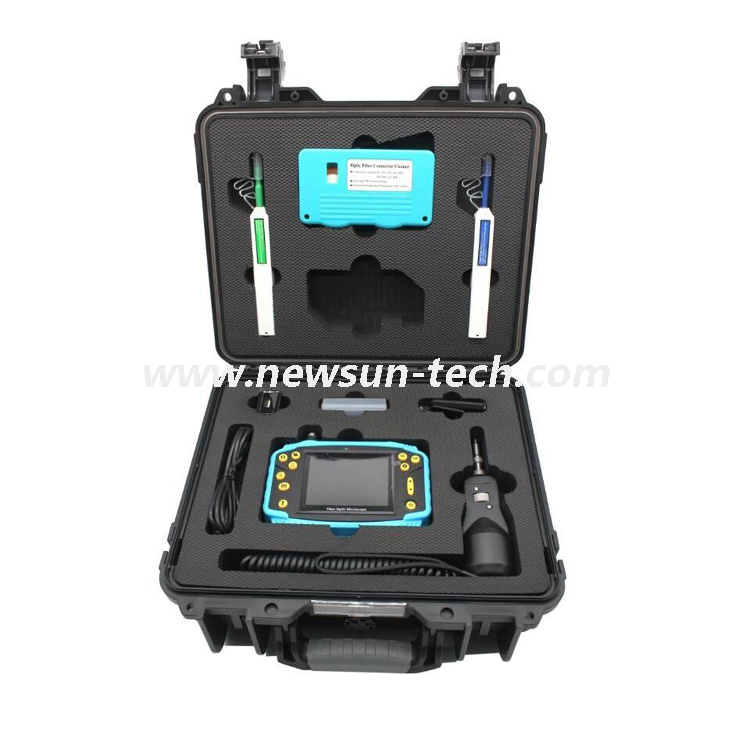

Fiber Optic Connector Inspection with One Click Cleaner Tool Kit
This fiber optic cleaning and inspection kit provides a selection of fiber optic cleaning products for use on fusion splice prep, connector endfaces on jumpers and through bulkhead adapters. The cleaning products are offered to effectively prepare fusion splicing, clean connectors, maximizing network performance.
Introduction of Fiber Optic Microscope:
Reliability and performance of a fiber optic link largely depends on the quality of interconnects. Contaminated connectors can cause the mating surfaces to separate leading to high insertion loss and back-reflection. Furthermore, some dirt particles can even scratch or dig into the glass causing permanent damage to the end-face of the connector. Therefore, inspection of fiber optic connectors should be performed whenever a connection is to be made.

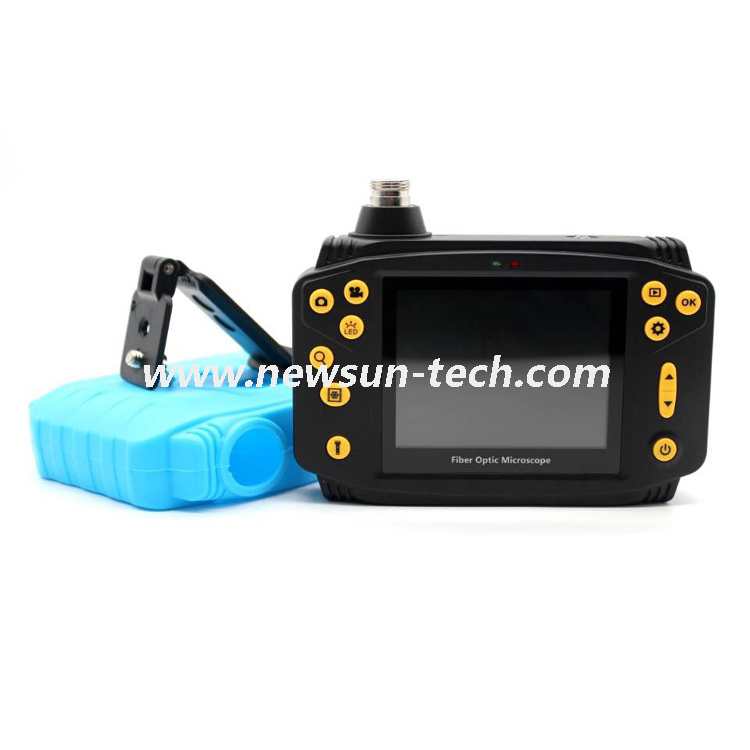

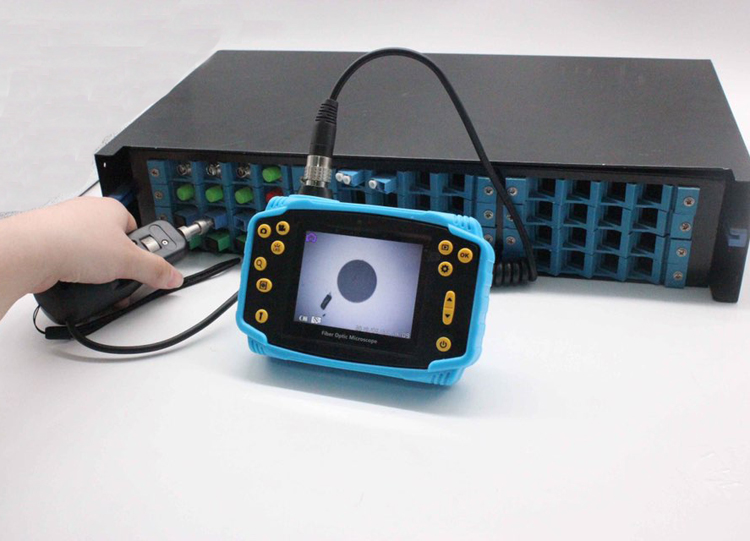

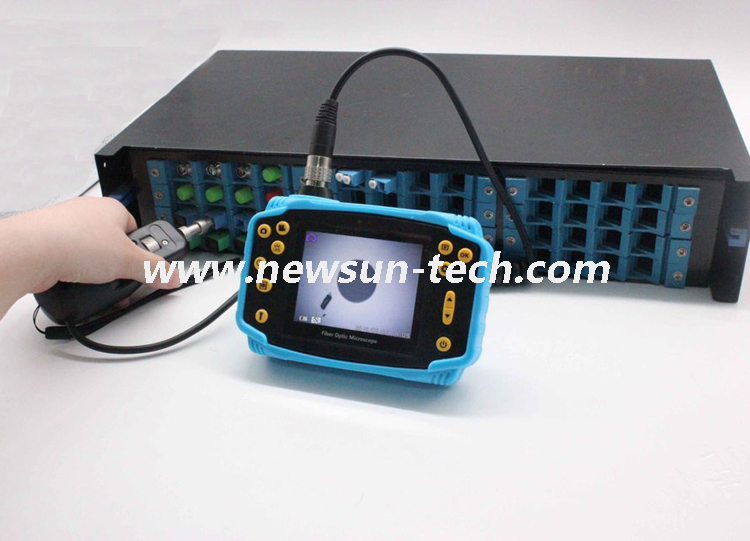

The Fiber Optic Connector Inspection is an intelligent handheld video microscope suitable for inspection of patch cords, bulkhead receptacles and a variety of connectors found in fiber optic com-munication systems.
Display | 3.5” TFT-LCD, 320 x 240 pixels |
Dimensions | 170mm x 100mm x 40mm |
Weigh(including battery) | 200g |
Power Supply | Replaceable battery or universal input 5V DC adapter |
Battery | Rechargeable Li-Ion, 3.7V / 1450mAh |
Battery life | > 3 hours (continuous) |
Charger/AC adapter | US, EU, UK and Australian versions available |
Image / Video Storage | 8GB SD card |
Operating Temperature | -20°C to 50°C |
Storage Temperature | -30°C to 70°C |
Fiber Optic Connector Inspection with One Click Cleaner Tool Kit
This fiber optic cleaning and inspection kit provides a selection of fiber optic cleaning products for use on fusion splice prep, connector endfaces on jumpers and through bulkhead adapters. The cleaning products are offered to effectively prepare fusion splicing, clean connectors, maximizing network performance.
Introduction of Fiber Optic Microscope:
Reliability and performance of a fiber optic link largely depends on the quality of interconnects. Contaminated connectors can cause the mating surfaces to separate leading to high insertion loss and back-reflection. Furthermore, some dirt particles can even scratch or dig into the glass causing permanent damage to the end-face of the connector. Therefore, inspection of fiber optic connectors should be performed whenever a connection is to be made.
The Fiber Optic Connector Inspection is an intelligent handheld video microscope suitable for inspection of patch cords, bulkhead receptacles and a variety of connectors found in fiber optic com-munication systems.
Display | 3.5” TFT-LCD, 320 x 240 pixels |
Dimensions | 170mm x 100mm x 40mm |
Weigh(including battery) | 200g |
Power Supply | Replaceable battery or universal input 5V DC adapter |
Battery | Rechargeable Li-Ion, 3.7V / 1450mAh |
Battery life | > 3 hours (continuous) |
Charger/AC adapter | US, EU, UK and Australian versions available |
Image / Video Storage | 8GB SD card |
Operating Temperature | -20°C to 50°C |
Storage Temperature | -30°C to 70°C |
1.3.5-inch TFT color display
2.Well-centered, high resolution image
3.Image capture and storage
4.Instant video recording
5.250x Magnification
6.4x Digital zoom
7.Standard tips (SC, FC, ST, LC, MU, E2000)
8.USB plug-and-play
Magnification | 400X (9” monitor); 250x (3.5”monitor) |
Detection Limit | 0.5μm |
Focus Control | Manual , in-probe |
Principle | Bright field reflected light microscopy |
Dimensions | 180mm x 40mm x 30mm |
Weight | 200g |
1.3.5-inch TFT color display
2.Well-centered, high resolution image
3.Image capture and storage
4.Instant video recording
5.250x Magnification
6.4x Digital zoom
7.Standard tips (SC, FC, ST, LC, MU, E2000)
8.USB plug-and-play
Magnification | 400X (9” monitor); 250x (3.5”monitor) |
Detection Limit | 0.5μm |
Focus Control | Manual , in-probe |
Principle | Bright field reflected light microscopy |
Dimensions | 180mm x 40mm x 30mm |
Weight | 200g |
Standard Accessories | |
Inspection Probe | x 1 |
Mainframe | x 1 |
AC power adapter/battery charger | x 1 |
Rechargeable battery pack | x 1 |
2.5mm tip for PC male connectors | x 1 |
1.25mm tip for PC male connectors | x 1 |
Tip for SC / FC PC female connectors | x 1 |
Tip for LC PC female connectors | x 1 |
Tip box | x 1 |
User Manual | x 1 |

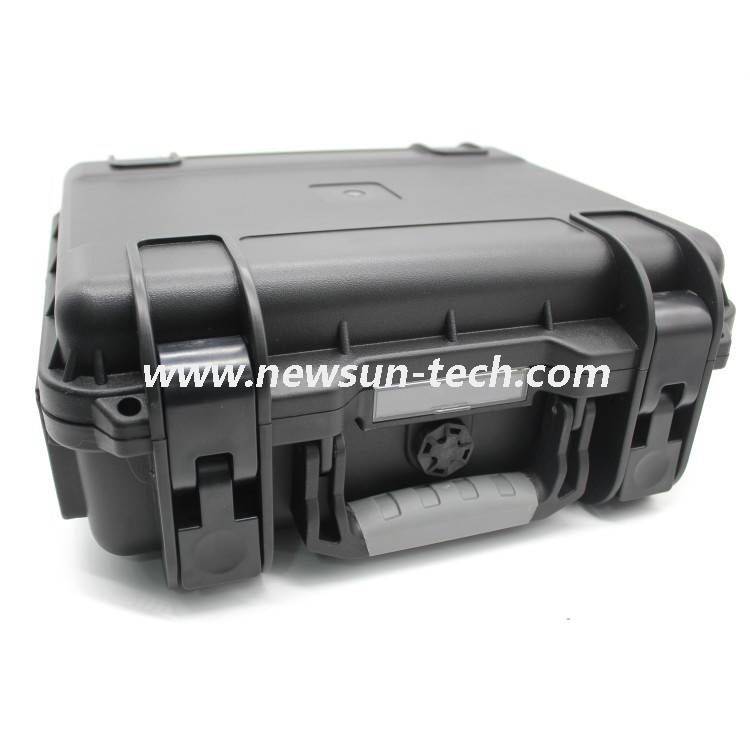

Carrying case | x 1 |
Optional Accessories | |
2.5mm tip for APC male connectors | x 1 |
1.25mm tip for APC male connectors | x 1 |
Tip for SC APC female connectors | x 1 |
Tip for FC APC female connectors | x 1 |
Tip for LC APC female connectors | x 1 |
Standard Accessories | |
Inspection Probe | x 1 |
Mainframe | x 1 |
AC power adapter/battery charger | x 1 |
Rechargeable battery pack | x 1 |
2.5mm tip for PC male connectors | x 1 |
1.25mm tip for PC male connectors | x 1 |
Tip for SC / FC PC female connectors | x 1 |
Tip for LC PC female connectors | x 1 |
Tip box | x 1 |
User Manual | x 1 |
Carrying case | x 1 |
Optional Accessories | |
2.5mm tip for APC male connectors | x 1 |
1.25mm tip for APC male connectors | x 1 |
Tip for SC APC female connectors | x 1 |
Tip for FC APC female connectors | x 1 |
Tip for LC APC female connectors | x 1 |
It is a fact that fiber end-face contamination is a major cause of network outages and downtime. Newsun Tech fiber inspection products enable network technicians and other personnel to safely inspect fiber endfaces for contamination and verify the effectiveness of fiber cleaning procedures.
Newsun Tech offers the best solutions for manufacturing fiber optic cable assemblies. Almost as critical to the equipment used to manufacture fiber optic assemblies are the tools used to test and inspect. At Newsun Tech, we have focus on both the Production and the Field Test and inspection. Newsun Tech works with our customers to make sure their manufacturing procedures produce the highest quality jumpers at the most effective cost.
Newsun Tech focuses on several areas to ensure industry-leading solutions and best practices including: Visual fault locator, fiber optical power meter, Fiber Optic Connector handle test tools Kit, 250X/400X Handheld Fiber Optic Inspection Microscope, and etc..
Production Test and Inspection is generally used in lab type settings where the systems remain stationary. They are built to handle large volumes and typically test to a higher degree of accuracy. This equipment is not only used to provide test reports for customers, but it also allows for the collection of large segments of data that can be reviewed for improvements in the production processes.
Field Test and Inspection pieces of test equipment are designed to be highly portable with internal power supplies and smaller footprints. They are well suited for troubleshooting, mapping and certifying fiber optic networks during and after installation in the field.
We provide the highest quality equipment backed with industry-leading technical support and exceptional customer service. With cutting edge equipment, automation, and process controls.
Critical Areas in the Test STEP
Accurate Test Results: Improper test station setup can and will result in inaccurate testing results. “False Negatives” needlessly increase your rework, while “False Positives” potentially send non-conforming product to your customers.
Multimode Cable Assembly Testing: Proper mode-conditioning is essential to ensure accurate Multimode cable assembly testing.
Test Lead Quality: Essential and often overlooked. Consider your Test Leads to be part of your test equipment, and should be made to the highest quality possible — most importantly, Test Lead connectors should have excellent core-to-ferrule-OD concentricity.
It is a fact that fiber end-face contamination is a major cause of network outages and downtime. Newsun Tech fiber inspection products enable network technicians and other personnel to safely inspect fiber endfaces for contamination and verify the effectiveness of fiber cleaning procedures.
Newsun Tech offers the best solutions for manufacturing fiber optic cable assemblies. Almost as critical to the equipment used to manufacture fiber optic assemblies are the tools used to test and inspect. At Newsun Tech, we have focus on both the Production and the Field Test and inspection. Newsun Tech works with our customers to make sure their manufacturing procedures produce the highest quality jumpers at the most effective cost.
Newsun Tech focuses on several areas to ensure industry-leading solutions and best practices including: Visual fault locator, fiber optical power meter, Fiber Optic Connector handle test tools Kit, 250X/400X Handheld Fiber Optic Inspection Microscope, and etc..
Production Test and Inspection is generally used in lab type settings where the systems remain stationary. They are built to handle large volumes and typically test to a higher degree of accuracy. This equipment is not only used to provide test reports for customers, but it also allows for the collection of large segments of data that can be reviewed for improvements in the production processes.
Field Test and Inspection pieces of test equipment are designed to be highly portable with internal power supplies and smaller footprints. They are well suited for troubleshooting, mapping and certifying fiber optic networks during and after installation in the field.
We provide the highest quality equipment backed with industry-leading technical support and exceptional customer service. With cutting edge equipment, automation, and process controls.
Critical Areas in the Test STEP
Accurate Test Results: Improper test station setup can and will result in inaccurate testing results. “False Negatives” needlessly increase your rework, while “False Positives” potentially send non-conforming product to your customers.
Multimode Cable Assembly Testing: Proper mode-conditioning is essential to ensure accurate Multimode cable assembly testing.
Test Lead Quality: Essential and often overlooked. Consider your Test Leads to be part of your test equipment, and should be made to the highest quality possible — most importantly, Test Lead connectors should have excellent core-to-ferrule-OD concentricity.
