NSVF-M104 Metal Visual Fault Locator for 10mW 20mW 30mW Red Light Source Laser Tester

Product name: Metal Visual fault locator
Part NO.: NSVF-M104
Output Power:10mW/ 20mW/ 30mW
sharethis sharing button
  • NSVF-M104

  • Newsun tech

Metal Visual fault locator ,Optical fiber light source cable testing,red laser for telecom test equipment

The pen- type visual fault locator is specially designed for field personnel who need an efficient and economical tool for fiber tracing, fiber routing and continuity checking in optical networks. And it is the essential test tool for the FTTH project. This visual fault locator is with so many advantages, such as long woking life, rugged, portable, beautiful appearance and so on. It is the best choice for the field personnel.

Model NSVF-M104
Central wavelength 650nm±10nm
Fiber Type SM / MM
Output power 5mw 10mw 20mw 30mw
Laser Range ≥5km ≥10km ≥20km ≥30km
Optical connector 2.5mm universal connector, for 1.25mm connectors, FC (Male)-LC. (Female) convertor can be provided on request
Power supply 2 AA alkaline batteries
Case Material Aluminum
Operating temperature -20°C to 60°C
Storage temperature -40°C to 85°C
Dimension 195 x 25mm
Weight 165g (without battery)

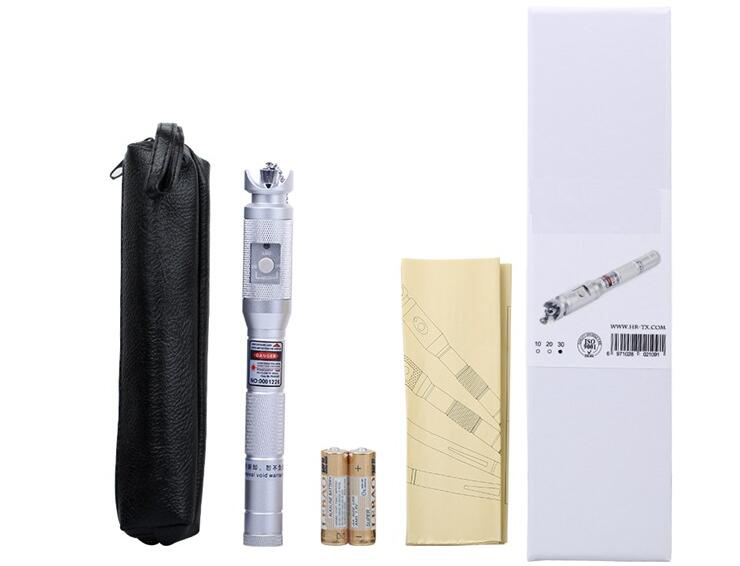

visual fault locator

Metal Visual fault locator

1.2.5mm universal connector,for 1.25mm connectors,FC(male)-LC(Female) adaptor also can be provided on request

2.Operates either in CW or Pulsed mode with constant output power

3.Low battery warning

4.Long battery life (up to 60 hours)

5.Drop-resistant and dust-proof design of laser head

6.Laser case ground design prevents ESD damage

7.Portable and rugged

8.Easy to use

9.360° rotation protecting ring

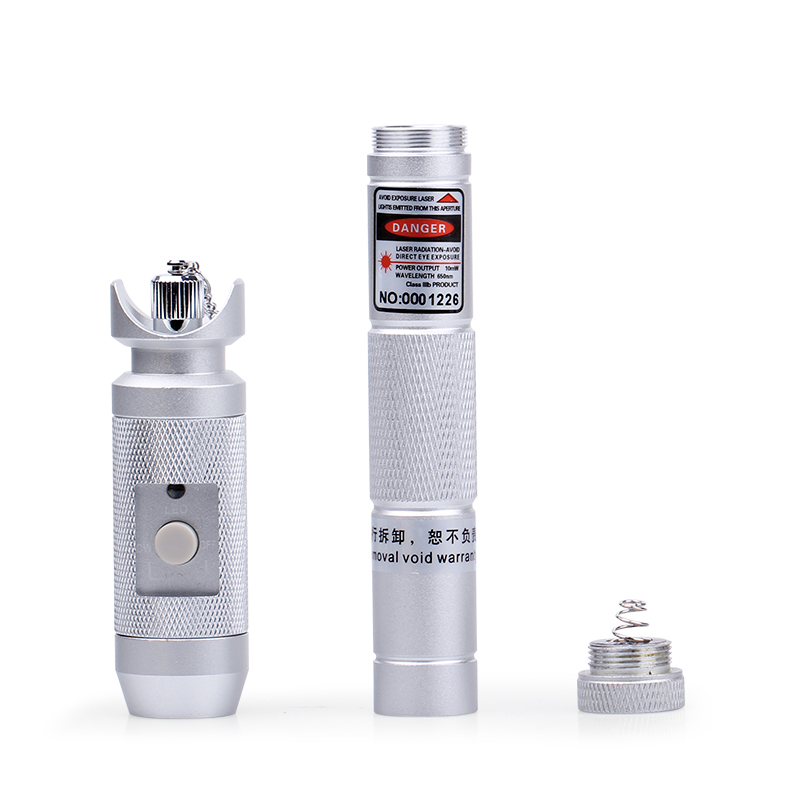

visual fault locator fiber optic

1.Find breakpoints, poor connections, bending or cracking in fiber optic cables

2.Find faults in an OTDR dead zone

3.Is used for end-to-end visual fiber identification.

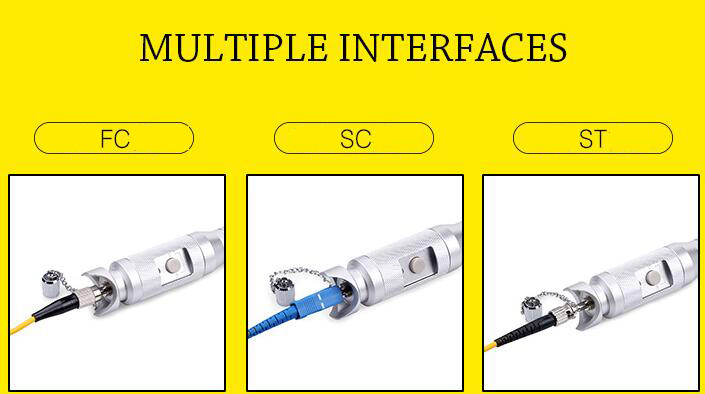

fiber optic visual fault locator

It is a fact that fiber end-face contamination is a major cause of network outages and downtime. Newsun Tech fiber inspection products enable network technicians and other personnel to safely inspect fiber endfaces for contamination and verify the effectiveness of fiber cleaning procedures.

Newsun Tech offers the best solutions for manufacturing fiber optic cable assemblies. Almost as critical to the equipment used to manufacture fiber optic assemblies are the tools used to test and inspect. At Newsun Tech, we have focus on both the Production and the Field Test and inspection. Newsun Tech works with our customers to make sure their manufacturing procedures produce the highest quality jumpers at the most effective cost.

Newsun Tech focuses on several areas to ensure industry-leading solutions and best practices including: Visual fault locator, fiber optical power meter, Fiber Optic Connector handle test tools Kit, 250X/400X Handheld Fiber Optic Inspection Microscope, and etc..

Production Test and Inspection is generally used in lab type settings where the systems remain stationary. They are built to handle large volumes and typically test to a higher degree of accuracy. This equipment is not only used to provide test reports for customers, but it also allows for the collection of large segments of data that can be reviewed for improvements in the production processes.

Field Test and Inspection pieces of test equipment are designed to be highly portable with internal power supplies and smaller footprints. They are well suited for troubleshooting, mapping and certifying fiber optic networks during and after installation in the field.

We provide the highest quality equipment backed with industry-leading technical support and exceptional customer service. With cutting edge equipment, automation, and process controls.

Critical Areas in the Test STEP

Accurate Test Results: Improper test station setup can and will result in inaccurate testing results. “False Negatives” needlessly increase your rework, while “False Positives” potentially send non-conforming product to your customers.

Multimode Cable Assembly Testing: Proper mode-conditioning is essential to ensure accurate Multimode cable assembly testing.

Test Lead Quality: Essential and often overlooked. Consider your Test Leads to be part of your test equipment, and should be made to the highest quality possible — most importantly, Test Lead connectors should have excellent core-to-ferrule-OD concentricity.
