JW3305S Mini OTDR | Multi-Function Fiber Optic Tester with OPM VFL

cost-effective multi-function touch screen fiber optic integrated tester

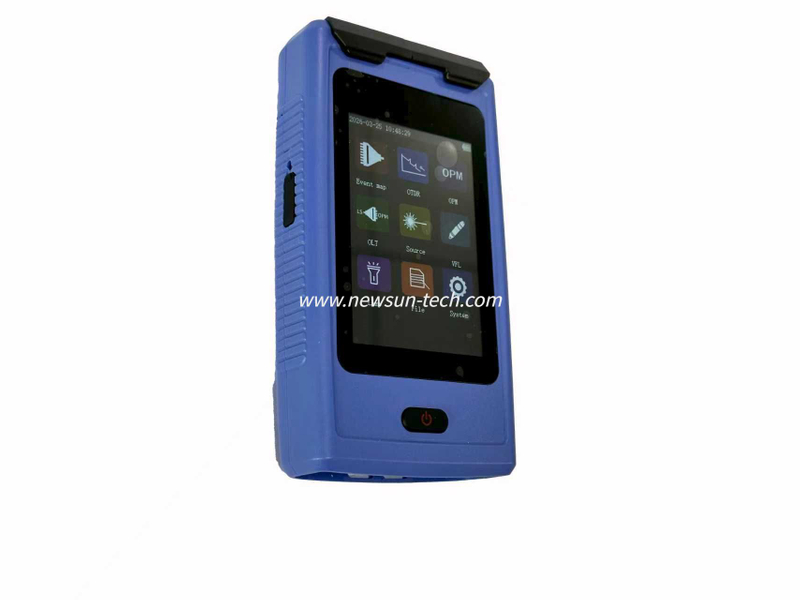

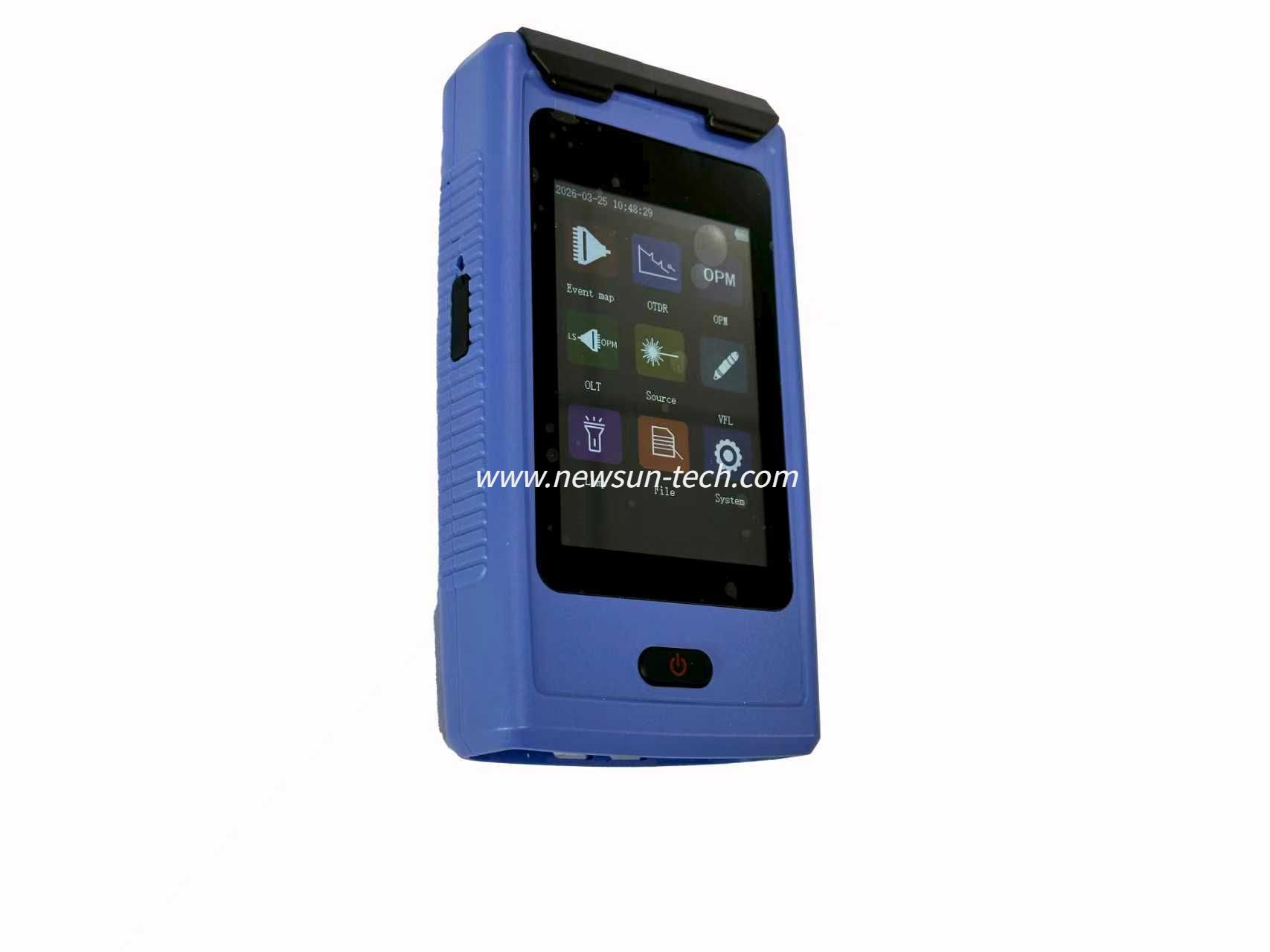

The Mini OTDR JW3305S series is an integrated, multifunctional, and intelligent instrument that combines an optical time domain reflectometer, optical power meter, light source, visual light source, event map, and illumination. Various models cater to diverse fiber optic network testing needs; it is compact, lightweight, easy to carry, and durable, making it especially suitable for harsh outdoor working environments.

Functional features:

 Accurate, fast, reliable, easy to operate, intelligent and multifunctional integrated,

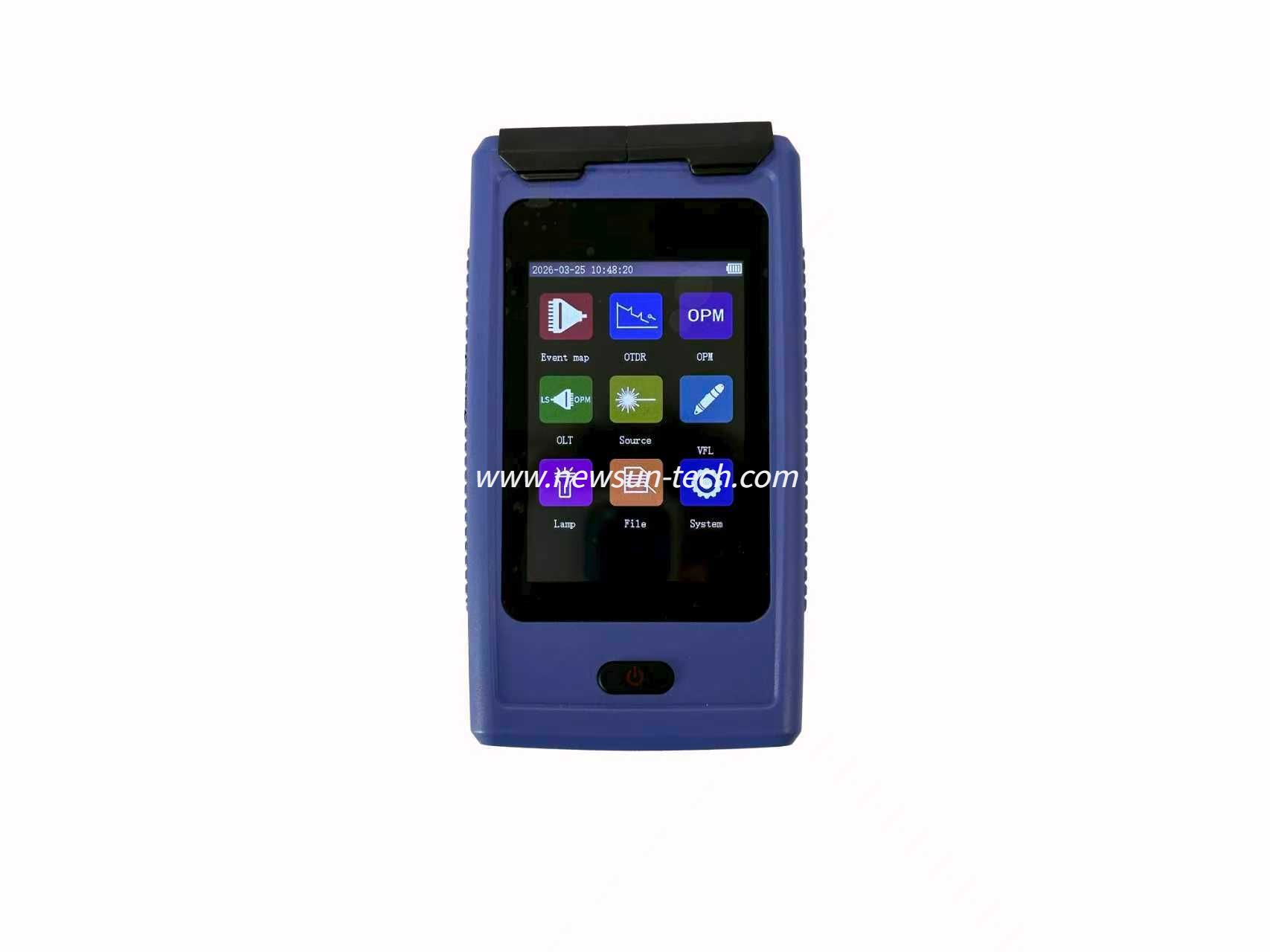

3.5inch capacitive touch screen, gesture operation, curve scaling, easy to handle

JW3305SD OTDR supports dual wavelength testing function, which can intuitively observe the macro bending point of the optical cable

OTDR has dual protection of software and hardware, and is not afraid of opticaltesting

Support saving. sor files and screenshots. jpg

The problem of the event map (optical eye) circuit is visualized and the fault is clear at a glance

Intelligent file management function, which can provide comparison of two test traces.

Different data transfers can be selected: USB data transfer and connecting to a computer to transfer data

Remote instrument software upgrade available

Technical specification

It is a fact that fiber end-face contamination is a major cause of network outages and downtime. Newsun Tech fiber inspection products enable network technicians and other personnel to safely inspect fiber endfaces for contamination and verify the effectiveness of fiber cleaning procedures.

Newsun Tech offers the best solutions for manufacturing fiber optic cable assemblies. Almost as critical to the equipment used to manufacture fiber optic assemblies are the tools used to test and inspect. At Newsun Tech, we have focus on both the Production and the Field Test and inspection. Newsun Tech works with our customers to make sure their manufacturing procedures produce the highest quality jumpers at the most effective cost.

Newsun Tech focuses on several areas to ensure industry-leading solutions and best practices including: Visual fault locator, fiber optical power meter, Fiber Optic Connector handle test tools Kit, 250X/400X Handheld Fiber Optic Inspection Microscope, and etc..

Production Test and Inspection is generally used in lab type settings where the systems remain stationary. They are built to handle large volumes and typically test to a higher degree of accuracy. This equipment is not only used to provide test reports for customers, but it also allows for the collection of large segments of data that can be reviewed for improvements in the production processes.

Field Test and Inspection pieces of test equipment are designed to be highly portable with internal power supplies and smaller footprints. They are well suited for troubleshooting, mapping and certifying fiber optic networks during and after installation in the field.

We provide the highest quality equipment backed with industry-leading technical support and exceptional customer service. With cutting edge equipment, automation, and process controls.

Critical Areas in the Test STEP

Accurate Test Results: Improper test station setup can and will result in inaccurate testing results. “False Negatives” needlessly increase your rework, while “False Positives” potentially send non-conforming product to your customers.

Multimode Cable Assembly Testing: Proper mode-conditioning is essential to ensure accurate Multimode cable assembly testing.

Test Lead Quality: Essential and often overlooked. Consider your Test Leads to be part of your test equipment, and should be made to the highest quality possible — most importantly, Test Lead connectors should have excellent core-to-ferrule-OD concentricity.
