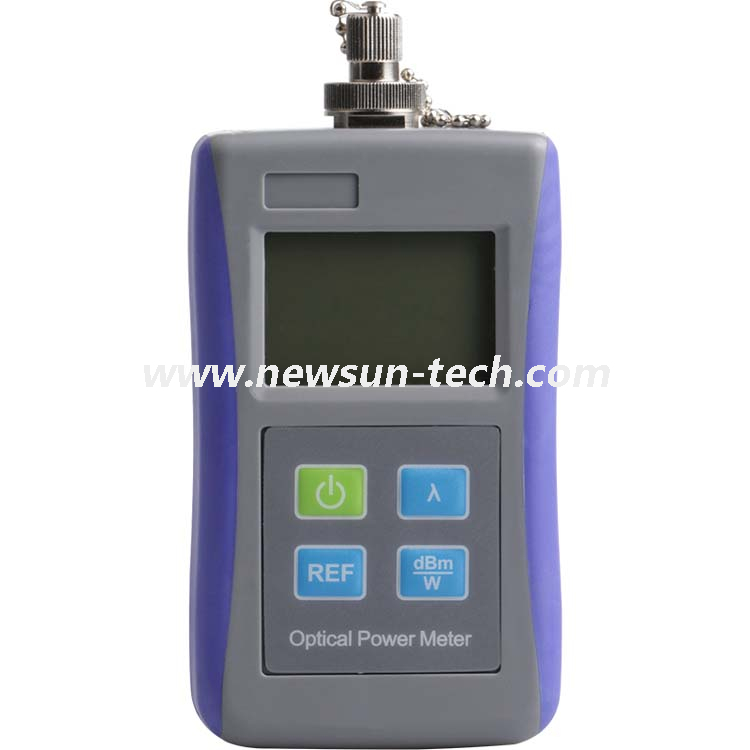

NSPM-380 Mini Type High Accuracy Portable Fiber Handle Optical Power Meter

Product name:Mini fiber optical power meter
Part NO: NSPM-380
Measurement Range -70~+10dBm&-50~+26
FC SC ST/ Universal 2.5mm adaptor (LC、MU can be optional )
sharethis sharing button
  • NSM-380

  • Newsun tech

NSPM-380 Handheld Optical Power Meter is a self-developed test instrument which is widely used for installation, operation and maintenance of fiber-optic network. It features smart appearance, backlight, auto-shutdown and wider dynamic range, good testing precision and universal optical connector for FC/SC/ST.

Type NSPM-380A NSPM-380C
Wavelength (nm) 8001650
Detector InGaAs
Optical Connector FC SC ST/ Universal 2.5mm adaptor (LCMU can be optional )
Measurement Range(dBm) -70+10 -50+26
Uncertainty ±5%
Calibrated Wavelength(nm) 85013001310149015501625
Resolution (dB) 0.01
Power Supply 3pcs  AAA 1.5V batteries
Battery working time (h) 120
Operating Temperature () -10+50
Storage Temperature () -20+70
Automatic shutdown(min) 10
Dimension (mm) 125*65*29
Weight (g) 160

Optical power meter

1. High sensitivity, large dynamic range

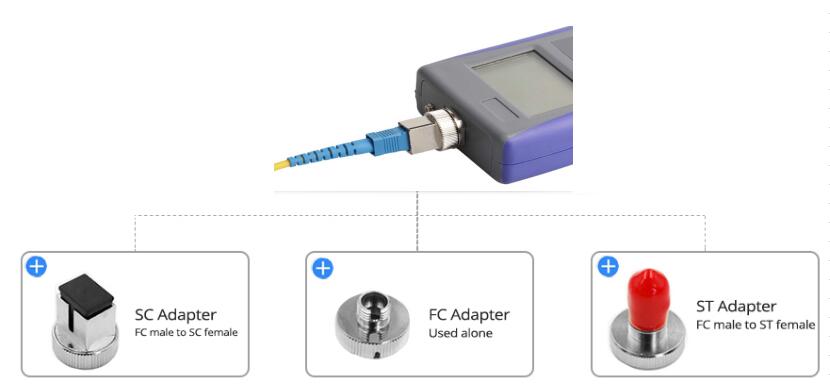

2. Universal connector interface FC/SC/ST

3. Quick response, without warm-up and reducing testing time

4. Low-voltage display function

5. Optional auto-shutdown

6. Automatic calibration function

7. The relative ratio test

8. Large LCD display and backlight

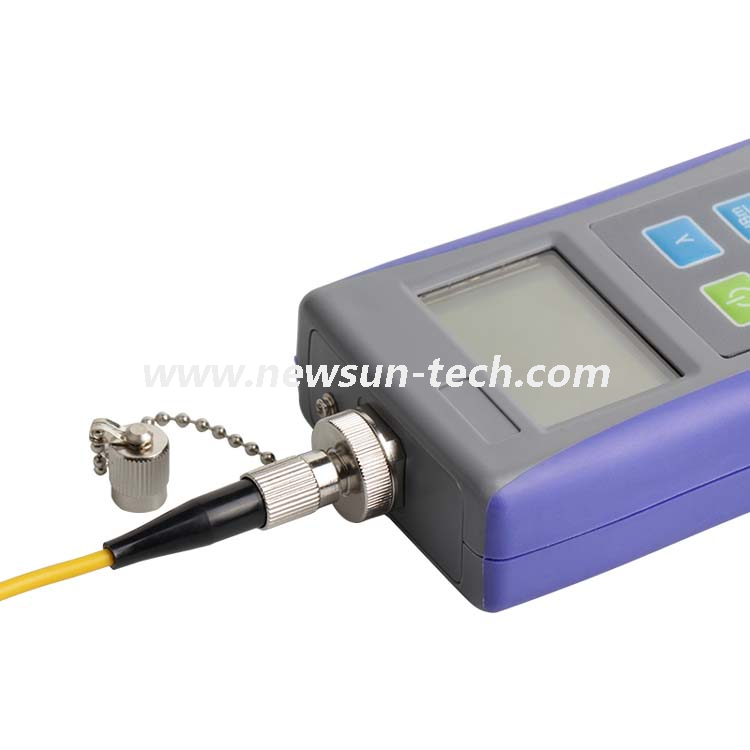

fiber power meter

1. Fiber cable Telecom installation

2. Fiber optic communication maintenance

3. Fiber Optic R&D and Training

4. Optical fiber cabling system

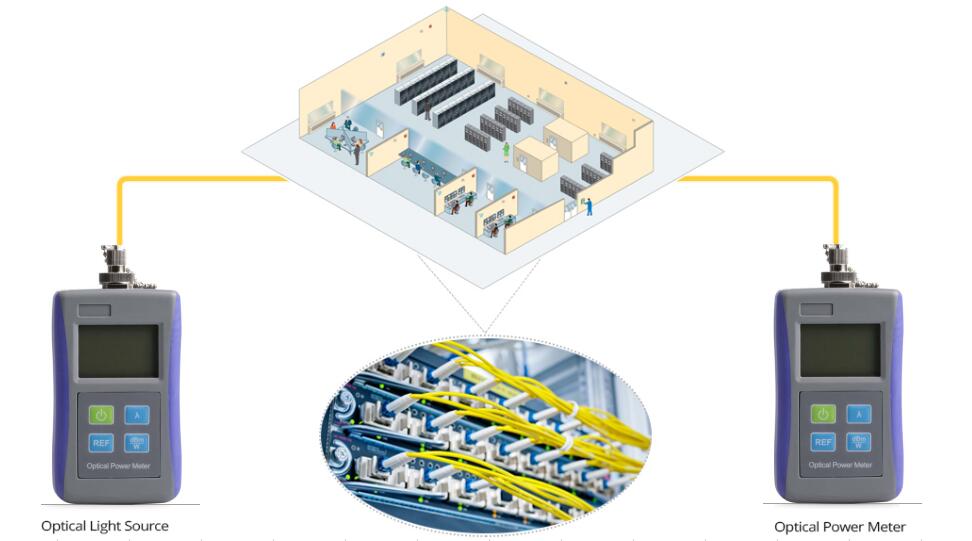

optical power meter

It is a fact that fiber end-face contamination is a major cause of network outages and downtime. Newsun Tech fiber inspection products enable network technicians and other personnel to safely inspect fiber endfaces for contamination and verify the effectiveness of fiber cleaning procedures.

Newsun Tech offers the best solutions for manufacturing fiber optic cable assemblies. Almost as critical to the equipment used to manufacture fiber optic assemblies are the tools used to test and inspect. At Newsun Tech, we have focus on both the Production and the Field Test and inspection. Newsun Tech works with our customers to make sure their manufacturing procedures produce the highest quality jumpers at the most effective cost.

Newsun Tech focuses on several areas to ensure industry-leading solutions and best practices including: Visual fault locator, fiber optical power meter, Fiber Optic Connector handle test tools Kit, 250X/400X Handheld Fiber Optic Inspection Microscope, and etc..

Production Test and Inspection is generally used in lab type settings where the systems remain stationary. They are built to handle large volumes and typically test to a higher degree of accuracy. This equipment is not only used to provide test reports for customers, but it also allows for the collection of large segments of data that can be reviewed for improvements in the production processes.

Field Test and Inspection pieces of test equipment are designed to be highly portable with internal power supplies and smaller footprints. They are well suited for troubleshooting, mapping and certifying fiber optic networks during and after installation in the field.

We provide the highest quality equipment backed with industry-leading technical support and exceptional customer service. With cutting edge equipment, automation, and process controls.

Critical Areas in the Test STEP

Accurate Test Results: Improper test station setup can and will result in inaccurate testing results. “False Negatives” needlessly increase your rework, while “False Positives” potentially send non-conforming product to your customers.

Multimode Cable Assembly Testing: Proper mode-conditioning is essential to ensure accurate Multimode cable assembly testing.

Test Lead Quality: Essential and often overlooked. Consider your Test Leads to be part of your test equipment, and should be made to the highest quality possible — most importantly, Test Lead connectors should have excellent core-to-ferrule-OD concentricity.
