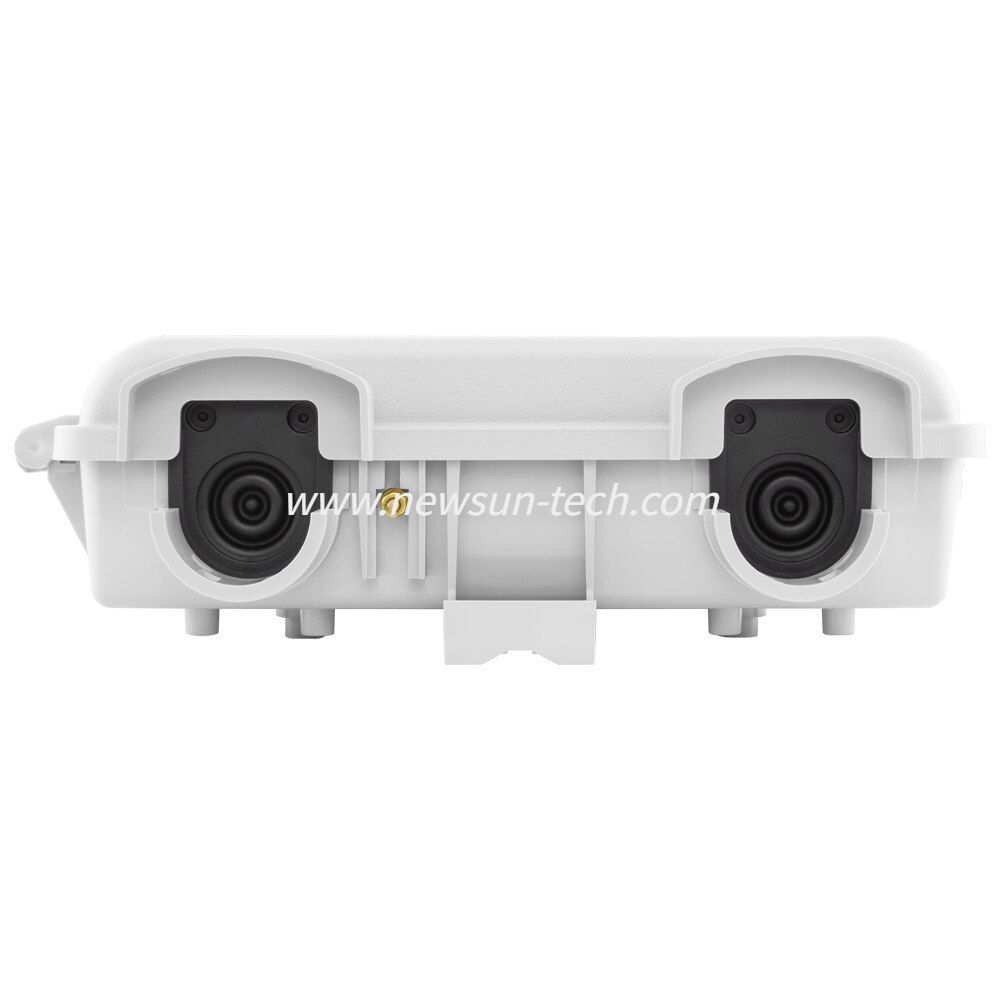

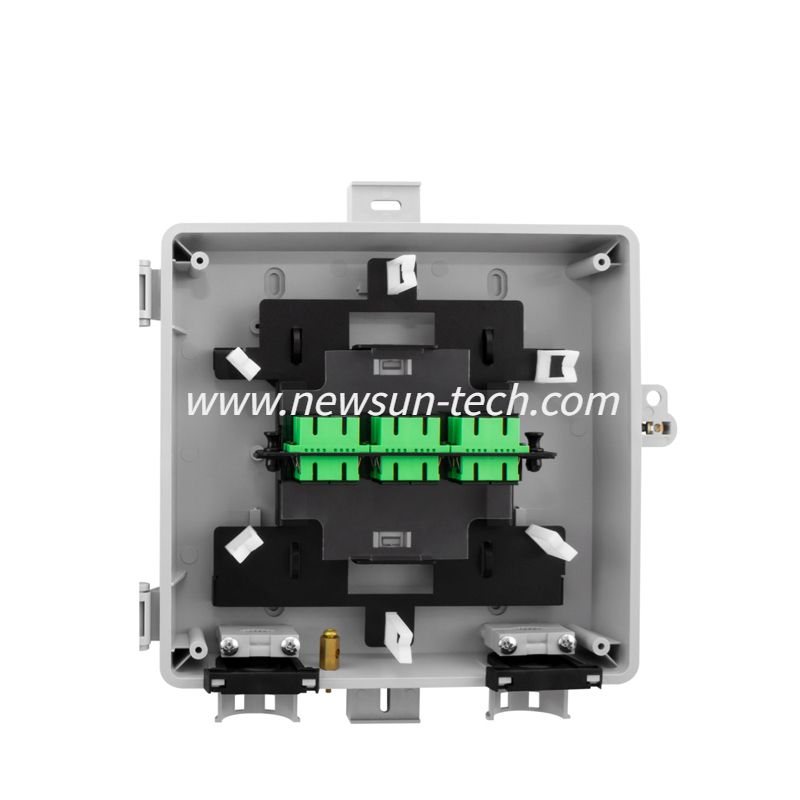

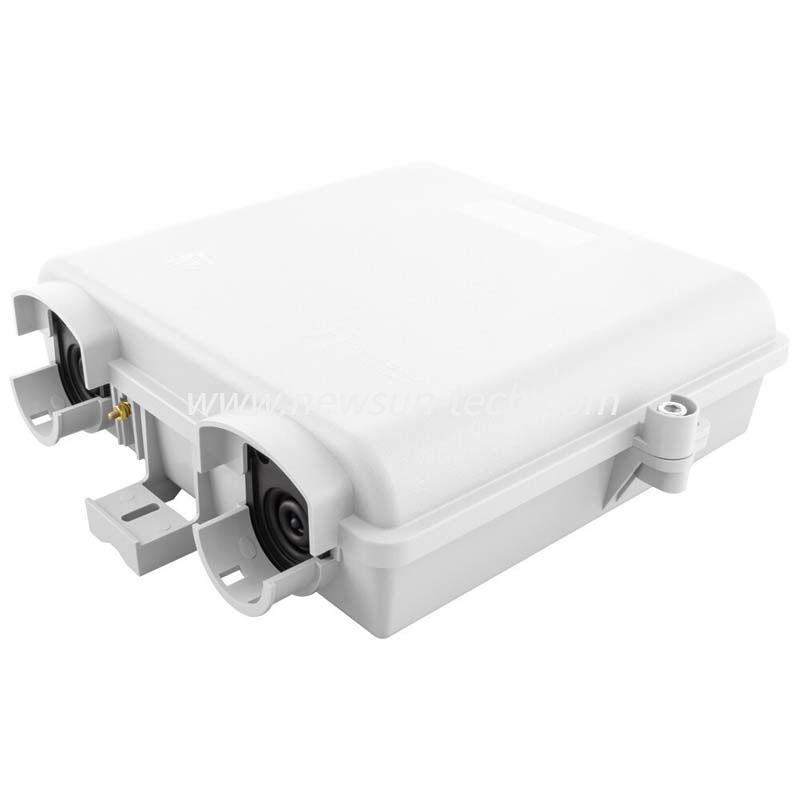

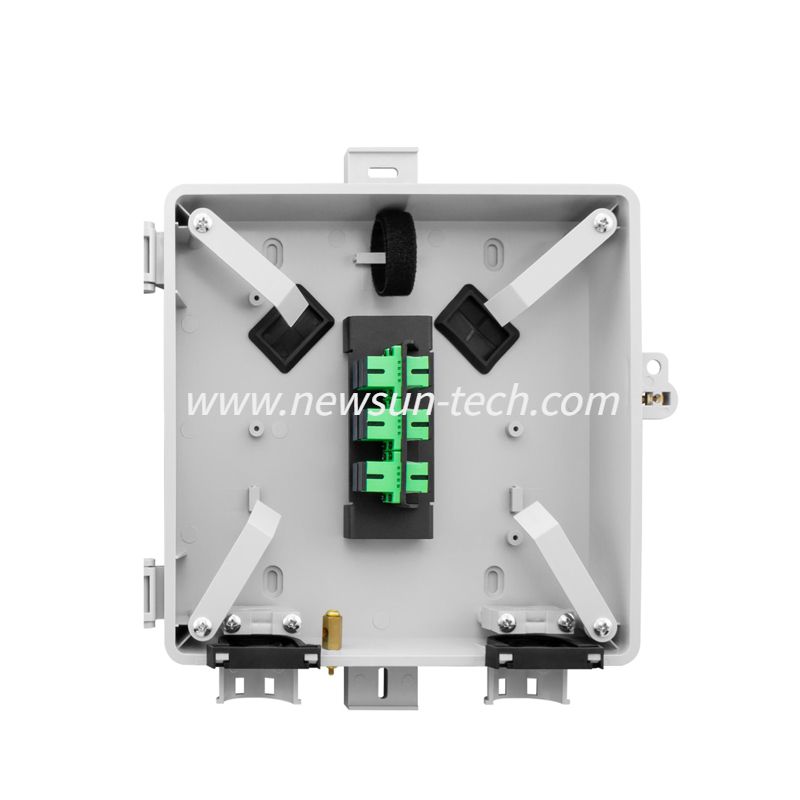

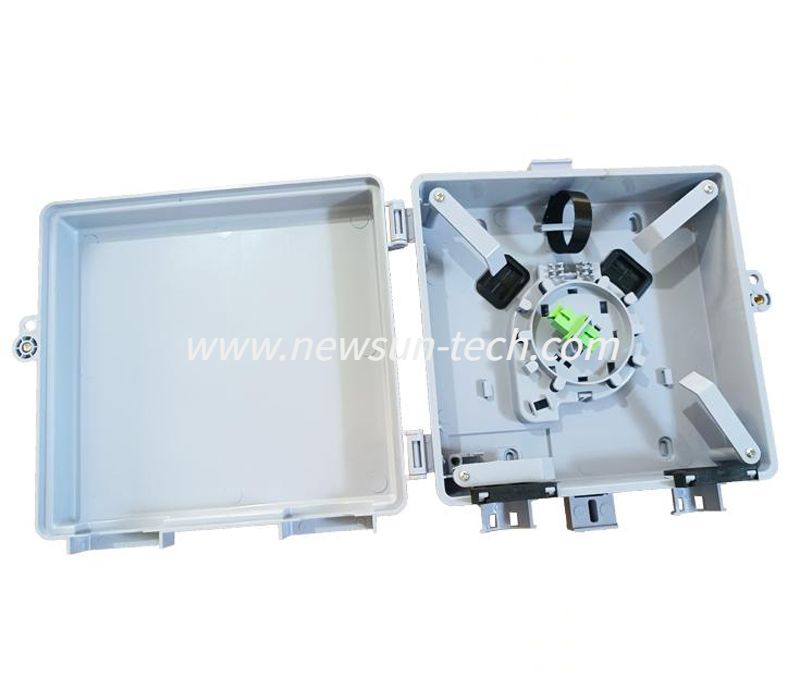

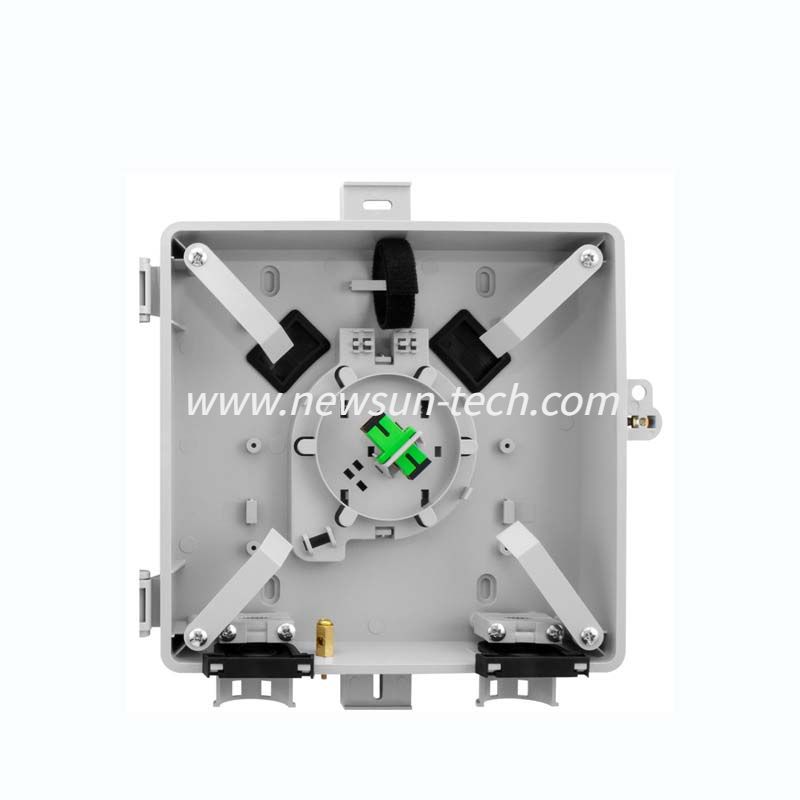

NS-TB012 1/2/6/12Core Optical Cable Storage Corridor Box Fiber Optic Distribution Box

Fiber optic termination box

TB012 with Reel is a compact outdoor fiber optic network interface device designed to withstand the harsh conditions of Outside Plant. Designed for flat and round cable entry, the variable clamp entry securely holds both round and flat drop cables. The built-in spool of armored simplex fiber cable eliminates the need of field splicing with standard lengths of 50, 100, and 150 ft. Accepts up to 1-inch conduit. Electrical copper ground lug included.

• Fiber Entry Terminal (FET) made of high-impact thermoplastic material

• Preloaded with rotating slack storage reel storing 50, 100, or 150 ft of micro armored pushable fiber with bullet end

• Decreased deployment times and reduced installation costs by eliminating in-field splicing

• Cover closes securely with 3/8” hex bolt with provision for a security seal

• Up to 1-inch Conduit entry point with tie down

• Variable cable entry clamp designed for round or flat drop cable

• Electrical copper ground lug is built into the housing

• Custom laser engraving is available for this product.

TB012 with Reel is widely applied in FTTH broadband access networks, outdoor fiber distribution systems, and residential & commercial communication construction. It provides a reliable connection solution for fiber optic cables in harsh outdoor environments, supporting quick deployment and easy maintenance for telecom operators, contractors, and engineering projects.

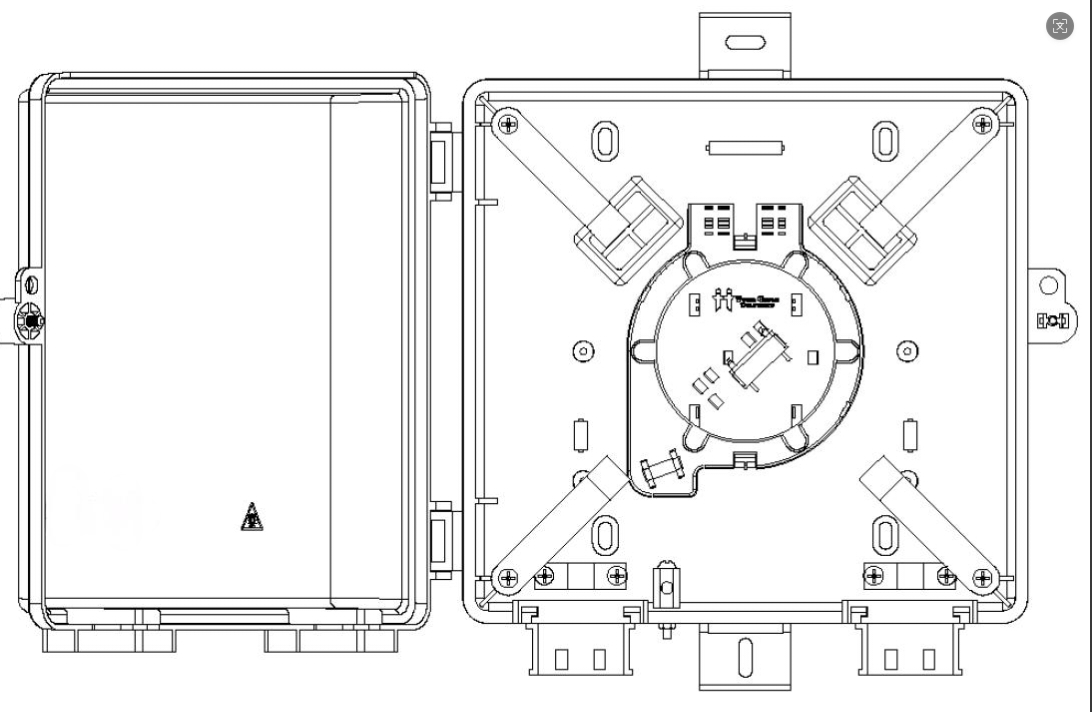

Fiber termination box contains the shell, the internals (supporting frame, set fiber disc, fixing device) and optical fiber joint protective element. Prominent advantages of fiber termination box lie in efficient cable-fixing, welding and its protective role in machinery of the optical fiber.

A insulation is always demanded between cable metal components and cable terminal box shell in a fiber termination box, which provides space for cable terminal and remained fiber storage. In addition, fiber termination box also facilitate the installation of different occasions since it is easy to access, which turns out to be time and cost saving.

Application

Fiber termination box is universally used in telephone, agricultural telephone network system, data and image transmission system, CATV cable television series, indoor cable through force access and branch connection. Fiber termination box is available for the distribution and termination connection for various kinds of fiber optic systems, especially suitable for mini-network terminal distribution, in which the optical cables, patch cores or pigtails are connected. In addition to that, fiber termination box can be applied to joint fiber pigtail, protect fiber optic splices and share out the connectivity to individual customers.
