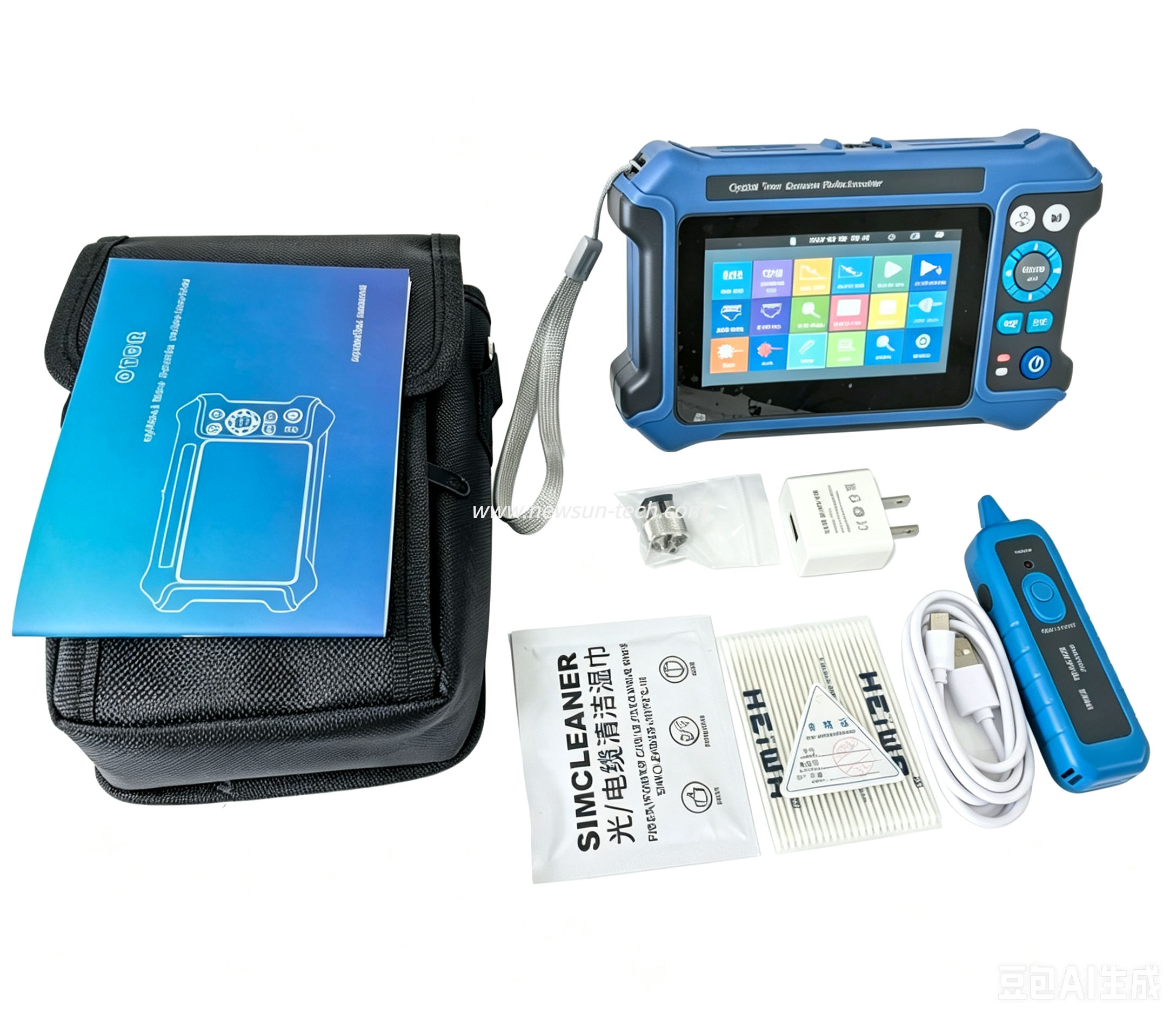

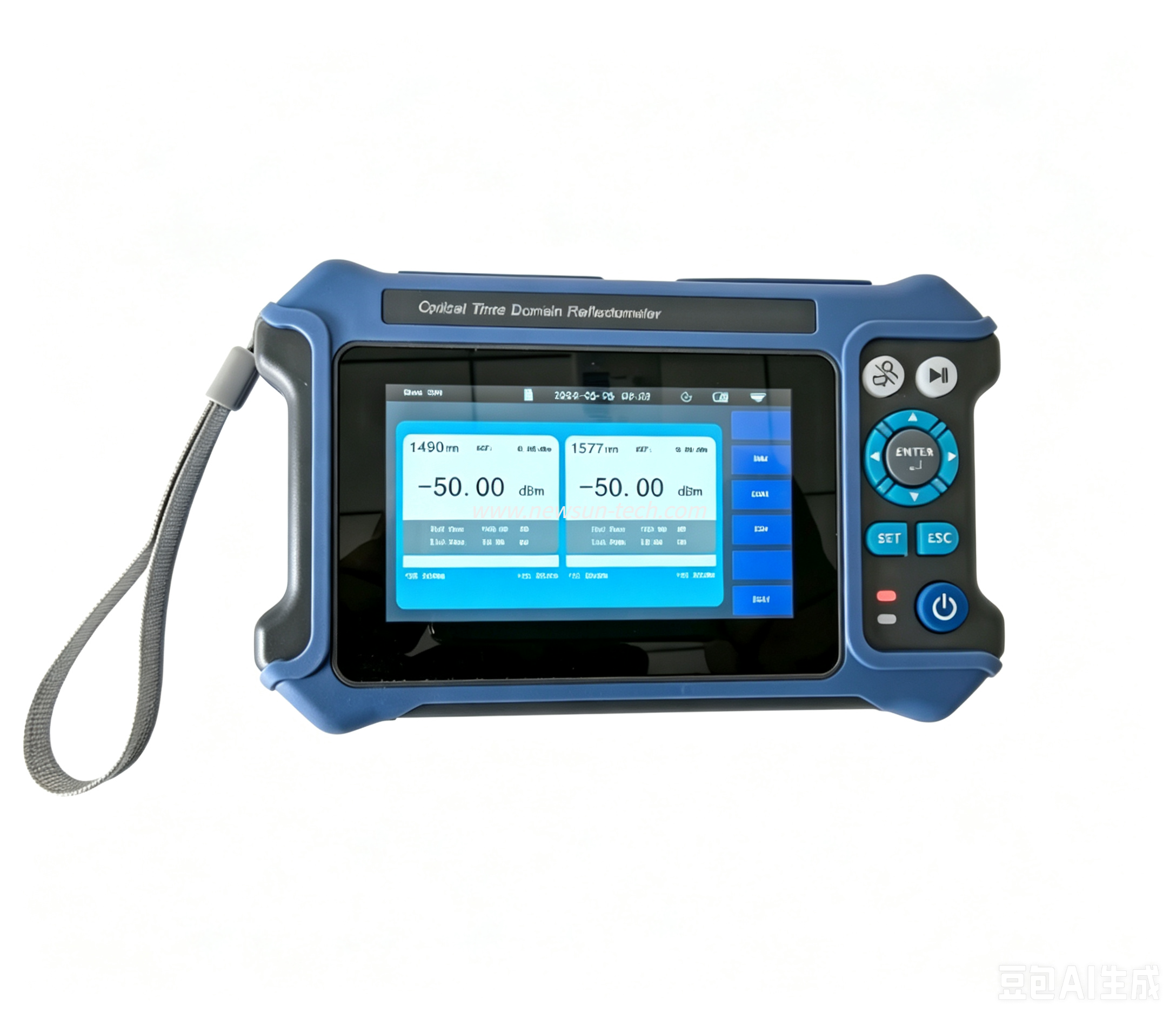

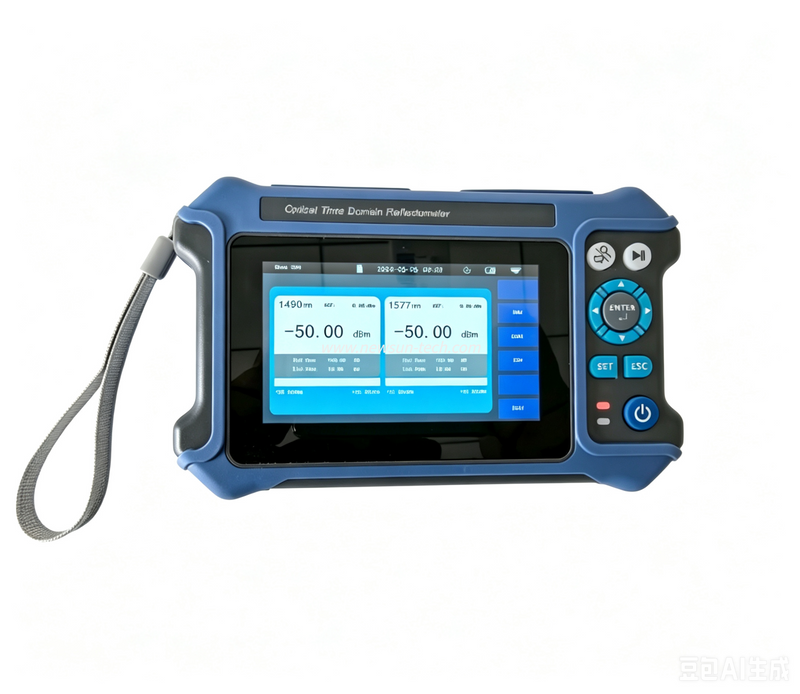

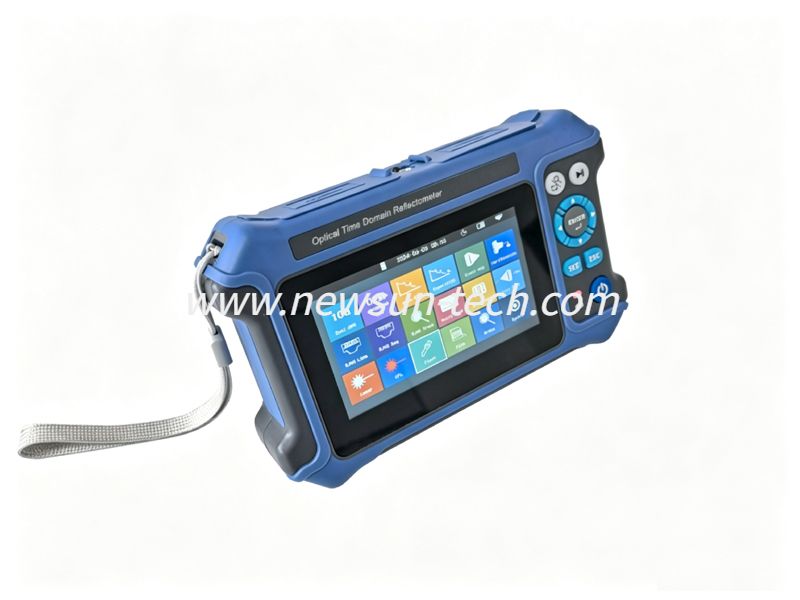

NS-K33 4.3-inch Handheld 16-in-1 Mini OTDR Fiber Tester with OPM VFL RJ45 Test

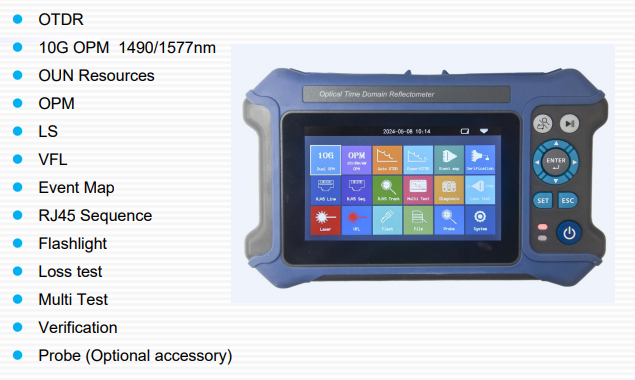

Mini   Pro  series  OTDR  adopts   4.3-inch   capacitive touch   screen.It  integrates   16 functions,such   as   auto OTDR, expert OTDR,event map,OPM,LS,VFL,RJ45 cable tracker,10G OPM,Optical Loss Test,OUN State-testing OTDR has a maximum  dynamic range  of  28dB,8G   memory,and  can  store   more  than  200,000 curves;it   is equipped  with 4000mAh    high-density   polymer lithium battery,intelligent power saving management,measuring   time   of more   than   8    hours,and    supporting    power  supply  and  charging  of  the   power  bank.series    are     used    to    measure    the    length,loss, connection   quality   and   other   parameters   of   optical fiber.It is widely used  in  FTTX,secondary backbonenetwork  engineer- ing onstruction,maintenance   and emergency   repair test, and   production easurement   of  optical  fiber  and cable.

Feature

•4.3 inch screen

• Batter y  Standby  is   20 Hours

• The body weight is 350g

• Automatic test by one key

• Shock-proof and drop proof

• Lighting functions

• USB charging
