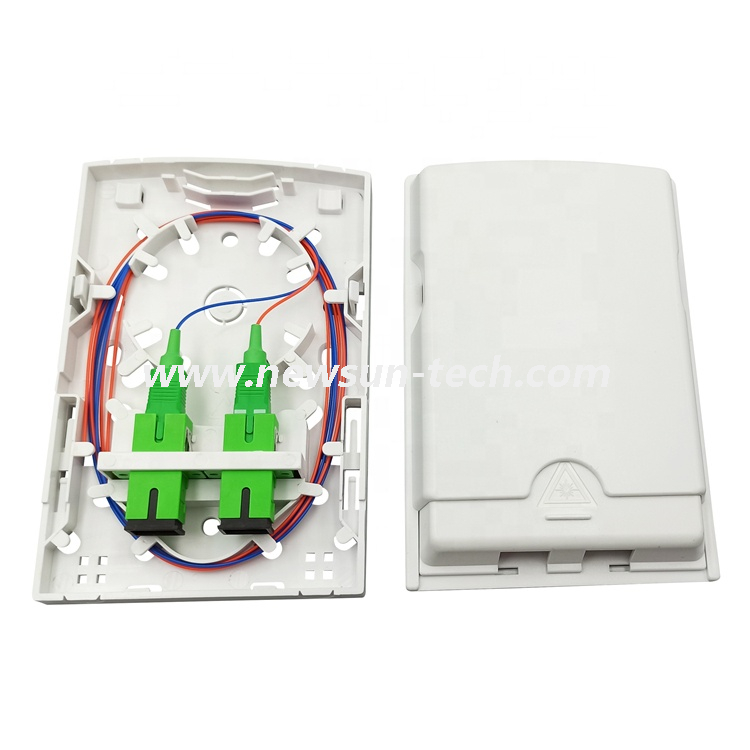

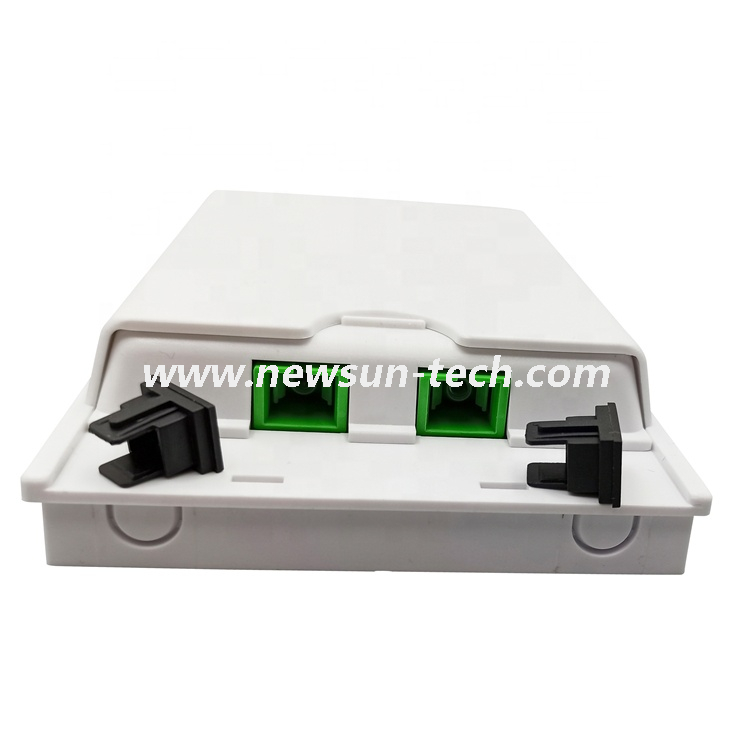

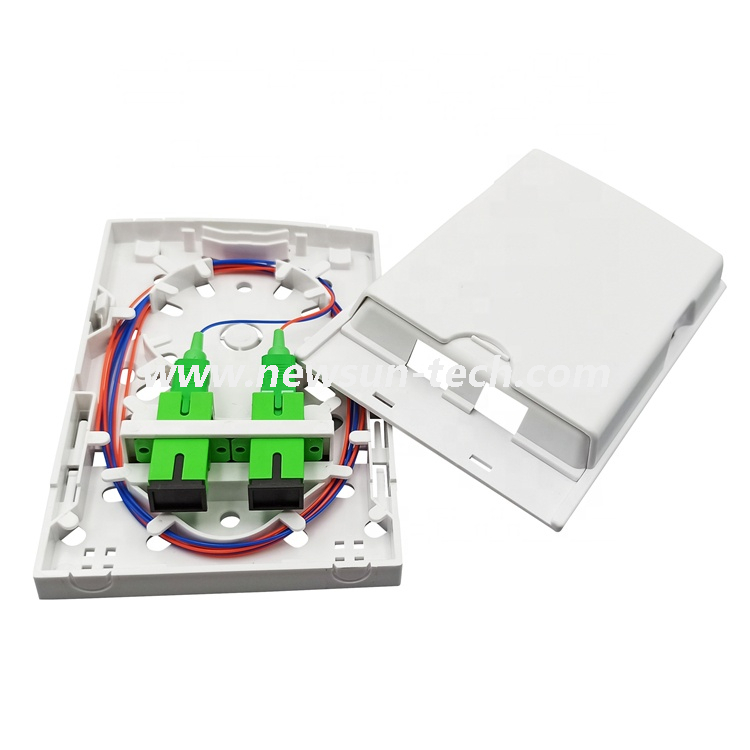

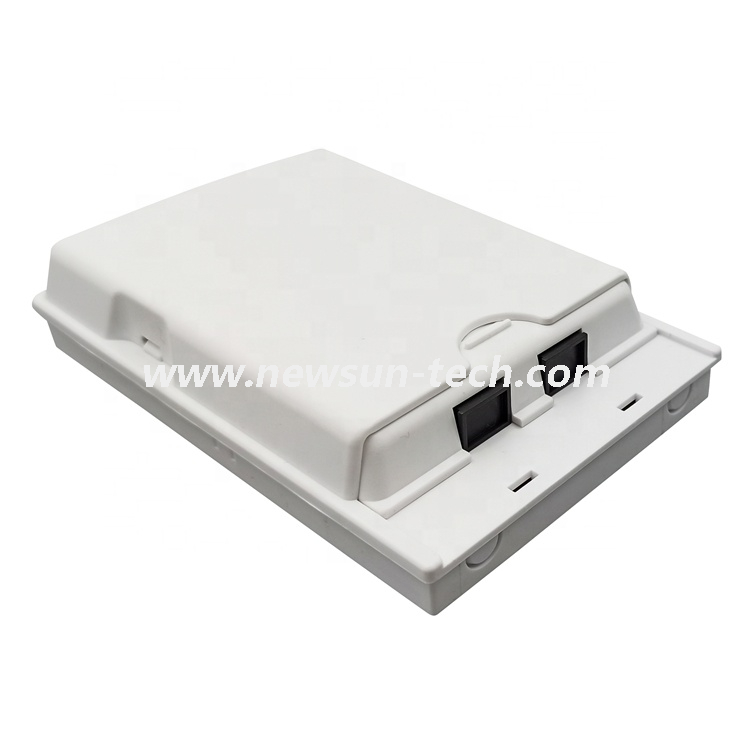

NSTB-411 Indoor Faceplate 2 Port FTB Fiber Termination Box

Product name: 2 Port FTTH Wall Socket Box
Part NO.: NSTB-411
Adapter Capacity:4 fibers with LC Duplex/2 fibers with SC Simplex
Availability:
Quantity:
sharethis sharing button
  • NSTB-411

  • NEWSUN TECH

SC 2 Port FTTH Fibre Faceplate 4 Ports LC Wall Socket Box


2 port Indoor SC Wall Mounted Fiber Termination Enclosure FTTH Optical Fiber Distribution Box

1 or 2 Fiber Ports Fiber Pigtail & Adapter and Easy to get fiber cable through

· Made of High Grade Flame Resistant Material

· Suitable to SC FC LC Fiber Adapters & Pigtails

· Reasonable Bending Radius for Fiber Protection

· Smart design made installation easy


ModelNSTB-411
Available Cable3.1mm*2.0mm rubber fiber cable
Insertion loss<0.2dB
Reflection loss≥45dB (PC ) ≥60dB(APC)
Tensile strength>50N
Outlet No.2 Outlet No.
MaterialABS plastic, PC
Adapter Capacity4 fibers with LC Duplex Adapters
2 fibers with SC Simplex Adapters
Installation wayFixed by screw
Size130*83*25mm


Detailed information:

1.Very thin and matches with other A86 panels in homes and also meet the open or concealed cabling for optical cables

2.Used in FTTH indoor application, home or work area

3.Provide users with optical access or data access

4.May store surplus fiber inside, easy for operation

5.A user end product to realize optical fiber to desktop solution.

6. It can be used in the home or working area to accomplish double-core fiber access and port output.

7.Used in the end termination of residential buildings and villas, to fix and splice with pigtails.

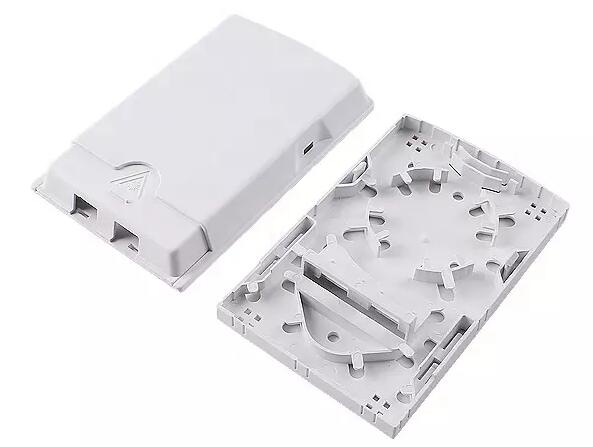

Fiber Distribution Box
