FC/SC/LC/ST Customized Variable Fiber Optic VOA In-Line Attenuator, SM/MM, 0~60dB

Product name:Variable Fiber Optic VOA In-Line Attenuator
Fiber Connector:LC/SC/FC/ST
Connector Gender:Variable In-Line
sharethis sharing button


LC/SC/FC/ST Type Variable Fiber Optic VOA In-Line Attenuator

As optical passive devices,Newsun tech attenuators are mainly used in fiber optic to debug optical power performance & optical instrument calibration correction & fiber signal attenuation to ensure the optical power in a stable and desired level in the link without any changes on its original transmission wave.

Fiber Connector LC/SC/FC/ST
Cable lengths 2 meters
Attenuation 0~60dB
Attenuation Accuracy ±0.8dB
Polarization Dependent Loss ≤0.2dB
Humidity 95%RH
Storage Temp Range -40~85°C
Ferrule Type Zirconia Ceramic
Transfer Mode Singlemode&Multimode
Operating Wavelength(nm) 1310~1550(SM)/850~1300(MM)
Minimize Insertion Loss <2.5dB
Max Optical Input Power 200mW
Operating Temp Range -40~80°C

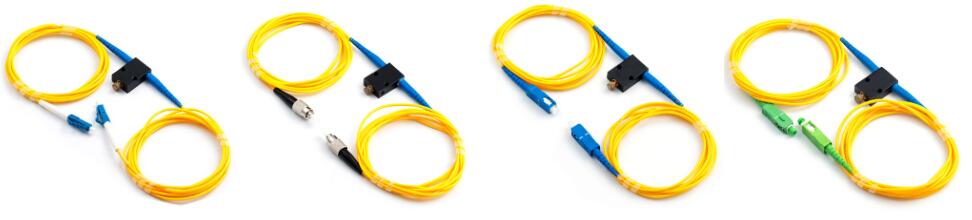

Variable In-Line Attenuator

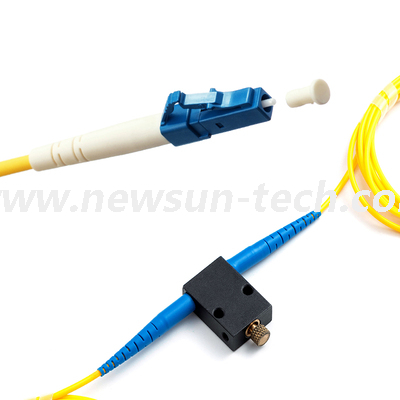

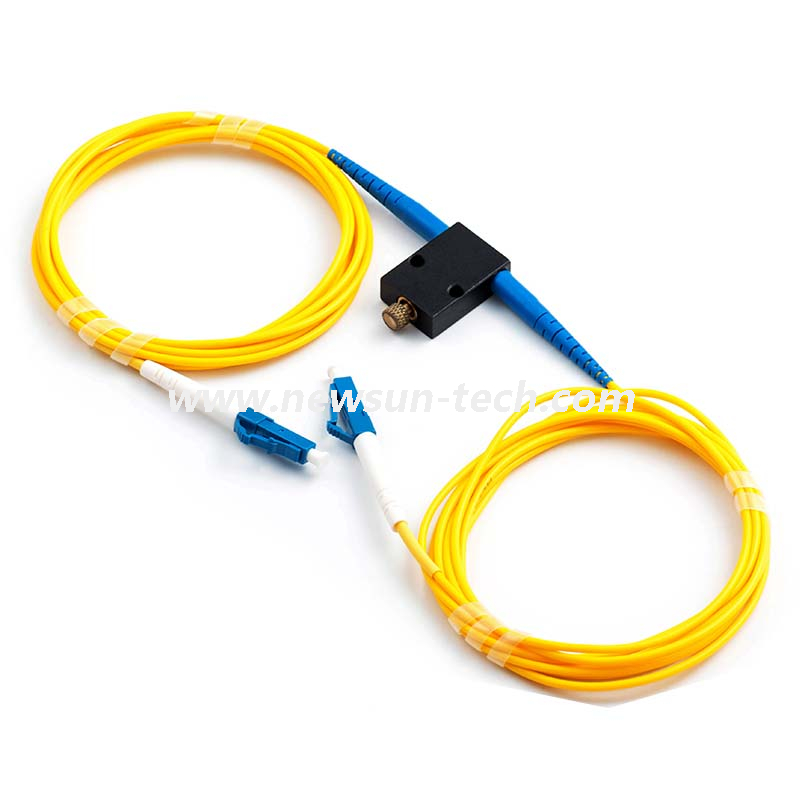

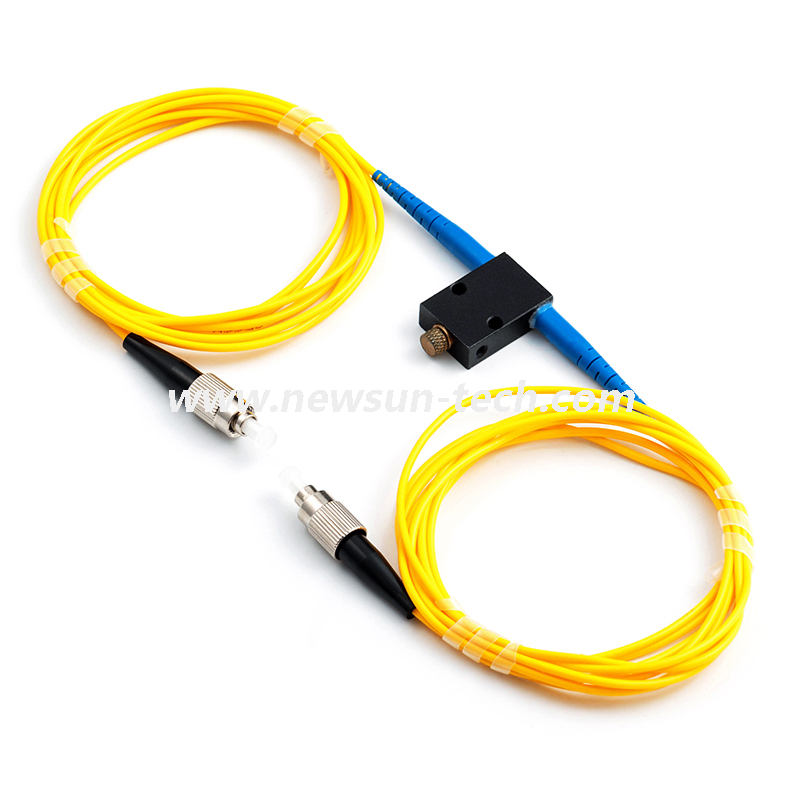

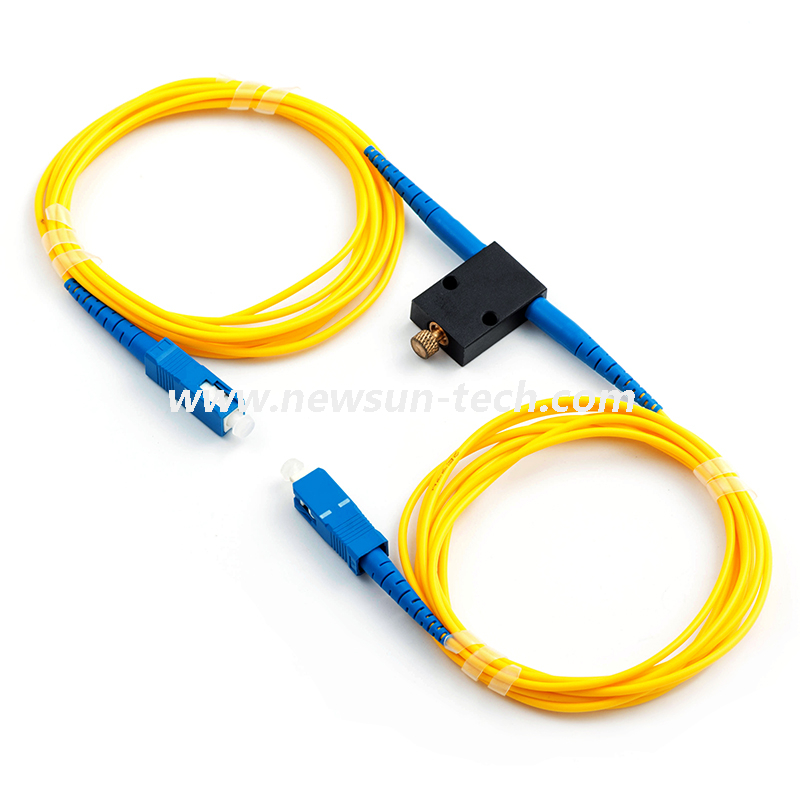

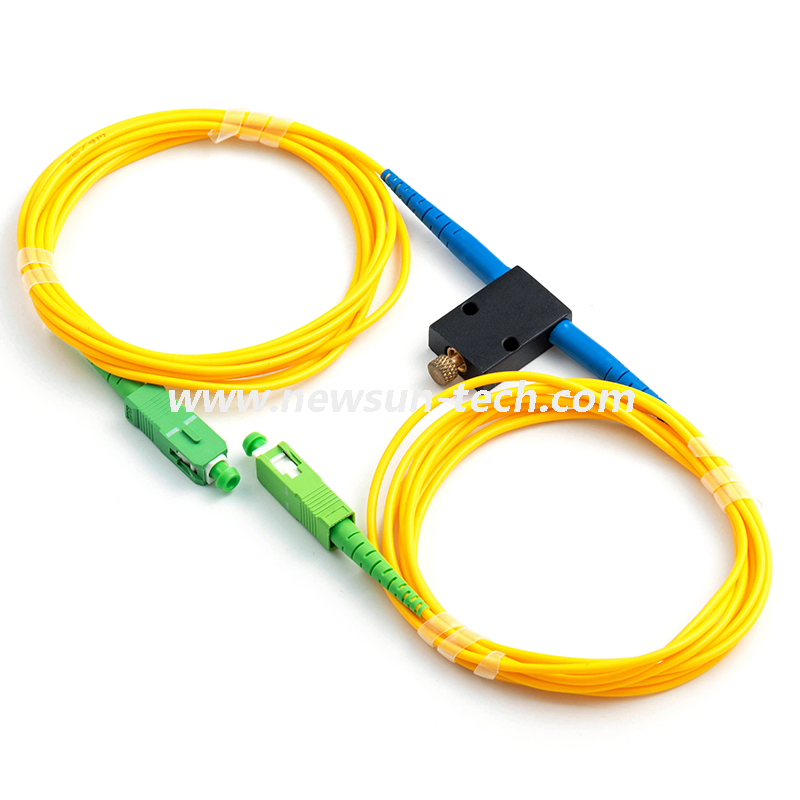

LC Variable In-Line Attenuator    FC Variable In-Line Attenuator  SC Variable In-Line Attenuator      SC/APC Variable In-Line Attenuator

Variable Fiber Optic VOA In-Line Attenuator, SM/MM, 0~60dB

Variable in-line optical attenuators comprises a dual fiber collimator and a reflection component separated by a linear moveable ND filter. They are used to permit dynamic control of optical power levels in a fiber and can be applied to adjust power level of signal in the optical communication at the output of light sources, E/O converters and for the linear or dynamic range of power meter.

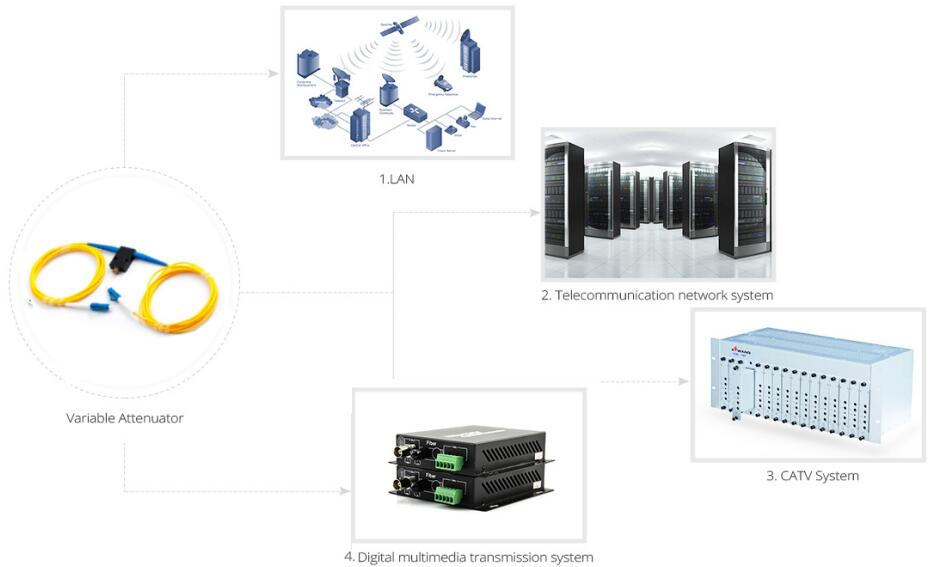

Variable in-line optical attenuators

• Useful for testing the dynamic range

• Reduce the optical power within a fiber optic link

• Useful in very short fiber links

• Low Back Reflection

• Available in Singlemode & Multimode

Fiber optic attenuator is a passive device used to reduce the power level of an optical signal because too much light can overload a fiber optic receiver and degrade the bit error ratio (BER). To achieve the best BER, the light power must be reduced by using fiber optic attenuator. Generally, the optical attenuators are used in single-mode long-haul applications to prevent optical overload at the receiver.

Optical attenuator reduces signal power by absorbing the light, like sunglasses absorb the extra light energy. Or by scattering the light like an air gap. Fiber optic attenuators are commonly used in two scenarios:

  • Attenuators are permanently installed in a fiber optic links to properly match signal levels at transmitter and receiver.

  • In fiber optic power level testing. Attenuators are used to temporarily add a calibrated amount of signal loss in order to test the power level margins in a fiber optic system.

Fiber optic attenuator is an essential passive component in the optical communication system. With the advancement of DWDM technology, as well as the potential to flexibly upgrade the reconfigurable optical add-drop multiplexer (ROADM), the demand for optical attenuator is sure to soar, especially for optical variable attenuator. The innovation in fiber optic industry never ceases, and fiber optic attenuator will evolve to have lower cost, faster response time and enhanced integration of hybrid with other optical communication devices.
