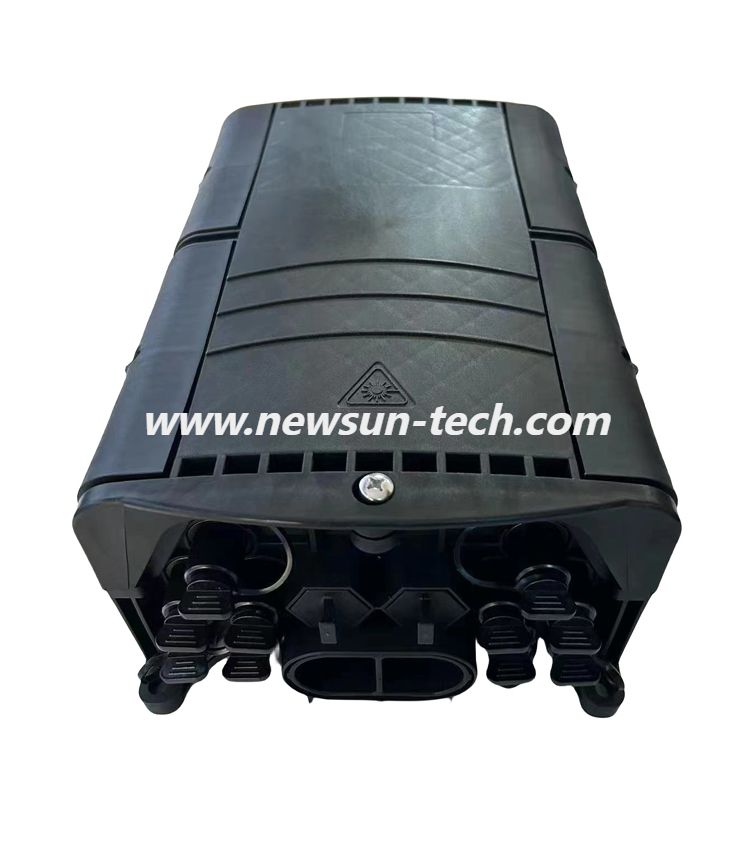

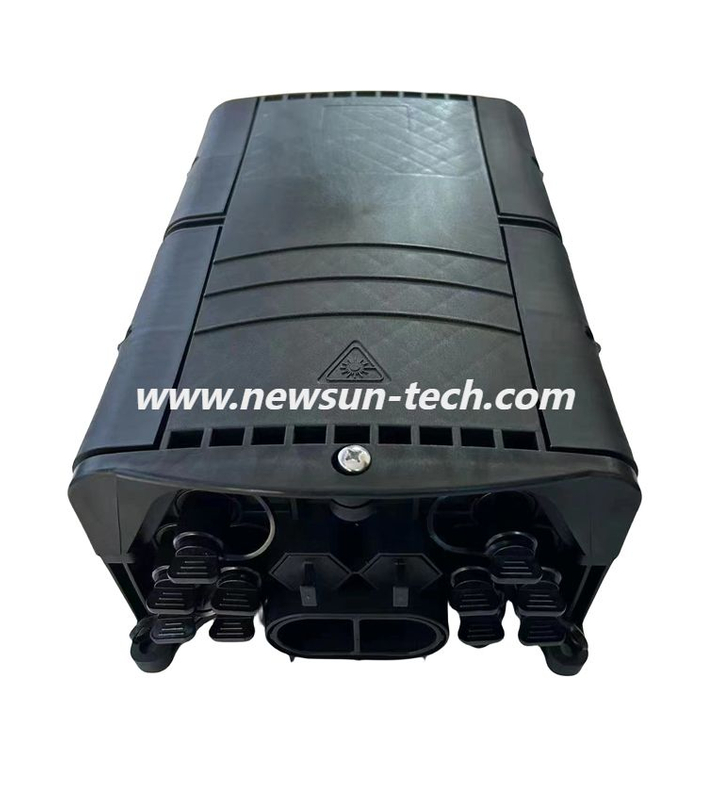

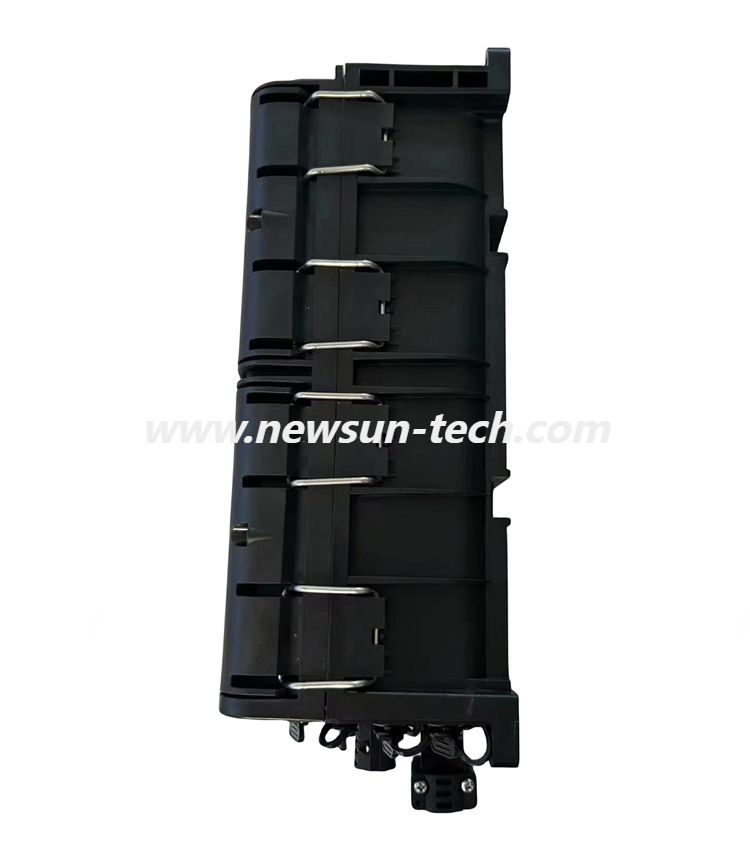

NS-M1016TF 10/16 Core Outdoor IP68 Mechanical Horizontal Connector Box

Product name: Outdoor Cable Termination Box
Max core:10/16
sharethis sharing button
  • NS-M1016TF


Mechanically sealed pre connected horizontal connector box


The M-1016 is a mechanically sealed pre connected horizontal connector box used for ORP (Optical  Ring Passive) network access points in underground mines. Single ended design, used as a hub box node in  an unequal ratio fullypre connected solution, converting traditional optical cables into single core pre connected SC/APC output ports.

Product Features

*The output end adopts a pre connected design, which is plug and play and does not require fusion connection

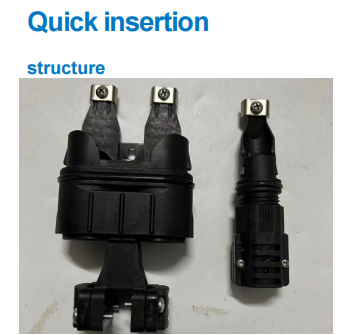

*Quick insertion enables the fixation and sealing of optical cables outside the joint box, enabling quick installation *Support the allocation of optical fibers within the same loose tube to different fusion discs

*Support ground and underground installations

*Small size and beautiful appearance

*Meet the explosion-proof requirements of mines

*Protection level IP68

*Digital management: Support AI image recognition and accurately manage ORP resources

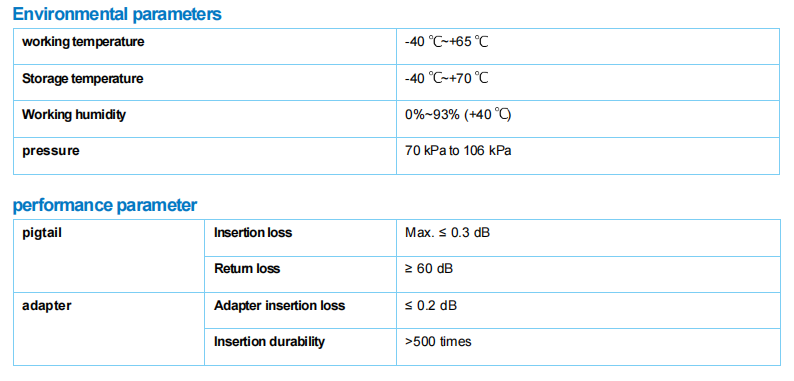

Wiring capacity (in cores)  16
Fusion capacity (in cores)96

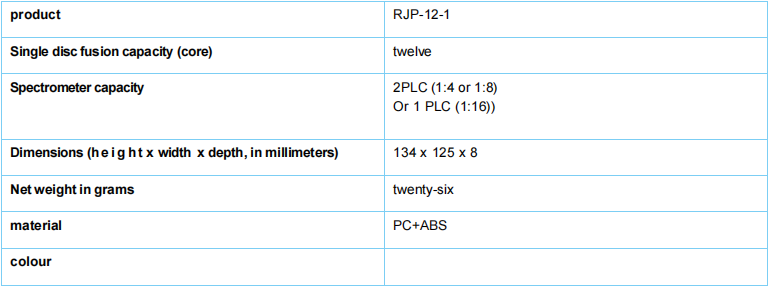

Type of fusion splice trayRJP-12-1
Maximum number of splice tray8 pcs
Single splice tray capacity (unit: core)12
pigtail fiber type16 pcs SC/APC pitails, length 1m,  LSZH   G.657A1 fiber

Fiber optic cable inlet and outlet holes
T01 adapter Φ 6-18 mm straight through optical cable
F01 adaptations Φ 5-12mm branching optical cable
16pcs SC/APC outdoor adapters
Installation method  Wall hanging
Shell materialPP+GF
Protection levelIP68
Impact resistance levelIK09
Flame retardant gradeFV2
AntistaticMeet GB3836.1
Sealing methodmechanical



                                                                     T01                                F01

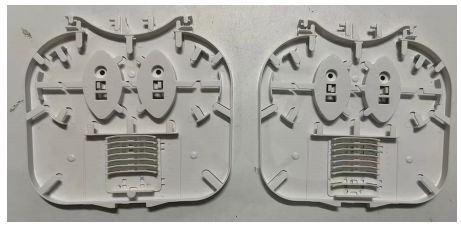

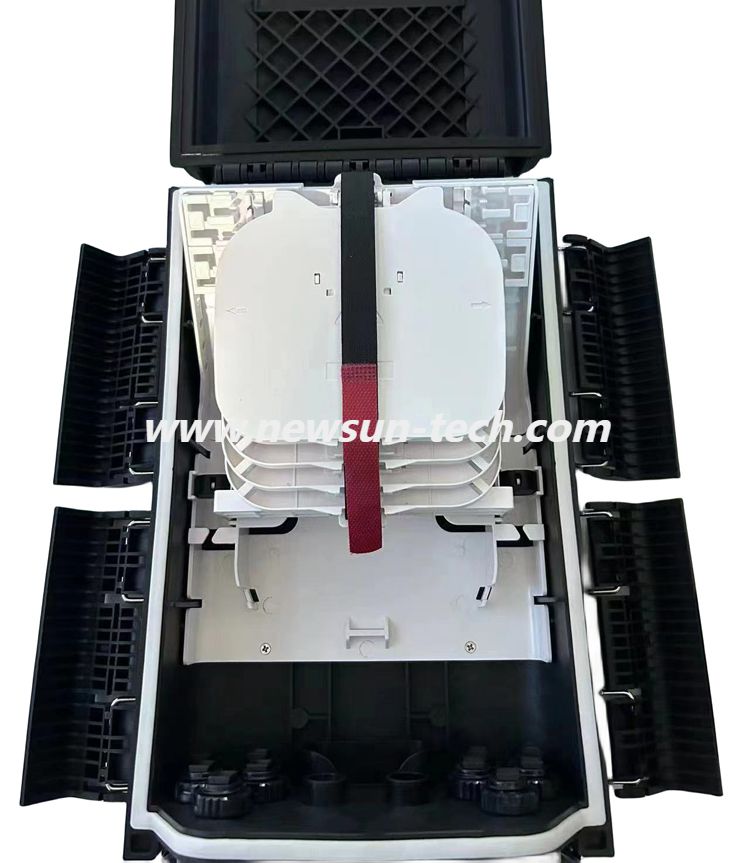

Splice tray



certificate of conformity

Certificate of Conformity

Quality management system certificationQuality Management System

certification for sale transport

Certification for Sale Transport

ISO 9001

ISO 9001



Patent certificate

                     Patent Certificate

Fiber termination box contains the shell, the internals (supporting frame, set fiber disc, fixing device) and optical fiber joint protective element. Prominent advantages of fiber termination box lie in efficient cable-fixing, welding and its protective role in machinery of the optical fiber.

A insulation is always demanded between cable metal components and cable terminal box shell in a fiber termination box, which provides space for cable terminal and remained fiber storage. In addition, fiber termination box also facilitate the installation of different occasions since it is easy to access, which turns out to be time and cost saving.


Fiber termination box is universally used in telephone, agricultural telephone network system, data and image transmission system, CATV cable television series, indoor cable through force access and branch connection. Fiber termination box is available for the distribution and termination connection for various kinds of fiber optic systems, especially suitable for mini-network terminal distribution, in which the optical cables, patch cores or pigtails are connected. In addition to that, fiber termination box can be applied to joint fiber pigtail, protect fiber optic splices and share out the connectivity to individual customers.
