NS-FAT24T FTTH 16/24 Core Outdoor IP55 FDB Fiber Optic Distribution Box


Availability:

Quantity:

Inquire Add to Basket

Model:
NS-FAT24T
Brand:
NEWSUN TECH

Product name: FIBRE DISTRIBUTION BOX (FDB)
Max core：16/24
Splitter:1*8/1*16/2*16
Size:340*280*100mm

Product Description

FIBRE DISTRIBUTION BOX (FDP/FDB/FDC)

NS-FAT24T type Fiber Access Terminal is proposed to be used as FDP and FDP and Mini FDC for TM, it is able to hold up to 16 subscribers and provide one branching outlet. It integrates fiber splicing, splitting,distribution, storage and cable connection in one solid protection box.

Features and Benefits

• Water-proof performance meet with IP55 of IEC 60529 requirements.

• Integrated with splice function and splitter installation.

• Manage fibers in a reasonable bending radius condition.

• Suitable for the fusion splice or mechanical splice.

• Supports up to 5 splitters in the box, 1x1:16, 3x1:8 and 5x1:4 splitters could be equipped as options.

• Efficient cable management.

• 3 ports for distribution cable with tap-out function (FDP/FDB/Mini FDC).

• 16 separate entrances for drop cable (FDP/FDB/Mini FDC).

• The sealant material does not support mould growth in accordance with IEC 60068-2-10.

Item	Spec
Size (HxWxD, mm)	340 x 280 x 100
Splice capacity	Up to 24F
Incoming cable	Oval port for 1 x Mid-span incoming cable
	Or 2 x Individual incoming cable
	Cable diameter up to ∅18mm
Cable Outlets	1 x Branching cable ports, ∅10.35~13.05mm
	16 x separate drop cable ports, each port fits 2mm x 3mm of
	drop cables and allow SC connectors to pass-through.
Splitter	5x1:4, 3x1:8 or 1x1:16
Adapter	24xSC/APC or SC/UPC in patch panel and 3xSC for parking
Weight (kg)	1.5
Protection level	IP55
Operation and storage temperature	-40 to 70°C
Material	Reinforce Plastic and Stainless Steel
Material	Conform to f2 rating for UV resistance

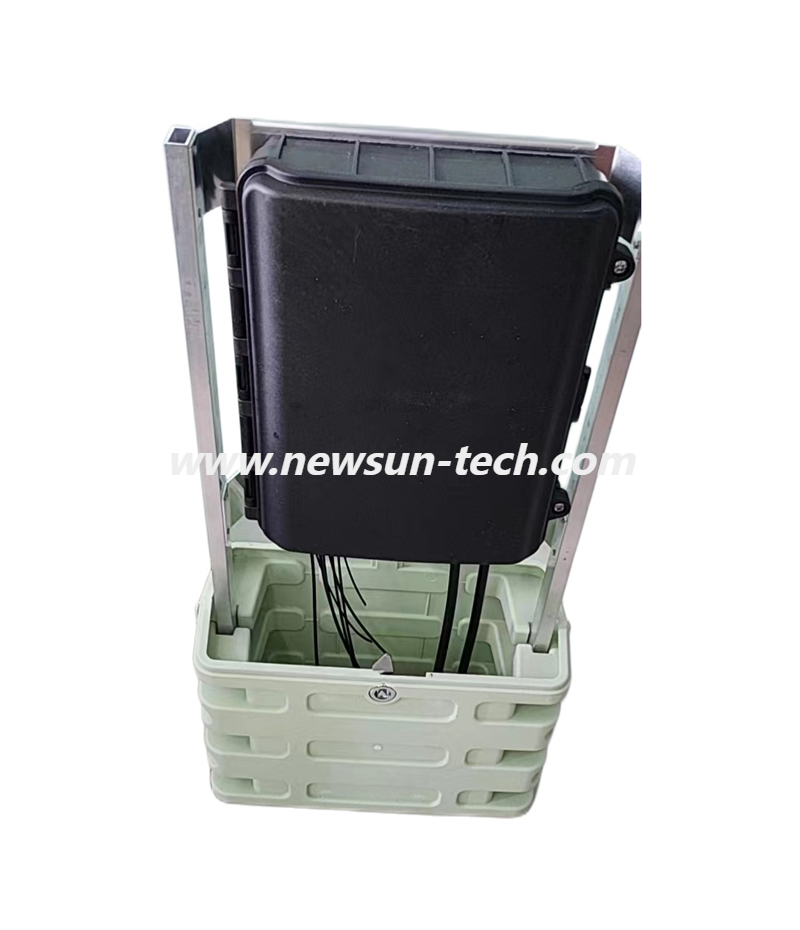

Mounting way	Wall or aerial installation
Mounting way	Supports ∅100~180mm pole size for aerial installation.

Features

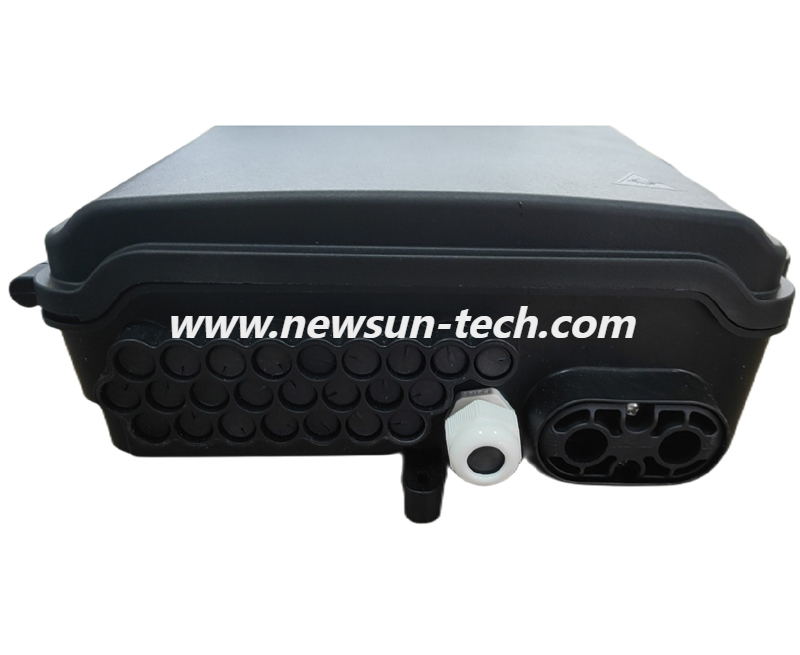

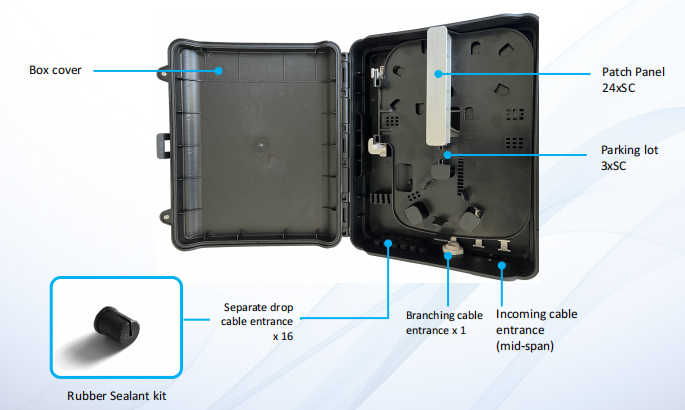

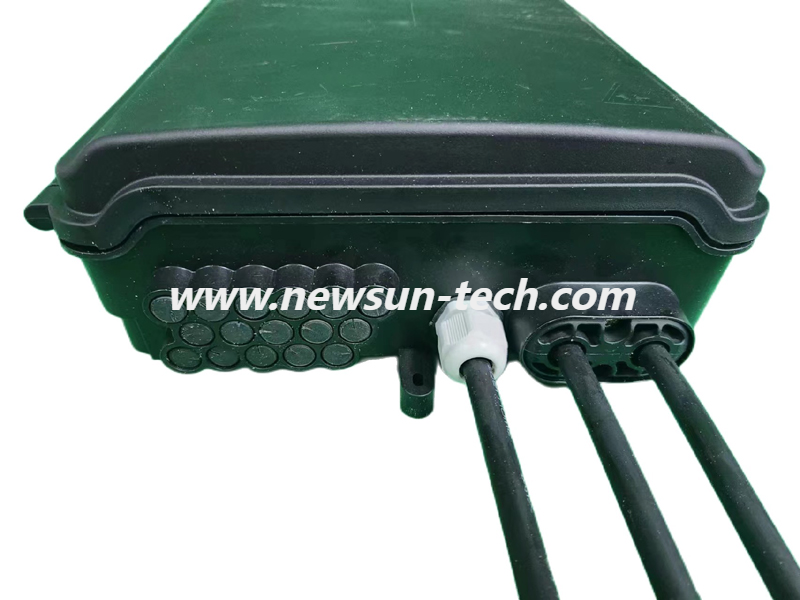

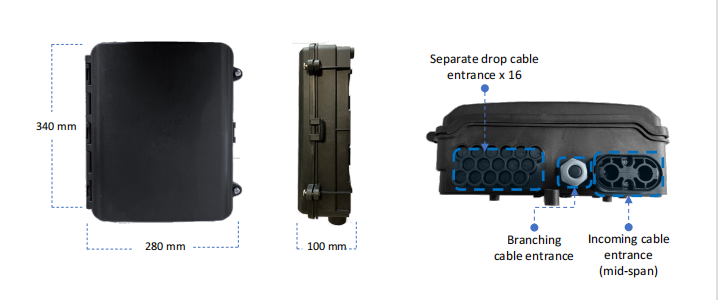

Dimension and Cable Entrances

fiber box

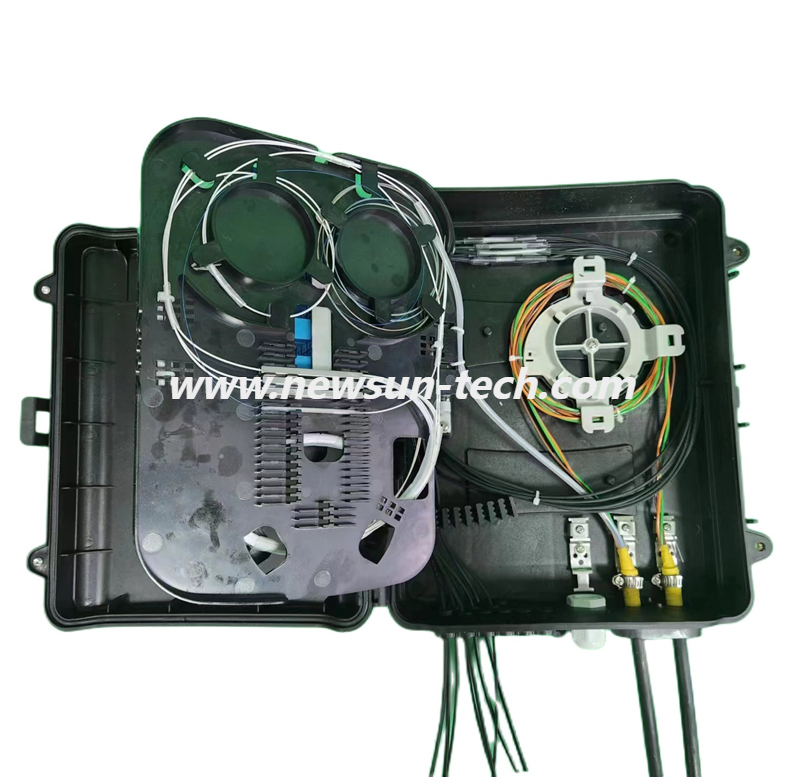

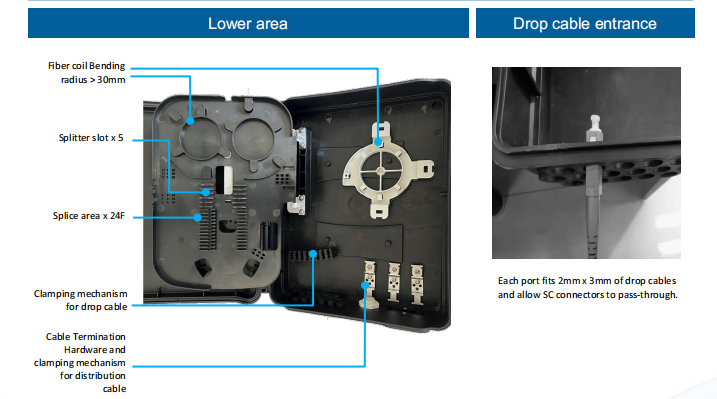

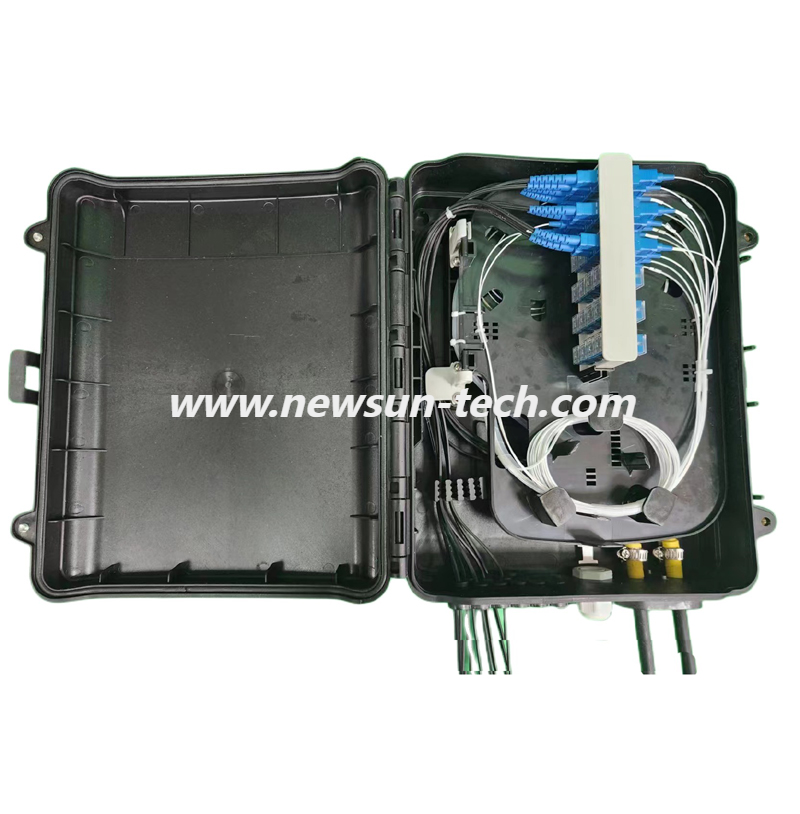

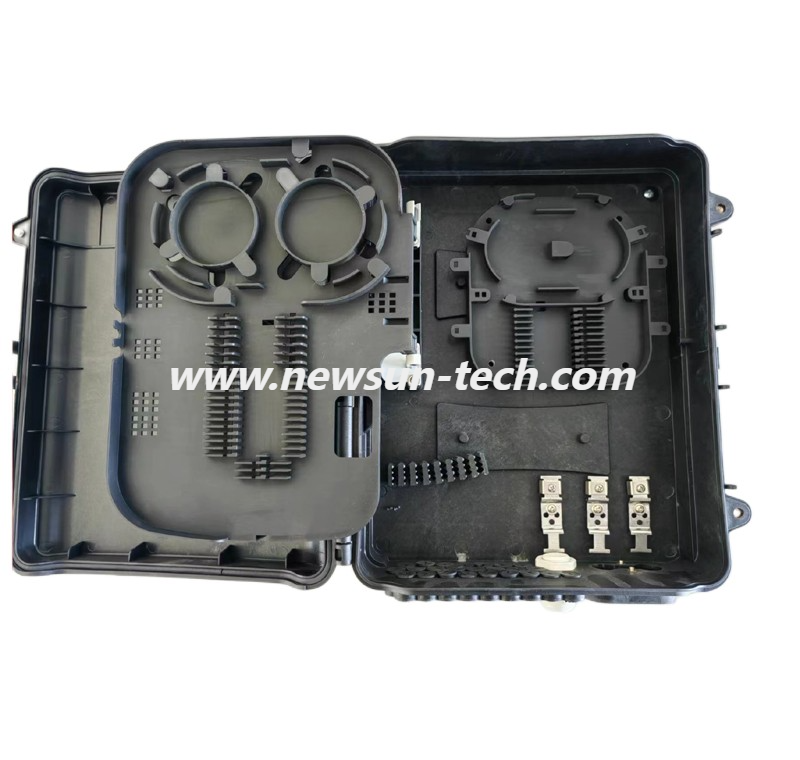

Internal Structure and Layout

fiber terminal box 16 core box

Our Certificate

Certificate of Conformity

Quality management system certification Quality Management System

Certification for Sale Transport

ISO 9001

SGS

Patent certificate

Patent Certificate

Our Advantages

Fiber termination box contains the shell, the internals (supporting frame, set fiber disc, fixing device) and optical fiber joint protective element. Prominent advantages of fiber termination box lie in efficient cable-fixing, welding and its protective role in machinery of the optical fiber.

A insulation is always demanded between cable metal components and cable terminal box shell in a fiber termination box, which provides space for cable terminal and remained fiber storage. In addition, fiber termination box also facilitate the installation of different occasions since it is easy to access, which turns out to be time and cost saving.

Application

Fiber termination box is universally used in telephone, agricultural telephone network system, data and image transmission system, CATV cable television series, indoor cable through force access and branch connection. Fiber termination box is available for the distribution and termination connection for various kinds of fiber optic systems, especially suitable for mini-network terminal distribution, in which the optical cables, patch cores or pigtails are connected. In addition to that, fiber termination box can be applied to joint fiber pigtail, protect fiber optic splices and share out the connectivity to individual customers.
