NS-RP144
NEWSUN TECH

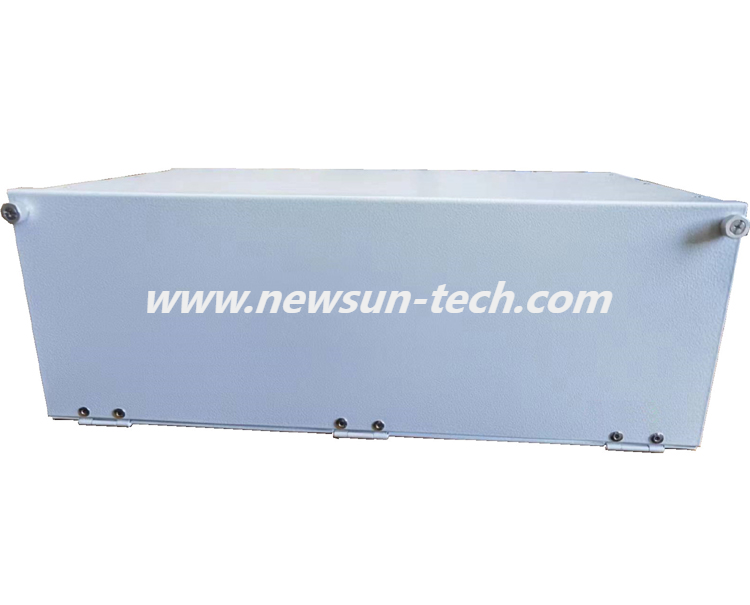

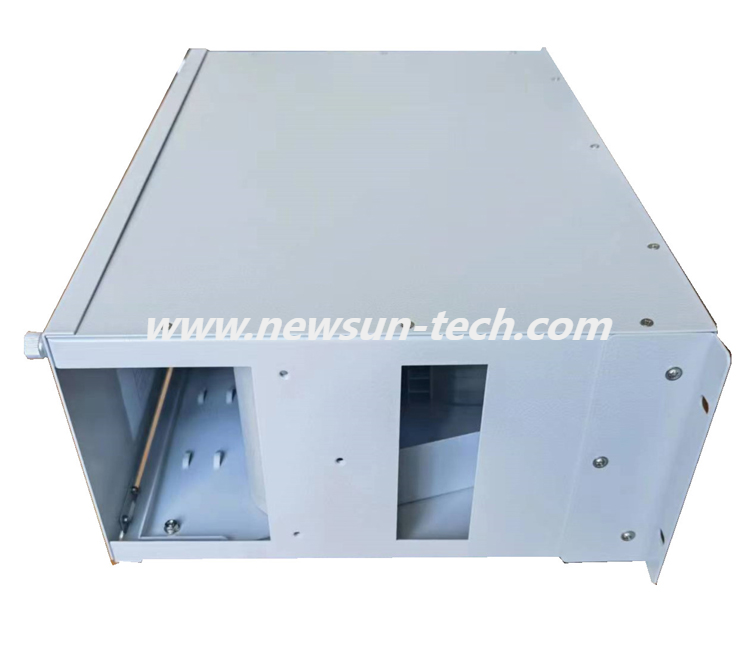

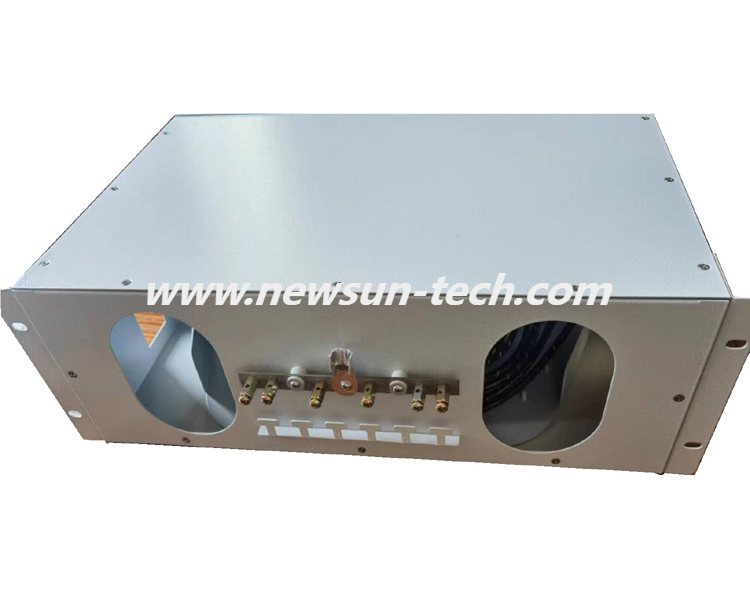

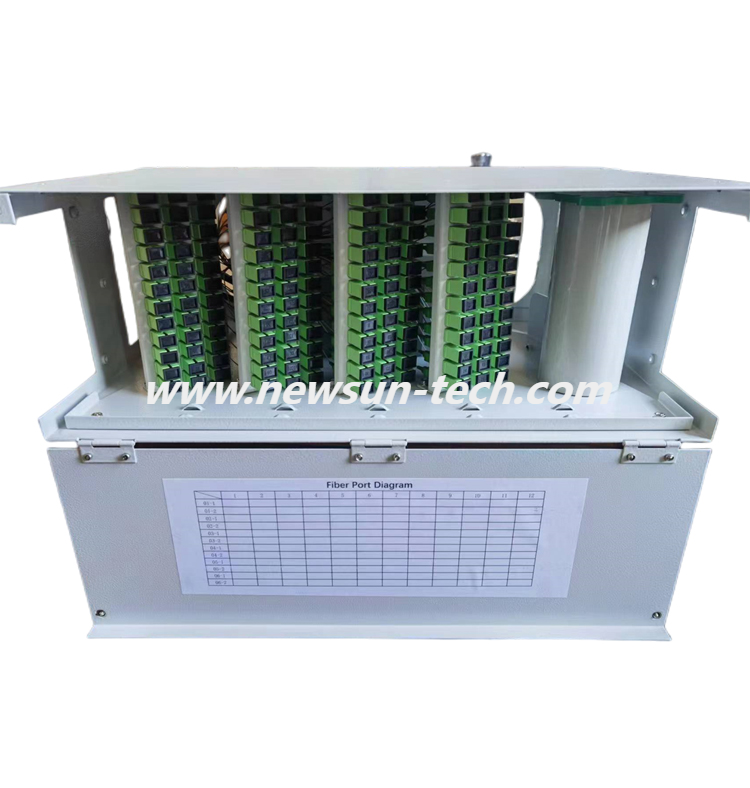

3.5U 144F Fiber Optic Rotate Rack Mounted patch panel
Rotating type rack-mount fiber optic patch panels are widely applied in Local Central Office. These are used for fiber optic cable fixation, protection, cable termination, patching etc. 19-inch rack mount for SC adapters.
| Parameters | Specification |
| Max. No. of Cores | 144F |
| Type | 19” rotating type |
| Material | 1.2mm cold-rolled steel (Main Rack) |
| 1.5mm cold-rolled steel (Rack mounted ear) | |

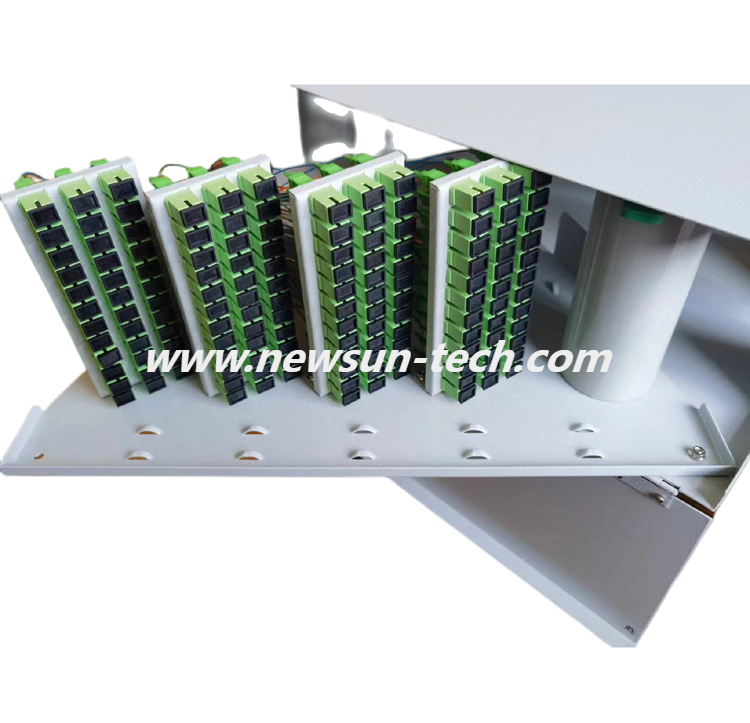

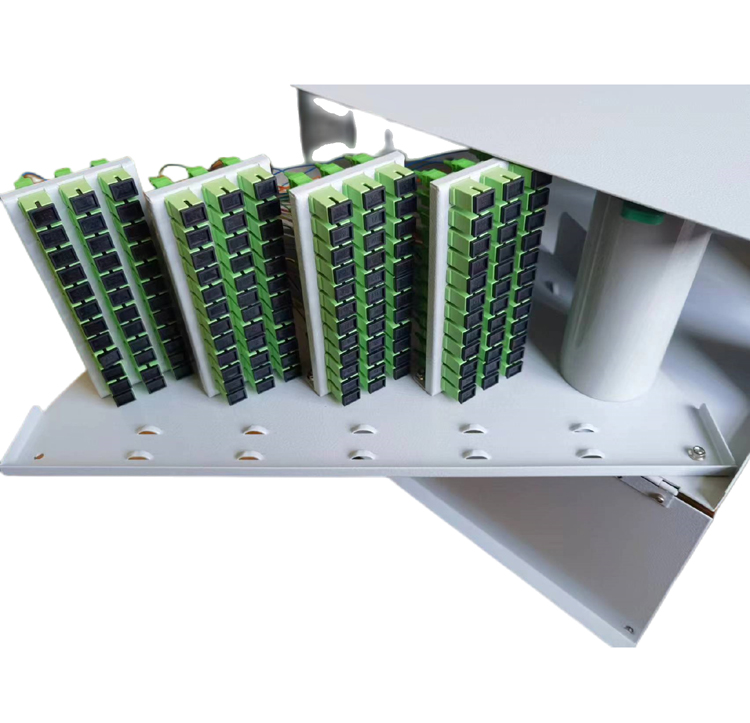

| Adapter Type | Simplex SC/APC |
| Color | Gray 7035 |
| Insulation Resistance（MΩ） | 1000 @500V（DC） |
| Withstand Voltage | No less than 3000 V DC/min without puncture or flashover |

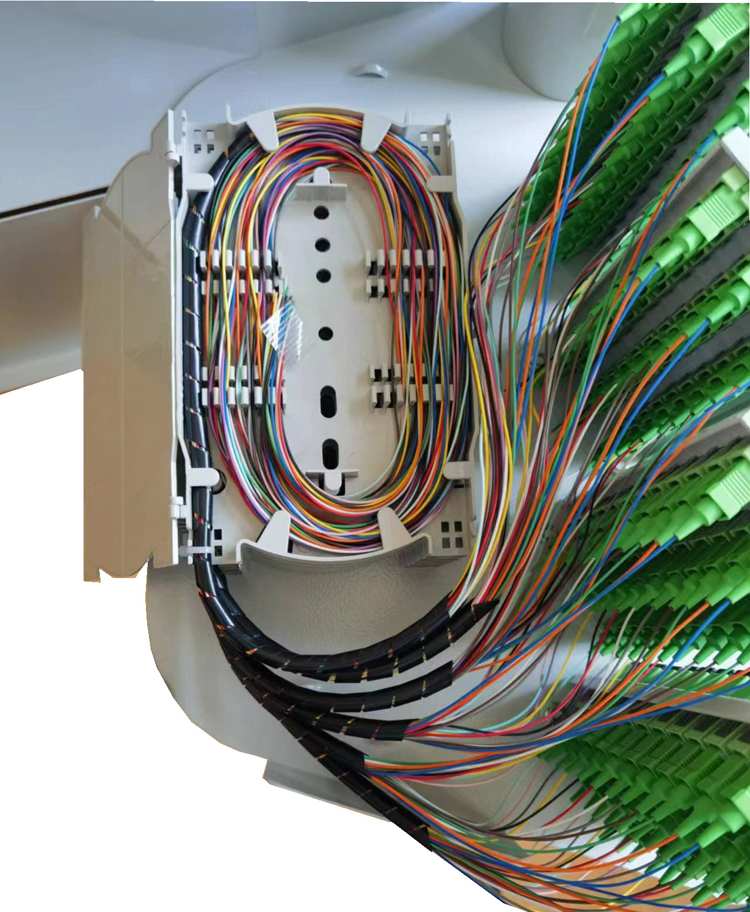

| Splicing Tray | 24F x 6pcs |
| Dimensions (mm) | 440（W）×305（D）×155（H） |
3.5U 144F Fiber Optic Rotate Rack Mounted patch panel
Rotating type rack-mount fiber optic patch panels are widely applied in Local Central Office. These are used for fiber optic cable fixation, protection, cable termination, patching etc. 19-inch rack mount for SC adapters.
| Parameters | Specification |
| Max. No. of Cores | 144F |
| Type | 19” rotating type |
| Material | 1.2mm cold-rolled steel (Main Rack) |
| 1.5mm cold-rolled steel (Rack mounted ear) | |
| Adapter Type | Simplex SC/APC |
| Color | Gray 7035 |
| Insulation Resistance（MΩ） | 1000 @500V（DC） |
| Withstand Voltage | No less than 3000 V DC/min without puncture or flashover |
| Splicing Tray | 24F x 6pcs |
| Dimensions (mm) | 440（W）×305（D）×155（H） |
| Standard Package | |||
| No. | Name | Unit | Quantity |
| 1 | 144F Fiber Optic Patch Panel | Set | 1 |
| 2 | Rack Installation M6 Screws M5 | Set | 1 |
| 3 | Protective Sleeves | Pieces | 144 |
| 4 | Rack Mounted Ear | Pieces | 2 |
| 5 | Ear Installation Screw | Set | 1 |
| 6 | Simplex SC/APC Adapters | Pieces | 144 |
| 7 | Colored simplex SC/APC pigtail | Pieces | 144 |
| 8 | Loose Tube Protective Tube 2m | Pieces | 1 |
| Standard Package | |||
| No. | Name | Unit | Quantity |
| 1 | 144F Fiber Optic Patch Panel | Set | 1 |
| 2 | Rack Installation M6 Screws M5 | Set | 1 |
| 3 | Protective Sleeves | Pieces | 144 |
| 4 | Rack Mounted Ear | Pieces | 2 |
| 5 | Ear Installation Screw | Set | 1 |
| 6 | Simplex SC/APC Adapters | Pieces | 144 |
| 7 | Colored simplex SC/APC pigtail | Pieces | 144 |
| 8 | Loose Tube Protective Tube 2m | Pieces | 1 |
A patch panel performs function for acting as a connector, it does offer a range of benefits:
Since patch panel uses fiber optic cable to create interconnection, network designers can make changes and repairs without the delays and added expense associated with custom cabling.
The network can grow and change on-demand, without the costly, labor-intensive hassle of replacing channels end-to-end.
Reduced cable slack means less clutter, less confusion and an easily organized, better-labeled cabling infrastructure. You can also manage cables in any direction–horizontal or vertical, front or back.

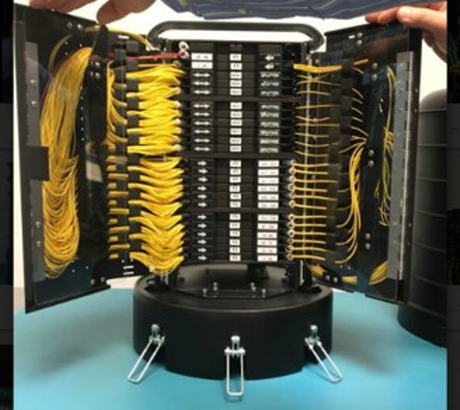

By managing varying port densities and speeds in a single high-density patch panel, you save valuable rack space, helping to lower data center costs. A single patch panel can manage as many as (168) 10 Gb ports.
High-density and easy maintenance provide a low initial investment cost. With a patch panel, you can only buy the devices you need now, while leaving room for future expansion.
The advantage of using a patch panel is that it allows manual monitoring, testing, switching, routing, and other maintenance to be handled quickly because the cables in the front that connect to the more permanent cables in the back are configured and made so that changes can be made quickly and easily when needed.
A patch panel performs function for acting as a connector, it does offer a range of benefits:
Since patch panel uses fiber optic cable to create interconnection, network designers can make changes and repairs without the delays and added expense associated with custom cabling.
The network can grow and change on-demand, without the costly, labor-intensive hassle of replacing channels end-to-end.
Reduced cable slack means less clutter, less confusion and an easily organized, better-labeled cabling infrastructure. You can also manage cables in any direction–horizontal or vertical, front or back.
By managing varying port densities and speeds in a single high-density patch panel, you save valuable rack space, helping to lower data center costs. A single patch panel can manage as many as (168) 10 Gb ports.
High-density and easy maintenance provide a low initial investment cost. With a patch panel, you can only buy the devices you need now, while leaving room for future expansion.
The advantage of using a patch panel is that it allows manual monitoring, testing, switching, routing, and other maintenance to be handled quickly because the cables in the front that connect to the more permanent cables in the back are configured and made so that changes can be made quickly and easily when needed.
