NSTB-Z24D Fiber Optic 1U ODF 19" Rack Mount Patch Panel With Door

Product name: 1U Fiber Optic Patch Panel With Door
Structure:19" Pull type
Size:1U
Port:24
Availability:
Quantity:
sharethis sharing button
  • NSTB-Z24D

  • NEWSUN TECH

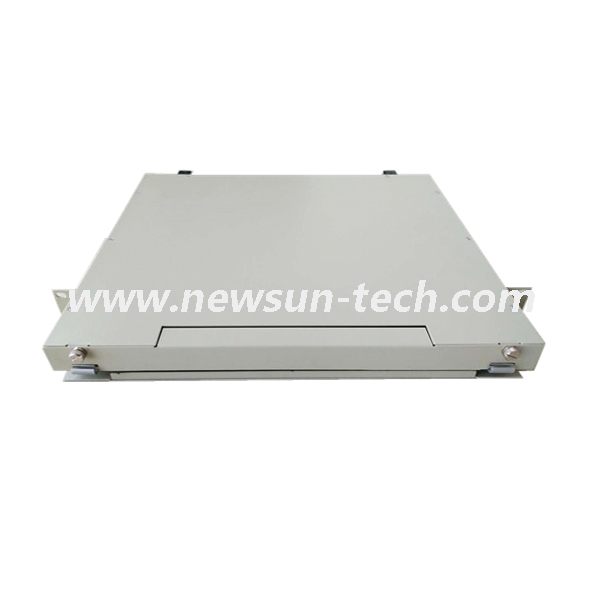

24 Ports 1U 19" ODF Fiber Optic Patch Panel With Door


NSTB-Z24D Wall Mount Drawer patch panel is a kind of fiber optic management product ,The front door design is not only beautiful but also can effectively protect the internal accessories.

The drawer is the holding board for splicing, easy to withdraw the fibers when testing and distributing.Its used to distribute and protect the optical fiber links in FTTH Network. It is available for the distribution and terminal connection of various kinds of optical fiber system. The terminal box is a high quality, miniature optical fiber terminal box, made of quality cold-rolled sheet and Electrostatic painting of plastics.NSTB-Z24D can be applied in the branch connection of fiber termination,work as distribution box,19”standard structure,rack mounting,available for the installation of FC,SC,ST,LC adaptors.

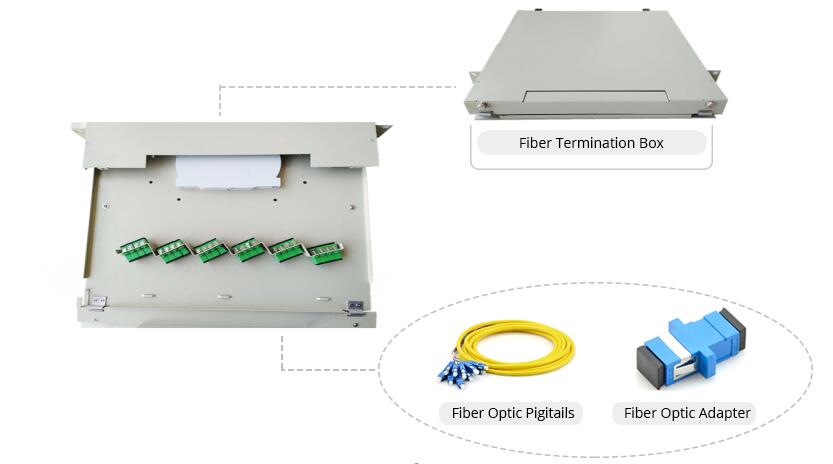

Note: This box comes with splice tray, but no any adapters or pigtails.


Product name1U Fiber Patch PanelConnectorSC,LC,FC,ST Optional
Product ModelNSTB-Z24DPacking Size430*365*45 mm
Ports24Product Height1 U
Max CapacitySC 24/LC 48Material1.2mm Cold rolled plate
Installation Type19 inch Rack mountedG. weight4.9kg
12 Fibers Splice Tray2Standard ColorLight gray
Work Temperature-10-+60°CStorage Temperature-25-+85°C
Atmospheric Pressure70KPa~106KPaRelative Humidity≤85% (+30°C)


24 Ports 1U 19" ODF Fiber Optic Patch Panel With Door


Structure description:


1. The box material is made of high quality steel, and the surface is treated with epoxy electrostatic spraying, which is beautiful and generous;

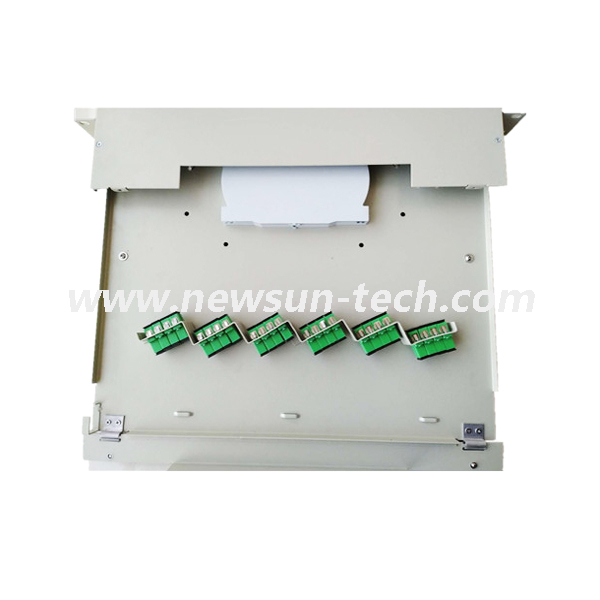

2. Reasonable design structure, divided into two parts: the outer layer can be directly installed adapter, the inner layer installed fusion plate;


3. It is equipped with cable fixing device, fusion plate and wire clamp, and reliable grounding device. It has the function of cable fixation and fusion, which is used to realize the connection between pigtail and cable


4. Adopting drawer design or rotary structure, it is easy to install and use;


1U 24 Port 19"  ODF Fiber Optic Patch Panel With Door


The access, fixation and stripping protection of optical cable; the fusion and protection of optical fiber, the storage of pigtail, the storage and management of fiber skipping, the fixed connection of optical fiber and other functions. At the same time, the configuration can be increased or decreased according to the needs of customers to provide customers with satisfactory products

fiber optic panel

A patch panel performs function for acting as a connector, it does offer a range of benefits:


Use Standard Fiber Optic Cords

Since patch panel uses fiber optic cable to create interconnection, network designers can make changes and repairs without the delays and added expense associated with custom cabling.


Flexibility and Scalability

The network can grow and change on-demand, without the costly, labor-intensive hassle of replacing channels end-to-end.


Reduce Cable Congestion

Reduced cable slack means less clutter, less confusion and an easily organized, better-labeled cabling infrastructure. You can also manage cables in any direction–horizontal or vertical, front or back.


Space Saving

By managing varying port densities and speeds in a single high-density patch panel, you save valuable rack space, helping to lower data center costs. A single patch panel can manage as many as (168) 10 Gb ports.


Cost-Effectiveness

High-density and easy maintenance provide a low initial investment cost. With a patch panel, you can only buy the devices you need now, while leaving room for future expansion.


Ease of maintenance

The advantage of using a patch panel is that it allows manual monitoring, testing, switching, routing, and other maintenance to be handled quickly because the cables in the front that connect to the more permanent cables in the back are configured and made so that changes can be made quickly and easily when needed.
