NSMPO-3C4C
NEWSUN TECH

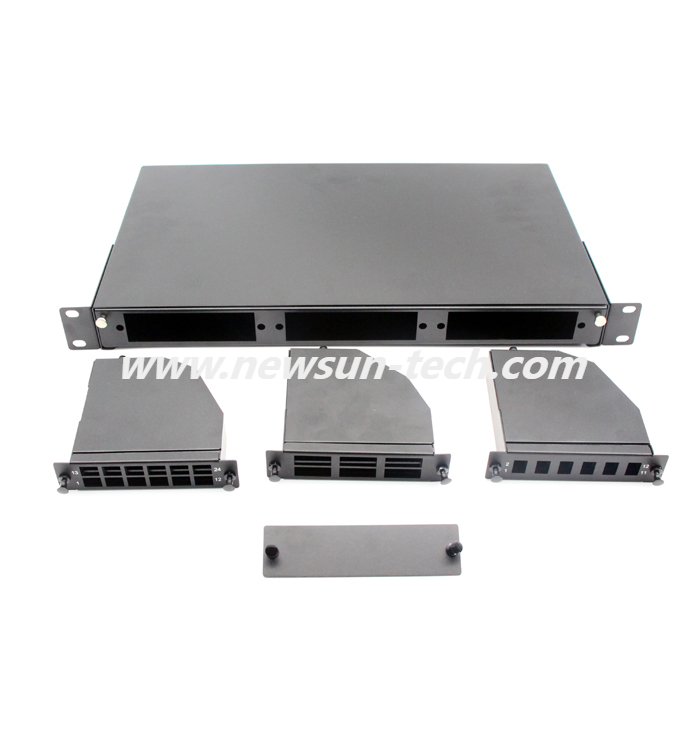

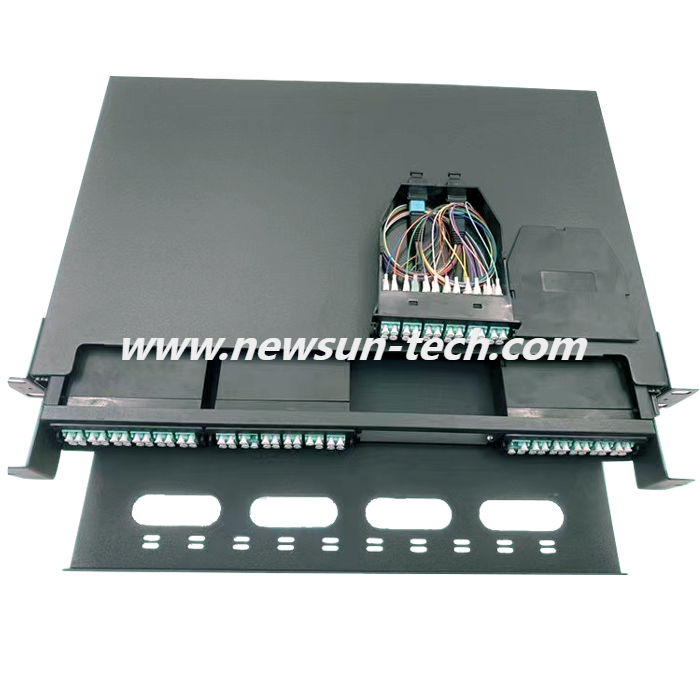

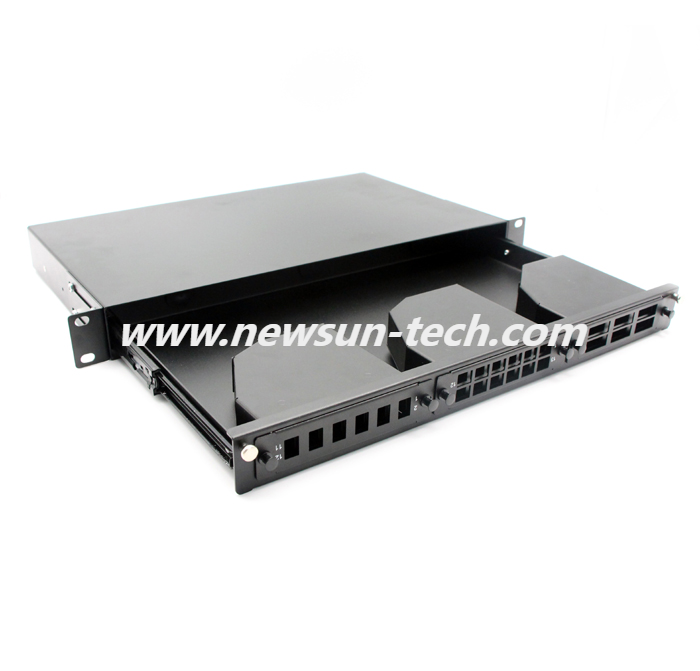

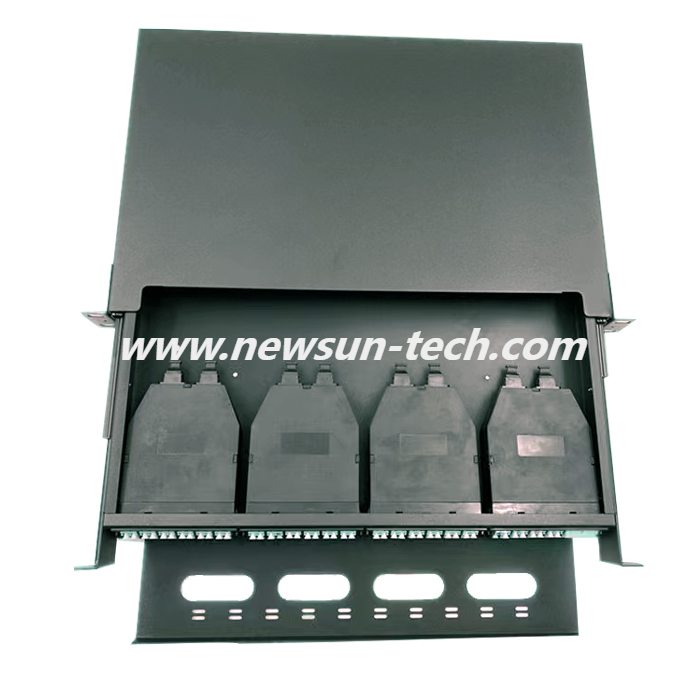

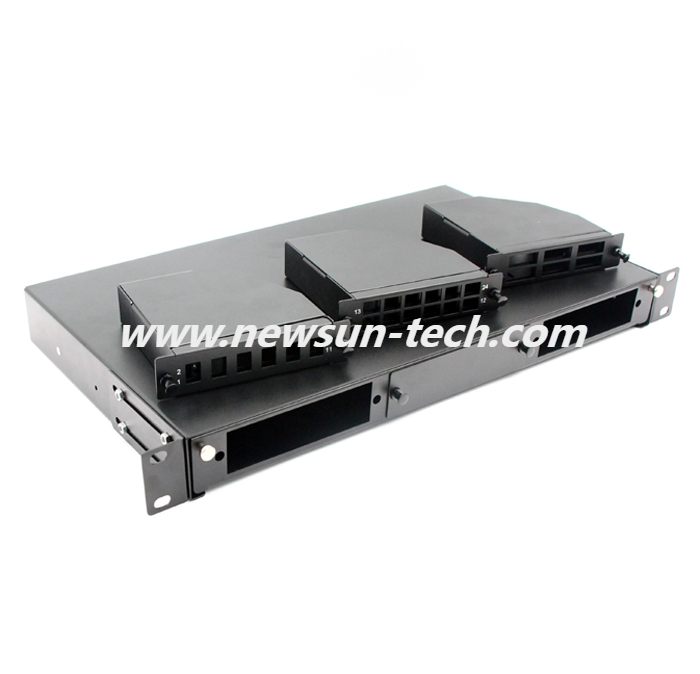

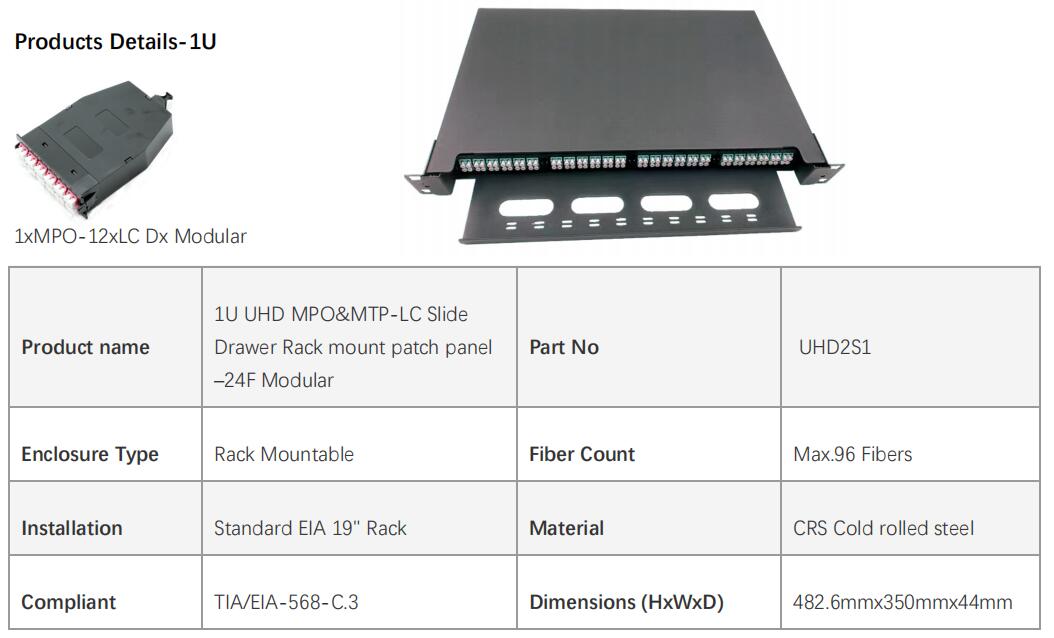

1U/2U/3U/4U UHD MPO/MTP-LC Slide Drawer design Patch panel – -24F Cassette modular type
Ultra high density MTP/MPO-LC Patch panel and cassettes address today's requirements for increasingly higher density levels, are fitted with 24Fibers and have array adapters on the front side and MTP/MPO at the rear. This cassette is tailor-made for optimizing cable management, speed deployment, and improving flexibility and manage ability for lower installation costs.

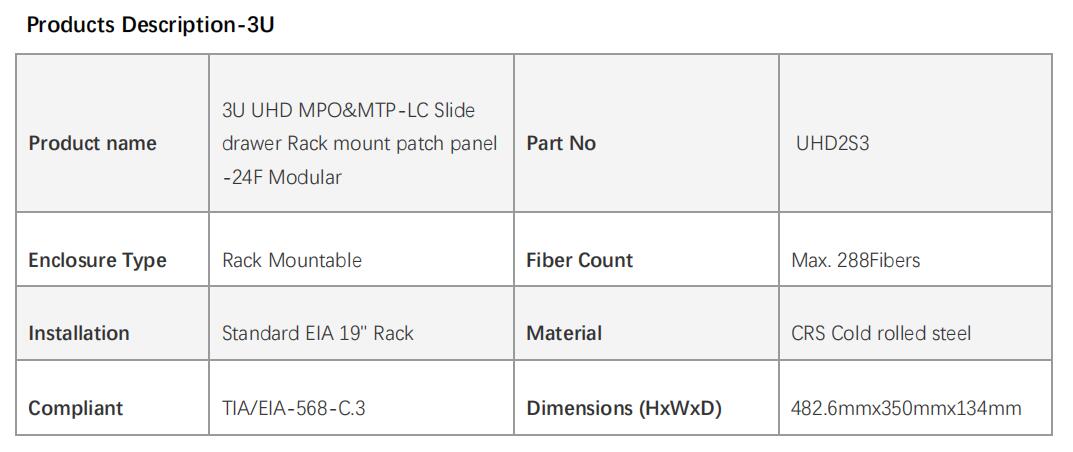

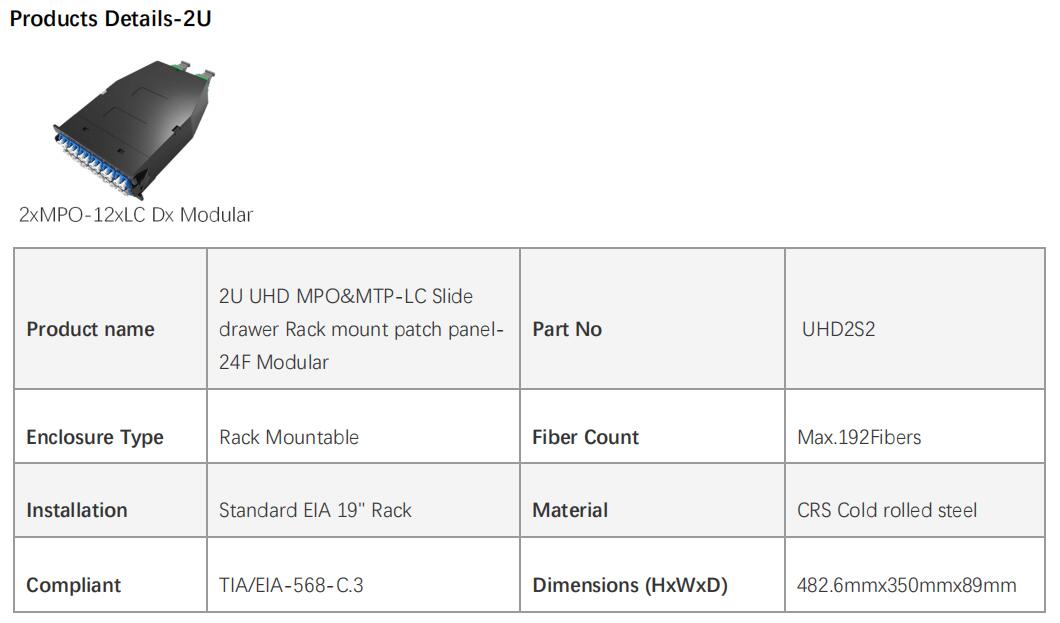

| Product name | MPO Patch Panel | Cassette | 3 or 4 |
| Product Model | NSMPO-3C4C | Fiber Count | 96F/192F/288F/384F |
| Enclosure Type | Rack Mountable | Product Height | 1U 2U 3U 4U |
| Panel type | Slide | Material | CRS Cold rolled steel |
1U/2U/3U/4U UHD MPO/MTP-LC Slide Drawer design Patch panel – -24F Cassette modular type
Ultra high density MTP/MPO-LC Patch panel and cassettes address today's requirements for increasingly higher density levels, are fitted with 24Fibers and have array adapters on the front side and MTP/MPO at the rear. This cassette is tailor-made for optimizing cable management, speed deployment, and improving flexibility and manage ability for lower installation costs.
| Product name | MPO Patch Panel | Cassette | 3 or 4 |
| Product Model | NSMPO-3C4C | Fiber Count | 96F/192F/288F/384F |
| Enclosure Type | Rack Mountable | Product Height | 1U 2U 3U 4U |
| Panel type | Slide | Material | CRS Cold rolled steel |

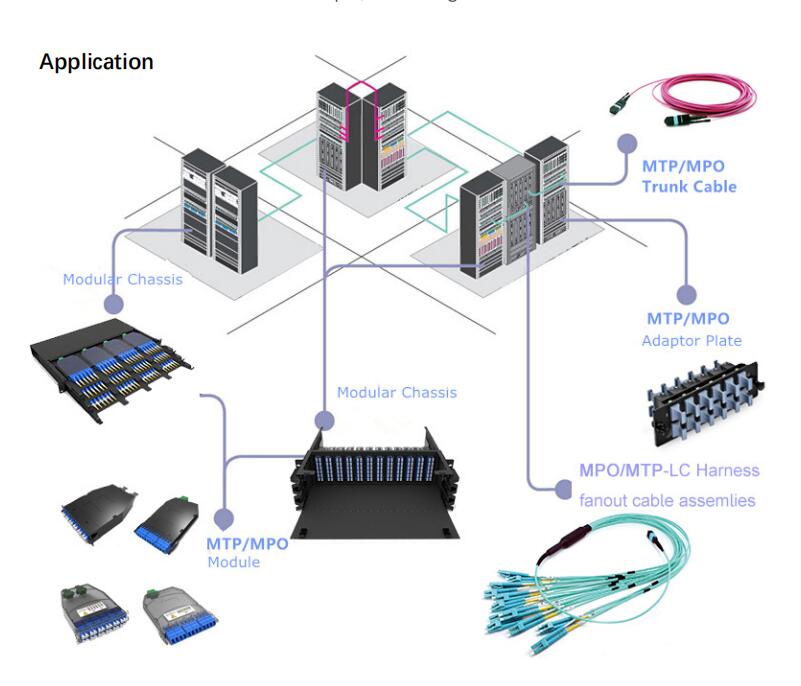

Ultra-High density Data center Cabling system and management . Professional MPO/MTP cabling Solution UHD Series is a versatile solution in multiple sizes (1U/2U/4U) and styles for building backbones, data centers and enterprise applications.
Ultra-High density Data center Cabling system and management . Professional MPO/MTP cabling Solution UHD Series is a versatile solution in multiple sizes (1U/2U/4U) and styles for building backbones, data centers and enterprise applications.
A patch panel performs function for acting as a connector, it does offer a range of benefits:
Since patch panel uses fiber optic cable to create interconnection, network designers can make changes and repairs without the delays and added expense associated with custom cabling.
The network can grow and change on-demand, without the costly, labor-intensive hassle of replacing channels end-to-end.
Reduced cable slack means less clutter, less confusion and an easily organized, better-labeled cabling infrastructure. You can also manage cables in any direction–horizontal or vertical, front or back.
By managing varying port densities and speeds in a single high-density patch panel, you save valuable rack space, helping to lower data center costs. A single patch panel can manage as many as (168) 10 Gb ports.
High-density and easy maintenance provide a low initial investment cost. With a patch panel, you can only buy the devices you need now, while leaving room for future expansion.
The advantage of using a patch panel is that it allows manual monitoring, testing, switching, routing, and other maintenance to be handled quickly because the cables in the front that connect to the more permanent cables in the back are configured and made so that changes can be made quickly and easily when needed.
A patch panel performs function for acting as a connector, it does offer a range of benefits:
Since patch panel uses fiber optic cable to create interconnection, network designers can make changes and repairs without the delays and added expense associated with custom cabling.
The network can grow and change on-demand, without the costly, labor-intensive hassle of replacing channels end-to-end.
Reduced cable slack means less clutter, less confusion and an easily organized, better-labeled cabling infrastructure. You can also manage cables in any direction–horizontal or vertical, front or back.
By managing varying port densities and speeds in a single high-density patch panel, you save valuable rack space, helping to lower data center costs. A single patch panel can manage as many as (168) 10 Gb ports.
High-density and easy maintenance provide a low initial investment cost. With a patch panel, you can only buy the devices you need now, while leaving room for future expansion.
The advantage of using a patch panel is that it allows manual monitoring, testing, switching, routing, and other maintenance to be handled quickly because the cables in the front that connect to the more permanent cables in the back are configured and made so that changes can be made quickly and easily when needed.
