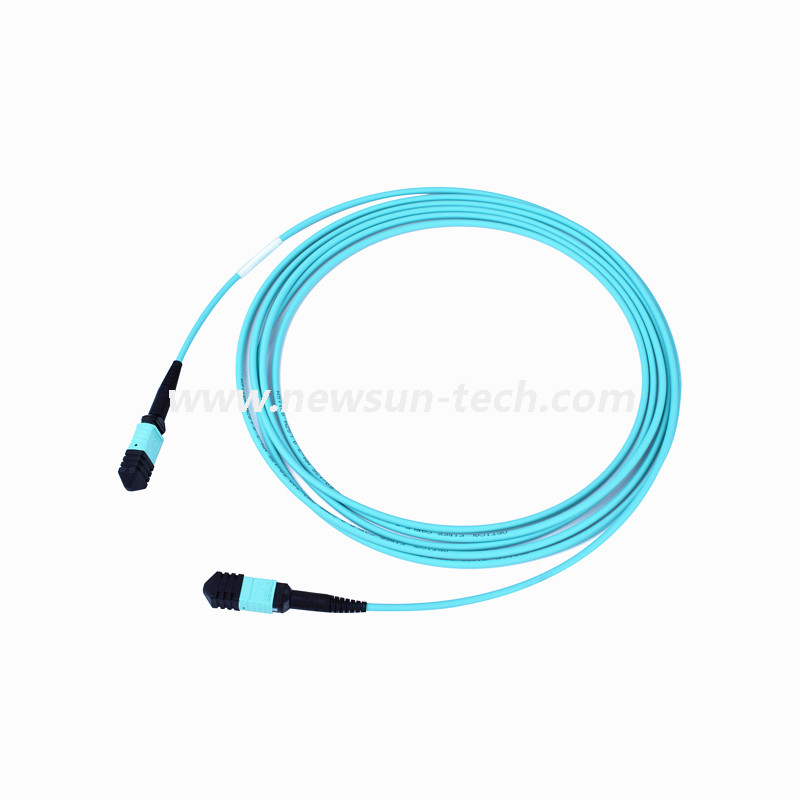

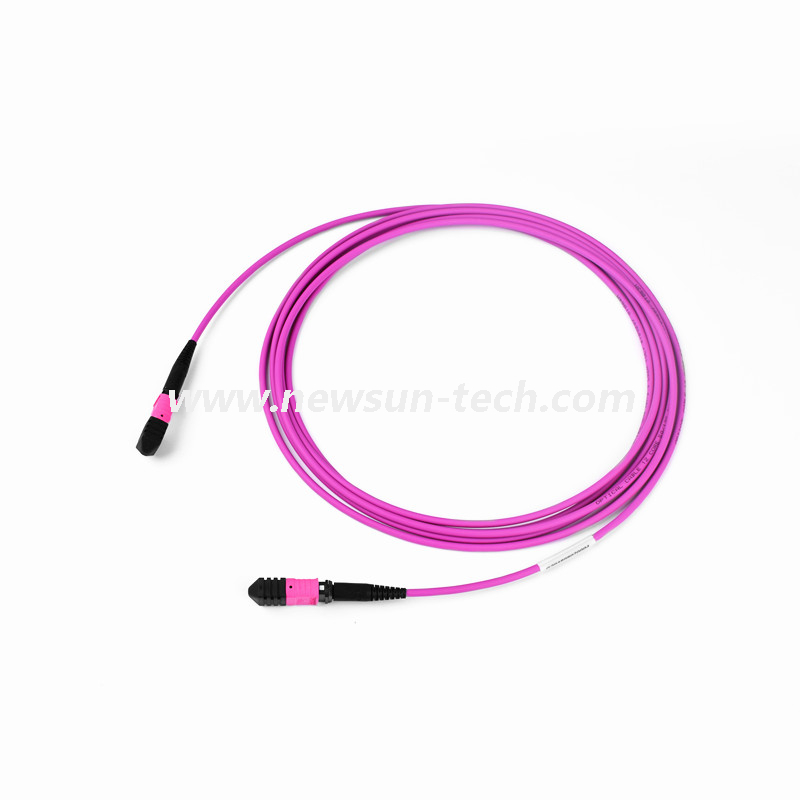

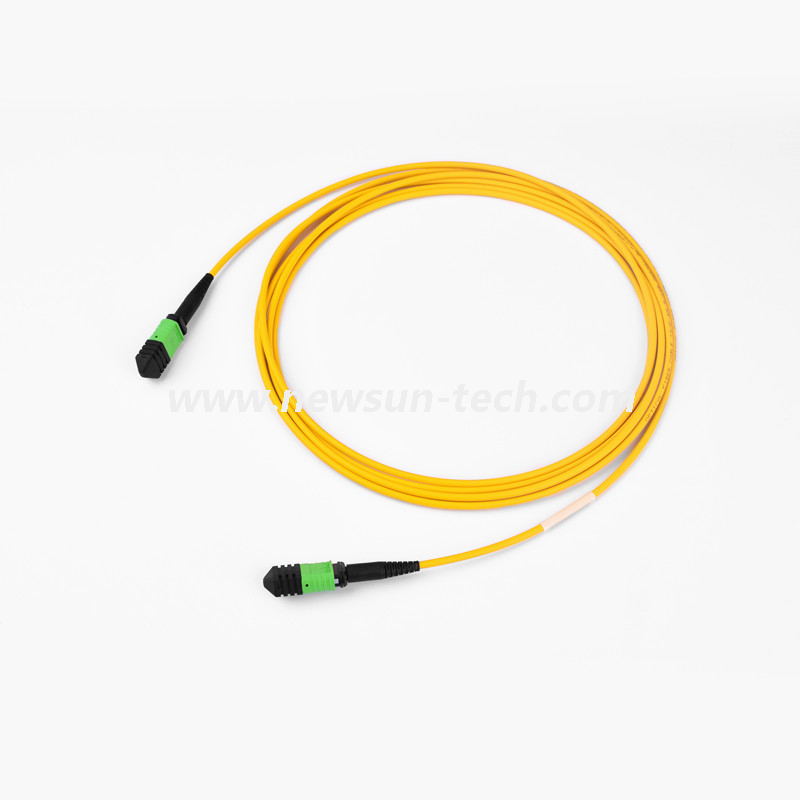

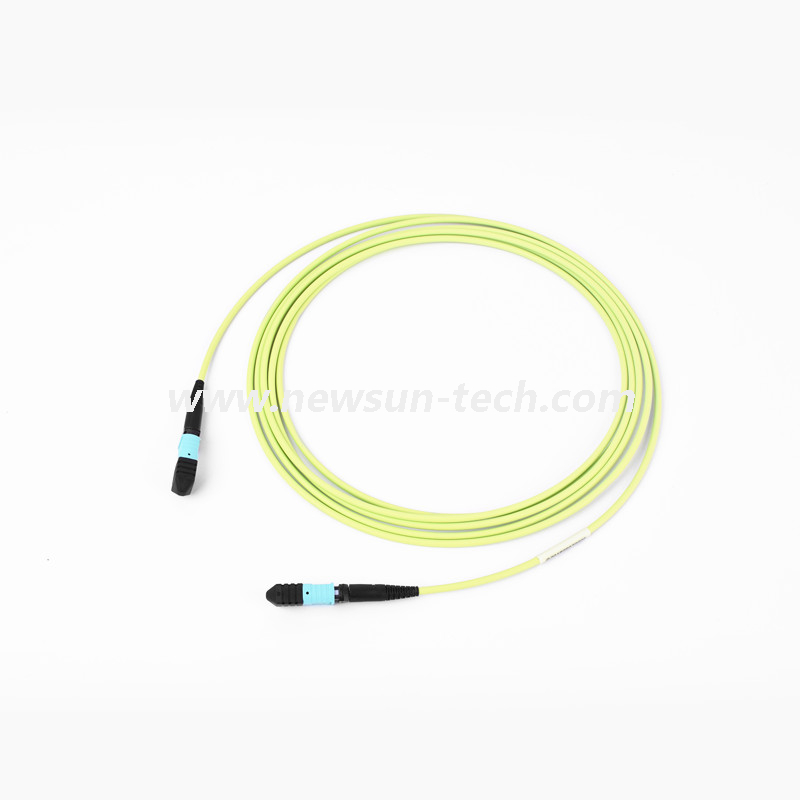

MPO/MTP Fiber Optic Patch Cord
NEWSUN TECH

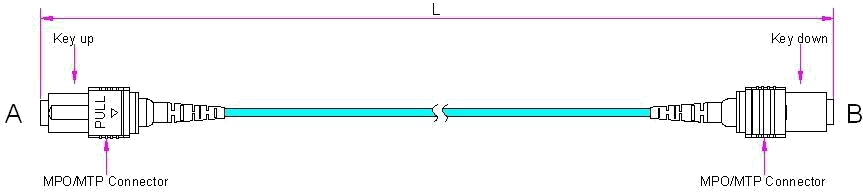

MPO/MTP to MPO/MTP Patch Cord
MTP/MPO Fiber Optic Patch Cable consists of multi core fiber optic cable and corresponding 4/8/12/24 core high density MPO/MTP connector. The connector might be female or male with guide pin. The fiber support single mode and multimode, the single mode fiber including G652D / G657A1 / G657A2, the multimode fiber including OM1 / OM2 / OM3 / OM4 / OM5, or bending insensitive multimode cable.
Newsun tech with strong MPO/MTP product design and manufacturing ability, we could provide products with tailed to customer requirement. All products we delivered with excellent performance and reliability.
Connector Specifications
MTP/MPO Connector | ||
Fiber Mode | Single Mode | Multimode |
Insertion Loss (dB) | ≤0.70 (Standard) | ≤0.70 (Standard) |
≤0.35 (Elite) | ≤0.35 (Elite) | |
Return Loss (dB) | ≥60 | ≥20 |
Durability (dB) | ≤0.2 (500 times mating) | |
Tensile Strength (kgf) | 10 | |
Working Temperature (℃) | .-20 ~ +70 |
MTP/MPO Connector Geometry Parameters
Item | X-axis | Y-axis | ||
Min | Max | Min | Max | |
Radius of Curvature (mm) | 500 | - | 50 | - |
Polishing Angle | 0-0.2 | 0+0.2 | 8-0.2 | 8+0.2 |
Fiber Height (nm) | 1000 ~ 3000 | |||
Max Fiber Height Error (nm) | 600 | |||
Adjacent Fiber Height Error (nm) | -300 ~ +300 | |||
Avg. Fiber Height Error (nm) | -300 ~ +300 | |||
Central Concave (nm) | 300 |
Fiber Specification
Fiber Type | Multimode | Single Mode | ||||
OM1 | OM2 | OM3 | OM4 | G.652 | G.657 | |
Core Diameter (um) | 62.5/125 | 50/125 | 50/125 | 50/125 | 9/125 | 9/125 |
Wavelengths (nm) | 850/1300 | 850/1300 | 850/1300 | 850/1300 | 1310/1550 | 1310/1550 |
Max. Attenuation (dB/km) | 3.5/1.5 | 3.5/1.5 | 3.5/1.5 | 3.5/1.5 | 0.36/0.25 | 0.36/0.25 |
Min. OFL Bandwidth (MHz·km) | 200/500 | 500/500 | 1500/500 | 3500/500 | - | - |
Min. Effective Modal Bandwidth (MHz·km) | - | 500 | 2000 | 4700 | - | - |
The effective modal Bandwidth for multimode is for 850nm.
Standard Cable Specifications
Fiber | Outer Diameter (mm) | Weight (kg/km) | Max. Tensile Force (N) | Min. Bending Radius (mm ) | ||
Count | Short term | Long term | Short term | Long term | ||
12 | 3.0 ± 0.15 | 8 | 150 | 80 | 20D | 10D |
24 | 4.2 ± 0.3 | 31 | 300 | 160 | 20D | 10D |
MPO/MTP to MPO/MTP Patch Cord
MTP/MPO Fiber Optic Patch Cable consists of multi core fiber optic cable and corresponding 4/8/12/24 core high density MPO/MTP connector. The connector might be female or male with guide pin. The fiber support single mode and multimode, the single mode fiber including G652D / G657A1 / G657A2, the multimode fiber including OM1 / OM2 / OM3 / OM4 / OM5, or bending insensitive multimode cable.
Newsun tech with strong MPO/MTP product design and manufacturing ability, we could provide products with tailed to customer requirement. All products we delivered with excellent performance and reliability.
Connector Specifications
MTP/MPO Connector | ||
Fiber Mode | Single Mode | Multimode |
Insertion Loss (dB) | ≤0.70 (Standard) | ≤0.70 (Standard) |
≤0.35 (Elite) | ≤0.35 (Elite) | |
Return Loss (dB) | ≥60 | ≥20 |
Durability (dB) | ≤0.2 (500 times mating) | |
Tensile Strength (kgf) | 10 | |
Working Temperature (℃) | .-20 ~ +70 |
MTP/MPO Connector Geometry Parameters
Item | X-axis | Y-axis | ||
Min | Max | Min | Max | |
Radius of Curvature (mm) | 500 | - | 50 | - |
Polishing Angle | 0-0.2 | 0+0.2 | 8-0.2 | 8+0.2 |
Fiber Height (nm) | 1000 ~ 3000 | |||
Max Fiber Height Error (nm) | 600 | |||
Adjacent Fiber Height Error (nm) | -300 ~ +300 | |||
Avg. Fiber Height Error (nm) | -300 ~ +300 | |||
Central Concave (nm) | 300 |
Fiber Specification
Fiber Type | Multimode | Single Mode | ||||
OM1 | OM2 | OM3 | OM4 | G.652 | G.657 | |
Core Diameter (um) | 62.5/125 | 50/125 | 50/125 | 50/125 | 9/125 | 9/125 |
Wavelengths (nm) | 850/1300 | 850/1300 | 850/1300 | 850/1300 | 1310/1550 | 1310/1550 |
Max. Attenuation (dB/km) | 3.5/1.5 | 3.5/1.5 | 3.5/1.5 | 3.5/1.5 | 0.36/0.25 | 0.36/0.25 |
Min. OFL Bandwidth (MHz·km) | 200/500 | 500/500 | 1500/500 | 3500/500 | - | - |
Min. Effective Modal Bandwidth (MHz·km) | - | 500 | 2000 | 4700 | - | - |
The effective modal Bandwidth for multimode is for 850nm.
Standard Cable Specifications
Fiber | Outer Diameter (mm) | Weight (kg/km) | Max. Tensile Force (N) | Min. Bending Radius (mm ) | ||
Count | Short term | Long term | Short term | Long term | ||
12 | 3.0 ± 0.15 | 8 | 150 | 80 | 20D | 10D |
24 | 4.2 ± 0.3 | 31 | 300 | 160 | 20D | 10D |
MPO/MTP Fiber Optic Patch Cord
Customized, high adaptability
Optional different fiber cores and cable structure for different installation requirement
PVC, LSZH, OFNR, OFNP cable jacket available
Improved and simplified cabling, reduce cabling spacing
All patch cable are 100% tested, test report supplied with each cable assembly
Tests Interferometer, Insertion Loss, Return Loss and Visual Final Inspection; all measured values are electronically archived
Applications
Data Center
Fiber to the home
High density fiber optic cable management
40Gb/s or 100Gb/s Applications
Standards Compliance
TIA/EIA-568-C
IEC-61754-7
NFPA 262 (OFNP) or IEC 60332 (LSZH)
IEC-60793
GR-1435-CORE
MPO/MTP Fiber Optic Patch Cord
Customized, high adaptability
Optional different fiber cores and cable structure for different installation requirement
PVC, LSZH, OFNR, OFNP cable jacket available
Improved and simplified cabling, reduce cabling spacing
All patch cable are 100% tested, test report supplied with each cable assembly
Tests Interferometer, Insertion Loss, Return Loss and Visual Final Inspection; all measured values are electronically archived
Applications
Data Center
Fiber to the home
High density fiber optic cable management
40Gb/s or 100Gb/s Applications
Standards Compliance
TIA/EIA-568-C
IEC-61754-7
NFPA 262 (OFNP) or IEC 60332 (LSZH)
IEC-60793
GR-1435-CORE

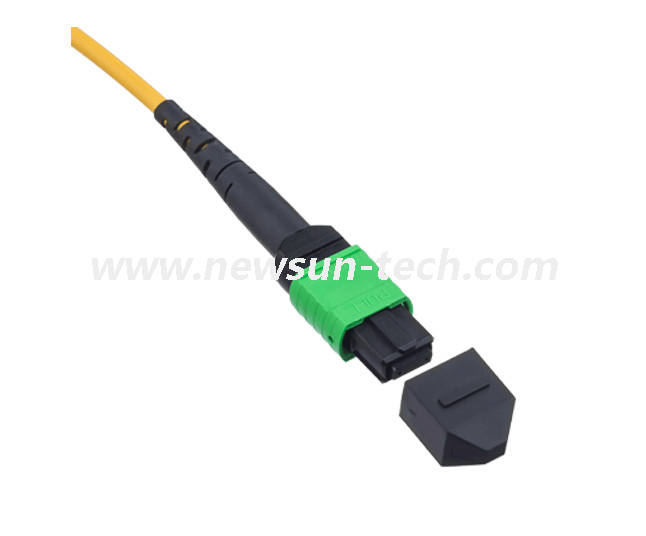

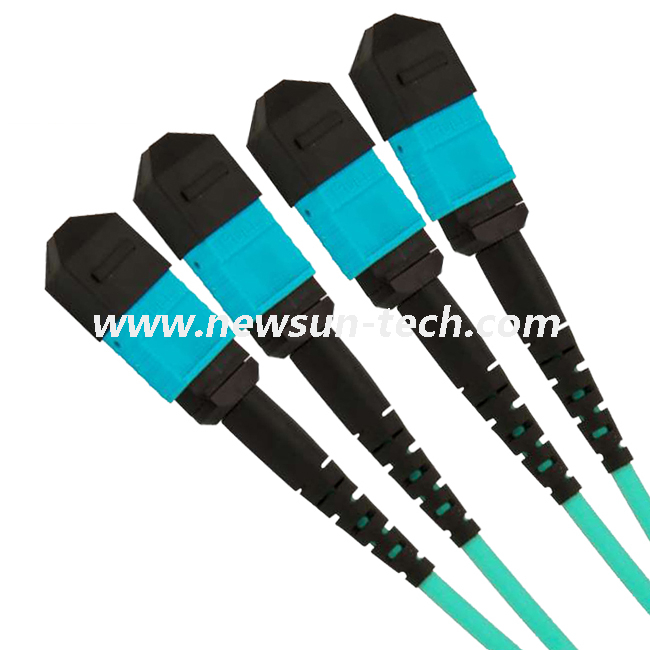

MTP (Mechanical Transfer Push-on) connector structure is an improved version of MPO (Multi-fiber push-on) connector. The MTP connector has elliptical guide pins of noncorrosive steel for accurate location of fibers of the two commutating connectors and reduction of wear. Also the MT-ferrule has a floating structure that provides integrity of physical contact of the connectors under load.
Difference between MPO Connector and MTP Connector
From the outside there is very little noticeable difference between MPO and MTP connectors. In fact, they are completely compatible and inter-mateable. For example, an MTP trunk cable can plug into an MPO outlet and vice versa.
The main difference is in relation to its optical and mechanical performance. MTP is a registered trademark and design of US Connec, and provides some advantages over a generic MPO connector. Since MPO / MTP optic fiber alignment is critical to ensure a precise connection there are some benefits in utilizing the MTP connector. The MTP connector is a high performance MPO connector with multiple engineered product enhancements to improve optical and mechanical performance when compared to generic MPO connectors.
The MTP optic fiber connector has floating internal ferrule which allows two mated ferrules to maintain contact while under load. In addition, The MTP connector spring design maximizes ribbon clearance for twelve fiber and multifiber ribbon applications to prevent fiber damage.
Overall it provides a more reliable and precise connection. In addition, it is also important when specifying an MPO/MTP system to ensure the correct polarity options and which cables and outlets have female or male pins.
MTP (Mechanical Transfer Push-on) connector structure is an improved version of MPO (Multi-fiber push-on) connector. The MTP connector has elliptical guide pins of noncorrosive steel for accurate location of fibers of the two commutating connectors and reduction of wear. Also the MT-ferrule has a floating structure that provides integrity of physical contact of the connectors under load.
Difference between MPO Connector and MTP Connector
From the outside there is very little noticeable difference between MPO and MTP connectors. In fact, they are completely compatible and inter-mateable. For example, an MTP trunk cable can plug into an MPO outlet and vice versa.
The main difference is in relation to its optical and mechanical performance. MTP is a registered trademark and design of US Connec, and provides some advantages over a generic MPO connector. Since MPO / MTP optic fiber alignment is critical to ensure a precise connection there are some benefits in utilizing the MTP connector. The MTP connector is a high performance MPO connector with multiple engineered product enhancements to improve optical and mechanical performance when compared to generic MPO connectors.
The MTP optic fiber connector has floating internal ferrule which allows two mated ferrules to maintain contact while under load. In addition, The MTP connector spring design maximizes ribbon clearance for twelve fiber and multifiber ribbon applications to prevent fiber damage.
Overall it provides a more reliable and precise connection. In addition, it is also important when specifying an MPO/MTP system to ensure the correct polarity options and which cables and outlets have female or male pins.
1 . We offer competitive price for fiber optic patch cables, and etc;
2 . Strict QC system and high quality products;
3 . Low courier international shipping cost;
4 . Custom fiber patch cable for special applications;
5 . Fast delivery for bulk fiber optic cable;
Features & Benefits
Integrity
Terminations are designed and tested to Guarantee: 0.2 dB insertion loss or less, exceeding industry standards;
Supports industry standard singlemode and multimode connectors;
Singlemode and multimode and hybrid cables available;
Protection
Each fiber jumper is individually covered with an outer jacket for added protection;
Wide variety of jacket sizes for all applications, 3 mm, 2 mm, 1.6 mm, 1.2 mm, 900 μm;
Riser and Plenum rated jacket options available;
Available in simplex, dual-round and dual zip-cord configurations;
Access
Compact jacket design minimizes cable pile up;
Industry standard terminations include ST, SC, FC, LC;
Investment
Indoor Fiber Jumper Assemblies offer an economical solution for deploying fiber in any optical network;
Environmentally stable, low-insertion loss, minimal back reflection;
All assemblies are 100% tested;
1 . We offer competitive price for fiber optic patch cables, and etc;
2 . Strict QC system and high quality products;
3 . Low courier international shipping cost;
4 . Custom fiber patch cable for special applications;
5 . Fast delivery for bulk fiber optic cable;
Features & Benefits
Integrity
Terminations are designed and tested to Guarantee: 0.2 dB insertion loss or less, exceeding industry standards;
Supports industry standard singlemode and multimode connectors;
Singlemode and multimode and hybrid cables available;
Protection
Each fiber jumper is individually covered with an outer jacket for added protection;
Wide variety of jacket sizes for all applications, 3 mm, 2 mm, 1.6 mm, 1.2 mm, 900 μm;
Riser and Plenum rated jacket options available;
Available in simplex, dual-round and dual zip-cord configurations;
Access
Compact jacket design minimizes cable pile up;
Industry standard terminations include ST, SC, FC, LC;
Investment
Indoor Fiber Jumper Assemblies offer an economical solution for deploying fiber in any optical network;
Environmentally stable, low-insertion loss, minimal back reflection;
All assemblies are 100% tested;
