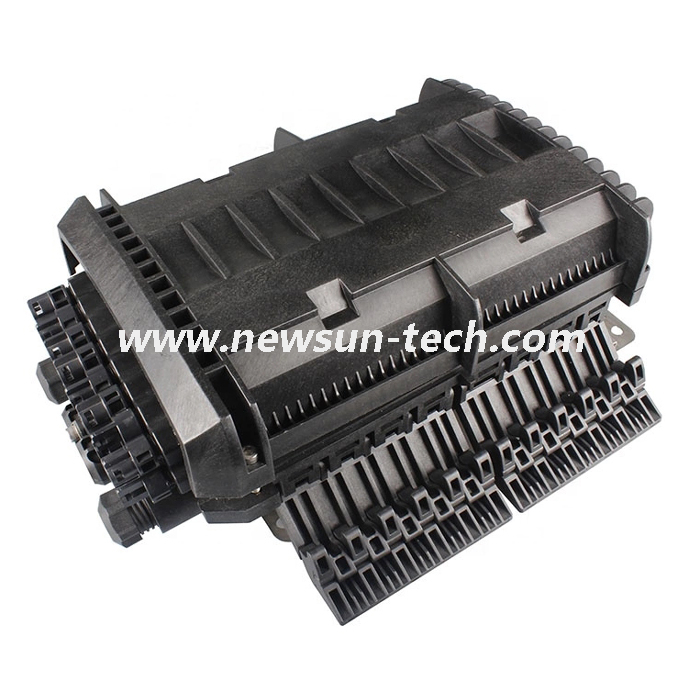

NS-FO288C 4 In 4/16/24 Out 288 Fiber Outdoor Waterproof Splicing Enclosure Cable Splitter Box

Type: Fiber Outdoor Waterproof Splicing Enclosure
Max Capacity:288 Cores
Inlet/outlet:4 in 4/16/24 out
Application:Outdoor wall mounted or pole mounted
sharethis sharing button
  • NS-FO288C


288 Ports Distribution Splice Box

288 Cores Waterproof Fiber Optic Splice Closure is used as a termination point for the feeder cable to connect with drop cable in the FTTx communication network system. The fiber splicing, splitting, and distribution can be done in this box, and meanwhile, it provides solid protection and management for the FTTx network building.

FTTH Drop Cable Type Fiber Optic Splice Closure features with ruggedness, which is tested under harsh conditions and stands up to even the most severe conditions of moisture, vibration and extreme temperatures. Humanized design helps the user get a better experience and safer operating environments.

NameFiber Optic Distribution Box
Capacity288Cores  (16C,24C or choice)

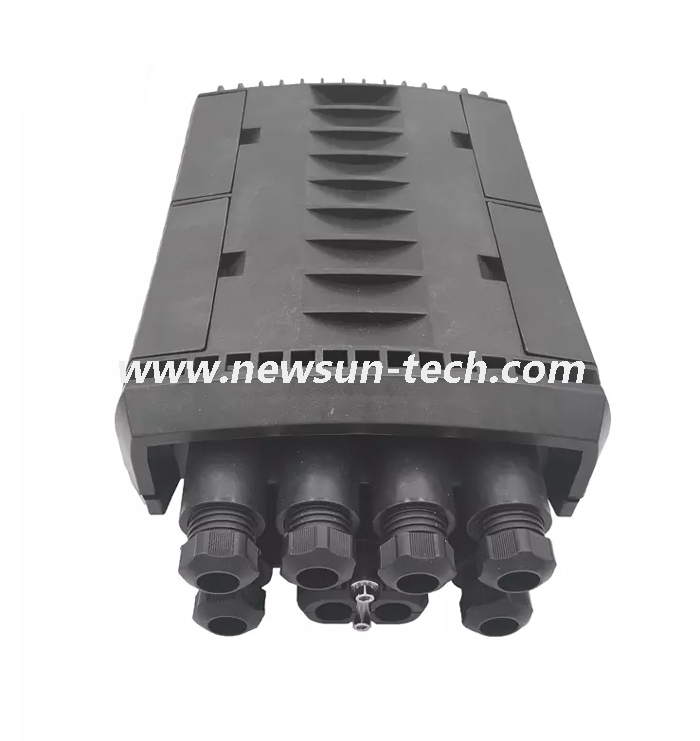

Cable ports8 round ports
Applicable Cable Diameter8~17 mm
Applicable Cable Diameter2*3mm FTTH Drop Cable, 2*5mm Outdoor Figure8 FTTH Drop Cable
Sealing StructureMechanical Sealing
InstallationWall mounting/Pole mounting
Protection LevelIP68
Impact TestIK10
Pull Force100N

4 In 4/16/24 Out 288 Fiber Outdoor Waterproof Splicing Enclosure Cable Splitter Box

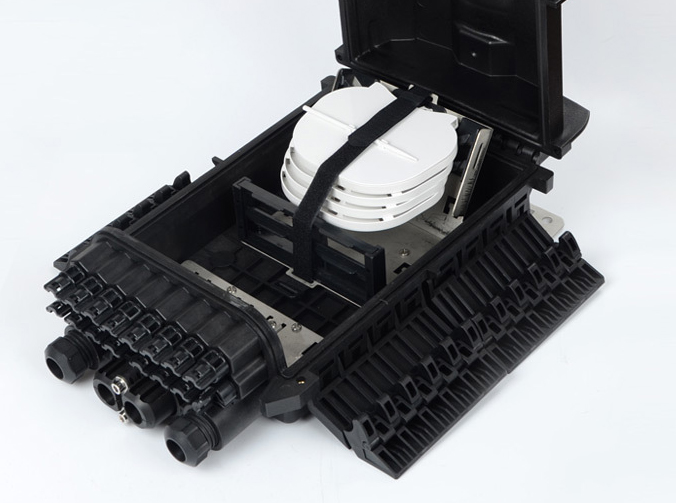

fiber splice box

1.Total enclosed structure.

2. Material: PP, wet-proof, water-proof, dust-proof, anti-aging, protection level up to IP68.

3. Clamping for feeder cable and drop cable, fiber splicing, fixation, storage, distribution...etc all in one.

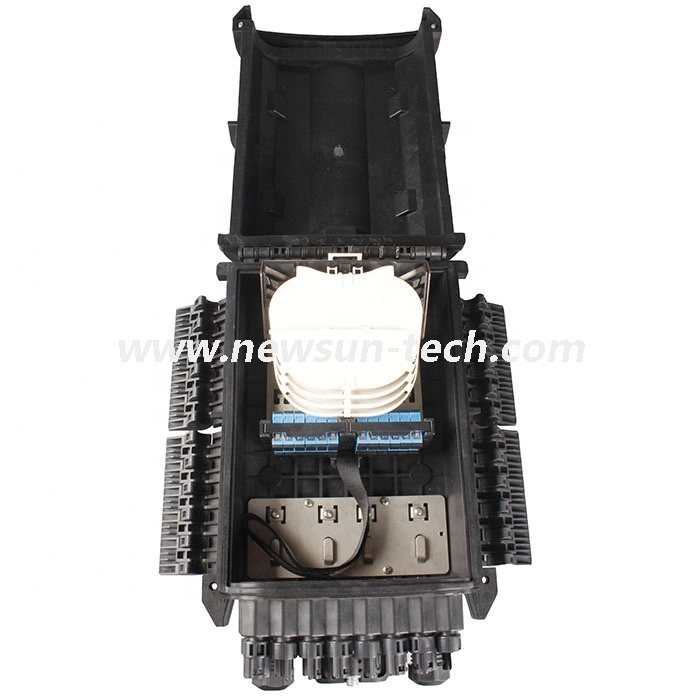

4. Cable, pigtails, and patch cords are running through their own paths without disturbing each other, easy maintenance.

5. Distribution panel can be flipped up, feeder cable can be placed by expression port, easy for maintenance and installation.

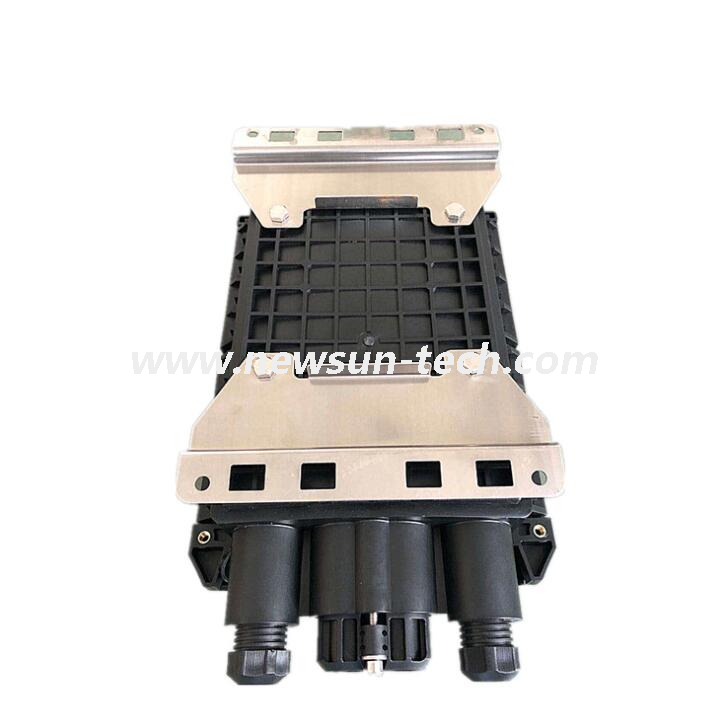

6. The box can be installed by the way of wall-mounted or poled-mounted, suitable for both indoor and outdoor use.

7. Easy operation and installation

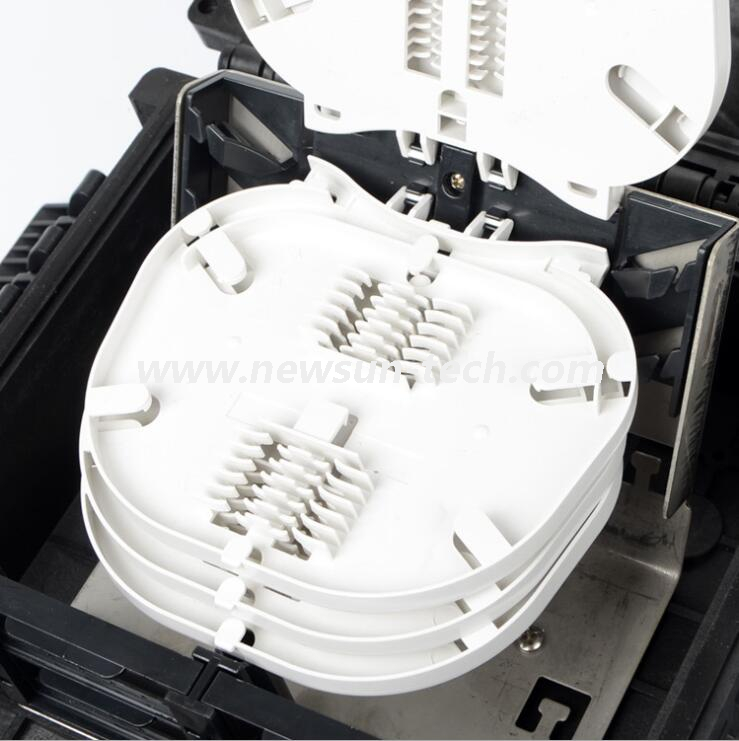

8. Rotatable and dis-mountable splice tray for easy splicing


Environmental requirement

Working temperature: -40℃~+85℃

Relative humidity: ≤85% (+30℃)

Atmospheric pressure: 70KPa~106Kpa

Thunder-proof technical datasheet

The insulation resistance between the grounding device and the metal parts of the box is no less than 2MΩ/500V (DC); IR≥2MΩ/500V.

The voltage resistance between the grounding device, and the box and its metal parts is no less than 3000V (DC)/min, no puncture, no flashover; U≥3000V

  • Technical guarantee of Outdoor cabinet product solution;

  • Achieve compatibility of supporting products in the cabinet;

  • Achieve the stability of supporting products in the cabinet;

  • Strong survivability in the wild;

  • Environmental protection;

What can NewSun Tech offer?

  1. We can achieve integration of supporting products and our products have small size.

  2. We can build stations quickly and shorten the construction cycle.

  3. Our products break the concept of civil engineering room, lower the installation cost and greatly reduce the cost of network construction.

  4. We adopt a sub-chamber design: equipment compartment, battery compartment, which can meet the needs of customers' flexible expansion and long-term evolution.

  5. Our products have less one-time investment, high equipment reliability, flexible configuration, and convenient for customers to manage and maintain the equipment.

  6. Our products adopt refined temperature control by TEC, air conditioning and heat exchange, which can save energy and lower operating costs.

  7. In order to reduce transportation and handling costs, the cabinet can be assembled on site for easy construction.

With the rapid development of the communication industry, operators have introduced various measures to develop the network vigorously , and put forward the construction ideas for wireless networks about "supplement, improvement, optimization, and improvement" . While strengthening the breadth, depth and quality of coverage of GSM / CDMA networks, operators will focus on building 5G networks.


The direction of construction ideas: the using of main equipment that can greatly simplify the requirements of supporting equipment for network construction can greatly reduce the overall network construction cost, reduce the construction difficulty, and shorten the construction cycle. In this way, a fine network construction method of "wherever you need to build a station, and where you need to build a station, and when you need to build a station" can be adapted to local conditions to create network coverage for cities, villages, transportation lines, and scenic spots.


Newsun tech timely launched "Mobile Communications Hussar One Base Station Outdoor Cabinet". It inherits the storage characteristics of traditional computer rooms, and has the fine temperature control characteristics of outdoor cabinets. It has fewer installation scenarios and can meet the needs of differentiation in different places. End users, operators, and manufacturers can all benefit from it.
