NS-DR01A
NEWSUN

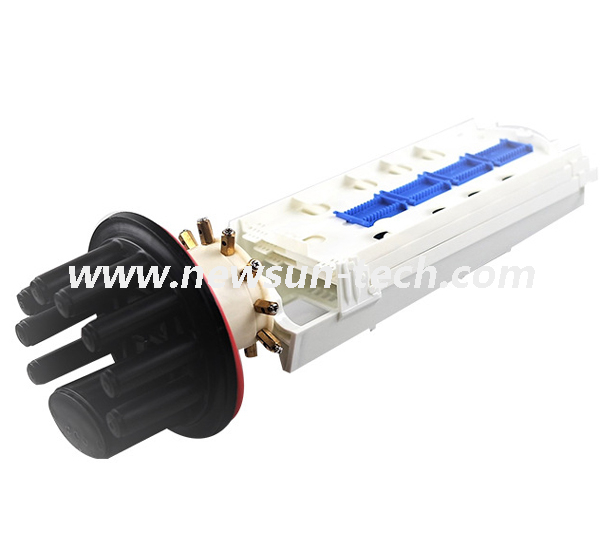

144 Core Outdoor Fiber Dome Splice Closure 8 Hole+1 Oval
NS-DR01A fiber splice closure is used to house, organize, manage and protect fiber optic cables and splices, which is available in configurations that can accommodate from 12 to 144 single fiber splices. The splice tray can be customized into splicing slots or PLC splitter holder according to the needs of direct line or branch line connection.
It is suitable for protecting optical fiber splices in straight through and branching applications, and can be used in pole-mounted, wall-mounted and aerial fiber optic cable projects.
| Material: | PP ABS |
| Protection Grade | IP68 |
| Entry Ports | 9 ports (1pc Oval 60*80mm) +8pcs (16mm round ports) |
| Maximum Tray: | 3 |
| Maximum Cores: | 144 |
| Buffer storage | storge basket bracket |
| Dimention(H*D) | 540*160mm |
| Environmnet temperature | —30~+60C |
| Pressure | 70~106kPa |
| Sealing Port | Heat shrinking |
| Quality warrenty | 2 years |
| Life Span | more than 25 years |
| Weight | 4.5~5kg |
| Package | 6PCS/CTN |
| Cartion Size | 580*480*650mm |
144 Core Outdoor Fiber Dome Splice Closure 8 Hole+1 Oval
NS-DR01A fiber splice closure is used to house, organize, manage and protect fiber optic cables and splices, which is available in configurations that can accommodate from 12 to 144 single fiber splices. The splice tray can be customized into splicing slots or PLC splitter holder according to the needs of direct line or branch line connection.
It is suitable for protecting optical fiber splices in straight through and branching applications, and can be used in pole-mounted, wall-mounted and aerial fiber optic cable projects.
| Material: | PP ABS |
| Protection Grade | IP68 |
| Entry Ports | 9 ports (1pc Oval 60*80mm) +8pcs (16mm round ports) |
| Maximum Tray: | 3 |
| Maximum Cores: | 144 |
| Buffer storage | storge basket bracket |
| Dimention(H*D) | 540*160mm |
| Environmnet temperature | —30~+60C |
| Pressure | 70~106kPa |
| Sealing Port | Heat shrinking |
| Quality warrenty | 2 years |
| Life Span | more than 25 years |
| Weight | 4.5~5kg |
| Package | 6PCS/CTN |
| Cartion Size | 580*480*650mm |

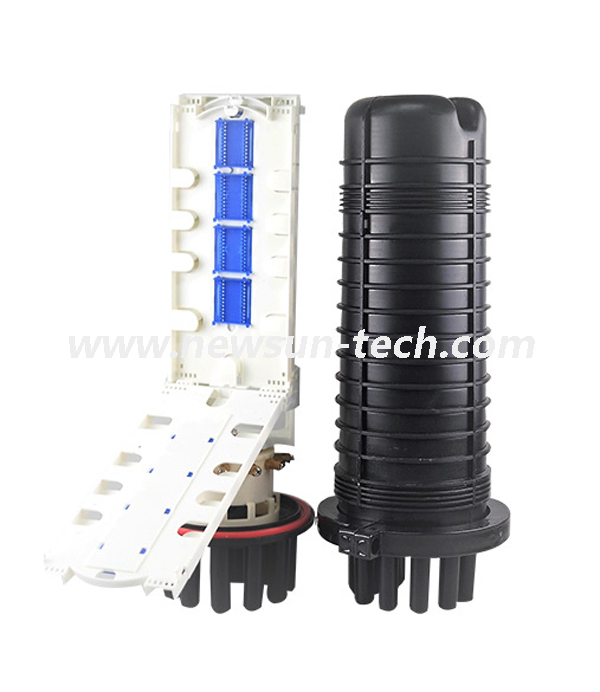

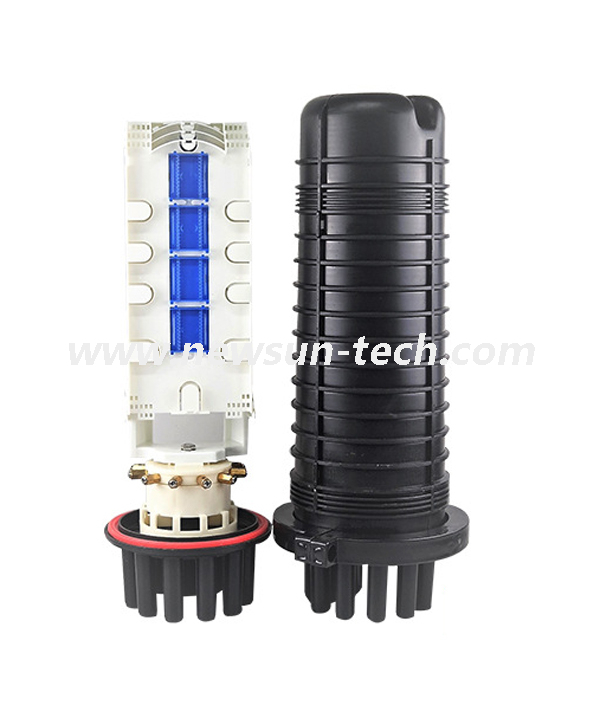

Dome Splice Closure for Fiber Splicing and Splitter Protection
As its large space body and weatherproof, the splice closure allows applications in non-controlled outdoor.
*Accommodate fiber and splitter to protect signal integrity
*Suitable for ordinary fiber and ribbon fiber
*For pole-mounted, wall-mounted and aerial application
*CATV environment, Telecommunications, Customer premises environments, Carrier Networks and fiber optic networks.
Dome Splice Closure for Fiber Splicing and Splitter Protection
As its large space body and weatherproof, the splice closure allows applications in non-controlled outdoor.
*Accommodate fiber and splitter to protect signal integrity
*Suitable for ordinary fiber and ribbon fiber
*For pole-mounted, wall-mounted and aerial application
*CATV environment, Telecommunications, Customer premises environments, Carrier Networks and fiber optic networks.
 Certificate of Conformity |
|  Certification for Sale Transport |
 ISO 9001 |  SGS |
Patent Certificate |
Certificate of Conformity |
| Certification for Sale Transport |
ISO 9001 | SGS |
Patent Certificate |
Fiber optic splice enclosures are used to protect stripped fiber optic cable and fiber optic splices from the environment, and they are available for indoor as well as outdoor mounting.
Outdoor fiber optic enclosures are usually weatherproof with watertight seals.
In a typical wall-mounted splice enclosure, fiber optic cable is supported by cable ties, and the cable strenght member is securely fastened to the enclosure’s support. Metallic strenght members must be grounded securely.
The cable jacket(sheath) stops at the splice enclosure’s cable ties. Optical fiber tubes, individual tight buffered fibers, or pigtails are supported by the tube brackets and continue to the splicing trays.
Individual optical fibers should never be exposed outside of a splice tray. Fusion splices or mechanical fiber optic cable splices are contained in the splice trays.
Features:
Large number of cable entry knockouts for incoming and outgoing cables;
Key-lockable main door to prevent accidental opening of splice compartment;
Able to hold up to six MTP loaded cassettes;
Standard accessory kit for cable entry and fibre management included;
Applications:
Ideal for fusion splicing
High fibre density applications
Repairing damaged cables
Suitable for direct termination
Remote cable terminations within building
Fiber optic splice enclosures are used to protect stripped fiber optic cable and fiber optic splices from the environment, and they are available for indoor as well as outdoor mounting.
Outdoor fiber optic enclosures are usually weatherproof with watertight seals.
In a typical wall-mounted splice enclosure, fiber optic cable is supported by cable ties, and the cable strenght member is securely fastened to the enclosure’s support. Metallic strenght members must be grounded securely.
The cable jacket(sheath) stops at the splice enclosure’s cable ties. Optical fiber tubes, individual tight buffered fibers, or pigtails are supported by the tube brackets and continue to the splicing trays.
Individual optical fibers should never be exposed outside of a splice tray. Fusion splices or mechanical fiber optic cable splices are contained in the splice trays.
Features:
Large number of cable entry knockouts for incoming and outgoing cables;
Key-lockable main door to prevent accidental opening of splice compartment;
Able to hold up to six MTP loaded cassettes;
Standard accessory kit for cable entry and fibre management included;
Applications:
Ideal for fusion splicing
High fibre density applications
Repairing damaged cables
Suitable for direct termination
Remote cable terminations within building
