NS-WP48/96 Metal Indoor Wall Mounted SC Fiber Optic Distribution Patch Panel

Product name: 96 core Fiber Cabinet
Material:Cold Rolled Sheet
Fiber Port:LC,SC,FC,ST
sharethis sharing button
  • NS-WP48/96


Indoor Wall Mounted 48/96 Port Fiber Optic Distribution

NS-WP48/96 Wall Mounted configuration permits positive fiber management, connectivity and distribution 48 incoming Fiber Optic cables channels. All the cross connectivity functions of Splicing, Termination, and Interconnection for your plant, backbone and in-building fiber cabling can be included in the enclosures to protect and ease the organization of your installations. This Wall Mount enclosure provides a professional economical solution for protection of critical network components.


  • Up to 48/96fiber

  • Multiple adapter options

  • 48/96 adapter positions

  • Available in single door and double door versions

  • Internal bend radius protection included


  • Internal applications

  • For use in multi dwelling units or demarcation points within a network

  • Data centers or telecommunication networks

Material:Cold Rolled Sheet
48F Size140*315*380mm
96F Size140*500*380mm
ColorGrey ,White.etc
Packing weight8kg/11kg

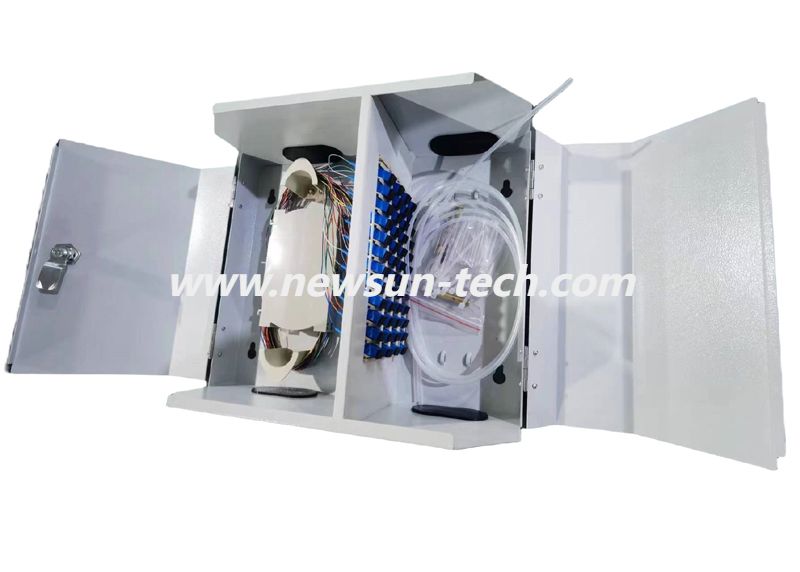

48 Port Wall Mounted Distribution Box

optical distribution box

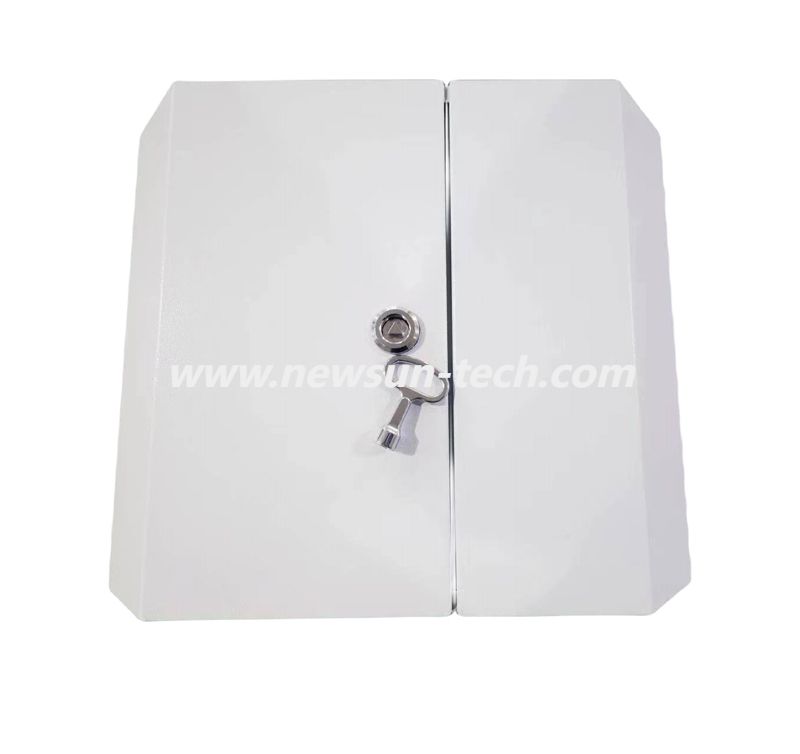

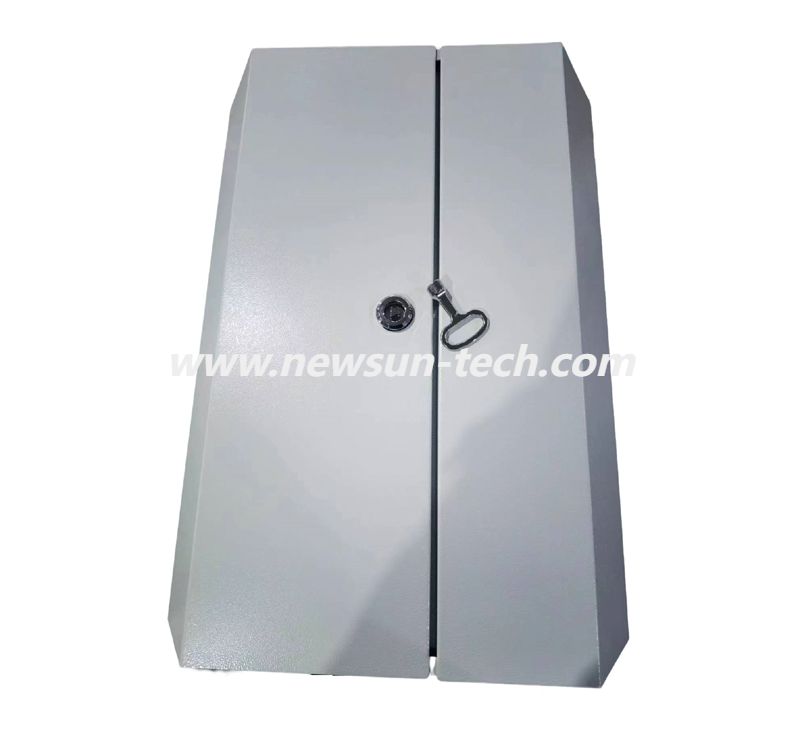

96 Port Wall Mounted Distribution Box

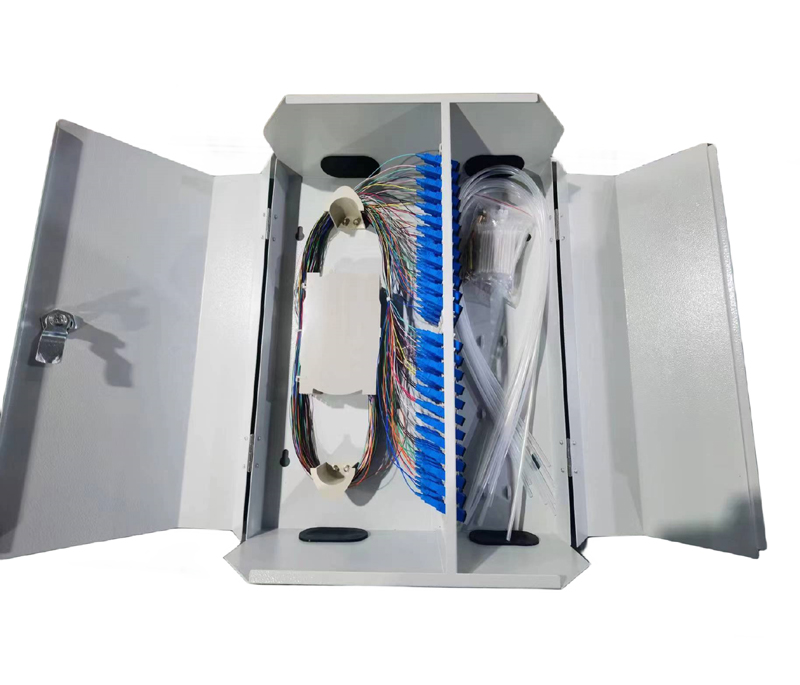

wall mount box

Fiber Optic ODF Distribution Cabinet

Cable fixing and protection function

1) . the metal part of the optical cable is insulated from the frame;

2) Bare fiber protection hose is resistant to extrusion and aging;

3) . the fixation of the optical cable laid in the later stage will not affect the safety of the optical cable laid in the earlier stage;

4) The fixed metal sheath and reinforcing core of the optical cable can be connected to the high-voltage protective grounding device;

5) . lead in and fix the optical cable on the frame to protect the optical cable and the stripped core from damage;

6) . the optical cable introduction, fixation and protection device can firmly and reliably fix the optical cable without looseness and free torsion.

 Fiber regulating function

Through the optical fiber connector plug, it can quickly and conveniently dispatch the fiber core in the optical cable and change the route of the optical transmission system.

3. Fiber termination function

It has an optical fiber termination device to facilitate the connection operation, construction, installation and maintenance of optical cable, core and pigtail. It can fix and protect the joint position straight without displacement, avoid the influence of external force, and ensure that the wound core is not damaged.

4. Optical storage function

There shall be enough space in the rack and unit for storing the remaining optical fiber. The structure shall be easy to maintain and adjust the skipping in the cutover, and easy to remove the abandoned skipping.

5. Mark recording function

The frame and unit shall be equipped with complete identification and recording device, which can easily identify the serial number of fiber core or transmission path sequence, and the recording device shall be easy to modify and replace. The frame door is pasted with a clear color fiber diagram, and the frame is equipped with a marking box. A blank marking card can be placed in the box to facilitate the maintenance personnel to record information.

  1. high termination density for maximum space usage;

  2. complete fiber protection for signal integrity;

  3. easy access to cables and patch cords for faster moves, adds and changes;

  4. the ability to support emerging technologies;

  5. supports various termination methods for reduced costs;

  6. system scalability to support emerging technology;

  7. Easy servicing – Pre-cabled ODFs allow fast moves, adds and changes;

  8. Increased availability – Cabling can be added or changed without disrupting running systems;

  9. Optimal flexibility – Equipment can be connected regardless of its location;
