19' 42U Indoor Fiber Optical Distribution Frame Network Cabinet

Product name: 19' Indoor Fiber Optical Distribution Cabinet
No. of Rack Spaces:42U
Material:SPCC
Application:FTTH FTTB FTTX Network
Capacity:432 Cores / 576 Cores / 720 Cores
Availability:
Quantity:
  • 42U
  • NEWSUN TECH

Fiber distribution cabinet, also known as fiber distribution box, is used for fiber termination, fiber fusion, fiber distribution, fiber storage and fiber cable protection. It is a common distribution tool for LAN and data center at present, which can ensure long-term and reliable network transmission.

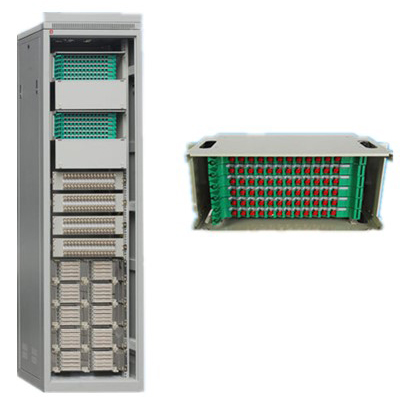

42U cabinet

*The material is cold-rolled plate or stainless steel, the surface is spray treated, durable;

*Standard 19 inch mounting rack;

*Modular installation, easy to use;

*Large capacity to meet the needs of different customers;

*The structure is closed, semi closed and open

*Up and down can enter the cable.


Fiber Optic Network Cabinet  ODF Optical Distribution Frame Cabinet

Cable fixing and protection function

1) . the metal part of the optical cable is insulated from the frame;

2) Bare fiber protection hose is resistant to extrusion and aging;

3) . the fixation of the optical cable laid in the later stage will not affect the safety of the optical cable laid in the earlier stage;

4) The fixed metal sheath and reinforcing core of the optical cable can be connected to the high-voltage protective grounding device;

5) . lead in and fix the optical cable on the frame to protect the optical cable and the stripped core from damage;

6) . the optical cable introduction, fixation and protection device can firmly and reliably fix the optical cable without looseness and free torsion.

 Fiber regulating function


Through the optical fiber connector plug, it can quickly and conveniently dispatch the fiber core in the optical cable and change the route of the optical transmission system.


3. Fiber termination function


It has an optical fiber termination device to facilitate the connection operation, construction, installation and maintenance of optical cable, core and pigtail. It can fix and protect the joint position straight without displacement, avoid the influence of external force, and ensure that the wound core is not damaged.


4. Optical storage function


There shall be enough space in the rack and unit for storing the remaining optical fiber. The structure shall be easy to maintain and adjust the skipping in the cutover, and easy to remove the abandoned skipping.


5. Mark recording function


The frame and unit shall be equipped with complete identification and recording device, which can easily identify the serial number of fiber core or transmission path sequence, and the recording device shall be easy to modify and replace. The frame door is pasted with a clear color fiber diagram, and the frame is equipped with a marking box. A blank marking card can be placed in the box to facilitate the maintenance personnel to record information.


  1. high termination density for maximum space usage;

  2. complete fiber protection for signal integrity;

  3. easy access to cables and patch cords for faster moves, adds and changes;

  4. the ability to support emerging technologies;

  5. supports various termination methods for reduced costs;

  6. system scalability to support emerging technology;

  7. Easy servicing – Pre-cabled ODFs allow fast moves, adds and changes;

  8. Increased availability – Cabling can be added or changed without disrupting running systems;

  9. Optimal flexibility – Equipment can be connected regardless of its location;
