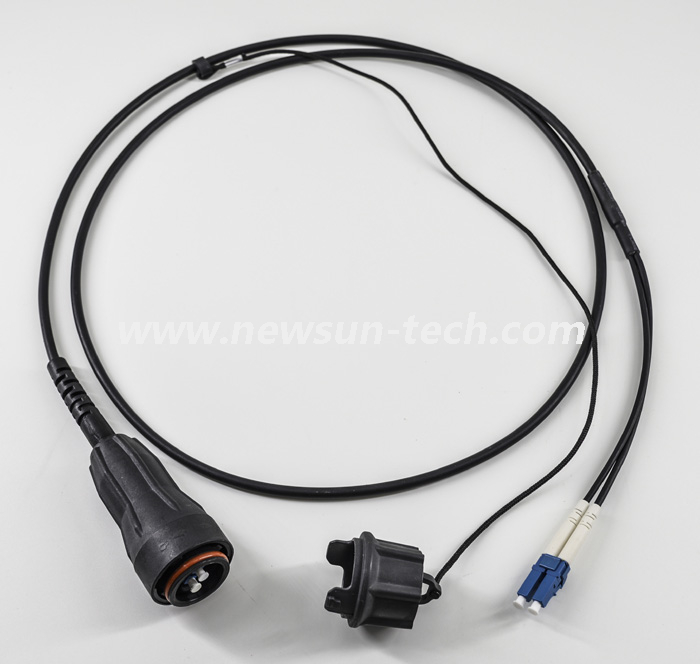

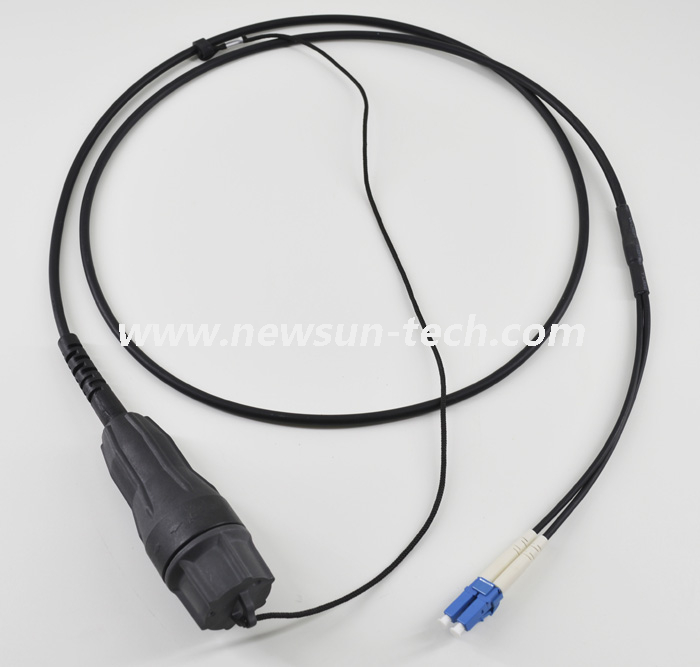

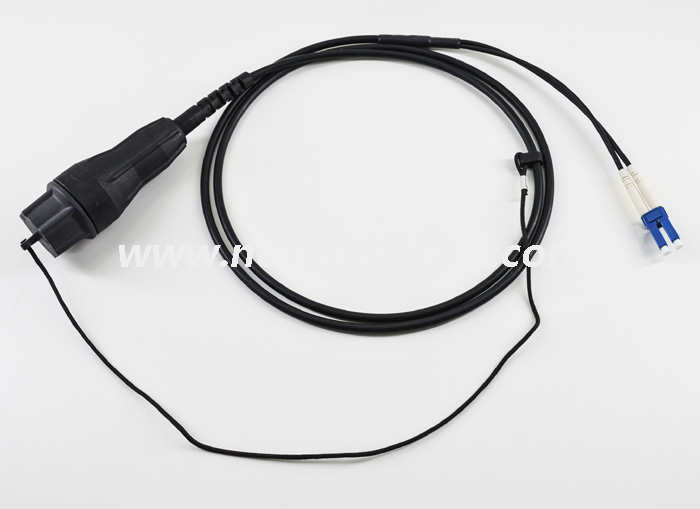

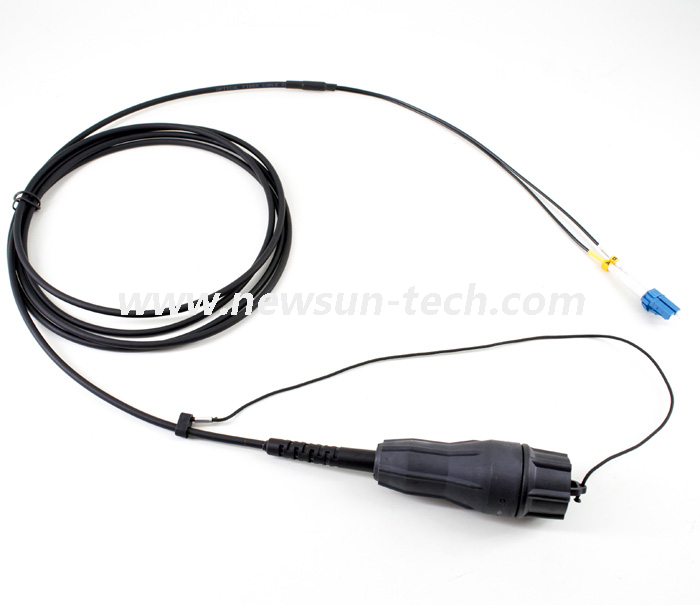

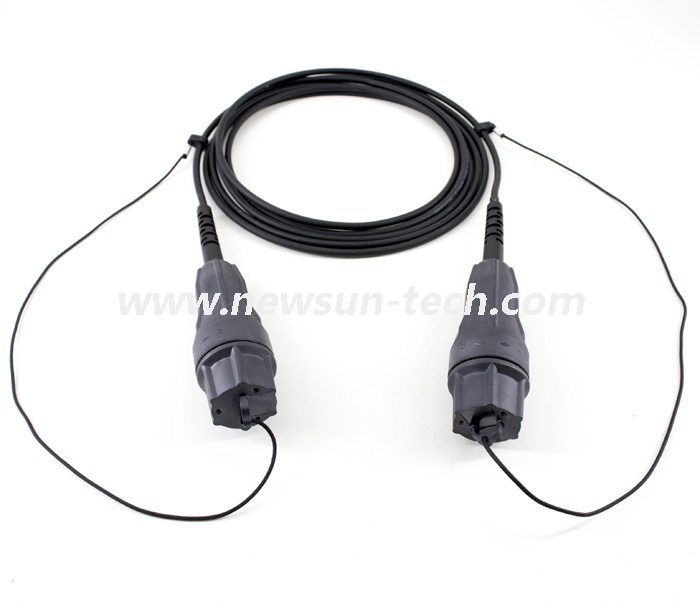

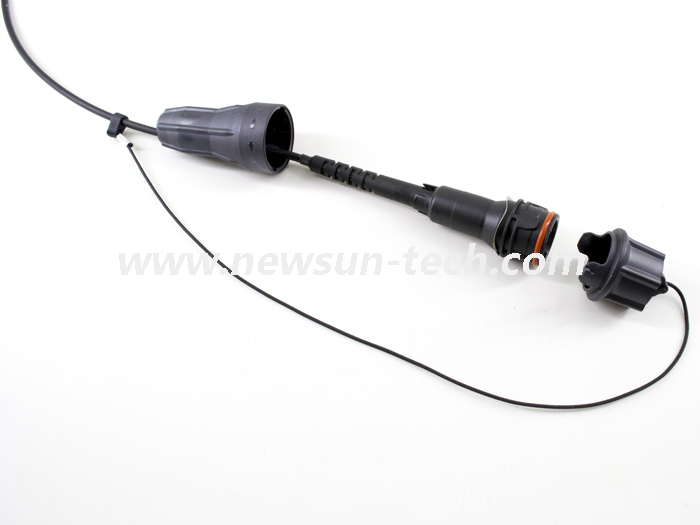

FLX-LC Duplex
NEWSUN TECH
FULLAXS Fiber to the Antenna Rugged Interconnect
To meet the needs of the next generation WiMax and long term evolution(LTE) fiber to the antenna (FTTA) connection design for outdoor use harsh requirements, has released the FullAXS connector system, which provides the remote radio between the SFP connection and the base station, used for Telecom applications. This new product to adapt the SFP transceiver provides the most widely in the market, so that end users can choose to meet the specific requirements of the transceiver system.
Parameter | Standard | Parameter | Standard |
150 N Pull Force | IEC61300-2-4 | Temperature | 40°C – +85°C |
Vibration | GR3115 (3.26.3) | Cycles | 50 Mating Cycles |
Salt Mist | IEC 61300-2-26 | Protection Class/Rating | IP67 |
Vibration | IEC 61300-2-1 | Mechanical Retention | 150 N cable retention |
Shock | IEC 61300-2-9 | Interface | LC interface |
Impact | IEC 61300-2-12 | Adapter Footprint | 36 mm x 36 mm |
Temperature / Humidity | IEC 61300-2-22 | Duplex LC Interconnect | MM or SM |
Locking Style | Bayonet style | Tools | No tools required |
FullAXS-FTTA- strong, connector

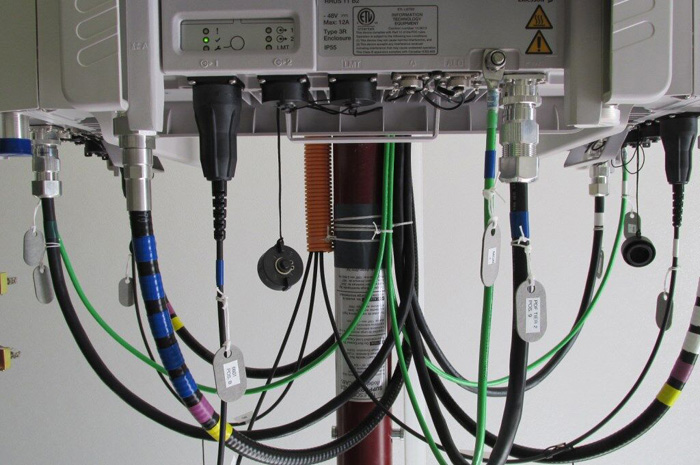

Use the cable assembly firmly establish themselves through the bulk headis directly inserted into the optical fiber transceiver is directly connected to the WiMax and LTE in FTTA application. Connectors of the connection request, can accommodate a larger tolerance in Z direction. In the FullAXS connector system by allowing large Z direction of tolerance, but also provides a single hand installed in compliance with this requirement in the connector housing benefits.
With this new line of products, users can also easily removed, and through the open the entire remote radio box in do not need completely, its contents exposed in poor weather conditions bulkhead hole replace transponder.
For optical fiber connection, duplex LC interface of the connector system includes an industry standard for quick, paired with all LC duplex SFP transceiver. The FullAXS connector can be designed for either the application single mode or multimode optical fiber transmission.
FULLAXS Fiber to the Antenna Rugged Interconnect
To meet the needs of the next generation WiMax and long term evolution(LTE) fiber to the antenna (FTTA) connection design for outdoor use harsh requirements, has released the FullAXS connector system, which provides the remote radio between the SFP connection and the base station, used for Telecom applications. This new product to adapt the SFP transceiver provides the most widely in the market, so that end users can choose to meet the specific requirements of the transceiver system.
Parameter | Standard | Parameter | Standard |
150 N Pull Force | IEC61300-2-4 | Temperature | 40°C – +85°C |
Vibration | GR3115 (3.26.3) | Cycles | 50 Mating Cycles |
Salt Mist | IEC 61300-2-26 | Protection Class/Rating | IP67 |
Vibration | IEC 61300-2-1 | Mechanical Retention | 150 N cable retention |
Shock | IEC 61300-2-9 | Interface | LC interface |
Impact | IEC 61300-2-12 | Adapter Footprint | 36 mm x 36 mm |
Temperature / Humidity | IEC 61300-2-22 | Duplex LC Interconnect | MM or SM |
Locking Style | Bayonet style | Tools | No tools required |
FullAXS-FTTA- strong, connector
Use the cable assembly firmly establish themselves through the bulk headis directly inserted into the optical fiber transceiver is directly connected to the WiMax and LTE in FTTA application. Connectors of the connection request, can accommodate a larger tolerance in Z direction. In the FullAXS connector system by allowing large Z direction of tolerance, but also provides a single hand installed in compliance with this requirement in the connector housing benefits.
With this new line of products, users can also easily removed, and through the open the entire remote radio box in do not need completely, its contents exposed in poor weather conditions bulkhead hole replace transponder.
For optical fiber connection, duplex LC interface of the connector system includes an industry standard for quick, paired with all LC duplex SFP transceiver. The FullAXS connector can be designed for either the application single mode or multimode optical fiber transmission.
Aim to provide a general platform, new products to expand the capabilities of the RJ45 and the power supply connector, and version splicing in the field installation, to adapt to any cable. Other functions of the product / system benefits include:
- is a mechanical feedback to inform the operator when the connector completely docking
During or after installation, no cable buckling
- powerful bayonet locking, convenient, fast, secure mating
- a waterproof, dustproof, corrosion resistant design, using metal die-casting bulkhead
- cost savings by eliminating the fiber in the management of the radio unit
The antenna feeder is connected to the specifications of the optical fiber.
During or after installation, no cable buckling
- powerful bayonet locking, convenient, fast, secure mating
- a waterproof, dustproof, corrosion resistant design, using metal die-casting bulkhead
- cost savings by eliminating the fiber in the management of the radio unit
The antenna feeder is connected to the specifications of the optical fiber.
Feature:
■ Open bulkhead for easy access to SFP
■ Positive feedback to operator when fully mated
■ One-hand mating
■ Duplex LC interface
■ Bulkhead cutouts allow for removal of transceiver through the bulkhead (no need to open RRH for transceiver replacement)
■ Robust bayonet locking for easy, fast, and secure mating
■ Multimode and singlemode
■ Water proof, dust proof and corrosion resistant
■ Expansion to RJ45, etc
■ Plug has tolerance free design, fully free floating in Z-axis
■ No Cable buckling at any time during or after installation
■ Cost effective glass-filled polymer or metal die casted bulkhead
■ Field installable version available
Aim to provide a general platform, new products to expand the capabilities of the RJ45 and the power supply connector, and version splicing in the field installation, to adapt to any cable. Other functions of the product / system benefits include:
- is a mechanical feedback to inform the operator when the connector completely docking
During or after installation, no cable buckling
- powerful bayonet locking, convenient, fast, secure mating
- a waterproof, dustproof, corrosion resistant design, using metal die-casting bulkhead
- cost savings by eliminating the fiber in the management of the radio unit
The antenna feeder is connected to the specifications of the optical fiber.
During or after installation, no cable buckling
- powerful bayonet locking, convenient, fast, secure mating
- a waterproof, dustproof, corrosion resistant design, using metal die-casting bulkhead
- cost savings by eliminating the fiber in the management of the radio unit
The antenna feeder is connected to the specifications of the optical fiber.
Feature:
■ Open bulkhead for easy access to SFP
■ Positive feedback to operator when fully mated
■ One-hand mating
■ Duplex LC interface
■ Bulkhead cutouts allow for removal of transceiver through the bulkhead (no need to open RRH for transceiver replacement)
■ Robust bayonet locking for easy, fast, and secure mating
■ Multimode and singlemode
■ Water proof, dust proof and corrosion resistant
■ Expansion to RJ45, etc
■ Plug has tolerance free design, fully free floating in Z-axis
■ No Cable buckling at any time during or after installation
■ Cost effective glass-filled polymer or metal die casted bulkhead
■ Field installable version available
1 . We offer competitive price for fiber optic patch cables, and etc;
2 . Strict QC system and high quality products;
3 . Low courier international shipping cost;
4 . Custom fiber patch cable for special applications;
5 . Fast delivery for bulk fiber optic cable;
Features & Benefits
Integrity
Terminations are designed and tested to Guarantee: 0.2 dB insertion loss or less, exceeding industry standards;
Supports industry standard singlemode and multimode connectors;
Singlemode and multimode and hybrid cables available;
Protection
Each fiber jumper is individually covered with an outer jacket for added protection;
Wide variety of jacket sizes for all applications, 3 mm, 2 mm, 1.6 mm, 1.2 mm, 900 μm;
Riser and Plenum rated jacket options available;
Available in simplex, dual-round and dual zip-cord configurations;
Access
Compact jacket design minimizes cable pile up;
Industry standard terminations include ST, SC, FC, LC;
Investment
Indoor Fiber Jumper Assemblies offer an economical solution for deploying fiber in any optical network;
Environmentally stable, low-insertion loss, minimal back reflection;
All assemblies are 100% tested;
1 . We offer competitive price for fiber optic patch cables, and etc;
2 . Strict QC system and high quality products;
3 . Low courier international shipping cost;
4 . Custom fiber patch cable for special applications;
5 . Fast delivery for bulk fiber optic cable;
Features & Benefits
Integrity
Terminations are designed and tested to Guarantee: 0.2 dB insertion loss or less, exceeding industry standards;
Supports industry standard singlemode and multimode connectors;
Singlemode and multimode and hybrid cables available;
Protection
Each fiber jumper is individually covered with an outer jacket for added protection;
Wide variety of jacket sizes for all applications, 3 mm, 2 mm, 1.6 mm, 1.2 mm, 900 μm;
Riser and Plenum rated jacket options available;
Available in simplex, dual-round and dual zip-cord configurations;
Access
Compact jacket design minimizes cable pile up;
Industry standard terminations include ST, SC, FC, LC;
Investment
Indoor Fiber Jumper Assemblies offer an economical solution for deploying fiber in any optical network;
Environmentally stable, low-insertion loss, minimal back reflection;
All assemblies are 100% tested;
