12 Fibers Pigtails
NEWSUN TECH

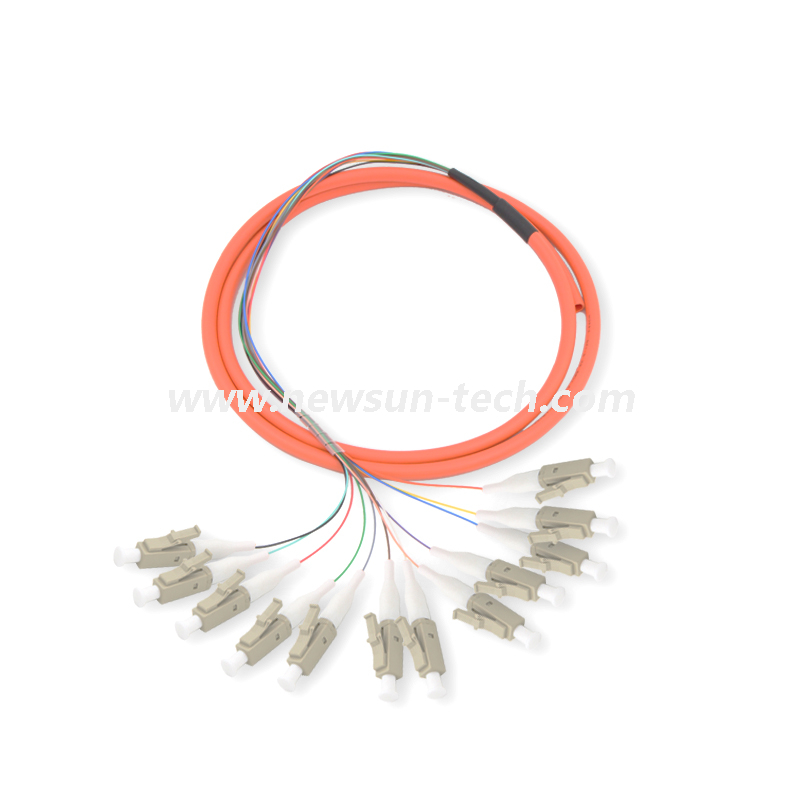

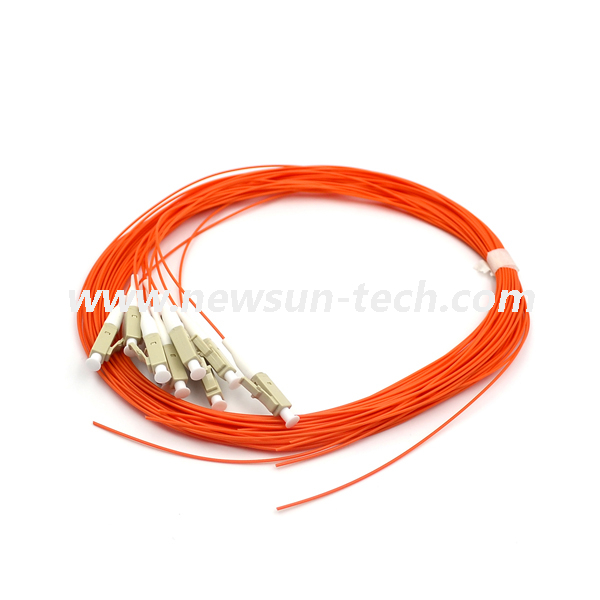

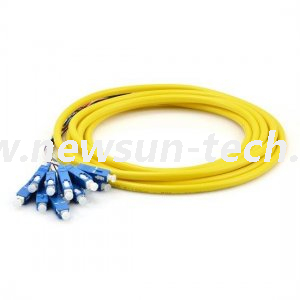

12 Fibers LC/SC/FC/ST SM/MM Unjacketed/Bunch Fiber Optic Pigtail

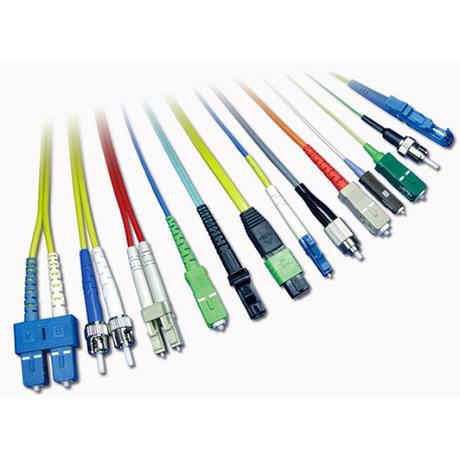

Newsun's optical fiber patch cord used as cross-connect jumpers, equipment and work area cords in fiber 0ptic telecommunications and FTTH (Fiber To The Home);CATV & CCTV;Data Processing Networks.
Connector A | LC/SC/FC/ST |
Connector B | Unterminated |
Fiber Count | 12 |
Fiber Mode | 9/125 μm;50/125 μm |
Fiber Grade | G.652.D |
Polish Type | APC;PC |
Wavelength | 1310 nm/1550 nm |
Insertion Loss | ≤0.3 dB |
Return Loss | ≥60 dB |
Operating Temperature | -40~75°C |
Minimum Bend Radius | 30 mm |
Cable Diameter | 0.9 mm |
Pigtail Color | 12 Color |
Interchangeability | ≤0.2 dB |
Vibration | ≤0.2 dB |
Storage Temperature | -45~85°C |
12 Fibers LC/SC/FC/ST SM/MM Unjacketed/Bunch Fiber Optic Pigtail
Newsun's optical fiber patch cord used as cross-connect jumpers, equipment and work area cords in fiber 0ptic telecommunications and FTTH (Fiber To The Home);CATV & CCTV;Data Processing Networks.
Connector A | LC/SC/FC/ST |
Connector B | Unterminated |
Fiber Count | 12 |
Fiber Mode | 9/125 μm;50/125 μm |
Fiber Grade | G.652.D |
Polish Type | APC;PC |
Wavelength | 1310 nm/1550 nm |
Insertion Loss | ≤0.3 dB |
Return Loss | ≥60 dB |
Operating Temperature | -40~75°C |
Minimum Bend Radius | 30 mm |
Cable Diameter | 0.9 mm |
Pigtail Color | 12 Color |
Interchangeability | ≤0.2 dB |
Vibration | ≤0.2 dB |
Storage Temperature | -45~85°C |

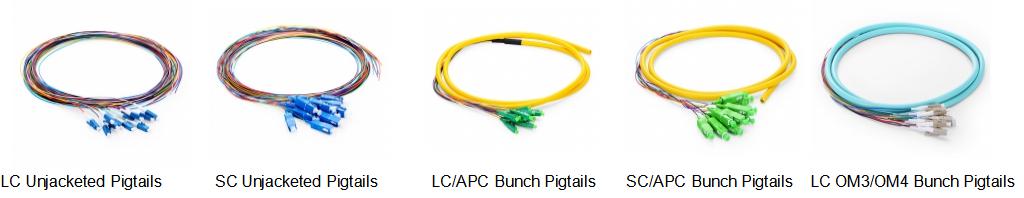

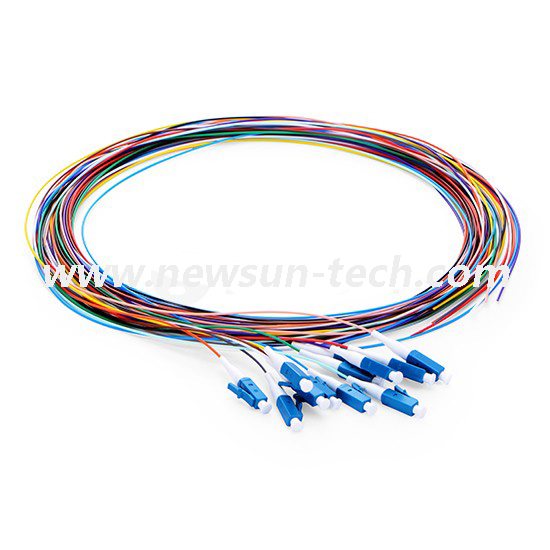

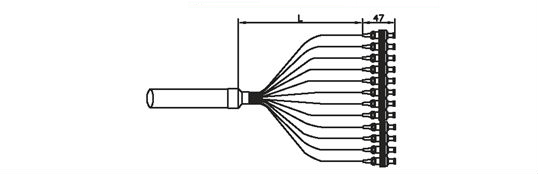

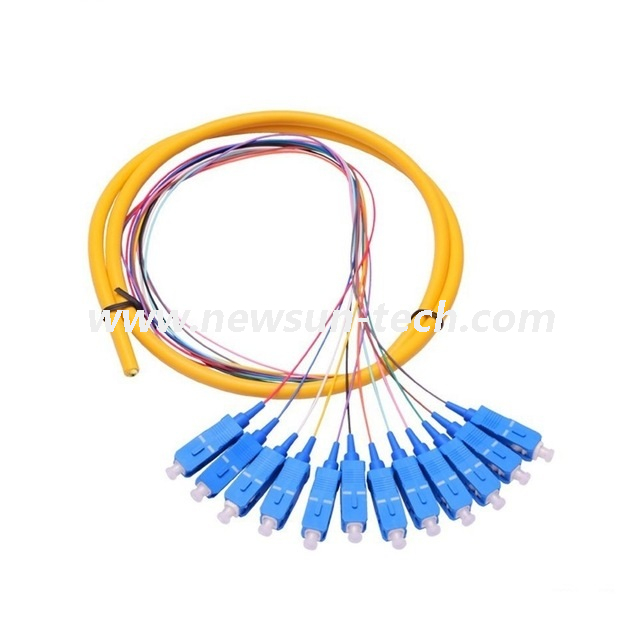

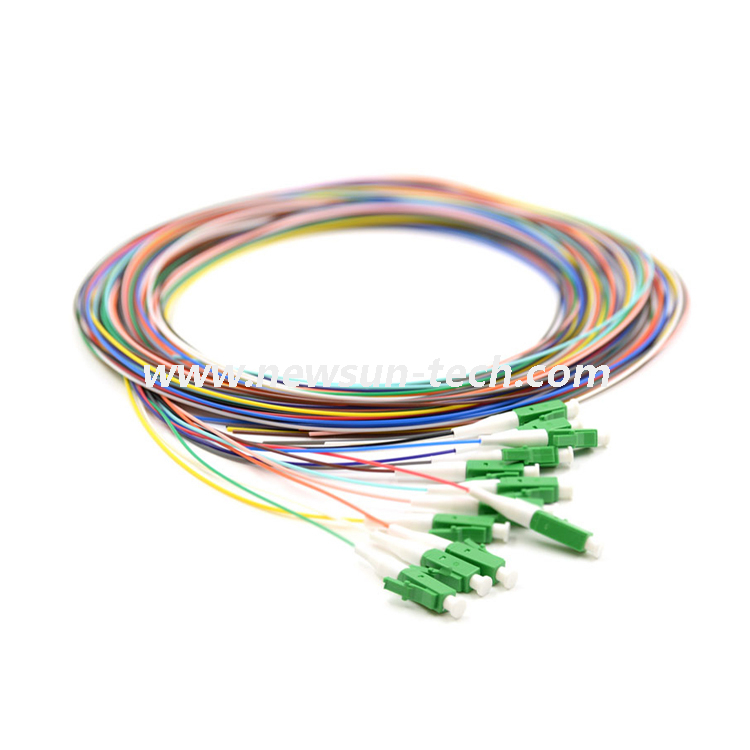

12 Fibers Unjacketed/Bunch Fiber Optic Pigtail
It consist of 12 different colours cable.Colour in turns Blue,Orange,Green,Brown,Gray,White,Red,Black,Yellow,Violet,Pink and Aquar.
12 Fibers Unjacketed/Bunch Fiber Optic Pigtail
It consist of 12 different colours cable.Colour in turns Blue,Orange,Green,Brown,Gray,White,Red,Black,Yellow,Violet,Pink and Aquar.
1 . We offer competitive price for fiber optic patch cables, and etc;
2 . Strict QC system and high quality products;
3 . Low courier international shipping cost;
4 . Custom fiber patch cable for special applications;
5 . Fast delivery for bulk fiber optic cable;
Features & Benefits
Integrity
Terminations are designed and tested to Guarantee: 0.2 dB insertion loss or less, exceeding industry standards;
Supports industry standard singlemode and multimode connectors;
Singlemode and multimode and hybrid cables available;
Protection
Each fiber jumper is individually covered with an outer jacket for added protection;
Wide variety of jacket sizes for all applications, 3 mm, 2 mm, 1.6 mm, 1.2 mm, 900 μm;
Riser and Plenum rated jacket options available;
Available in simplex, dual-round and dual zip-cord configurations;
Access
Compact jacket design minimizes cable pile up;
Industry standard terminations include ST, SC, FC, LC;
Investment
Indoor Fiber Jumper Assemblies offer an economical solution for deploying fiber in any optical network;
Environmentally stable, low-insertion loss, minimal back reflection;
All assemblies are 100% tested;
1 . We offer competitive price for fiber optic patch cables, and etc;
2 . Strict QC system and high quality products;
3 . Low courier international shipping cost;
4 . Custom fiber patch cable for special applications;
5 . Fast delivery for bulk fiber optic cable;
Features & Benefits
Integrity
Terminations are designed and tested to Guarantee: 0.2 dB insertion loss or less, exceeding industry standards;
Supports industry standard singlemode and multimode connectors;
Singlemode and multimode and hybrid cables available;
Protection
Each fiber jumper is individually covered with an outer jacket for added protection;
Wide variety of jacket sizes for all applications, 3 mm, 2 mm, 1.6 mm, 1.2 mm, 900 μm;
Riser and Plenum rated jacket options available;
Available in simplex, dual-round and dual zip-cord configurations;
Access
Compact jacket design minimizes cable pile up;
Industry standard terminations include ST, SC, FC, LC;
Investment
Indoor Fiber Jumper Assemblies offer an economical solution for deploying fiber in any optical network;
Environmentally stable, low-insertion loss, minimal back reflection;
All assemblies are 100% tested;
