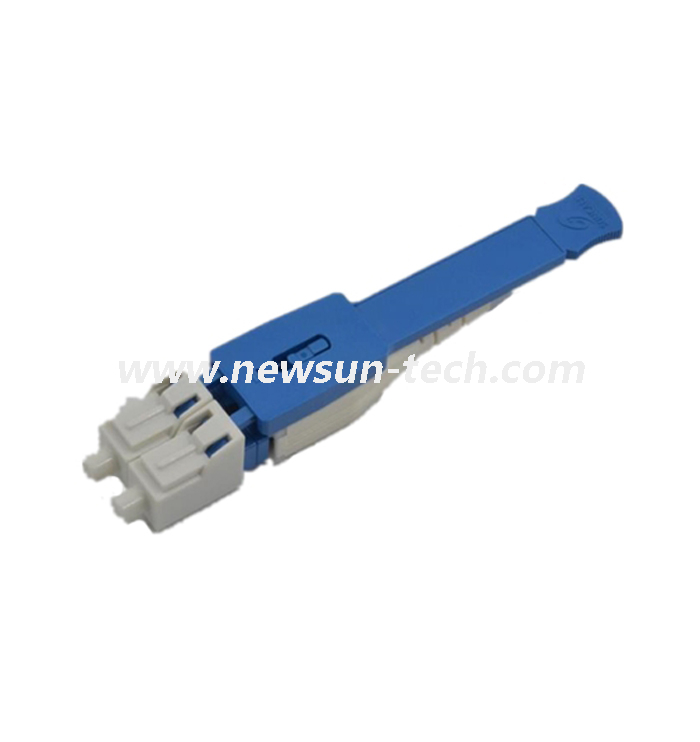

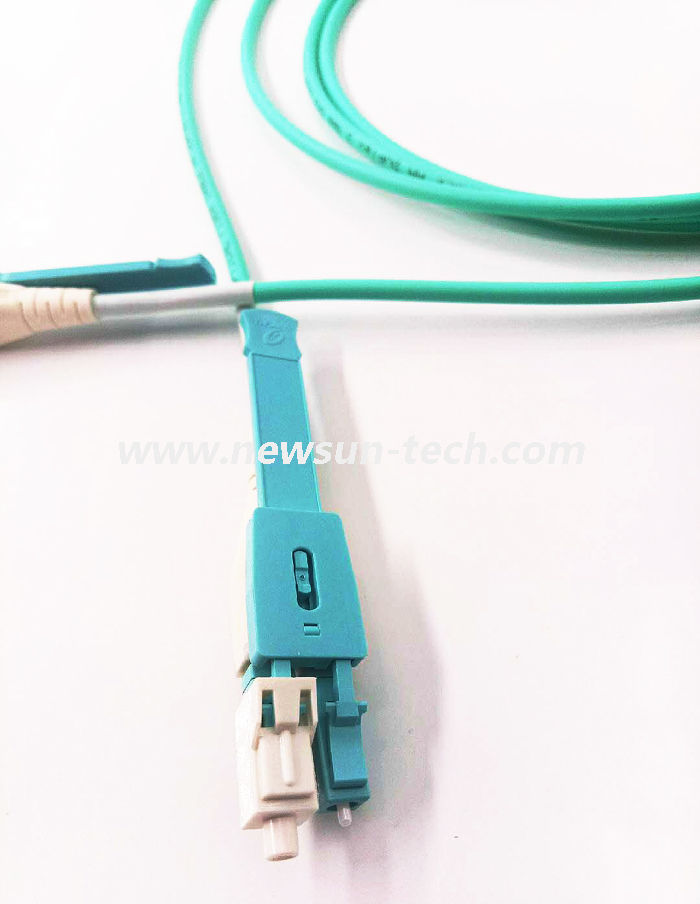

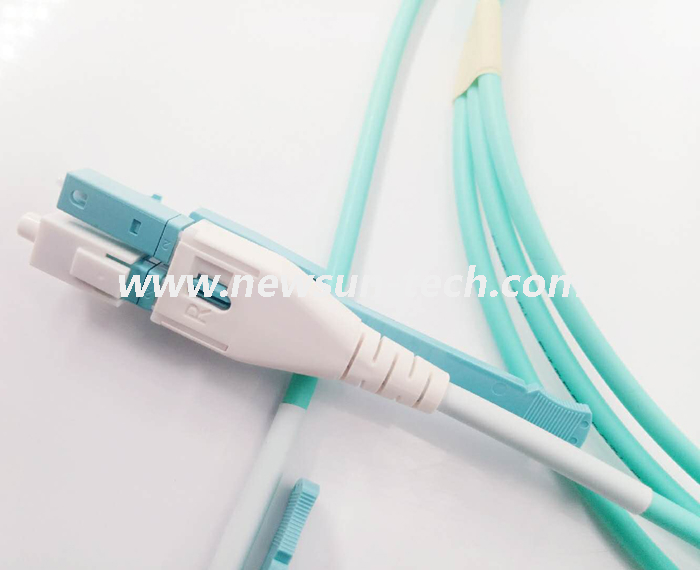

LC Uniboot Patch cord
NEWSUN TECH
LC Uniboot Patch cord
The structure of standard duplex LC optical fiber patchcord is that two independent single core optical cables are terminated with a standard duplex LC connector at both ends, while LC uniboot optical fiber patchcord only uses 2 core optical cable. This design reduces the number of cables used by 50%, which can solve the problem of cable redundancy in data center and save more space.
The design of the pull rod can help to solve the problem that the connector cannot be inserted and pulled out directly by hand in the high-density cabling system, and other connectors will not be affected in the process of inserting and pulling the connector.
Connector Types
| Type | Reference | Note | |
| IEC 61754-20 | Single mode | UPC: Blue connectors , White boots | |
| LC | Multimode | UPC: Grey or Aqua Connectors , White boots | |
*Uniboot with a Single Housing
*Unique Push-Pull Design and Function 3.Interchangeable polarity
*Low insertion loss and added loss.
*Height of attenuation.
*High back loss, small volume, light weight.
*End-face geometry and quality superior than IEC and Telcordia standards.
*LSZH, OFNP, OFNR cable jacket.
*Mechanical performance: IEC 61754-20 standard. 10.RoHS and REACH materials compliant.
LC Uniboot Patch cord
The structure of standard duplex LC optical fiber patchcord is that two independent single core optical cables are terminated with a standard duplex LC connector at both ends, while LC uniboot optical fiber patchcord only uses 2 core optical cable. This design reduces the number of cables used by 50%, which can solve the problem of cable redundancy in data center and save more space.
The design of the pull rod can help to solve the problem that the connector cannot be inserted and pulled out directly by hand in the high-density cabling system, and other connectors will not be affected in the process of inserting and pulling the connector.
Connector Types
| Type | Reference | Note | |
| IEC 61754-20 | Single mode | UPC: Blue connectors , White boots | |
| LC | Multimode | UPC: Grey or Aqua Connectors , White boots | |
*Uniboot with a Single Housing
*Unique Push-Pull Design and Function 3.Interchangeable polarity
*Low insertion loss and added loss.
*Height of attenuation.
*High back loss, small volume, light weight.
*End-face geometry and quality superior than IEC and Telcordia standards.
*LSZH, OFNP, OFNR cable jacket.
*Mechanical performance: IEC 61754-20 standard. 10.RoHS and REACH materials compliant.

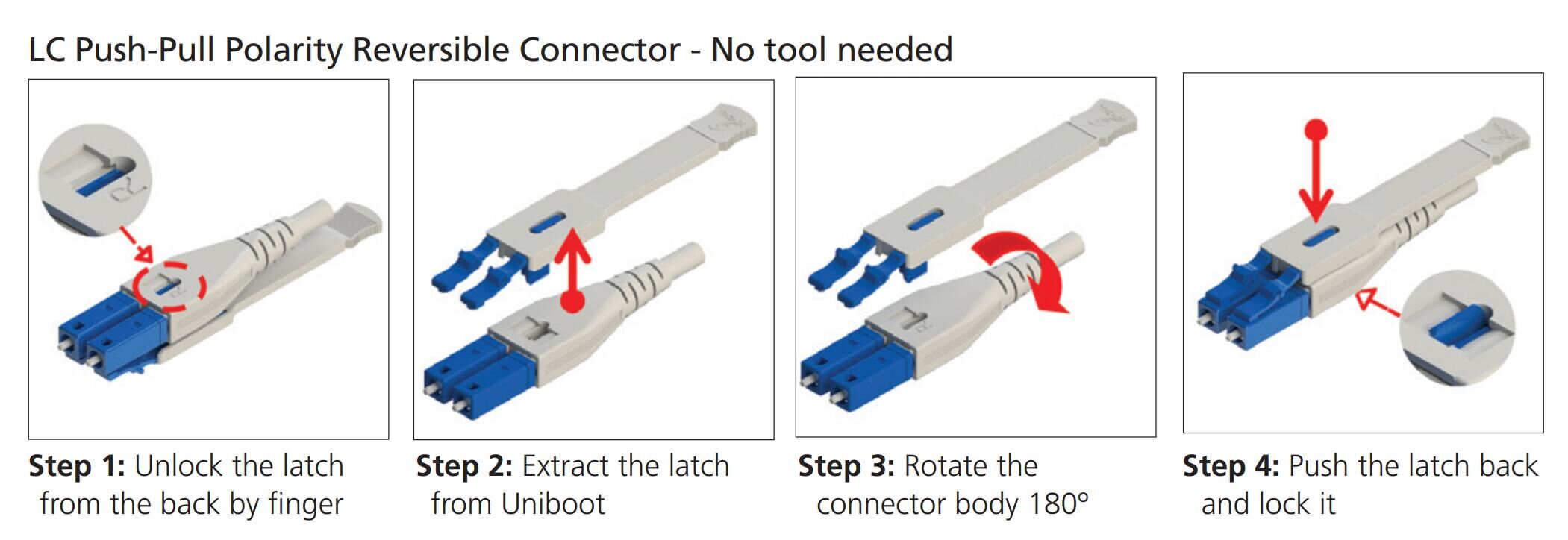

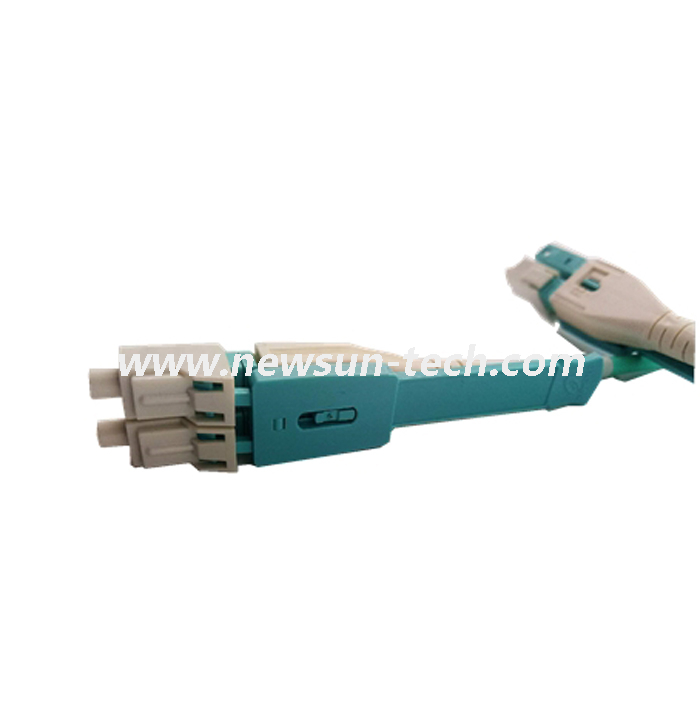

LC Uniboot Push-Pull (Switch Polarity) Connector
Application
1.Data Centers
2.Local Area Networks
3.High-Density Applications
4.Interconnects
5.Cross-connects
Patch cord versions
| Jumper tolerance requirement | |
| Overall length (L) （M） | length of tolerance（CM） |
| 0＜L≤20 | +10/-0 |
| 20＜L≤40 | +15/-0 |
| L＞40 | +0.5%L/-0 |
| Fiber account | Nominal Weight (kg/km) | Max.Crush Resistance (N/100mm) | Min.Bending Radius(mm) | |||||
| OD(mm) | Max.tensile Strength(N) | |||||||
| Short-term | Long-term | Short-term | Long-term | Dynamic | Static | |||
| 2 | 3.0±0.15 | 7.5 | 150 | 80 | 500 | 150 | 20D | 10D |
| Parameter | |||
| Item | Single mode | Multimode | Reference |
| Insertion loss | Typical value≤0.15dB ; Maximum≤0.30 | Typical value≤0.15dB ; Maximum≤0.30 | IEC 61300-3-34 |
| Return loss | ≥ 50dB (UPC) | ≥30dB (UPC) | IEC 61300-3-6 |
End-Face Geometry
| Item | UPC (Ref: IEC 61755-3-1) | APC (Ref: IEC 61755-3-2) |
| Radius of curvature (mm) | 7 to 25 | 5 to 12 |
| Fiber height (nm) | -100 to 100 | -100 to 100 |
| Apex offset (μm) | 0 to 50 | 0 to 50 |
| APC angle (°) | / | 8° ±0.2° |
| Key error (°) | / | 0.2° max |
End-Face Qualty (SM)
| Zone | Range (μm) | Scratches | Defects | Reference |
| A: Core | 0 to 25 | None | None | |
| B: Cladding | 25 to 115 | None | None | |
| C: Adhesive | 115 to 135 | None | None | |
| D: Contact | 135 to 250 | None | None | IEC 61300-3-35:2015 |
| E: Rest of ferrule | None | None | ||
End-Face Qualty (MM
)
| Zone | Range (μm) | Scratches | Defects | Reference |
| A: Core | 0 to 65 | None | None | |
| B: Cladding | 65 to 115 | None | None | |
| C: Adhesive | 115 to 135 | None | None | |
| D: Contact | 135 to 250 | None | None | IEC 61300-3-35:2015 |
| E: Rest of ferrule | None | None | ||
Mechanical Characteristics
| Test | Conditions | Reference |
| Endurance | 500 matings | IEC 61300-2-2 |
| Vibration | Frequency: 10 to 55Hz, Amplitude: 0.75mm | IEC 61300-2-1 |
| Cable retention | 100N (patch cable); 5N (pigtail) | IEC 61300-2-4 |
| Strength of coupling mechanism | 80N for 2 to 3mm cable | IEC 61300-2-6 |
| Cable torsion | 15N for 2 to 3mm cable | IEC 61300-2-5 |
| Fall | 10 drops, 1m drop height | IEC 61300-2-12 |
| Static lateral load | 1N for 1h (patch cable); 0.2N for 5min (pigtail) | IEC 61300-2-42 |
| Cold | -25°C, 96h duration | IEC 61300-2-17 |
| Dry heat | +70°C, 96h duration | IEC 61300-2-18 |
| Change of temperature | -25°C to +70°C, 12 cycles | IEC 61300-2-22 |
| Humidity | +40°C at 93%, 96h duration | IEC 61300-2-19 |
LC Uniboot Push-Pull (Switch Polarity) Connector
Application
1.Data Centers
2.Local Area Networks
3.High-Density Applications
4.Interconnects
5.Cross-connects
Patch cord versions
| Jumper tolerance requirement | |
| Overall length (L) （M） | length of tolerance（CM） |
| 0＜L≤20 | +10/-0 |
| 20＜L≤40 | +15/-0 |
| L＞40 | +0.5%L/-0 |
| Fiber account | Nominal Weight (kg/km) | Max.Crush Resistance (N/100mm) | Min.Bending Radius(mm) | |||||
| OD(mm) | Max.tensile Strength(N) | |||||||
| Short-term | Long-term | Short-term | Long-term | Dynamic | Static | |||
| 2 | 3.0±0.15 | 7.5 | 150 | 80 | 500 | 150 | 20D | 10D |
| Parameter | |||
| Item | Single mode | Multimode | Reference |
| Insertion loss | Typical value≤0.15dB ; Maximum≤0.30 | Typical value≤0.15dB ; Maximum≤0.30 | IEC 61300-3-34 |
| Return loss | ≥ 50dB (UPC) | ≥30dB (UPC) | IEC 61300-3-6 |
End-Face Geometry
| Item | UPC (Ref: IEC 61755-3-1) | APC (Ref: IEC 61755-3-2) |
| Radius of curvature (mm) | 7 to 25 | 5 to 12 |
| Fiber height (nm) | -100 to 100 | -100 to 100 |
| Apex offset (μm) | 0 to 50 | 0 to 50 |
| APC angle (°) | / | 8° ±0.2° |
| Key error (°) | / | 0.2° max |
End-Face Qualty (SM)
| Zone | Range (μm) | Scratches | Defects | Reference |
| A: Core | 0 to 25 | None | None | |
| B: Cladding | 25 to 115 | None | None | |
| C: Adhesive | 115 to 135 | None | None | |
| D: Contact | 135 to 250 | None | None | IEC 61300-3-35:2015 |
| E: Rest of ferrule | None | None | ||
End-Face Qualty (MM
)
| Zone | Range (μm) | Scratches | Defects | Reference |
| A: Core | 0 to 65 | None | None | |
| B: Cladding | 65 to 115 | None | None | |
| C: Adhesive | 115 to 135 | None | None | |
| D: Contact | 135 to 250 | None | None | IEC 61300-3-35:2015 |
| E: Rest of ferrule | None | None | ||
Mechanical Characteristics
| Test | Conditions | Reference |
| Endurance | 500 matings | IEC 61300-2-2 |
| Vibration | Frequency: 10 to 55Hz, Amplitude: 0.75mm | IEC 61300-2-1 |
| Cable retention | 100N (patch cable); 5N (pigtail) | IEC 61300-2-4 |
| Strength of coupling mechanism | 80N for 2 to 3mm cable | IEC 61300-2-6 |
| Cable torsion | 15N for 2 to 3mm cable | IEC 61300-2-5 |
| Fall | 10 drops, 1m drop height | IEC 61300-2-12 |
| Static lateral load | 1N for 1h (patch cable); 0.2N for 5min (pigtail) | IEC 61300-2-42 |
| Cold | -25°C, 96h duration | IEC 61300-2-17 |
| Dry heat | +70°C, 96h duration | IEC 61300-2-18 |
| Change of temperature | -25°C to +70°C, 12 cycles | IEC 61300-2-22 |
| Humidity | +40°C at 93%, 96h duration | IEC 61300-2-19 |
