Waterproof Fiber Optic Mini SC Reinforced FTTA Patch Cord

Product name: Mini SC Reinforced FTTA Patch Cord
Connector type:SC.FTTA
Fiber cable:5mm
sharethis sharing button
  • FTTA Patch cord

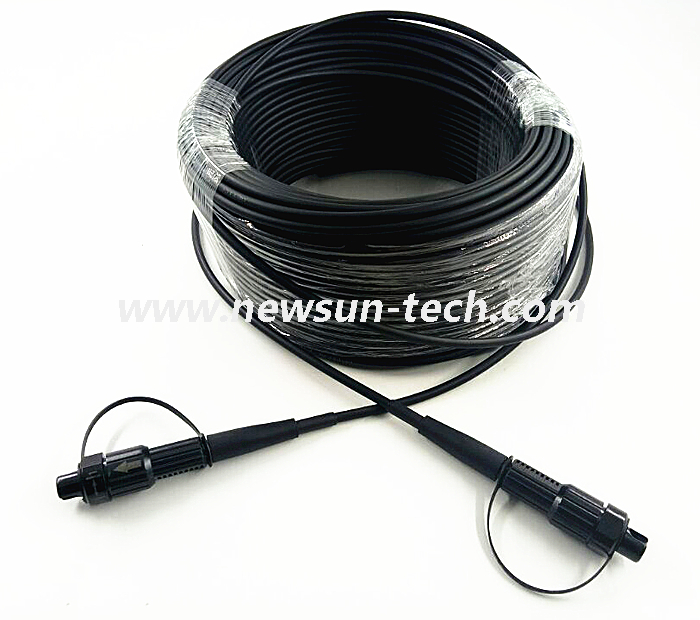

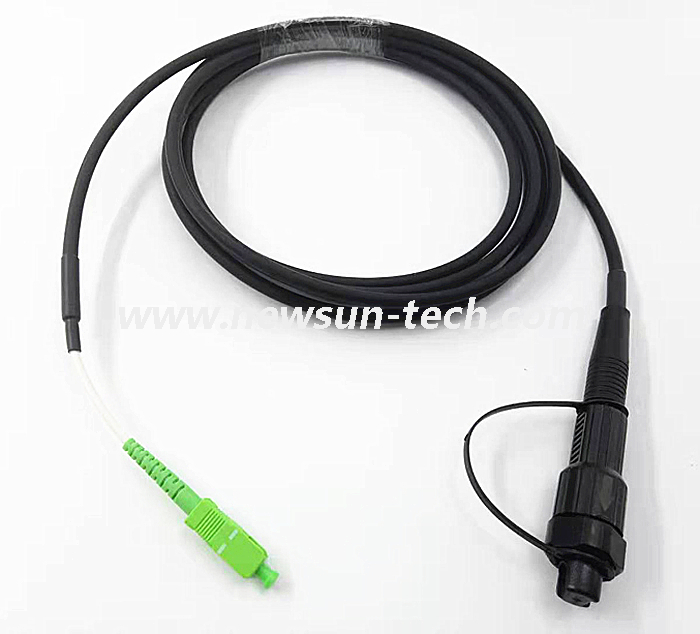

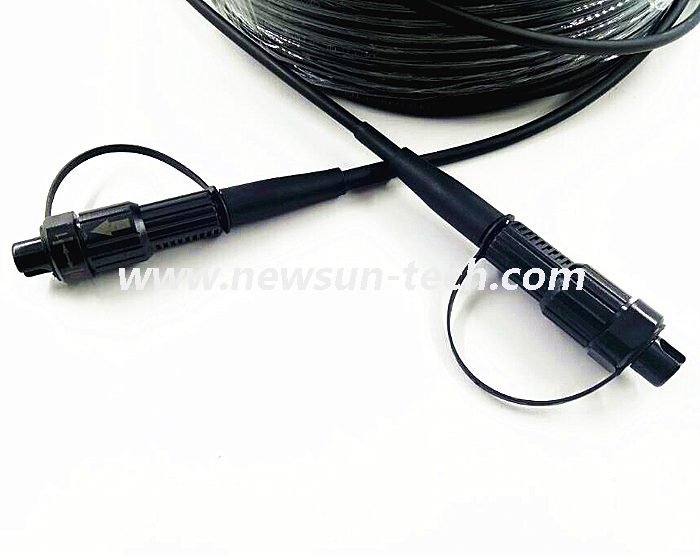

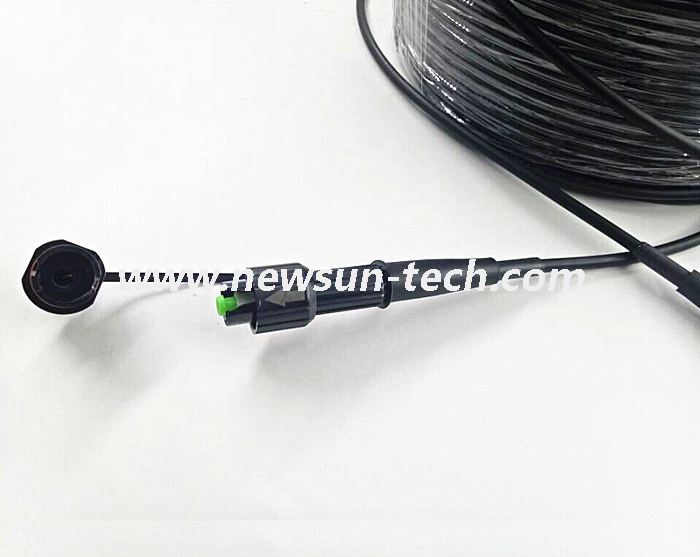

Waterproof Mini SC Reinforced FTTA Patch cord 5mm

MINI-SC waterproof reinforced connector is a small high waterproof SC single core waterproof connector. Built-in SC connector core, to better reduce the size of the waterproof connector. It is made of special plastic shell (which is resistant to high and low temperature, acid and alkali corrosion resistance, anti-UV) and auxiliary waterproof rubber pad, its sealing waterproof performance up to IP67 level. The unique screw mount design is compatible with the fiber optic waterproof ports of Huawei equipment ports. Suitable for 3.0-5.0mm single-core round cable or FTTH fiber access cable.

Fiber Parameters

No. Items Unit Specification
1 Mode Field Diameter 1310nm um G.657A2
1550nm um
2 Cladding Diameter um 8.8+0.4
3 Cladding Non-Circularity % 9.8+0.5
4 Core-Cladding Concentricity Error um 124.8+0.7
5 Coating Diameter um ≤0.7
6 Coating Non-Circularity % ≤0.5
7 Cladding-Coating Concentricity Error um 245±5
8 Cable Cutoff Wavelength um ≤6.0
9 Attenuation 1310nm dB/km ≤0.35
1550nm dB/km ≤0.21
10 Macro-Bending Loss 1turn×7.5mm radius @1550nm dB/km ≤0.5
1turn×7.5mm radius @1625nm dB/km ≤1.0

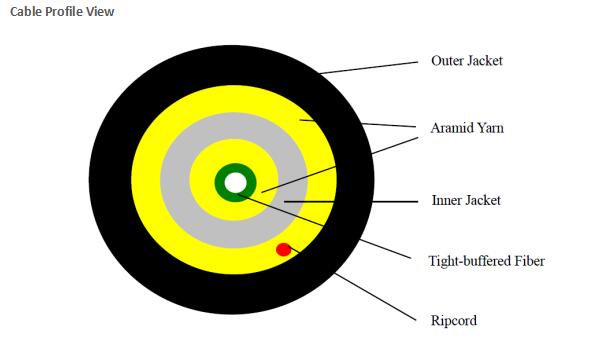

fiber cable

Cable Parameters

Item Specifications
Fiber Count 1
Tight-buffered Fiber Diameter 850±50μm
Material PVC
Color White
Cable subunit Diameter 2.9±0.1 mm
Material LSZH
Color White
Jacket Diameter 5.0±0.2mm
Material LSZH
Color Black
Strength member Aramid Yarn


 Spiral clamping mechanism ensures long-term reliable connection

 Guide mechanism, can be blinded with one hand, simple and quick, connect and install

 Seal design: It is waterproof, dust-proof, anti-corrosion and so on.

 Compact size, easy to operate, durable

 Through the wall seal design

 Reduce welding, connect directly to achieve interconnection


 Fiber optic communications in harsh outdoor environments

 Outdoor communication equipment connection

 Huawei waterproof fiber equipment SC port

 Remote wireless base station

 FTTx wiring project

Mechanical and Environmental Characteristics

Tension(Long Term)N150
Tension (Short Term)N300
CrushLong TermN/10cm200
CrushShort TermN/10cm1000
Min. Bend RadiusDynamicMm20D
Min. Bend RadiusStaticmm10D
Operating Temperature-20+60
Storage Temperature-20+60

1 . We offer competitive price for fiber optic patch cables, and etc;

2 . Strict QC system and high quality products;

3 . Low courier international shipping cost;

4 . Custom fiber patch cable for special applications;

5 . Fast delivery for bulk fiber optic cable;

Features & Benefits

  • Integrity

Terminations are designed and tested to Guarantee: 0.2 dB insertion loss or less, exceeding industry standards;

Supports industry standard singlemode and multimode connectors;

Singlemode and multimode and hybrid cables available;

  • Protection

Each fiber jumper is individually covered with an outer jacket for added protection;

Wide variety of jacket sizes for all applications, 3 mm, 2 mm, 1.6 mm, 1.2 mm, 900 μm;

Riser and Plenum rated jacket options available;

Available in simplex, dual-round and dual zip-cord configurations;

  • Access

Compact jacket design minimizes cable pile up;

Industry standard terminations include ST, SC, FC, LC;

  • Investment

Indoor Fiber Jumper Assemblies offer an economical solution for deploying fiber in any optical network;

Environmentally stable, low-insertion loss, minimal back reflection;

All assemblies are 100% tested;
