PDLC-LC/UPC Outdoor GYFJH Cable (2cores) Connector Patch Cord

Product name: Outdoor Patchcord
Connector type:PDLC-LC/UPC
Fiber:2 core
sharethis sharing button

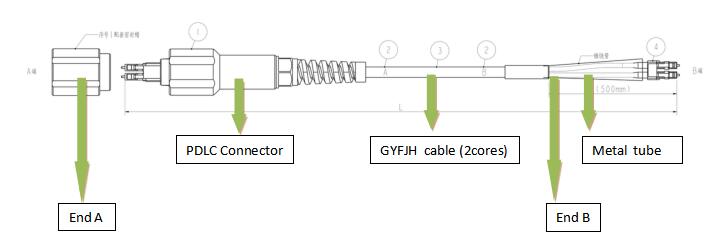

Optical cable assembly, PDLC/DLC, GYFJH,2B.3.SM 2Core. Outdoor


one single mode fibercable

Item Unit Specification
Attenuation dB/km 1310nm≤0.4
Dispersion Ps/ 1285~1330nm≤3.5
Zero dispersion wavelength Nm 1300~1324
Zero dispersion slope Ps/ ≤0.095
Fiber cutoff wavelength   Nm ≤1260
Mode field diameter Um 9.2±0.5
Mode field concentricity Um <=0.8
Cladding diameter um 125±1.0
Cladding non-circularity % ≤1.0
Coating/cladding concentricity error Um ≤12.5
Coating diameter um 245±10
bending, dependence        induced attenuation 1550nm,  1turns,32mm diameter  100rums,60mm diameter ≤0.5 db
Proof test kpsi ≥100

Connector Specification

Connector type PDLC-LC/UPC
Insertion Loss <=0.3db
Return Loss >=50db
IP level IP67
Operating wavelength 1310nm, 1550nm
Test wavelength 1310nm, 1550nm
Repeatability <=0.1
Interchangeability <=0.2dB
Durability <=0.2dB
Fiber Length 1m, 2m….. any length optional.
Length and tolerance 10cm
Operating Temperature -40C ~ +85C
Storage Temperature -40C ~ +85C

Mainly used in wireless base station horizontal and vertical cabling


* Good mechanical and environmental characteristics;

* Flame retardant characteristics meet the requirements of relevant standards;

* The mechanical characteristics of jacket meet the requirements of relevant standards;

* Soft, flexible, water blocked, UV resistant, easy to lay and splice, and with big capacity data transmission;

* Meet various requirements of market and clients

*Cable Parameters

Fiber CountCable DimensionCable WeightTensileCrushMin. Bend RadiusRange of Temperature


Long TermShort TermLong TermShort TermDynamicStatic
Note: 1. All the values in the table, which are for reference only, are subject to change without notice;

2. The cable dimension and weight are subject to the simplex cable of 2.0 outer diameter;

3. D is outer diameter of the round cable;

1 . We offer competitive price for fiber optic patch cables, and etc;

2 . Strict QC system and high quality products;

3 . Low courier international shipping cost;

4 . Custom fiber patch cable for special applications;

5 . Fast delivery for bulk fiber optic cable;

Features & Benefits

  • Integrity

Terminations are designed and tested to Guarantee: 0.2 dB insertion loss or less, exceeding industry standards;

Supports industry standard singlemode and multimode connectors;

Singlemode and multimode and hybrid cables available;

  • Protection

Each fiber jumper is individually covered with an outer jacket for added protection;

Wide variety of jacket sizes for all applications, 3 mm, 2 mm, 1.6 mm, 1.2 mm, 900 μm;

Riser and Plenum rated jacket options available;

Available in simplex, dual-round and dual zip-cord configurations;

  • Access

Compact jacket design minimizes cable pile up;

Industry standard terminations include ST, SC, FC, LC;

  • Investment

Indoor Fiber Jumper Assemblies offer an economical solution for deploying fiber in any optical network;

Environmentally stable, low-insertion loss, minimal back reflection;

All assemblies are 100% tested;
