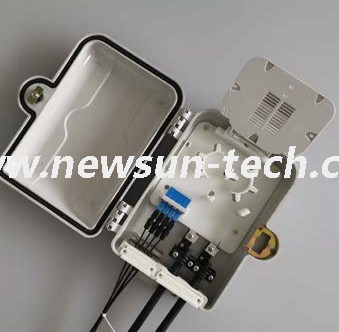

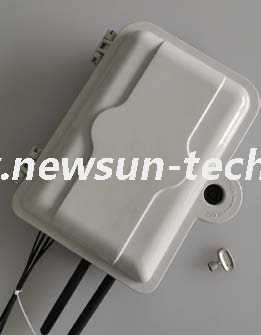

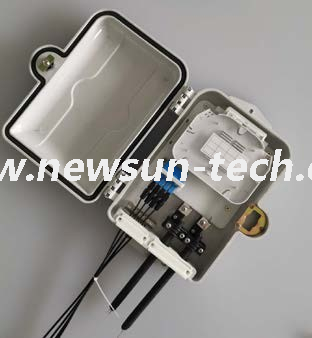

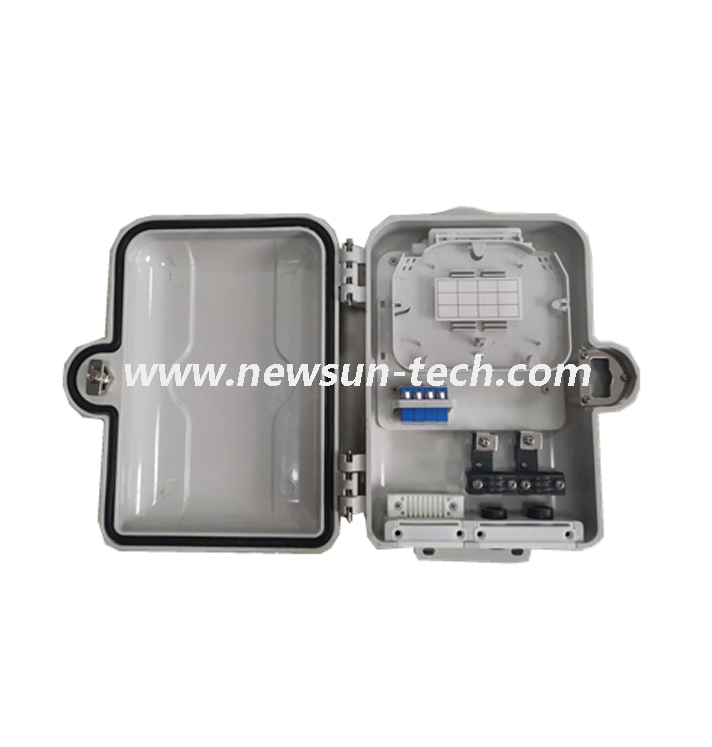

NSM-1604T Outdoor 8 Core Waterproof FTTH Fiber Optic Junction Box

Product name:optical fiber junction box
Port:8
Size( mm ):242*308*82 mm
Splice capacity:Twelve (12) single type splice
Availability:
Quantity:
  • NSM-1604T

  • NEWSUN TECH

Fiber optic junction box


NSM-1604T As an optical access for FTTH, an optical fiber distribution point (FDP) can implement connection and distribution of backbone cables and subscriber cables. It is used in splicing or mechanical splicing and distribution of fibers. These is an Eight (8)ports subscriber optical FDP with compact design. The material for enclosure is SMC/FRP. It provides a protected access point between the distribution cable and drop cable. To simplify network installation and maintenance, FDP box provides an ideal flexible configuration. It supports Two (2) ports for Distribution Cable side

and micro-splitter could be built-in. The Pass-through cable ports also provide mid- span function with tap-out capability. The FDP comply with IP65 protection grade where it is useful in harsh environment where dust-proof and water-proof is a pre- requisite.

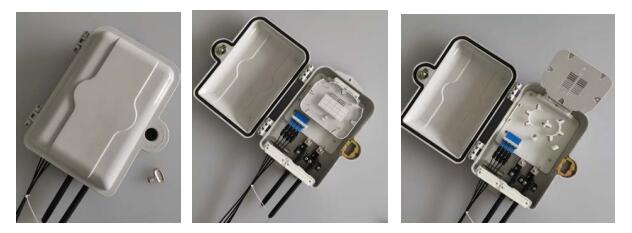

fiber junction box


Dimension   242 x 308 x 82 mm
Weight 2.1 kg
Splice capacity Twelve (12) single type splice
Splitter type 900um tight buffer, micro-splitter type Dimension 50 ± 10 mm (L) x 4 ± 0.5 mm (H) x 7 ± 0.5 mm (W).
Number of splitters 1 slot
Colour Grey RAL7035
Operating Temperature -40~+75 °C
Material SMC/FRP
Flame retardant performance UL94 V-0
Outdoor UV Suitability performance UL746C-f2
Protection Level IP-65


Waterproof FTTH Fiber Optic Terminal Box


*The SMC/FRP material of FDP is waterproof design with IP-65 Protection level and flammability rating at UL94 V-0.

*These SMC/FRP FDP is over 25 years Long Lifespan mechanism characteristic with minimum f2 rating when tested for UV test under UL 746C.

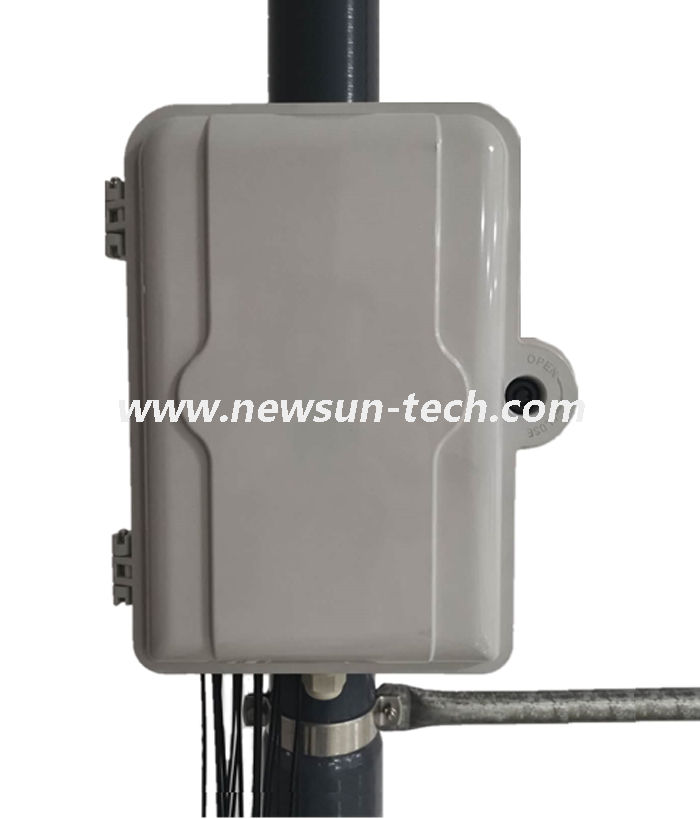

*Support both aerial pole and wall mounted deployment accordance with IEC 61753-1 Table A.1 (Aerial environment) or equivalent.

*The fully terminated Aerial and Wall-mounted Fiber Distribution Box designed based on at least IP55 of IEC 60529/ EN 60529 requirements.

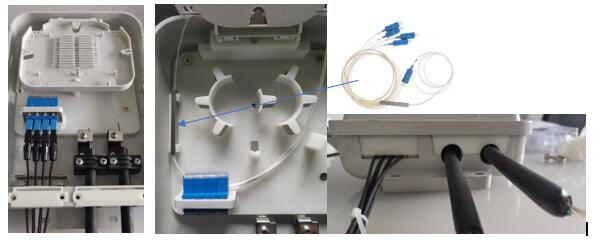

optical fiber box

Easy to maintain and extend the capacity, require minimal parts assembly during installation or restoration works on site :

*The FDP cover is hinged type for easy removal and placement. It also labelled with the approved standard laser caution sign in accordance with IEC 60825-1 at the enclosure.

*Integrated Two (2) ports for distribution cable side. The pass-through cable ports and mid-span function ports can fit the diameter range of 10.35mm to 13.05mm of cables for each port.

*The (8) ports subscriber drop cable ports can fit the nominal diameter size of 2mm x 3mm of Drop Cables and allow SC connectors to pass-through.

*Four (4) terminations of SC adapter tagged with an identification number

*The FDP is provided with fibre splice organizer tray for splicing the distribution fibre core to the splitter input and pass through core. Twelve (12) single type splice protection sleeve on the tray.

*The fibre splice organizer tray can accommodate at least 1.5mtr Distribution cable in length for realignment and re-joining.

*Minimum 30mm bending radius allowed for the fibre coil inside the fibre splice organizer tray.

*Fibre slack from Distribution Cable and input splitter is in a separate coil in the same fibre splice organizer tray for installation and maintenance purpose.

*The fibre splice organizer tray has a mechanism to fix the position of the loose tube or protection tube.

*The FDB is equipped with strain relief bar at Distribution Cable port to grip the distribution cable's FRP

*Clamping mechanism is provided in both distribution and drop cable port

*Any new subscriber drop cable is able to be installed without the need to remove existing terminated cables or affecting existing Drop Cable patching. The Four (4) ports SC adapter panel is tagged with an identification number.


certificate of conformity

Certificate of Conformity


Quality management system certificationQuality Management System


certification for sale transport

Certification for Sale Transport

ISO 9001

ISO 9001


SGS

SGS


Patent certificate

                     Patent Certificate




Fiber termination box contains the shell, the internals (supporting frame, set fiber disc, fixing device) and optical fiber joint protective element. Prominent advantages of fiber termination box lie in efficient cable-fixing, welding and its protective role in machinery of the optical fiber.


A insulation is always demanded between cable metal components and cable terminal box shell in a fiber termination box, which provides space for cable terminal and remained fiber storage. In addition, fiber termination box also facilitate the installation of different occasions since it is easy to access, which turns out to be time and cost saving.



Application

Fiber termination box is universally used in telephone, agricultural telephone network system, data and image transmission system, CATV cable television series, indoor cable through force access and branch connection. Fiber termination box is available for the distribution and termination connection for various kinds of fiber optic systems, especially suitable for mini-network terminal distribution, in which the optical cables, patch cores or pigtails are connected. In addition to that, fiber termination box can be applied to joint fiber pigtail, protect fiber optic splices and share out the connectivity to individual customers.
