NS-NYT08 400X Handheld Fiber Optic Inspection Probe Microscope for LC/SC/FC Connectors

Product name:400X Handheld Fiber Optic Inspection Probe Microscope
Part NO: NS-NYT08
Optical Magnification:400X (9” monitor); 250x (3.5”monitor)
Display Screen:3.5-inch TFT display
Availability:
Quantity:
  • NS-NYT08
  • Newsun tech

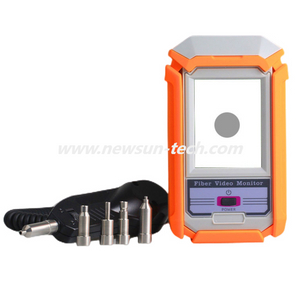

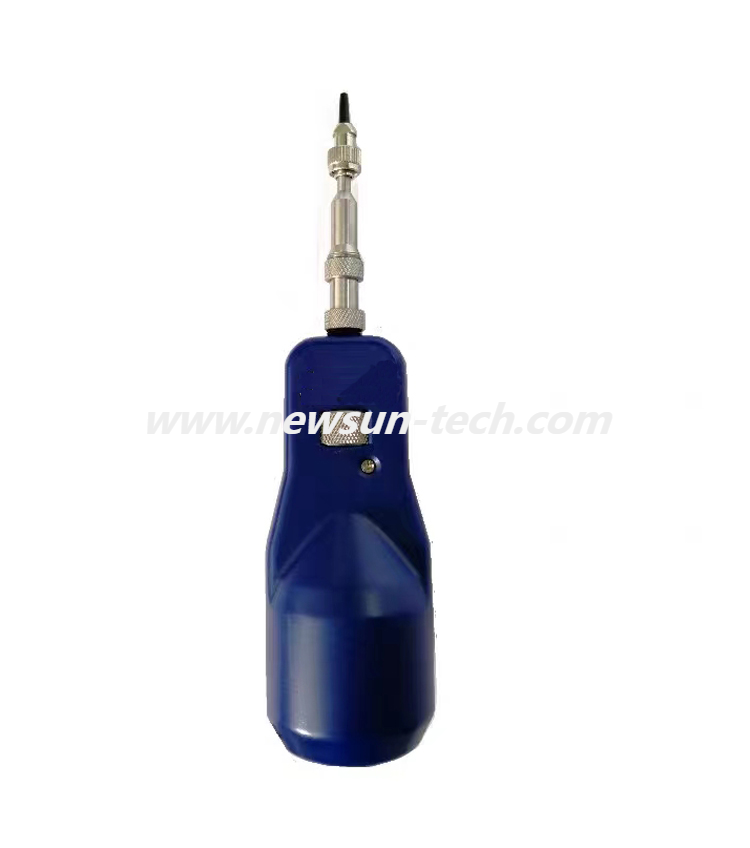

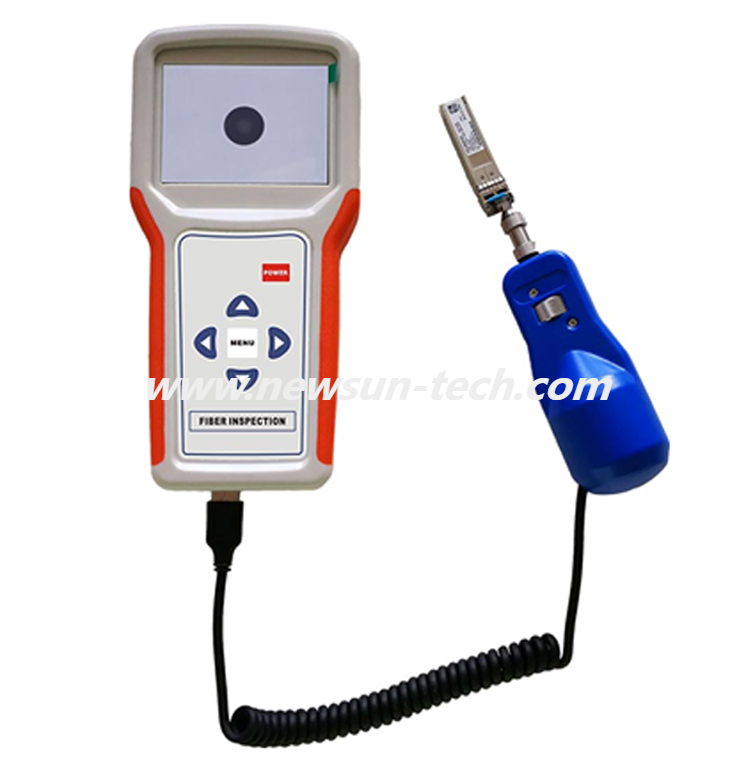

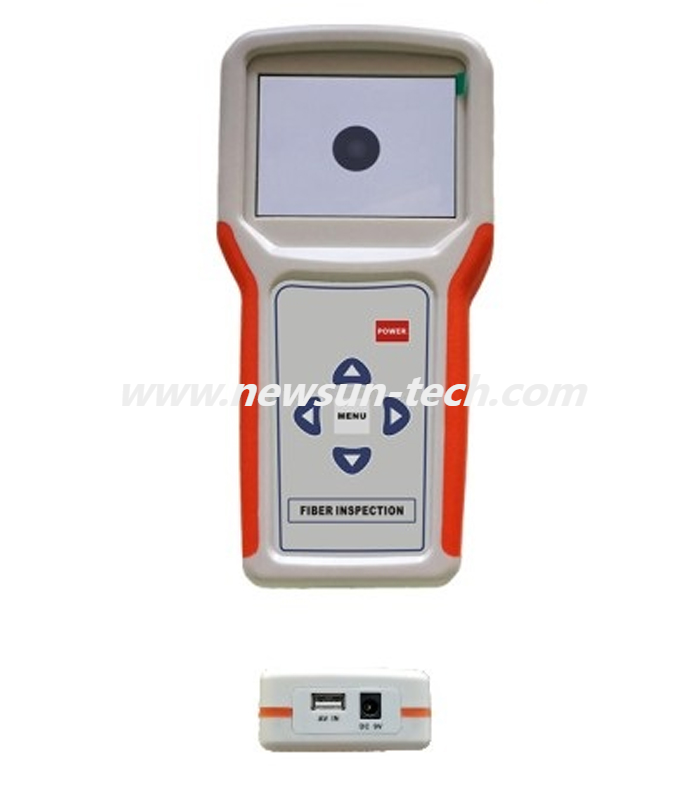

400X Handheld Fiber Optic Inspection Probe Microscope

Probe Microscope offers digital function to connect the laptop directly without additional power supply. With specific driver and software, end face image can be video/captured/stored real-time

Coaxial illumination provides crisp, clear view of fiber end face conditions

Portable and easily in-hand, providing a completely convenience for inspection

Unique optics architecture and comprehensive selection of precision inspection tips

Display 3.5” TFT-LCD, 320 x 240 pixels
Dimensions  170mm x 100mm x 40mm
Weigh(including battery) 200g
Power Supply  Replaceable  battery or universal input 5V DC adapter
Battery  Rechargeable  Li-Ion, 3.7V / 1450mAh
Battery life  > 3 hours (continuous)
Charger/AC adapter  US, EU, UK and Australian versions available
Image  / Video Storage  8GB SD card
Operating Temperature -20°C to 50°C
Storage  Temperature  -30°C to 70°C


FC/SC/ST/E2000/LC/MU/MPO compatible

3.5-inch TFT display

Up to 400x & 250x overall magnification

4x digital zoom

SD card storage up to 8G

Snapshot, video recording and playback

PC plug-and-play

Output can use USB cable


fiber inspectionfiber inspection probeMicroscope

Standard Accessories
Inspection Probe x 1
Mainframe x 1
AC power adapter/battery charger x 1
Rechargeable battery pack x 1
2.5mm tip for PC male connectors x 1
1.25mm tip for PC male connectors x 1
Tip for SC / FC PC female connectors x 1
Tip for LC PC female connectors x 1
Tip box x 1
User Manual x 1

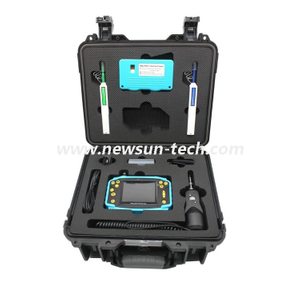

Carrying case x 1

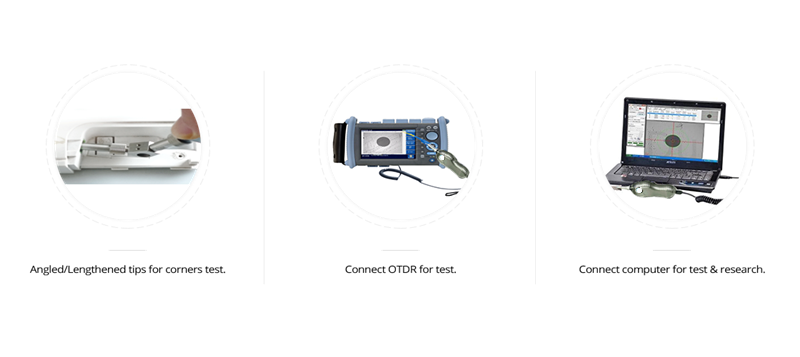

Used in different area, hard- to-reach corner, connect with OTDR and computer for test and research

Readily carried with compact size and light weight, providing you a completely convenience for checking.fiber optic microscope


certificate of conformity

Certificate of Conformity


Quality management system certificationQuality Management System


certification for sale transport

Certification for Sale Transport

ISO 9001

ISO 9001


SGS

SGS


Patent certificate

                     Patent Certificate





It is a fact that fiber end-face contamination is a major cause of network outages and downtime. Newsun Tech fiber inspection products enable network technicians and other personnel to safely inspect fiber endfaces for contamination and verify the effectiveness of fiber cleaning procedures.


Newsun Tech offers the best solutions for manufacturing fiber optic cable assemblies. Almost as critical to the equipment used to manufacture fiber optic assemblies are the tools used to test and inspect. At Newsun Tech, we have focus on both the Production and the Field Test and inspection. Newsun Tech works with our customers to make sure their manufacturing procedures produce the highest quality jumpers at the most effective cost.


Newsun Tech focuses on several areas to ensure industry-leading solutions and best practices including: Visual fault locator, fiber optical power meter, Fiber Optic Connector handle test tools Kit, 250X/400X Handheld Fiber Optic Inspection Microscope, and etc..


Production Test and Inspection is generally used in lab type settings where the systems remain stationary. They are built to handle large volumes and typically test to a higher degree of accuracy. This equipment is not only used to provide test reports for customers, but it also allows for the collection of large segments of data that can be reviewed for improvements in the production processes.


Field Test and Inspection pieces of test equipment are designed to be highly portable with internal power supplies and smaller footprints. They are well suited for troubleshooting, mapping and certifying fiber optic networks during and after installation in the field.


We provide the highest quality equipment backed with industry-leading technical support and exceptional customer service. With cutting edge equipment, automation, and process controls.



Critical Areas in the Test STEP

Accurate Test Results: Improper test station setup can and will result in inaccurate testing results. “False Negatives” needlessly increase your rework, while “False Positives” potentially send non-conforming product to your customers.

Multimode Cable Assembly Testing: Proper mode-conditioning is essential to ensure accurate Multimode cable assembly testing.


Test Lead Quality: Essential and often overlooked. Consider your Test Leads to be part of your test equipment, and should be made to the highest quality possible — most importantly, Test Lead connectors should have excellent core-to-ferrule-OD concentricity.
