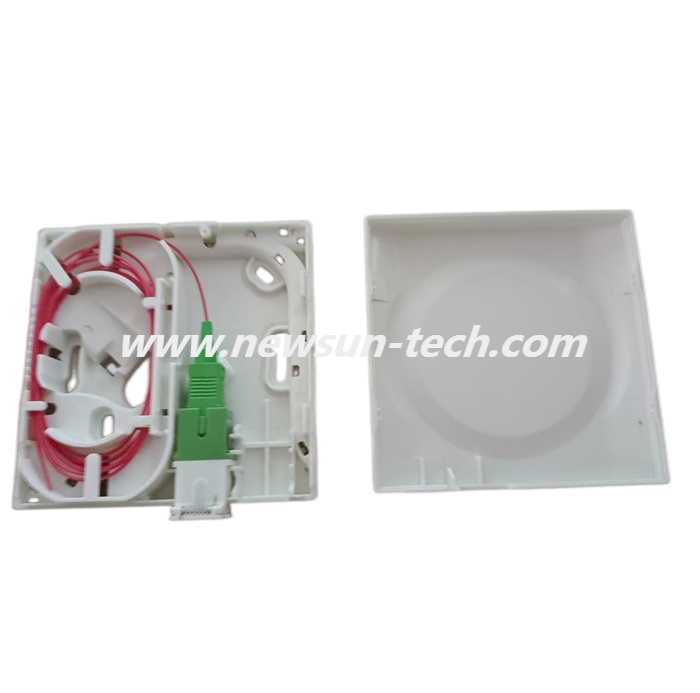

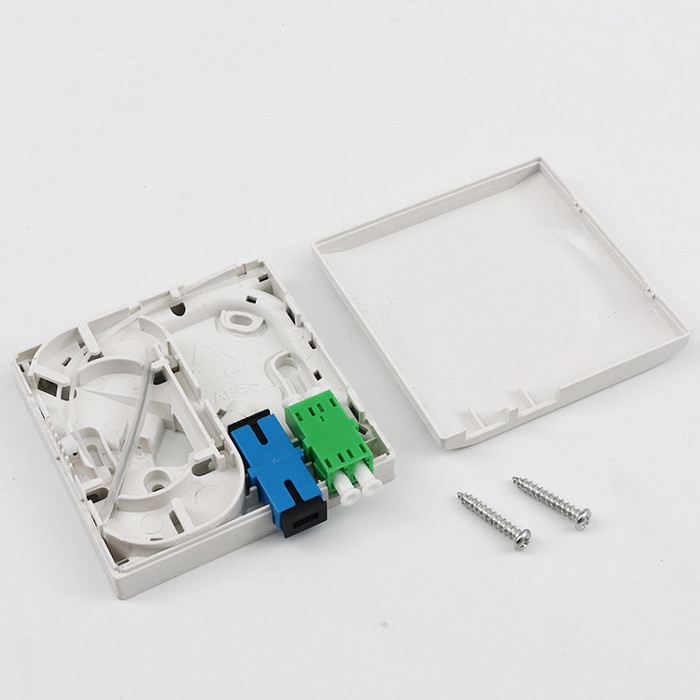

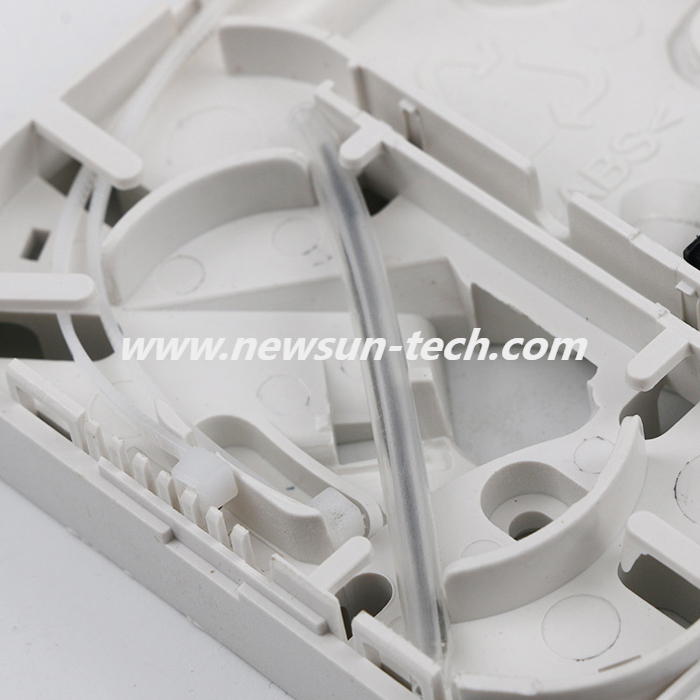

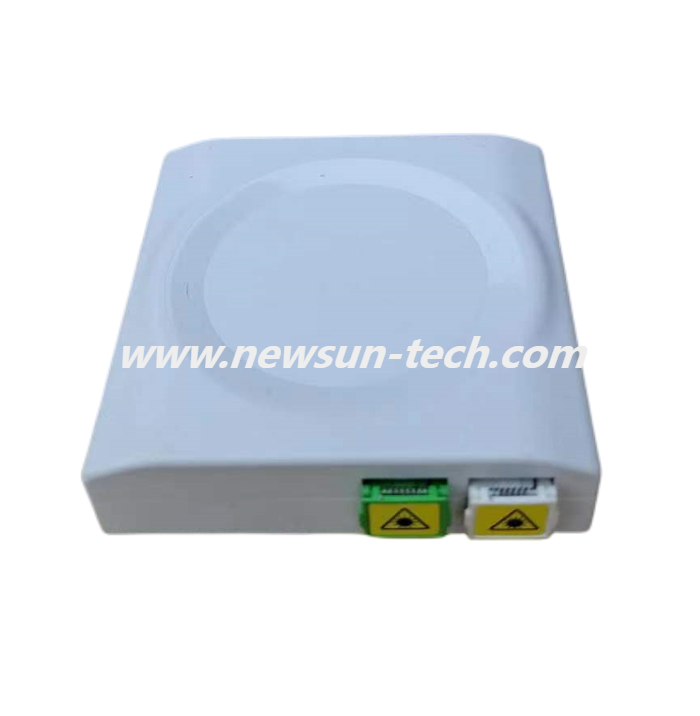

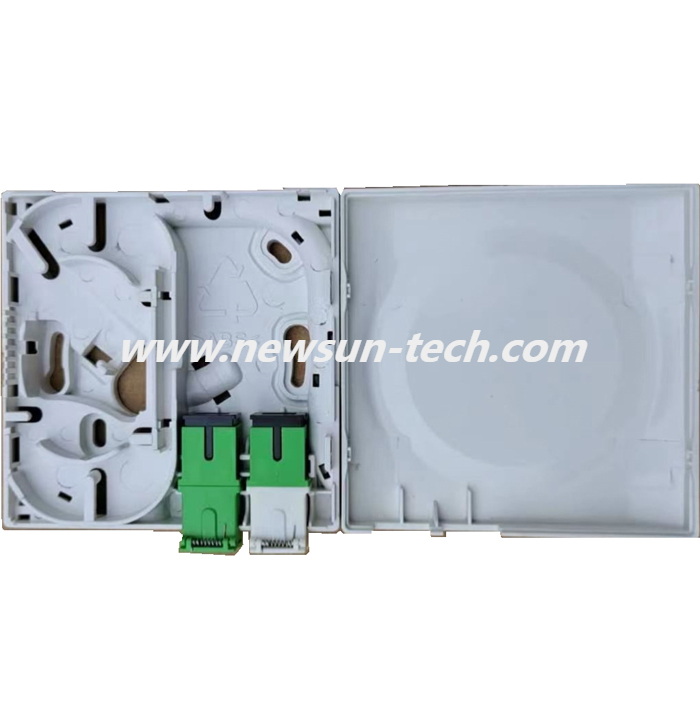

NS-TB414 2 Port FTTH Indoor Fiber Optic Faceplate

NS-TB414 is used in the home or work area to complete the access and port output of the dual-core optical fiber, which can fully meet the requirements of the bending radius of the fiber and protect the incoming and outgoing optical fiber to provide safe protection for the core. Appropriate radius of curvature, allowing a small number of redundant fiber inventory, to achieve FTTD (fiber to the desktop) system applications.

Material: high-quality ABS engineering plastics are used, and the flame retardant grade can reach UL94V-0 according to the demand (conventional non-flame retardant), and all materials meet the ROHS standard/ T 926.1 - Specifications

Fiber termination box contains the shell, the internals (supporting frame, set fiber disc, fixing device) and optical fiber joint protective element. Prominent advantages of fiber termination box lie in efficient cable-fixing, welding and its protective role in machinery of the optical fiber.

A insulation is always demanded between cable metal components and cable terminal box shell in a fiber termination box, which provides space for cable terminal and remained fiber storage. In addition, fiber termination box also facilitate the installation of different occasions since it is easy to access, which turns out to be time and cost saving.

Application

Fiber termination box is universally used in telephone, agricultural telephone network system, data and image transmission system, CATV cable television series, indoor cable through force access and branch connection. Fiber termination box is available for the distribution and termination connection for various kinds of fiber optic systems, especially suitable for mini-network terminal distribution, in which the optical cables, patch cores or pigtails are connected. In addition to that, fiber termination box can be applied to joint fiber pigtail, protect fiber optic splices and share out the connectivity to individual customers.
