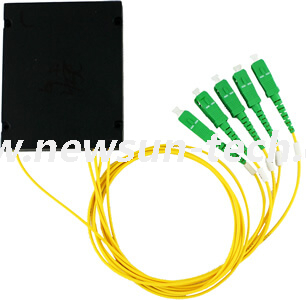

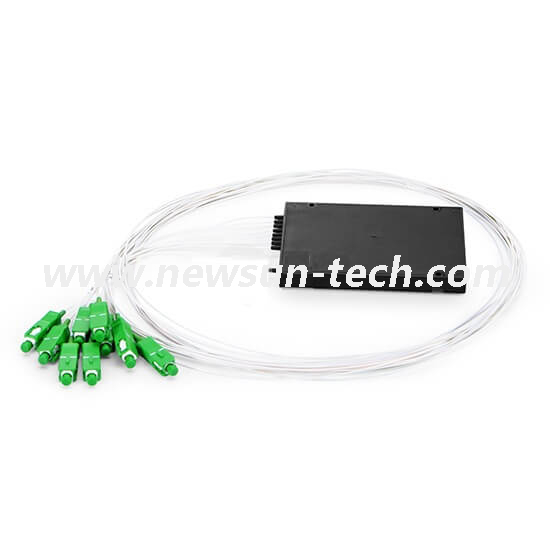

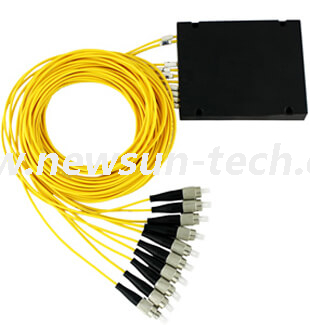

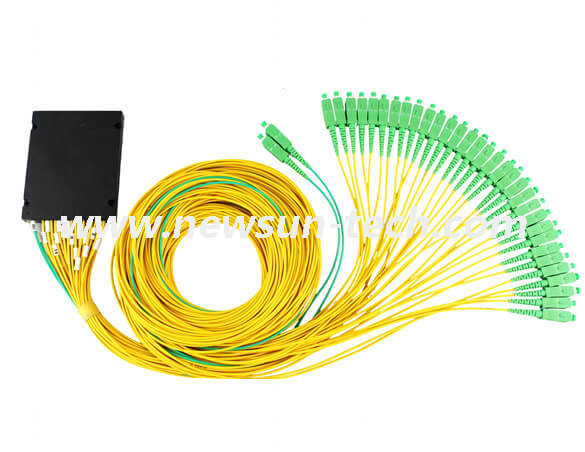

ABS box splitter is most commonly used in the PON networks. It provides the complete protection for inner optical components and cable, as well as designed for the convenient and reliable installation, but its volume is relatively large. It's mainly used for various connection and distribution products(outdoor fiber distribution box) or network cabinets.
Item | 1×2 | 1×4 | 1×8 | 1×16 | 1×32 | 1×64 |
Length*Width*Height | 100×80×10 | 100×80×10 | 100×80×10 | 120×80×18 | 120×80×18 | 120×80×18 |
(mm) | ||||||
Item | 2×2 | 2×4 | 2×8 | 2×16 | 2×32 | 2×64 |
Length*Width*Height | 100×80×10 | 100×80×10 | 100×80×10 | 120×80×18 | 120×80×18 | 120×80×18 |
(mm) |
Technical Specs for PLC Splitter with Connector
Item | 1x2 | 1x4 | 1x8 | 1x16 | 1x32 | 1x64 | 1x128 |
Fiber Type | G.657.A | ||||||
Working Wavelength | 1260nm~1650nm | ||||||
Standard Insertion Loss(dB) | ≤4.2 | ≤7.6 | ≤10.7 | ≤14.0 | ≤17.2 | ≤20.8 | ≤24.0 |
P-Grade Insertion Loss(dB) | ≤4.0 | ≤7.4 | ≤10.5 | ≤13.8 | ≤17.0 | ≤20.4 | ≤23.7 |
Uniformity(dB) | ≤0.6 | ≤0.8 | ≤0.8 | ≤1.0 | ≤1.5 | ≤2.0 | ≤2.0 |
PDL(dB) | ≤0.2 | ≤0.2 | ≤0.3 | ≤0.3 | ≤0.3 | ≤0.4 | ≤0.5 |
Wavelength Dependent Loss(dB) | ≤0.6 | ≤0.8 | ≤0.8 | ≤1.0 | ≤1.5 | ≤2.0 | ≤2.0 |
Return Loss(dB) | ≥50 | ||||||
Directivity(dB) | ≥55 | ||||||
Operating Temp.Gange | -40℃~+85℃ | ||||||
Note:The above parameter is for Splitter with connector.If w/o connector,insertion loss will reduce by 0.2dB. | |||||||
Item | 2x2 | 2x4 | 2x8 | 2x16 | 2x32 | 2x64 | 2x128 |
Fiber Type | G.657.A | ||||||
Working Wavelength | 1260nm~1650nm | ||||||
Standard Insertion Loss(dB) | ≤4.4 | ≤8.0 | ≤11.0 | ≤14.6 | ≤17.8 | ≤21.0 | ≤24.4 |
P-Grade Insertion Loss(dB) | ≤4.2 | ≤7.7 | ≤10.8 | ≤14.1 | ≤17.4 | ≤20.7 | ≤24.0 |
Uniformity(dB) | ≤0.8 | ≤1.0 | ≤1.2 | ≤1.5 | ≤1.8 | ≤2.0 | ≤3.0 |
PDL(dB) | ≤0.2 | ≤0.2 | ≤0.3 | ≤0.3 | ≤0.3 | ≤0.4 | ≤0.5 |
Wavelength Dependent Loss(dB) | ≤0.8 | ≤1.0 | ≤1.2 | ≤1.5 | ≤1.8 | ≤2.0 | ≤3.0 |
Return Loss(dB) | ≥50 | ||||||
Directivity(dB) | ≥55 | ||||||
Operating Temp.Gange | -40℃~+85℃ | ||||||
Note:The above parameter is for Splitter with connector.If w/o connector,insertion loss will reduce by 0.2dB. |
ABS box splitter is most commonly used in the PON networks. It provides the complete protection for inner optical components and cable, as well as designed for the convenient and reliable installation, but its volume is relatively large. It's mainly used for various connection and distribution products(outdoor fiber distribution box) or network cabinets.
Item | 1×2 | 1×4 | 1×8 | 1×16 | 1×32 | 1×64 |
Length*Width*Height | 100×80×10 | 100×80×10 | 100×80×10 | 120×80×18 | 120×80×18 | 120×80×18 |
(mm) | ||||||
Item | 2×2 | 2×4 | 2×8 | 2×16 | 2×32 | 2×64 |
Length*Width*Height | 100×80×10 | 100×80×10 | 100×80×10 | 120×80×18 | 120×80×18 | 120×80×18 |
(mm) |
Technical Specs for PLC Splitter with Connector
Item | 1x2 | 1x4 | 1x8 | 1x16 | 1x32 | 1x64 | 1x128 |
Fiber Type | G.657.A | ||||||
Working Wavelength | 1260nm~1650nm | ||||||
Standard Insertion Loss(dB) | ≤4.2 | ≤7.6 | ≤10.7 | ≤14.0 | ≤17.2 | ≤20.8 | ≤24.0 |
P-Grade Insertion Loss(dB) | ≤4.0 | ≤7.4 | ≤10.5 | ≤13.8 | ≤17.0 | ≤20.4 | ≤23.7 |
Uniformity(dB) | ≤0.6 | ≤0.8 | ≤0.8 | ≤1.0 | ≤1.5 | ≤2.0 | ≤2.0 |
PDL(dB) | ≤0.2 | ≤0.2 | ≤0.3 | ≤0.3 | ≤0.3 | ≤0.4 | ≤0.5 |
Wavelength Dependent Loss(dB) | ≤0.6 | ≤0.8 | ≤0.8 | ≤1.0 | ≤1.5 | ≤2.0 | ≤2.0 |
Return Loss(dB) | ≥50 | ||||||
Directivity(dB) | ≥55 | ||||||
Operating Temp.Gange | -40℃~+85℃ | ||||||
Note:The above parameter is for Splitter with connector.If w/o connector,insertion loss will reduce by 0.2dB. | |||||||
Item | 2x2 | 2x4 | 2x8 | 2x16 | 2x32 | 2x64 | 2x128 |
Fiber Type | G.657.A | ||||||
Working Wavelength | 1260nm~1650nm | ||||||
Standard Insertion Loss(dB) | ≤4.4 | ≤8.0 | ≤11.0 | ≤14.6 | ≤17.8 | ≤21.0 | ≤24.4 |
P-Grade Insertion Loss(dB) | ≤4.2 | ≤7.7 | ≤10.8 | ≤14.1 | ≤17.4 | ≤20.7 | ≤24.0 |
Uniformity(dB) | ≤0.8 | ≤1.0 | ≤1.2 | ≤1.5 | ≤1.8 | ≤2.0 | ≤3.0 |
PDL(dB) | ≤0.2 | ≤0.2 | ≤0.3 | ≤0.3 | ≤0.3 | ≤0.4 | ≤0.5 |
Wavelength Dependent Loss(dB) | ≤0.8 | ≤1.0 | ≤1.2 | ≤1.5 | ≤1.8 | ≤2.0 | ≤3.0 |
Return Loss(dB) | ≥50 | ||||||
Directivity(dB) | ≥55 | ||||||
Operating Temp.Gange | -40℃~+85℃ | ||||||
Note:The above parameter is for Splitter with connector.If w/o connector,insertion loss will reduce by 0.2dB. |

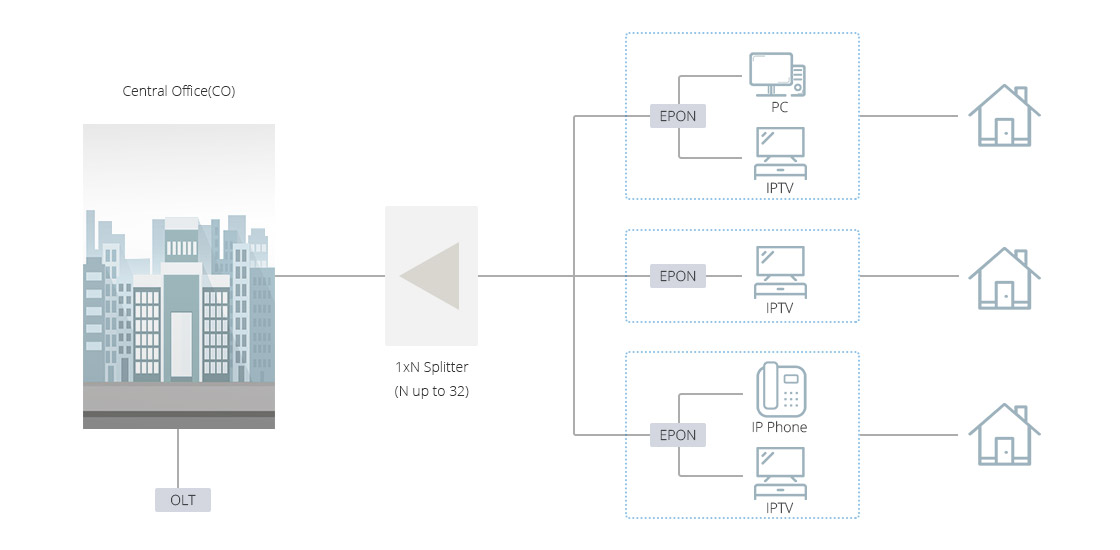

Planar lightwave circuit (PLC) splitter is a type of optical power management device that is fabricated using silica optical waveguide technology to distribute optical signals from Central Office (CO) to multiple premise locations.
*Low insertion loss, Low PDL and High reliability
*High return loss and Good repeatability
* Wide wavelength range
*Excellent channel-to-channel uniformity
Applications:
* LAN, WAN and Metro Networks
* FTTH project & FTTX Deployments
* CATV System
* GPON, EPON
* Fiber Optic Test Equipment
* Data-base Transmit Broadband Net
Planar lightwave circuit (PLC) splitter is a type of optical power management device that is fabricated using silica optical waveguide technology to distribute optical signals from Central Office (CO) to multiple premise locations.
*Low insertion loss, Low PDL and High reliability
*High return loss and Good repeatability
* Wide wavelength range
*Excellent channel-to-channel uniformity
Applications:
* LAN, WAN and Metro Networks
* FTTH project & FTTX Deployments
* CATV System
* GPON, EPON
* Fiber Optic Test Equipment
* Data-base Transmit Broadband Net

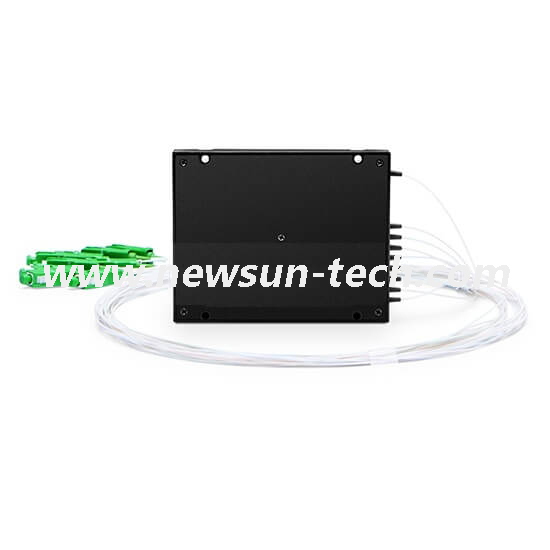

Fiber Splitter ABS Module Box with standalone structure, clearly fiber input and fiber out entrance, ABS PLC splitter can be used dircectly for splitting using.
Port | Fiber | Input Pigtail | Input Connector | Input Pigtail | Output Pigtail | Output | OutputPigtail | |
Length | Connector | Length | ||||||
PLC | 102=1x2 | 1=G657A | 1=250um | NE=None | 0=0.5m | 1=250um | NE=None | 0=0.5m |
104=1x4 | 2=G652D | Bare Fiber | SU=SC/UPC | 1=1m | Bare Fiber | SU=SC/UPC | 1=1m | |
108=1x8 | SP=Special | 2=900um | SA=SC/APC | 2=1.5m | 2=900um | SA=SC/APC | 2=1.5m | |
116=1x16 | tight buffer | LU=LC/UPC | 3=2m | tight buffer | LU=LC/UPC | 3=2m | ||
132=1x32 | 3=900um | LA=LC/APC | 4=3m | 3=900um | LA=LC/APC | 4=3m | ||
164=1x64 | loose tube | FU=FC/UPC | SP=Special | loose tube | FU=FC/UPC | SP=Special | ||
128=1x128 | 4=Φ2.0mm | FA=FC/APC | 4=Φ2.0mm | FA=FC/APC | ||||
204=2x4 | cable | SP=Special | cable | SP=Special | ||||
208=2x8 | 5=Φ3.0mm | 5=Φ3.0mm | ||||||
216=2x16 | cable | cable | ||||||
232=2x32 | SP=Special | SP=Special | ||||||
264=2x64 |
Fiber Splitter ABS Module Box with standalone structure, clearly fiber input and fiber out entrance, ABS PLC splitter can be used dircectly for splitting using.
Port | Fiber | Input Pigtail | Input Connector | Input Pigtail | Output Pigtail | Output | OutputPigtail | |
Length | Connector | Length | ||||||
PLC | 102=1x2 | 1=G657A | 1=250um | NE=None | 0=0.5m | 1=250um | NE=None | 0=0.5m |
104=1x4 | 2=G652D | Bare Fiber | SU=SC/UPC | 1=1m | Bare Fiber | SU=SC/UPC | 1=1m | |
108=1x8 | SP=Special | 2=900um | SA=SC/APC | 2=1.5m | 2=900um | SA=SC/APC | 2=1.5m | |
116=1x16 | tight buffer | LU=LC/UPC | 3=2m | tight buffer | LU=LC/UPC | 3=2m | ||
132=1x32 | 3=900um | LA=LC/APC | 4=3m | 3=900um | LA=LC/APC | 4=3m | ||
164=1x64 | loose tube | FU=FC/UPC | SP=Special | loose tube | FU=FC/UPC | SP=Special | ||
128=1x128 | 4=Φ2.0mm | FA=FC/APC | 4=Φ2.0mm | FA=FC/APC | ||||
204=2x4 | cable | SP=Special | cable | SP=Special | ||||
208=2x8 | 5=Φ3.0mm | 5=Φ3.0mm | ||||||
216=2x16 | cable | cable | ||||||
232=2x32 | SP=Special | SP=Special | ||||||
264=2x64 |
PLC splitter: Losses are not sensitive to the wavelength, spectral uniformity is higher, it is more compact and is lower cost with greater degrees of splitting.
PLC splitter is based on planar lightwave circuit technology. It composes of three layers: a substrate, a waveguide, and a lid. The waveguide plays a key role in the splittering process which allows for passing specific percentages of light. So the signal can be split equally. In addition, PLC splitters are available in a variety of split ratios, including 1:4, 1:8, 1:16, 1:32, 1:64, etc. They also have several types, such as bare PLC splitter, blockless PLC splitter, fanout PLC splitter, mini plug-in type PLC splitter, etc. Therefore, if high split counts are needed, small package size and low insertion loss are also required, you are suggested to choose PLC splitter rather than FBT splitter.
- Suitable for multiple operating wavelengths (1260nm - 1650nm).
- Equal splitter ratios for all branches.
- Compact configuration; smaller size; small occupation space.
- Good stability across all ratios.
- High quality; low failure rate.
PLC splitter: Losses are not sensitive to the wavelength, spectral uniformity is higher, it is more compact and is lower cost with greater degrees of splitting.
PLC splitter is based on planar lightwave circuit technology. It composes of three layers: a substrate, a waveguide, and a lid. The waveguide plays a key role in the splittering process which allows for passing specific percentages of light. So the signal can be split equally. In addition, PLC splitters are available in a variety of split ratios, including 1:4, 1:8, 1:16, 1:32, 1:64, etc. They also have several types, such as bare PLC splitter, blockless PLC splitter, fanout PLC splitter, mini plug-in type PLC splitter, etc. Therefore, if high split counts are needed, small package size and low insertion loss are also required, you are suggested to choose PLC splitter rather than FBT splitter.
- Suitable for multiple operating wavelengths (1260nm - 1650nm).
- Equal splitter ratios for all branches.
- Compact configuration; smaller size; small occupation space.
- Good stability across all ratios.
- High quality; low failure rate.
